Aftermarket Assassins '18-'22 Polaris RZR RS1 S3 Full Recoil Clutch Kit

Aftermarket Assassins '18-'22 Polaris RZR RS1 S3 Full Recoil Clutch Kit

Our S3 recoil clutch kits pack a huge punch! No matter the terrain, they hit hard and just keep pulling for days. On the trail or at the race you'll notice wicked acceleration and instant clutch response when getting back into the throttle after hammering that corner. In the dunes, you'll see the same benefits, but also have much less bogging when climbing that big dune. The machine will hold RPM so you can get where you need to go and get there faster! Going mudding? Our mud setup will help turn those tires through the thick and deep with much better RPM and wheel speed that's key to climbing out of that hole. We have a huge amount of CVT knowledge, a great passion for the sport, and spent many hours testing different setups in the real world. We know you'll be extremely pleased with the performance gained from our clutch kits!

S3 kits include our custom-cut helix which will give you better power to the wheels because of the angle change which directly relates to how hard we shift the secondary clutch. Factory helixes start off steep, then go shallower on the top end. In our testing, we found this to be too drastic of a change and picked up some big performance by changing this angle.

Our Recoil clutch weights are easily adjustable with simple magnets. They have a custom AA profile, the BEST coating on the market(nitrocarburizing) which has increased wear resistance, improved fatigue strength, and added surface lubricity. These clutch weights also offer great performance, and the ability to tune for many different applications or modifications in the future, without the need to buy extra parts. The magnetic weights are the best option to properly place the mass where we need it on the weight for the best performance for your application.

Performance Helix 1031: The performance angle is what 90% of users will want. It offers great power transfer to the wheels that will take off and keep pulling hard. Use this with tires 27" to 32" and you will adjust the weights to make up for different tire sizes.

High Load Helix 1021: If you are using very large tires, the high load helix might be the choice for you. The high load helix is recommended for those turning 34" tires, or 31-32" paddles. The high load helix can be used with any tire size 29" and greater if you are just after belt life, and performance is not your priority. The performance angle can still be used with the larger tires and paddles if all-out performance is what you are after, just keep in mind belt life will be less than with our high load setup.

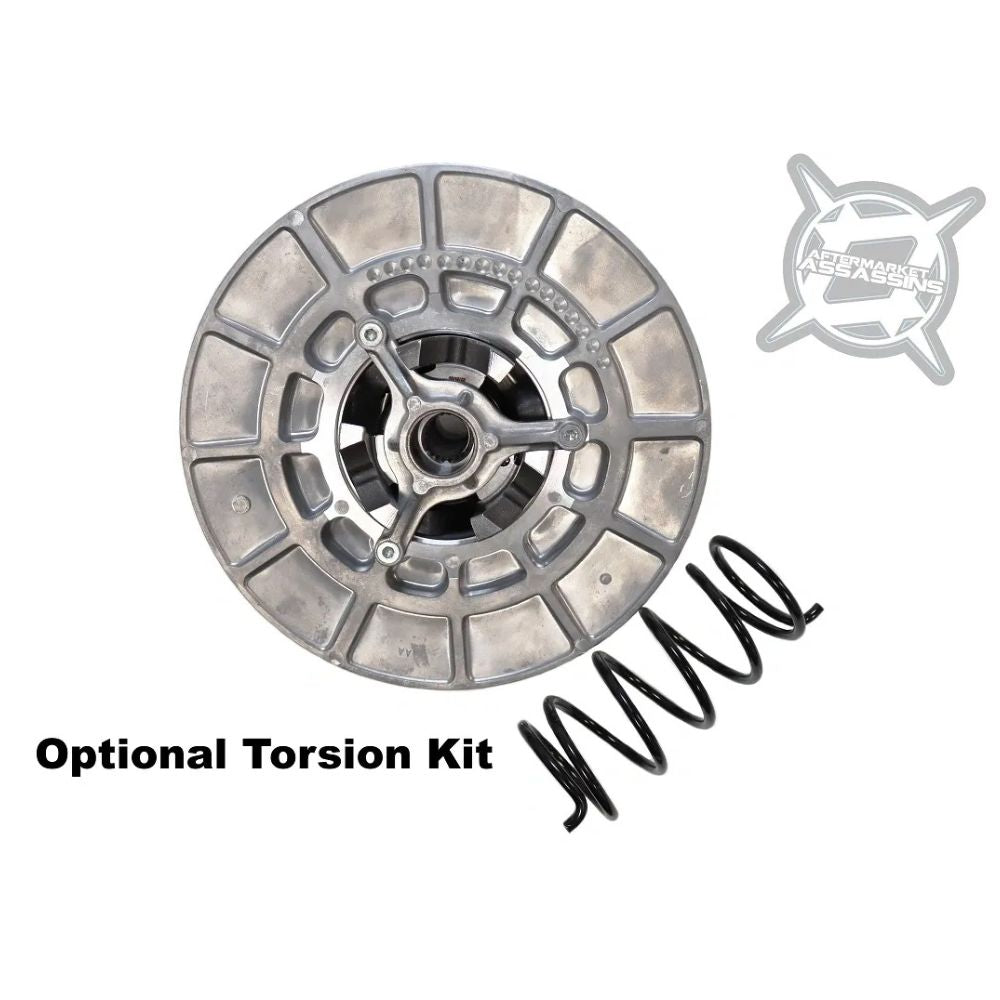

Torsion Anti-Chatter Kit: Upgrades to a complete secondary converted to a Torsion style spring and helix. The main benefit is better belt grip with the Torsion spring that gains rate as it shifts. Constant pressure against the helix buttons for less annoying secondary clutch chatter which also extends the life of the buttons. You'll also notice smoother engagement which is excellent for those crawling. Secondary bushing comes peened over to prevent walking out. The Torsion kit slightly limits top speed and should be used with the AA primary clutch limiter. 80-85 MPH top speed for most models.

Features:

• Choose the trail or race kit. Trail kits have a smooth engaging spring, while race kits have a higher and more harsh engagement for better holeshots

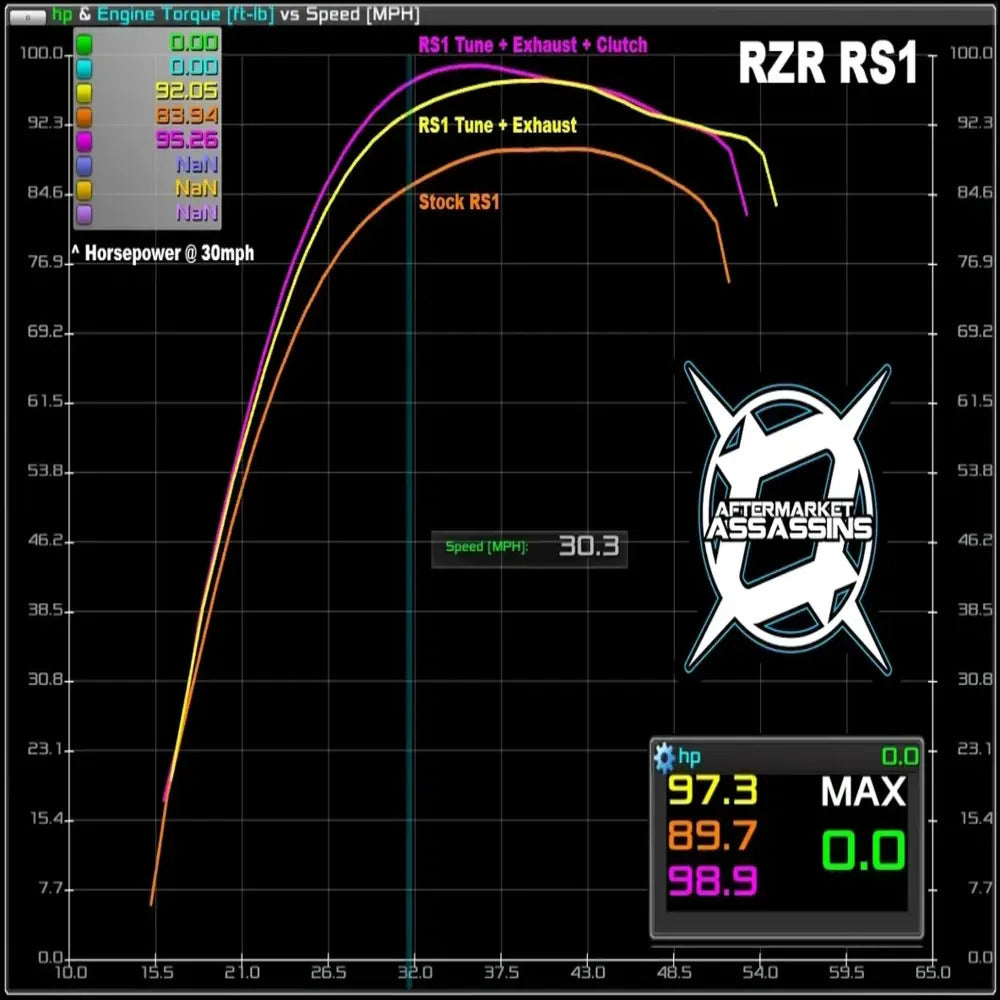

• Consistently gained 2-3 RWHP and brought the power on quicker
• Kits work great with both stock or modified machines
• A must-have when tuning your RS1
• A must-have when running larger tires or paddles
• Huge acceleration gains
• Wicked throttle response when on & off the throttle
• More efficient power transferred to the wheels
• More consistent clutch performance
• Cooler running belt temps (especially when running larger tires or paddles!)
• Longer belt and clutch life
• Easily adjustable if needed

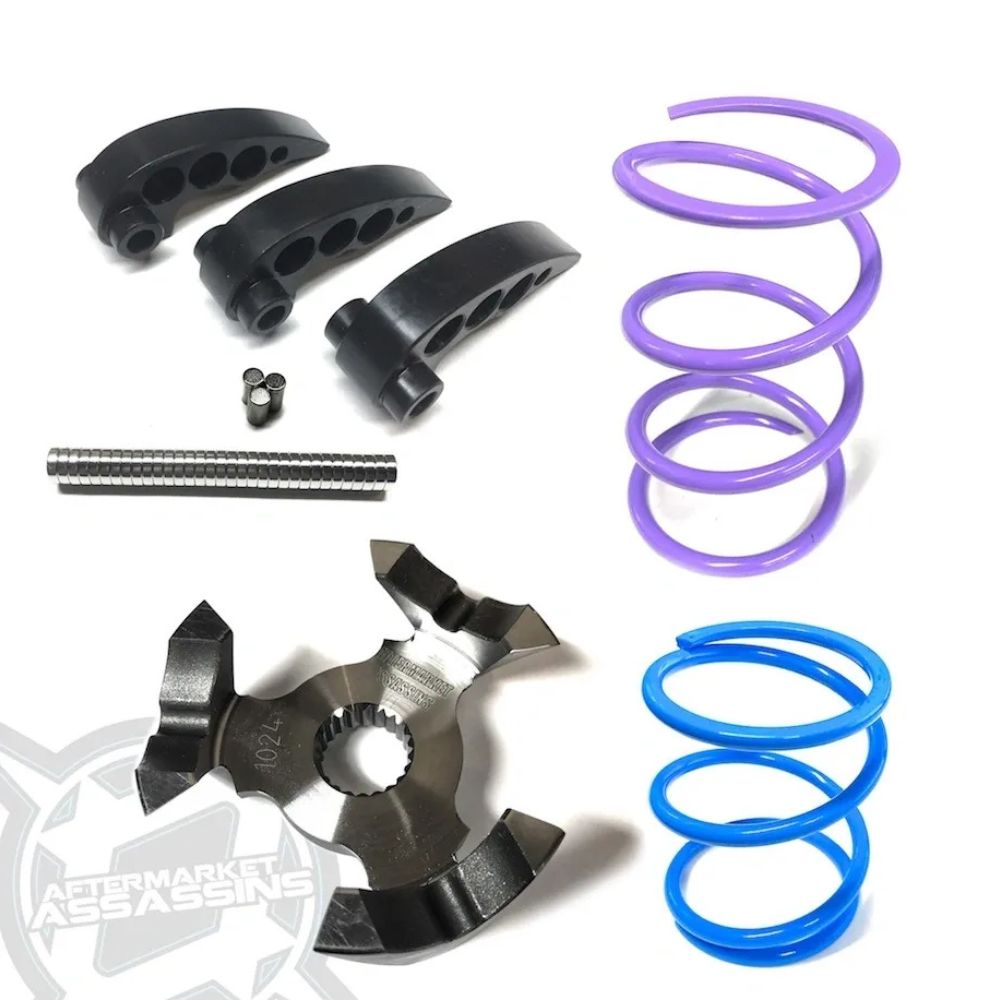

Kit Includes:

• AA Recoil magnetic adjustable clutch weights
• Primary Spring
• Secondary Spring
• AA custom helix & setup guidelines/instructions

Installation Instructions:

• Full Recoil Clutch Kit

Note:

• Will Not fit with the AA Primary Clutch Fan Blade

Fitment:

• Fits all 2018-22 RS1 models
