SuperATV Kawasaki Teryx KRX 1000 6" Single Portal Gear Lift

SuperATV Kawasaki Teryx KRX 1000 6" Single Portal Gear Lift

Gen 3 Portals Are Geared for All
We believe a side-by-side should be as unique as the rider who owns it. That’s why we like to give you options when it comes to customizing the way you ride. When you get SuperATV’s GDP 4” Portal Gear Lift for your Kawasaki Teryx KRX 1000, you get to pick your level of gear reduction (15% or 30%), style of housings (cast or billet aluminum), and single or dual idler gears. It doesn’t matter what kind you choose—if it says GDP, you know it’s the best.

GDP—the Most Trusted Name in Portals
More riders turn to SuperATV for their portal needs than anyone else in the industry. That’s because we know our stuff. We’ve invested more time and money in designing portal gear lifts than any other manufacturer in the industry. Thanks to industry-leading technology and countless hours of field and lab testing, we’re able to deliver exactly what you need to take your ride to the next level.

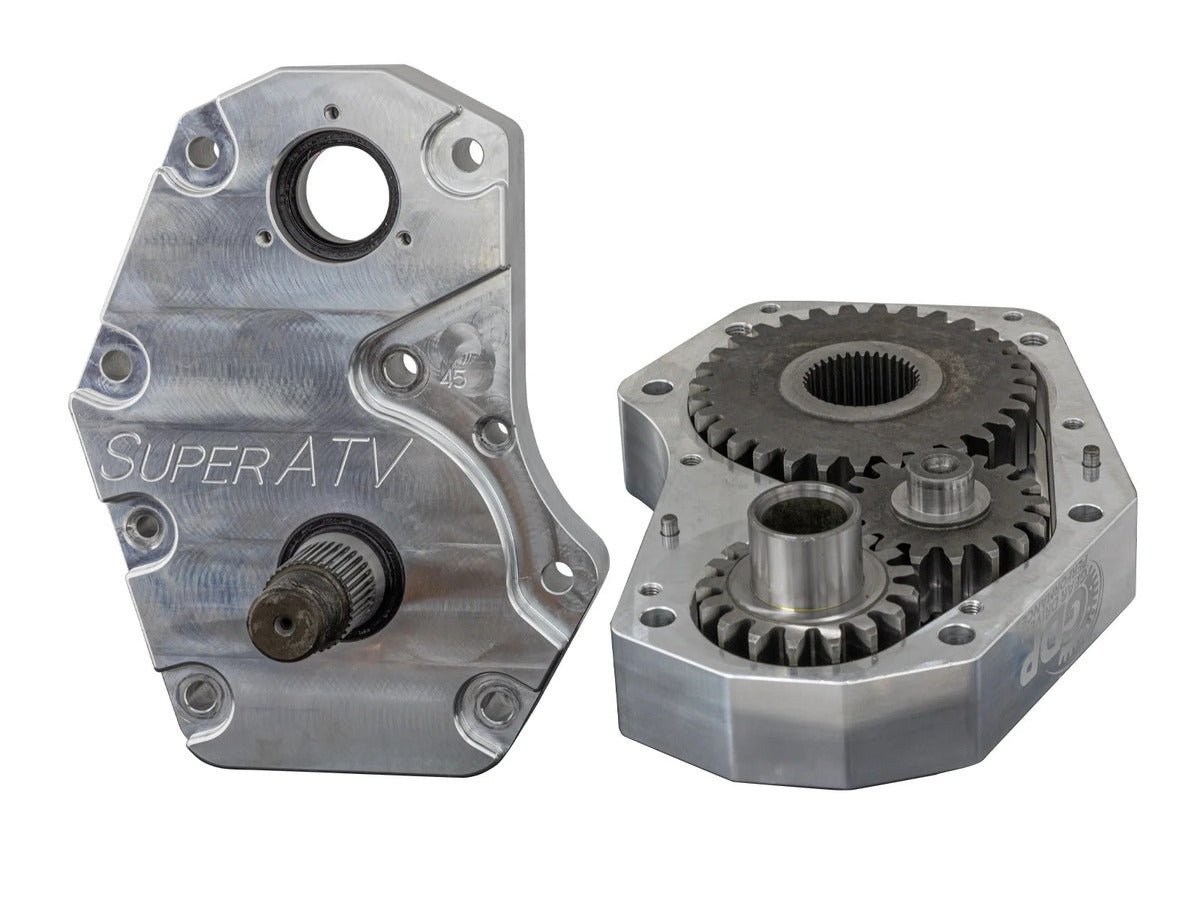

You Need Dual Idlers
To get the most out of your portals, you want dual idler gears. Adding a second idler gear distributes the load over twice as much surface area, giving consistent torque transfer and unparalleled strength. Our gears are made with CNC-ground 9310 alloy steel to ensure maximum efficiency and perfect mating.

Perfect for Mud

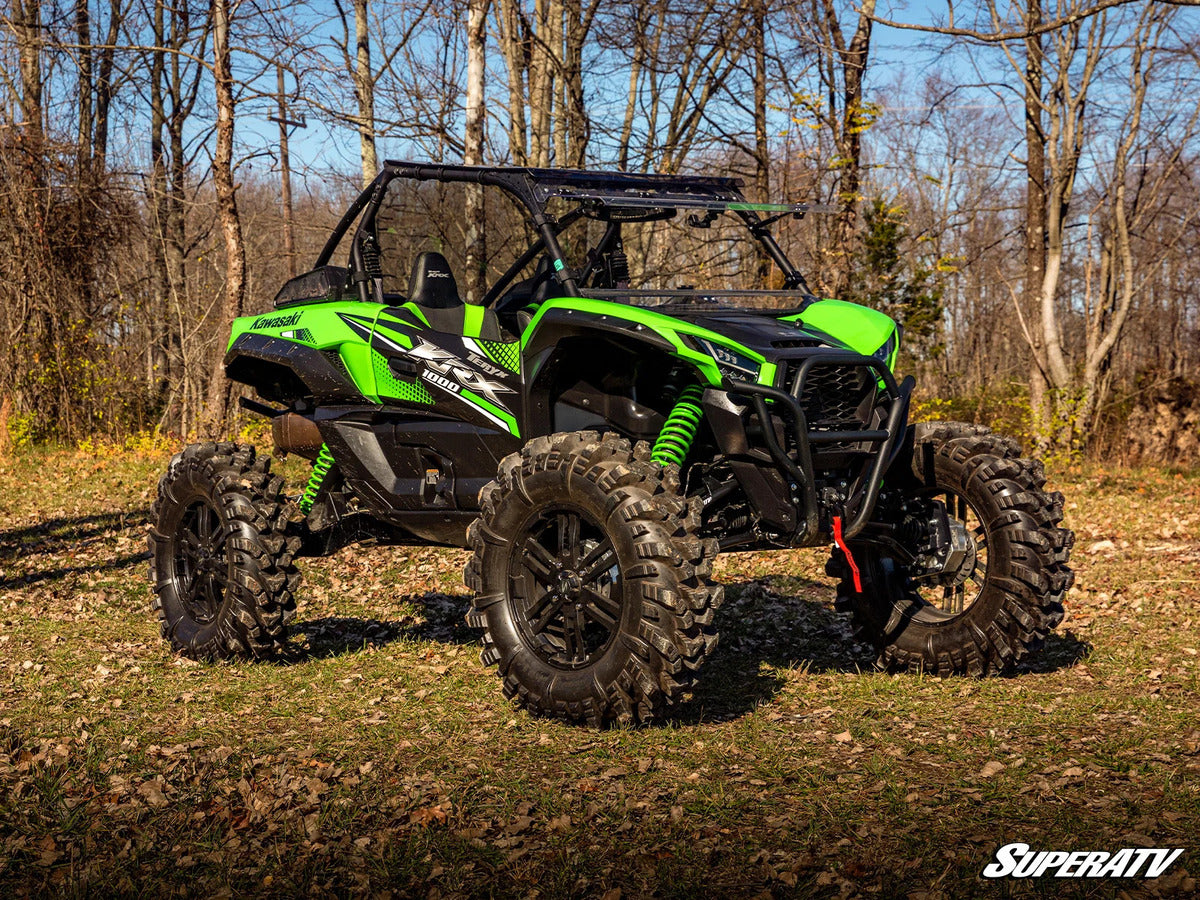

Some things are just made to go hand in hand—peanut butter and jelly, biscuits and gravy, and portals and mud, to name a few. You haven’t experienced mud in your side-by-side until you’ve done it on a portal gear lift. The 4” lift keeps you from getting swamped and gives you room for bigger tires, and the torque boost makes cutting through thick mud a piece of cake

A Gear Reduction That Protects Your Drivetrain
Portal gear lifts put the gear reduction directly in the hub, which is good news for your drivetrain. This placement greatly reduces the amount of stress placed on your axles, differential, prop shaft, and transmission. Because portals don’t make those parts work overtime, they’ll last longer—which saves you money in the long run. You’re welcome.

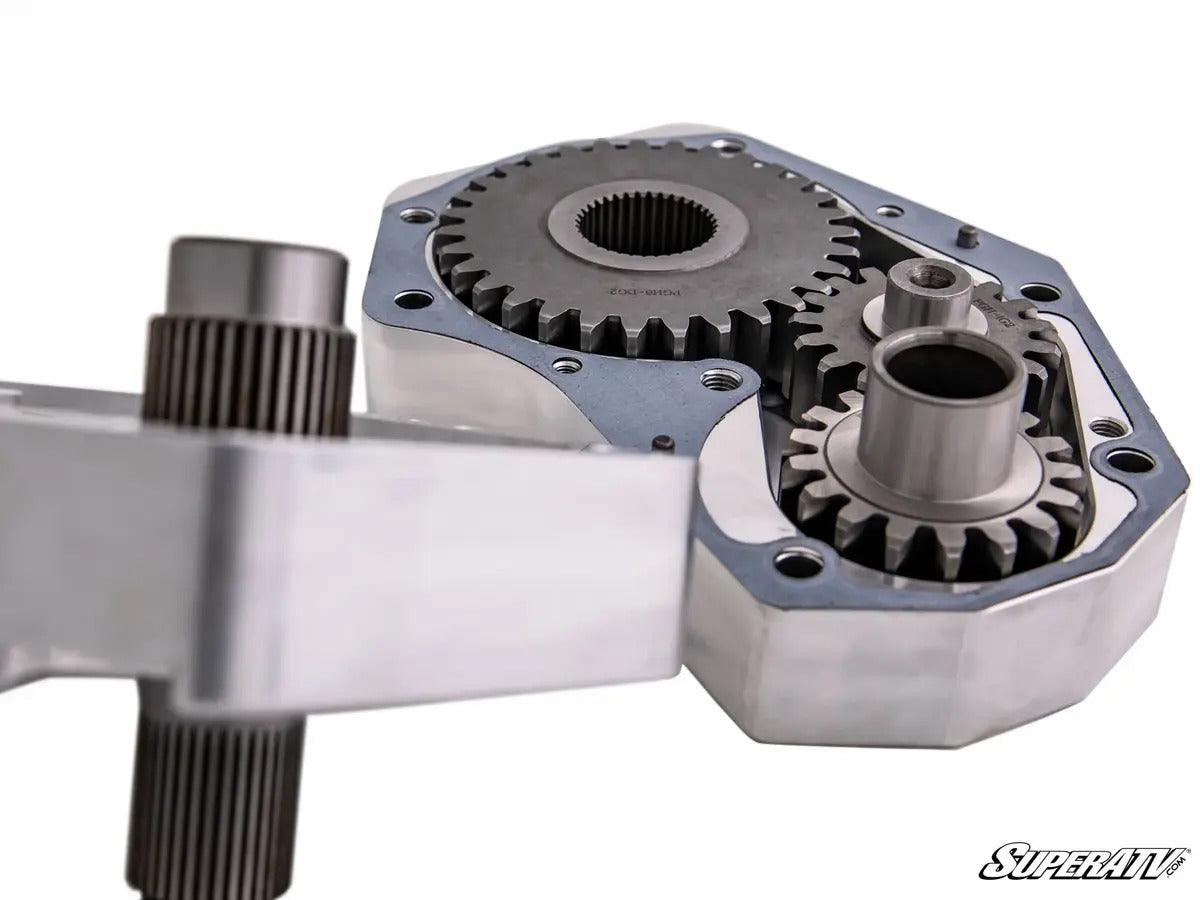

Unmatched Gear Material
Good gears keep your portal gear lift running flawlessly, so we use the best. Our portals contain premium, top-of-the-line gears made from a strong 9310 alloy steel. They’re precision ground to ensure perfect mating and quiet operation. So go ahead and get wild—these gears will deliver a smooth ride no matter what.

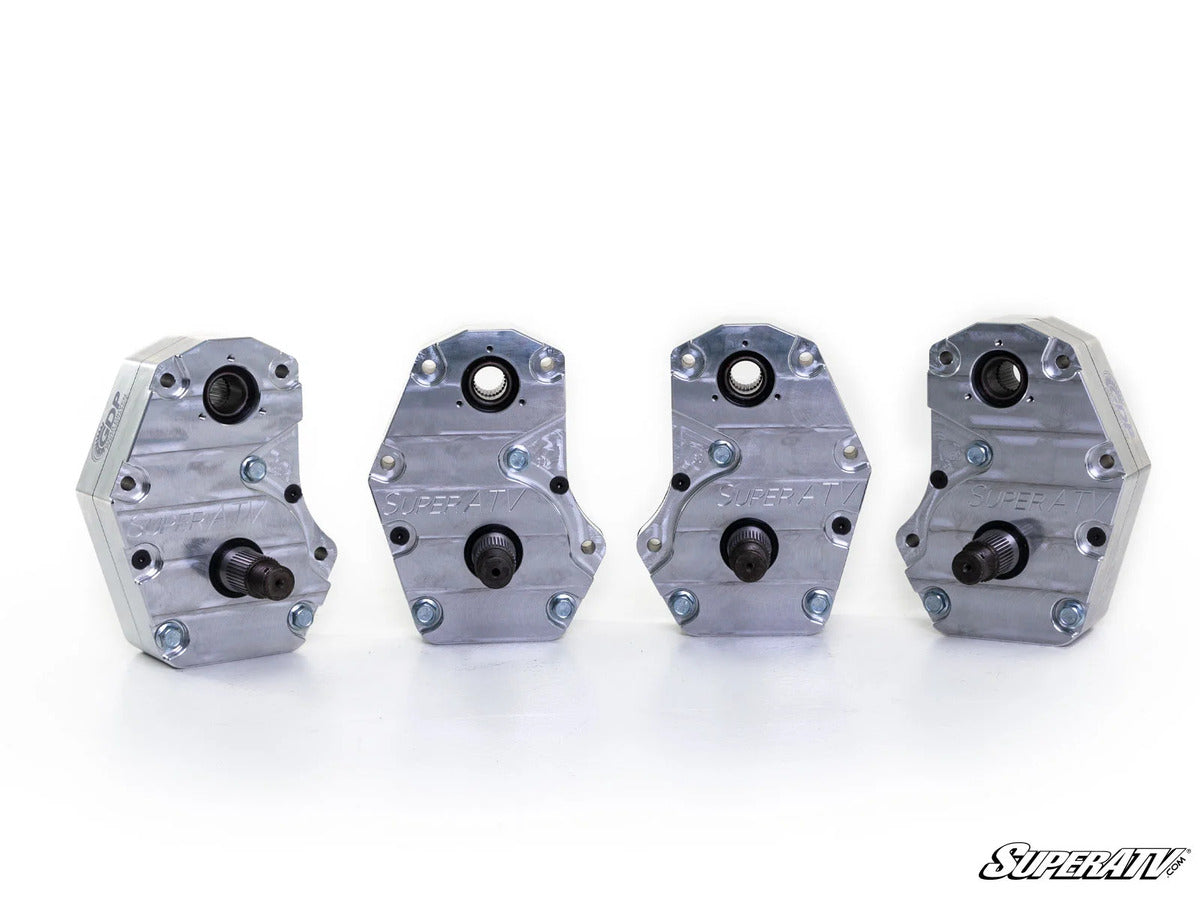

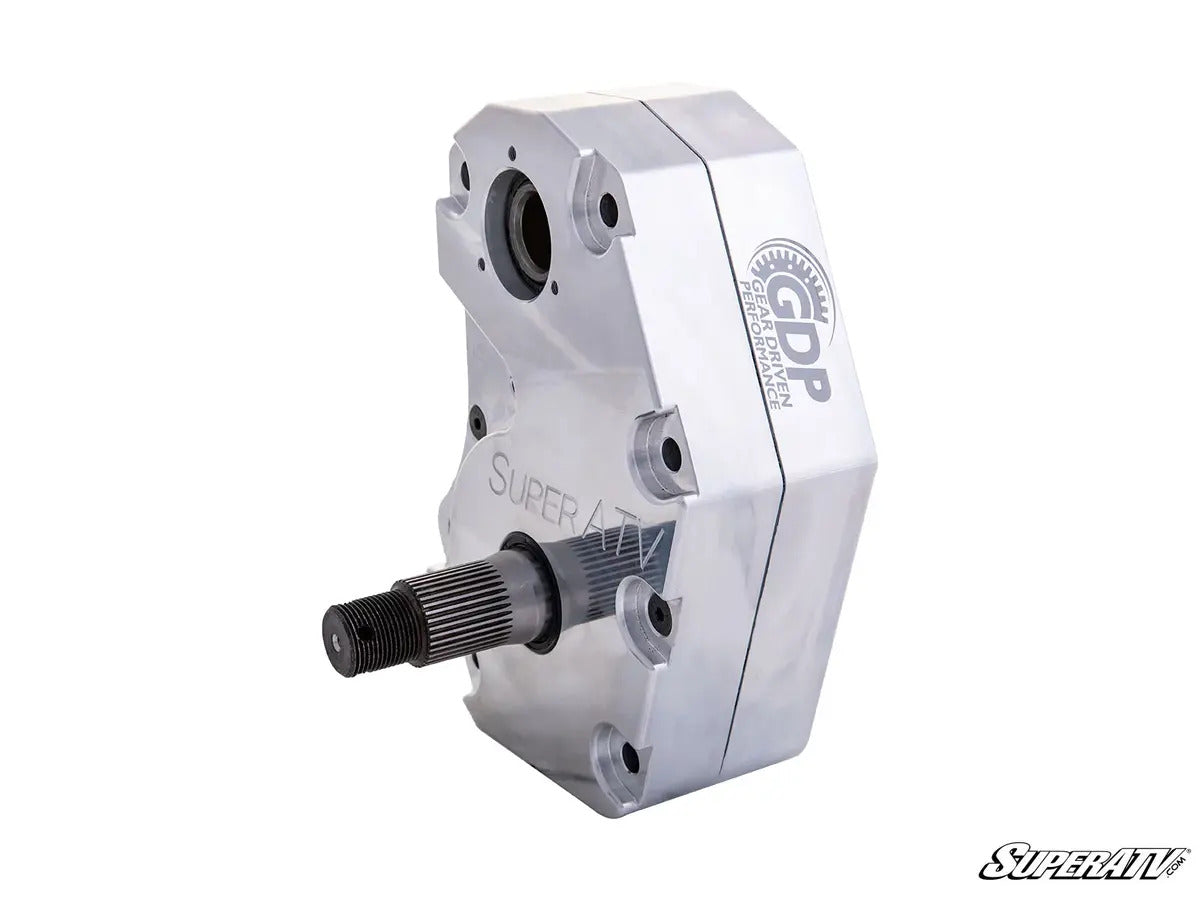

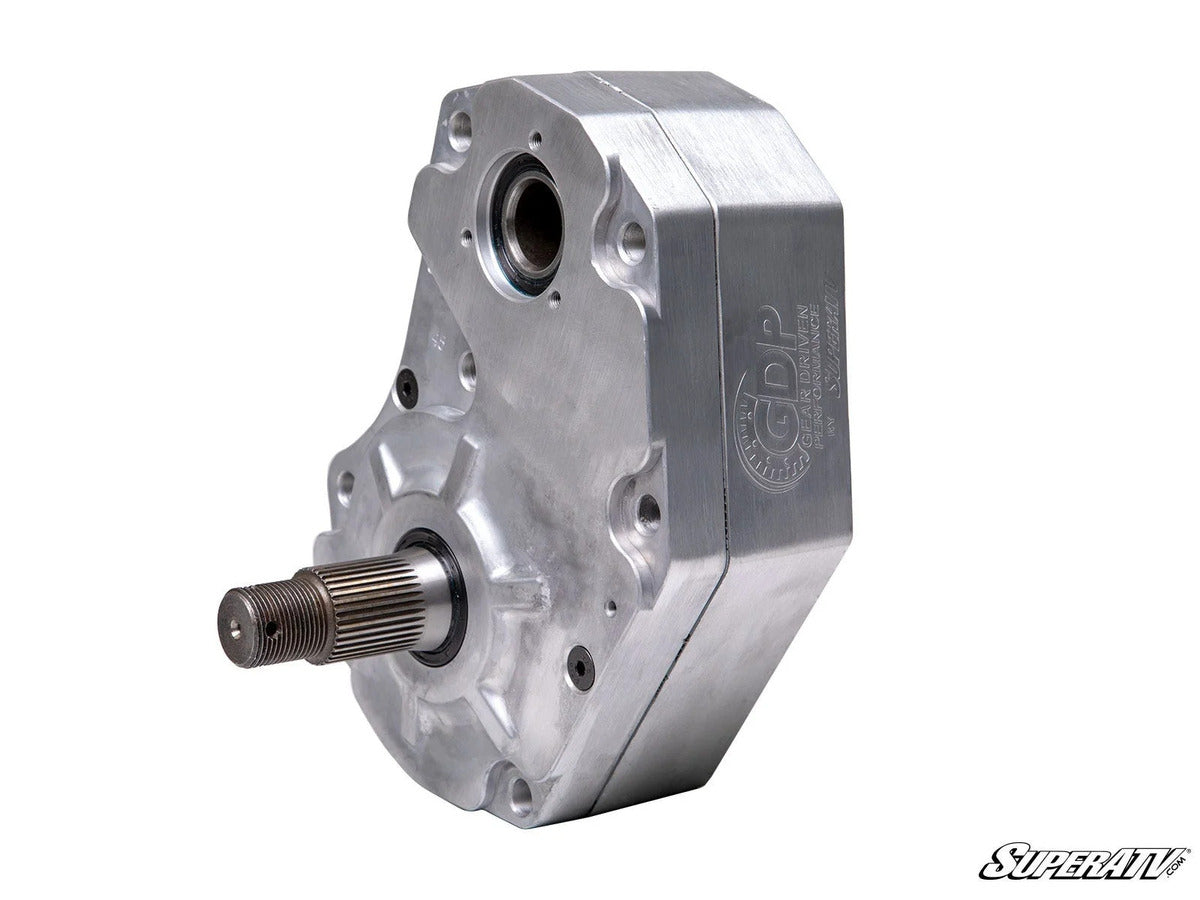

Stronger Housings by Design
Another crucial component of a portal gear lift is the housing. It’s what keeps everything safe and protected on those rough rides. Quality housings aren’t easy to manufacture, but lucky for you, we’ve done our research. We’ve been making portal housings for years and now we’re proud to give you two unbeatable options: cast or USA-made 6061 billet aluminum with a sleek CNC-machined finished. You can’t go wrong either way.

• Our housings are reinforced in all the right places
• They’re built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

The Strongest Portal Backing Plates You Can Get
Like everything else related to GDP portals, our backing plates are anything but standard. They’re made of an advanced steel alloy that’s specialized for use in ultra-high force applications. With a thickness of 5/16” and strength more impressive than chromoly, these backing plates are prepared for anything.

Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Bearings That Rock
Our bearings keep your portal gear lift running smoothly through all conditions. Incredibly strong roller bearings hold the idler gear in place, absorbing all that internal pressure. And because the output bearing takes the most force, we utilize a double-angular contact bearing. All in all, these bearings are designed to keep your portals running for miles without fail.

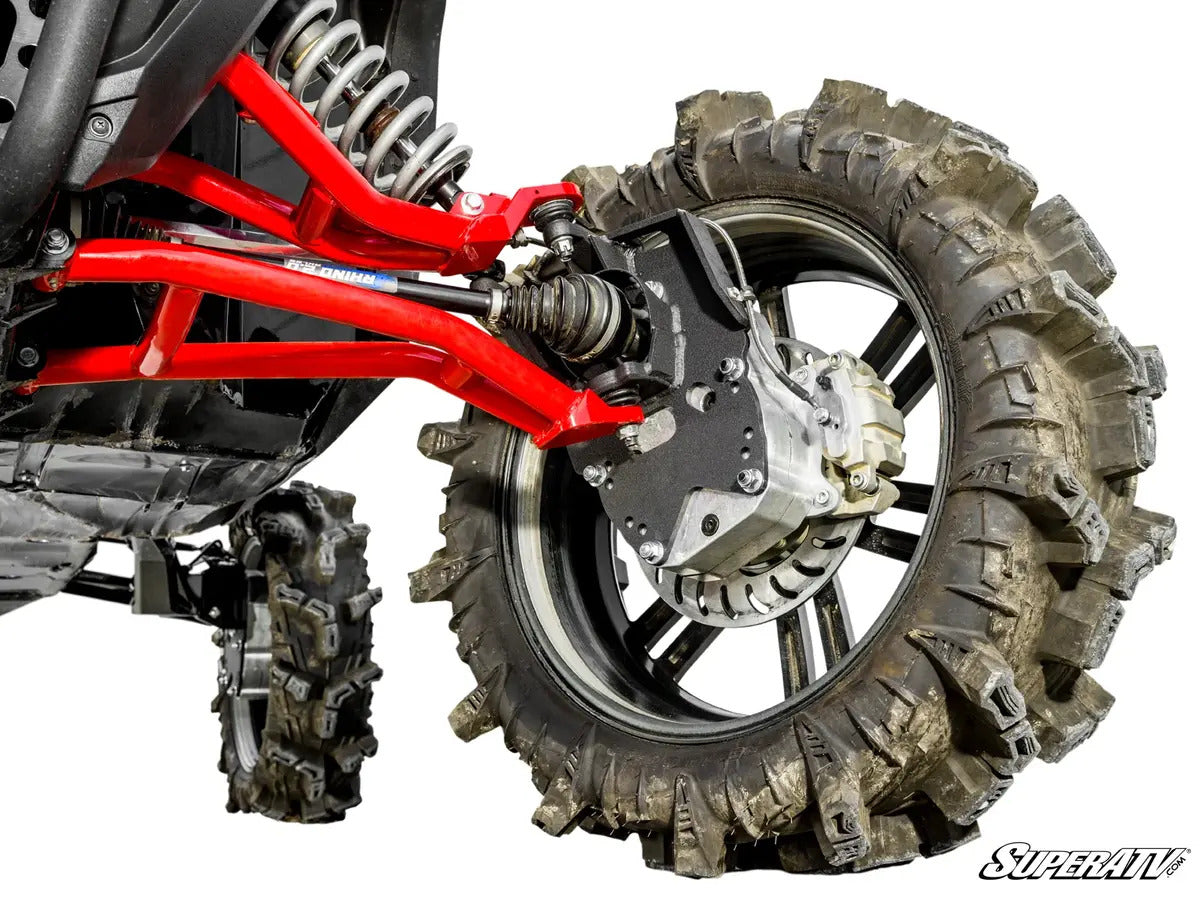

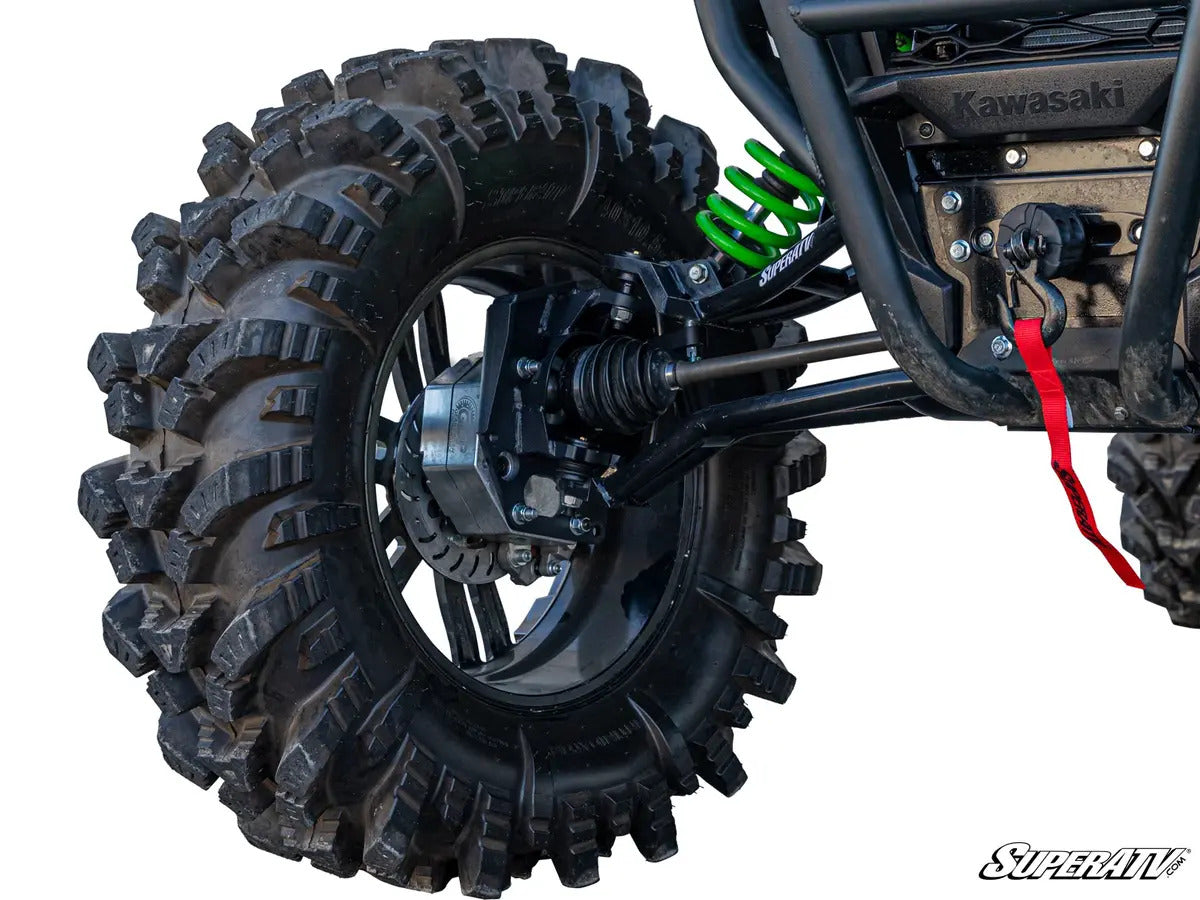

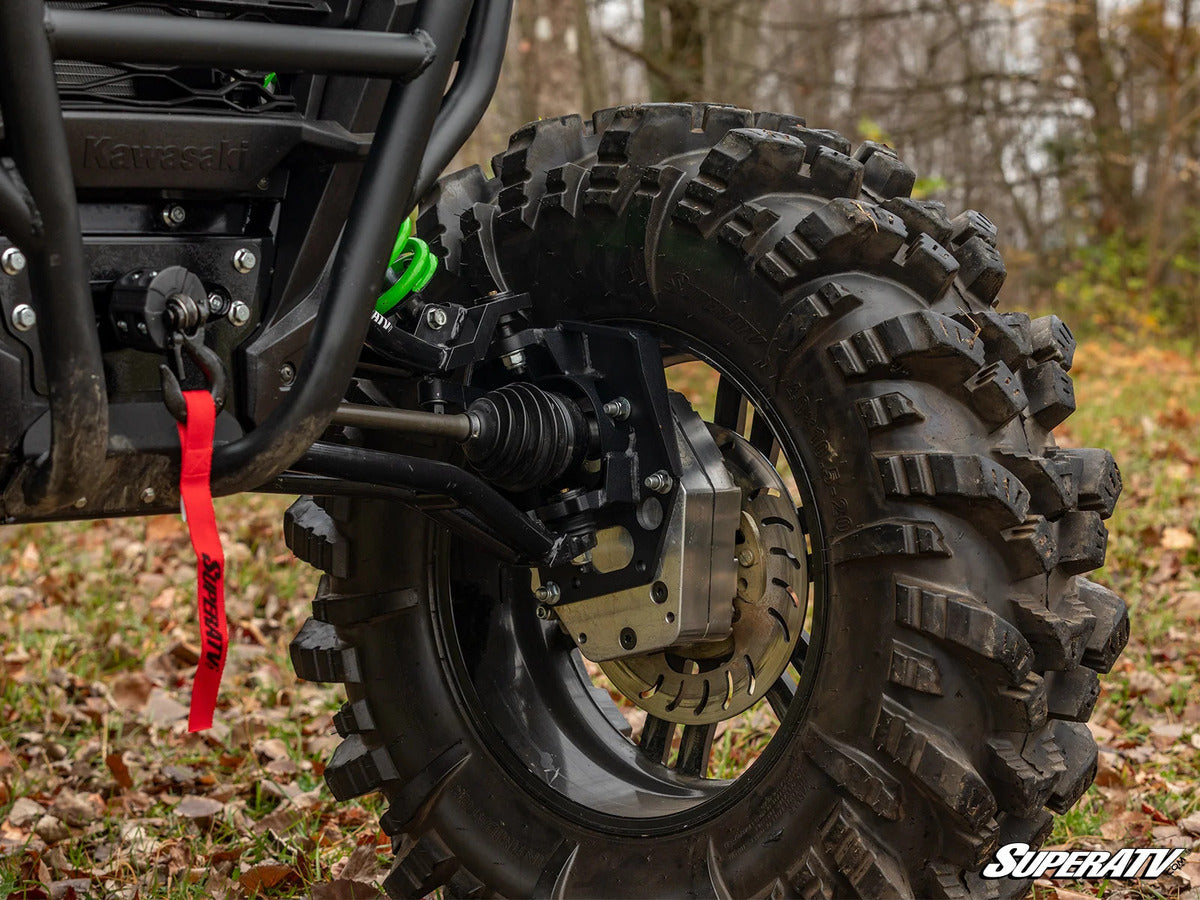

Universal Hubs and Slotted Rotors
All GDP portals utilize precision-ground, stainless steel slotted rotors. They’re designed to stay cool and deliver the braking power you need, exactly when you need it. Our universal hubs come with 4/156, 4/137, 4/115, and 4/110 bolt patterns and lugs, allowing you to run just about any side-by-side wheel under the sun. We also invented the tapered output shaft that attaches to our hubs. It gives you a more secure lock that won’t start to wobble over time.

Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

Features:

• Available with billet or cast aluminum housings
• Cool, quiet, precision-ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel driveshaft
• Housings use advanced gaskets that don’t let anything through
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain
• Weighs 224 lb. total, which is 25+ lb. lighter than the competition


6” Portal Gear Lift Kit Includes:

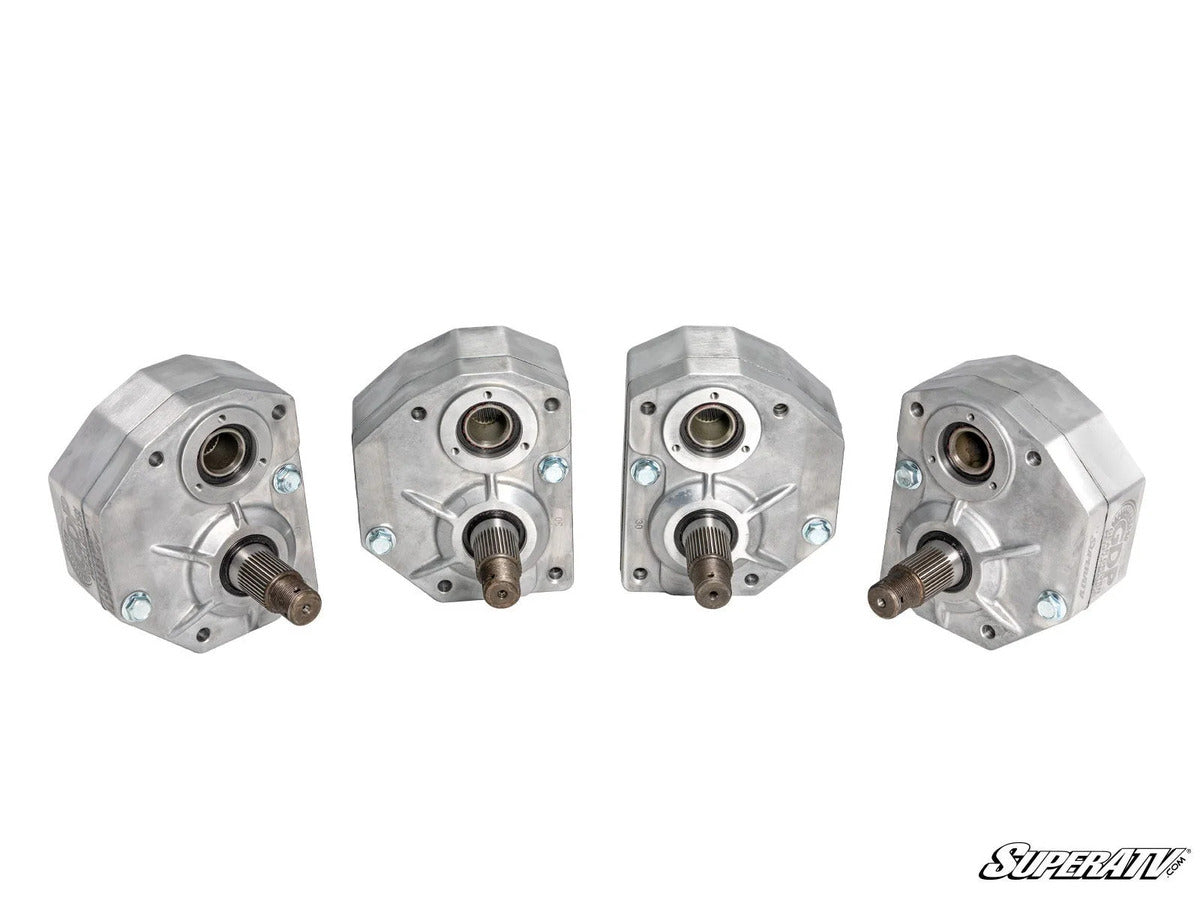

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings.
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates with spacers
• (2) Steel steering arms
• Extended brake lines with parking brake and brake cable brackets
• All required hardware, including recessed castle nut socket

Fitment:

• Kawasaki KRX 1000 : 2020+
• Kawasaki KRX 4 1000 : 2023+

Installation Instructions:

• Instructions - PGH6-4-88-451
• Instructions - PGH6-4-88-452
• Instructions - PGH6D-4-88-451
• Instructions - PGH6D-4-88-601
