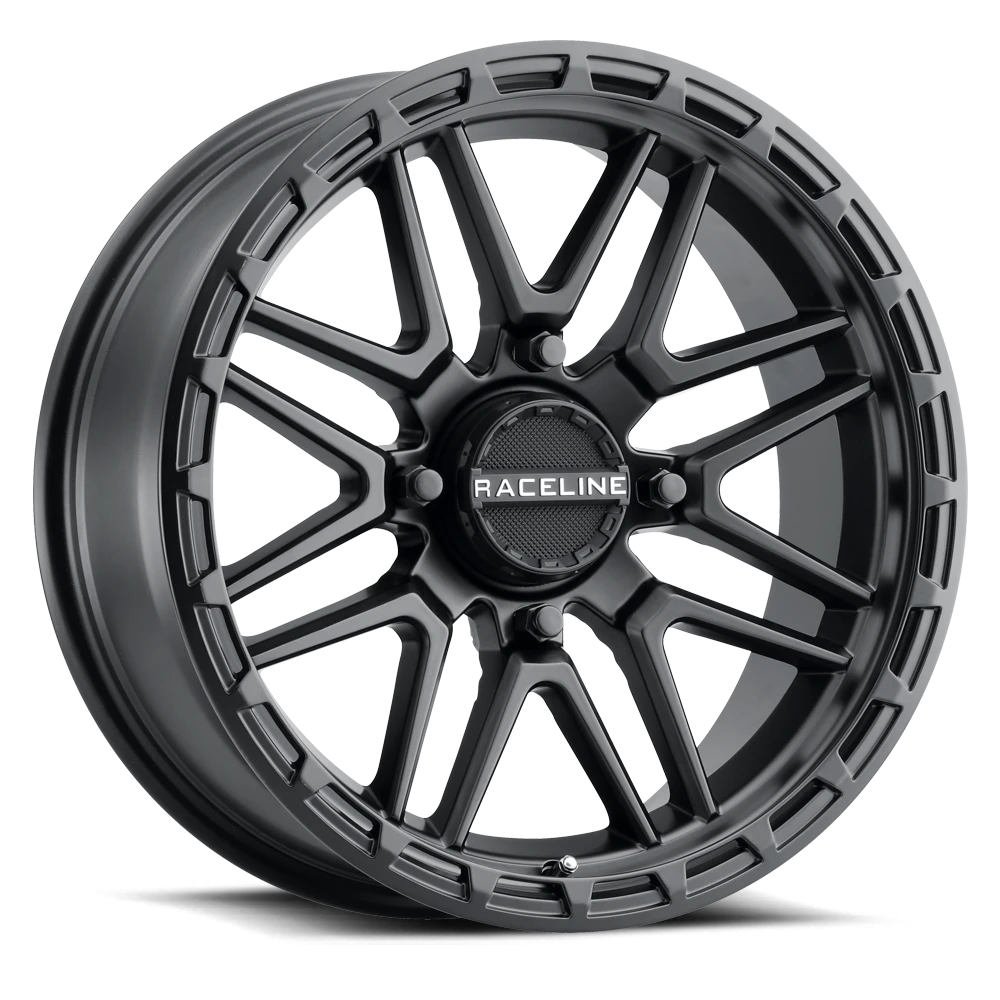

Raceline A11B Krank XL
- The Krank XL is an split V-spoke design with a simulated bead ring feature that is undercut to allow water and debris drainage
- Constructed out of heavy duty A356 aluminum
- Engineered to be one of the strongest wheels available on the market
- Available in Red with Satin Black bead ring and all Satin Black
- Includes a satin black snap-in cap with embossed chrome Raceline logo
- Available in both 18x7, 20x7 and 22x7 for most UTV bolt patterns
- US Patent #D906,920 S
Item Number | Size | BOLT PATTERN (mm) | Offset | Hub Bore | Load Rating | Center Cap | Weight |
---|---|---|---|---|---|---|---|
A11B-87037-00 | 18X7 | 4X137 | 0 | 110.18 | 1000 | CPR-A82-156 | 21 |
A11B-87056-00 | 18X7 | 4X156 | 0 | 132.5 | 1000 | CPR-A82-156 | 21 |
Item Number | Size | BOLT PATTERN (mm) | Offset | Hub Bore | Load Rating | Center Cap | Weight |
---|---|---|---|---|---|---|---|
A11B-20737-00 | 20x7 | 4X137 | 0 | 110.18 | 1000 | CPR-A82-156 | 25 |
A11B-20756-00 | 20x7 | 4X156 | 0 | 132.5 | 1000 | CPR-A82-156 | 25 |
Item Number | Size | BOLT PATTERN (mm) | Offset | Hub Bore | Load Rating | Center Cap | Weight |
---|---|---|---|---|---|---|---|
A11B-22737-00 | 22x7 | 4X137 | 0 | 110.18 | 1000 | CPR-A82-156 | 28 |
A11B-22756-00 | 22x7 | 4X156 | 0 | 132.5 | 1000 | CPR-A82-156 | 28 |
