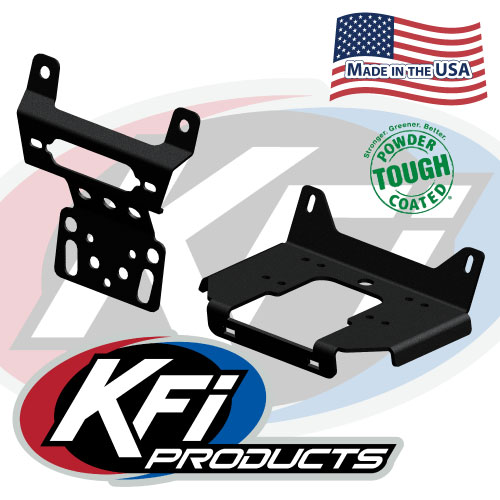

KFI Polaris RZR 900/1000/Turbo Winch Mount
"KFI" Winch Mount for the following Polaris's:
Polaris RZR | Years |
RZR 4 900** (EPS) | '15-17** |
RZR 900 (Base/EPS/XC/Premium/FOX/Trail) | '15-20 |
RZR S 1000 (Base/EPS) | '16-19 |
RZR S 900 (Base/EPS) | '15-19 |
RZR S4 1000** | '19-20** |
RZR S4 900** (EPS) | 2018** |
RZR Trail 900 (Premium/Sport/Ultimate) | '20-23 |
RZR Trail S 1000 (Base/Premium/Ultimate) | '20-23 |
RZR Trail S 900 (Base/Premium/Sport) | '20-23 |
RZR XP 1000 (Base/EPS/High Lifter/Premium/Ride Command/Trails & Rocks/LE/Sport) | '14-23 |
RZR XP 4 1000** (Base/EPS/High Lifter/Premium/Ride Command/Dynamix/LE) | '14-23** |
RZR XP 4 Turbo** NOTE A (Base/EPS/Dynamix/FOX/LE) | '16-21** |
RZR XP Turbo NOTE A (Base/EPS/Dynamix/FOX/LE) | '16-21 |
Polaris General | Years |
General 1000 (Base/EPS/Deluxe/Premium/Sport/HE/RC/LE) |
'16-22 |
General 4 1000 (Base/EPS/Deluxe/RC) |
'17-22 |
General XP 1000 (Base/Deluxe/PE) |
'20-23 |
General XP 4 1000 (Base/Deluxe/PE) |
'20-23 |
** = Requires the purchase of #UTV-WEK (wire extension kit) Due to location of battery on RZR.
NOTE A = Does not work with Warn AXON winch models
Direct replacement for #101700 & #101705
Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: AS-50 / AS-50w
- WARN: AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: RT40 / XT40
- WARN: Vantage 2000-4000lb
- WARN: ProVantage 2500-4500lbs
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 / PE5000
- BADLAND: Standard Winches (Click Here for Details)
- BADLAND: WIDE Winches (Click Here for Details)
- CHAMPION: Standard Winches (Click Here for Details)
- CHAMPION: WIDE Winches (Click Here for Details)
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- SMITTYBILT: XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up
- All with 3.00" x 6.600" bolt pattern mount-up
- Traveller: 1078311
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- QUADBOSS: RP25 / RP35
Specifications:
- 100% MADE IN USA
- Constructed of 3/16" steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- Roller fairlead and winch not included
