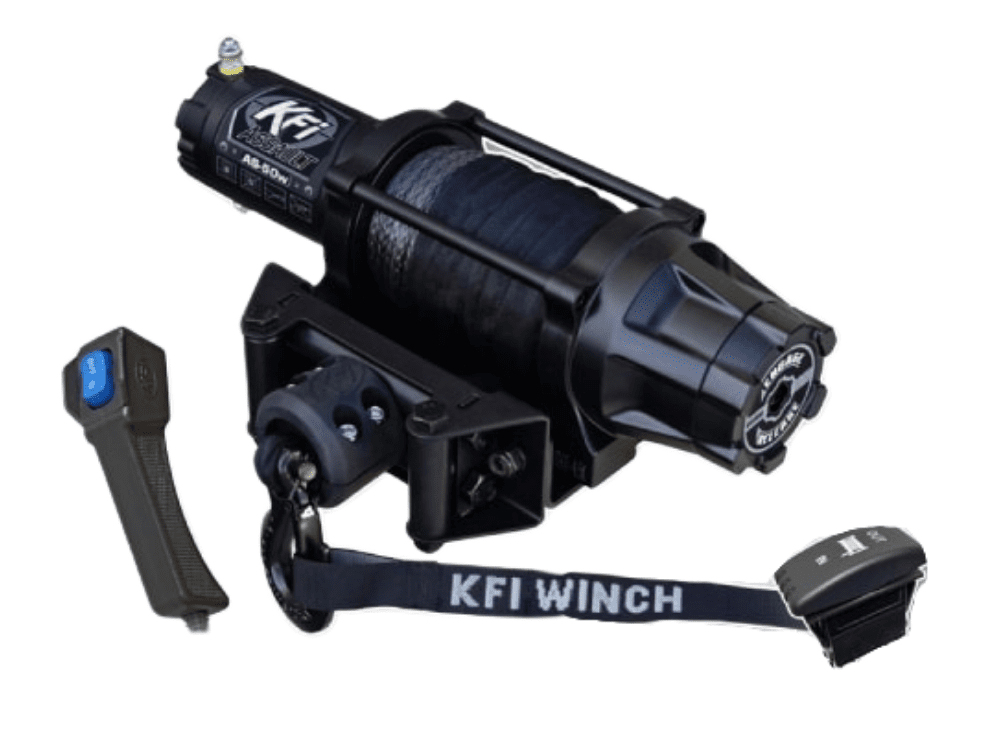

KFI 5,000LB Wide Spool Assault Series Winch / Synthetic Cable

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This WIDE 5000lb ASSAULT Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI Two Year Limited Lifetime Warranty. The KFI AS-50W Assault Winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

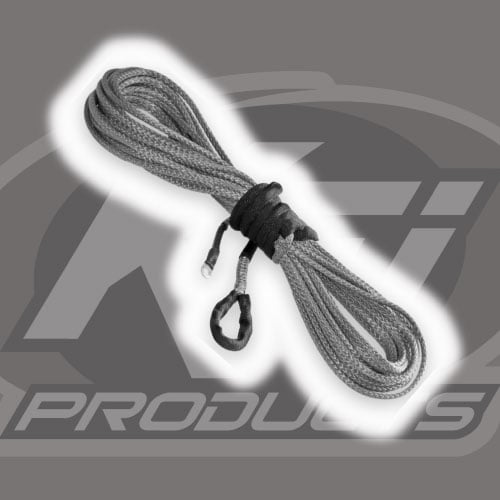

50' Synthetic Cable with 5' protective sheath and end loop

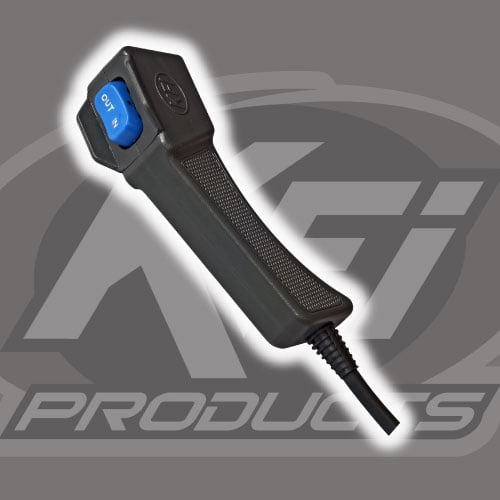

Also included is a Handheld 14' Corded
Remote for those situations when you need
to control your winch from a distance or
dismounted from your machine. This compact
high quality remote offers a more reliable
control than the other wireless options.
Included is a socket plug and play wiring
system so that you can store your remote
when not in use.

Take control of your winch with the included
UTV Dash Rocker Switch. It comes with the switch
and the wiring harness with a plug for easy install.
The dash rocker also comes with a blue led light inside
to light up your dash at night. This rocker switch allows you
to control your winch with just the touch of your finger,
never having to fully let go of your steering wheel.

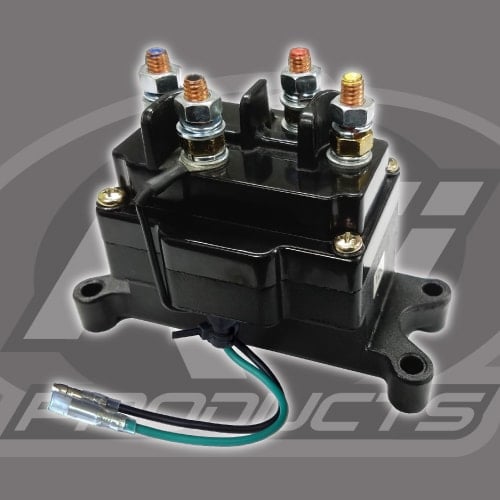

The all New #AS-CONT Heavy Duty Electric
Contactor protects your ATV's electrical system
and switches the power distribution of your winch
that is controlled by your switches.

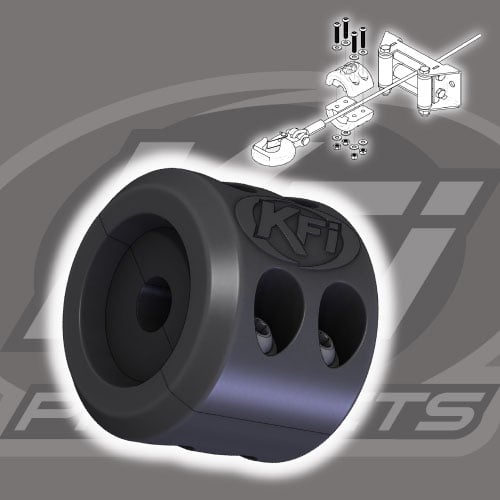

The included Cable Hook Stopper
with the following benefits:

- Eliminates wear and tear on your rollers from the hook which can cause cable wear.
- Eliminates hook clatter from going down the trail.
- Protects the winch motor and gears from pulling the cable into far and bottoming out on the rollers.
- Keeps tension on the hook to eliminate the cable becoming loose.
- Also has slits designed in it to work as an anti-kick back for the cable if your cable was to snap.
- Looks great.
- Once you have one, everyone else that you ride, with will want one :)

Specifications:

Suggested Retail: $482.95

Model: AS-50W Series
Rated Line Pull: 5000 lbs.
Motor: 12V DC, 1.22 hp Permanent Magnet
Gear Ratio: 180:1
Gear/Transmission: All-metal Planetary Gear Drive
Brake: Dynamic and Mechanical
Clutch (free spooling): All Metal Cam Activated Freespool
Drum Size: 1.75" (D) x 3.19" (L)
Synthetic Cable: 15/64" (D) x 50' (L) Smoke color
Fairlead: Multi-directional POM Roller
Control: Deluxe Dash-Mounted Dash-Rocker Control Switch
and a Heavy Duty Corded Remote Switch
Winch Dimensions: 15.63" L x 4.45" D x 4.76" H
Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
Mounting Bolt Pattern: 3.00" x 6.60" (4-Hole)
Recommended Battery : 12 Amp/hour minimum
Warranty: Two Year Limited Lifetime
Winch Weight: 27.8 lbs. (complete kit)
