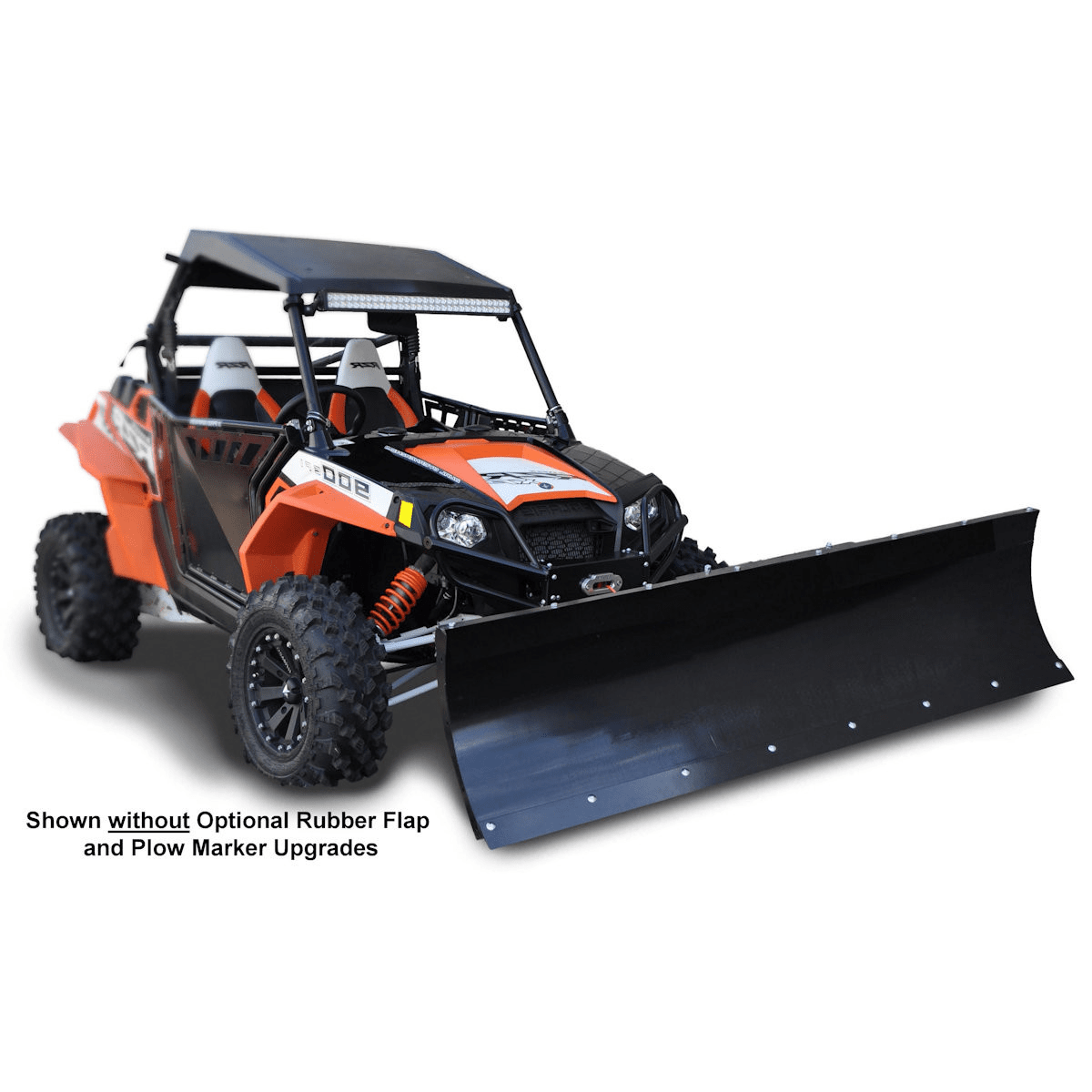

DENALI UTV Snow Plows are made to handle the toughest conditions and hold up against sand, snow, and ice. With a 65-degree attack angle and over-center design, the heavy-duty plow blade ensures snow rolls up and is thrown forward. The central mounting position of the plow kit disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact. Our easy-connect design makes for a quick attachment of the plow to your UTV for when the snow begins to fly. Then, when winter draws to a close, take the plow back off in a matter of minutes. The durable snowplow mount plate is specifically engineered to fit the frame of your UTV and can remain on your vehicle year-round.

Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend our VIPER Elite, VIPER Max, or VIPER Midnight winches.

Kit Contents:

• UTV Snow Plow Blade - Straight
• Pushtubes
• Wearbar
• Skid Feet
• Installation Hardware and Instructions

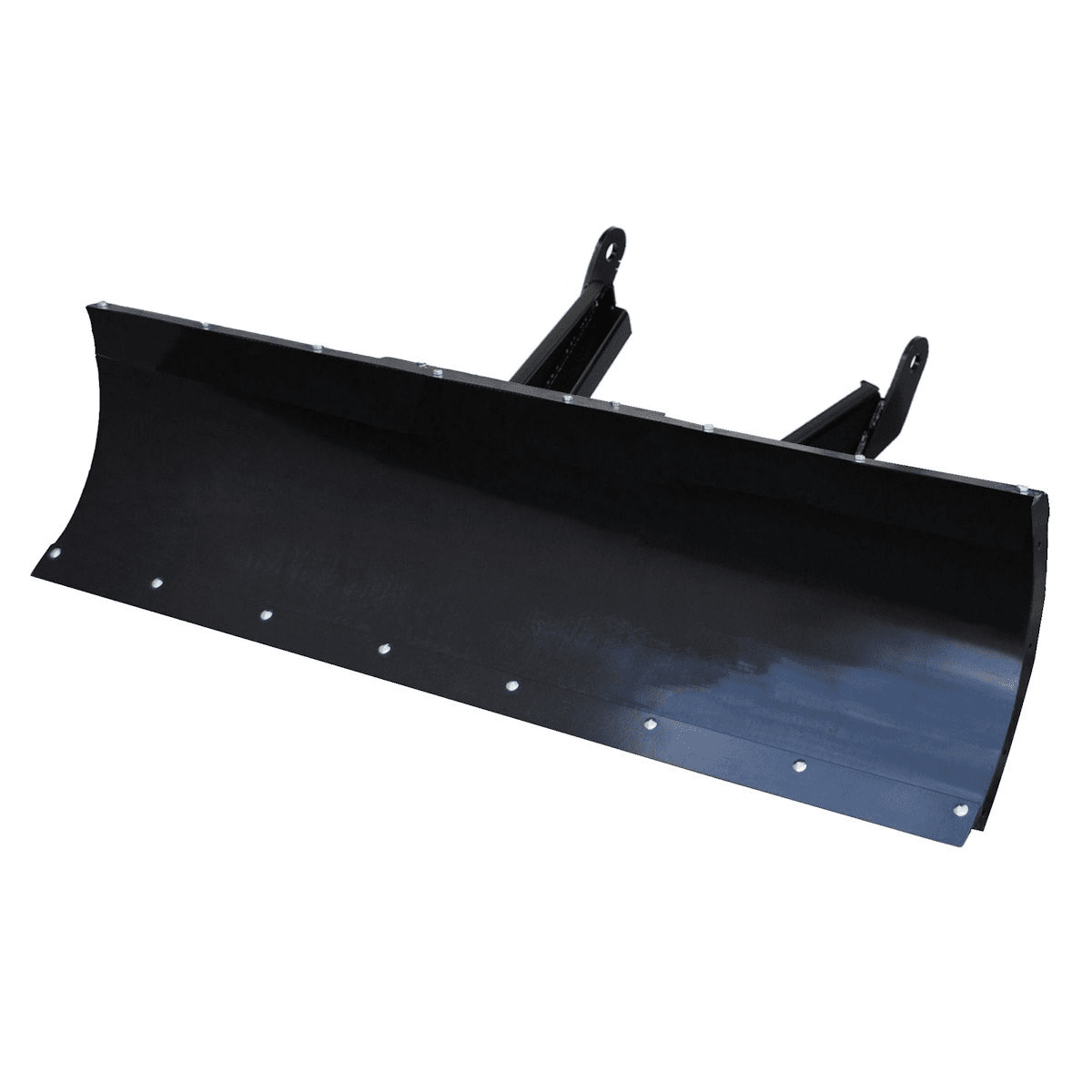

Blade Features:

• Snow Plow Blade (19 inches scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
• Four 7-gauge ribs run the full height of the blade
• Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
• 65° attack angle and over-center design ensures snow rolls up and is thrown forward
• Replaceable 7gauge steel wear bar included with every kit
• Height and angle adjustable skid feet included
• 3 Year Warranty

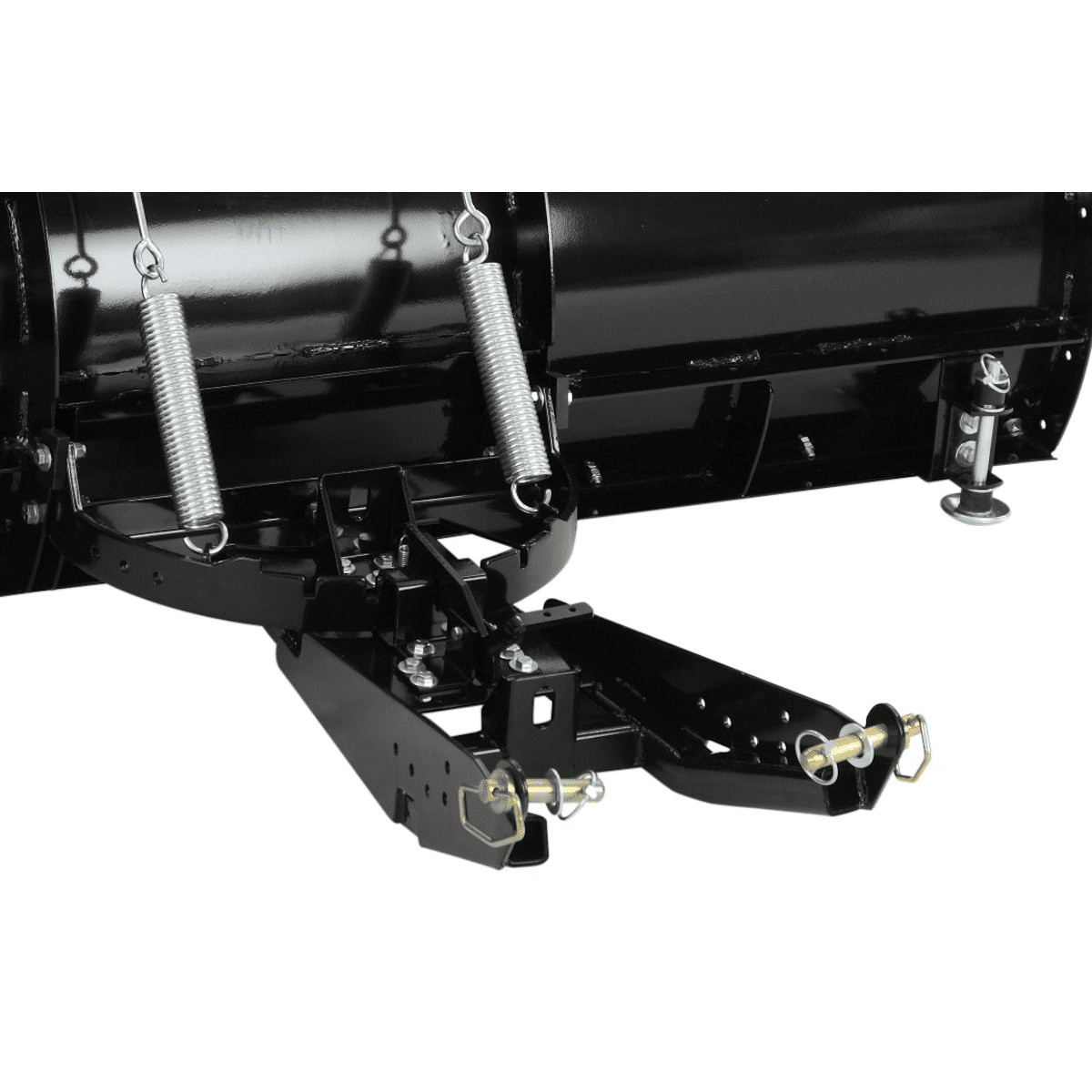

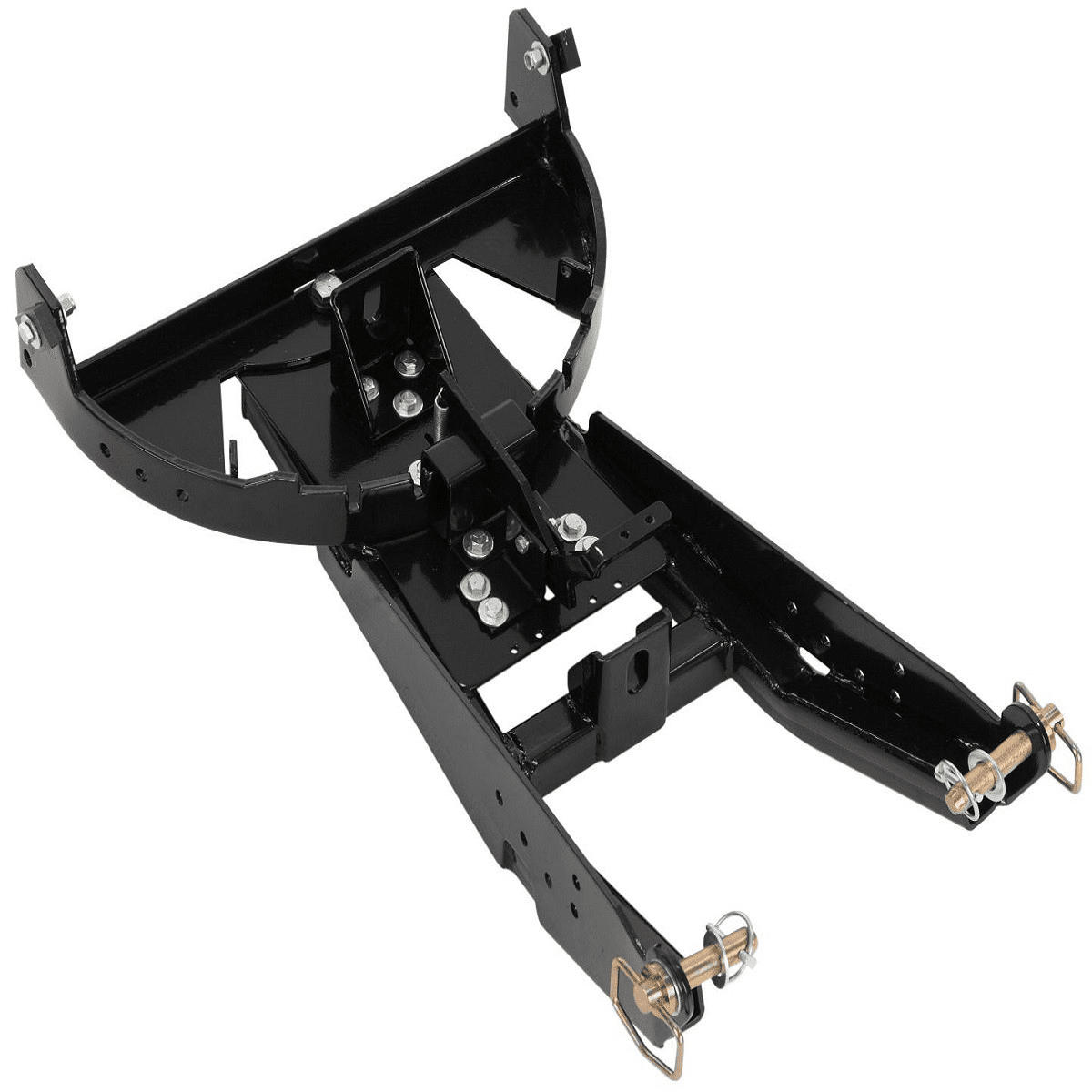

Pushtube Features:

• Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength

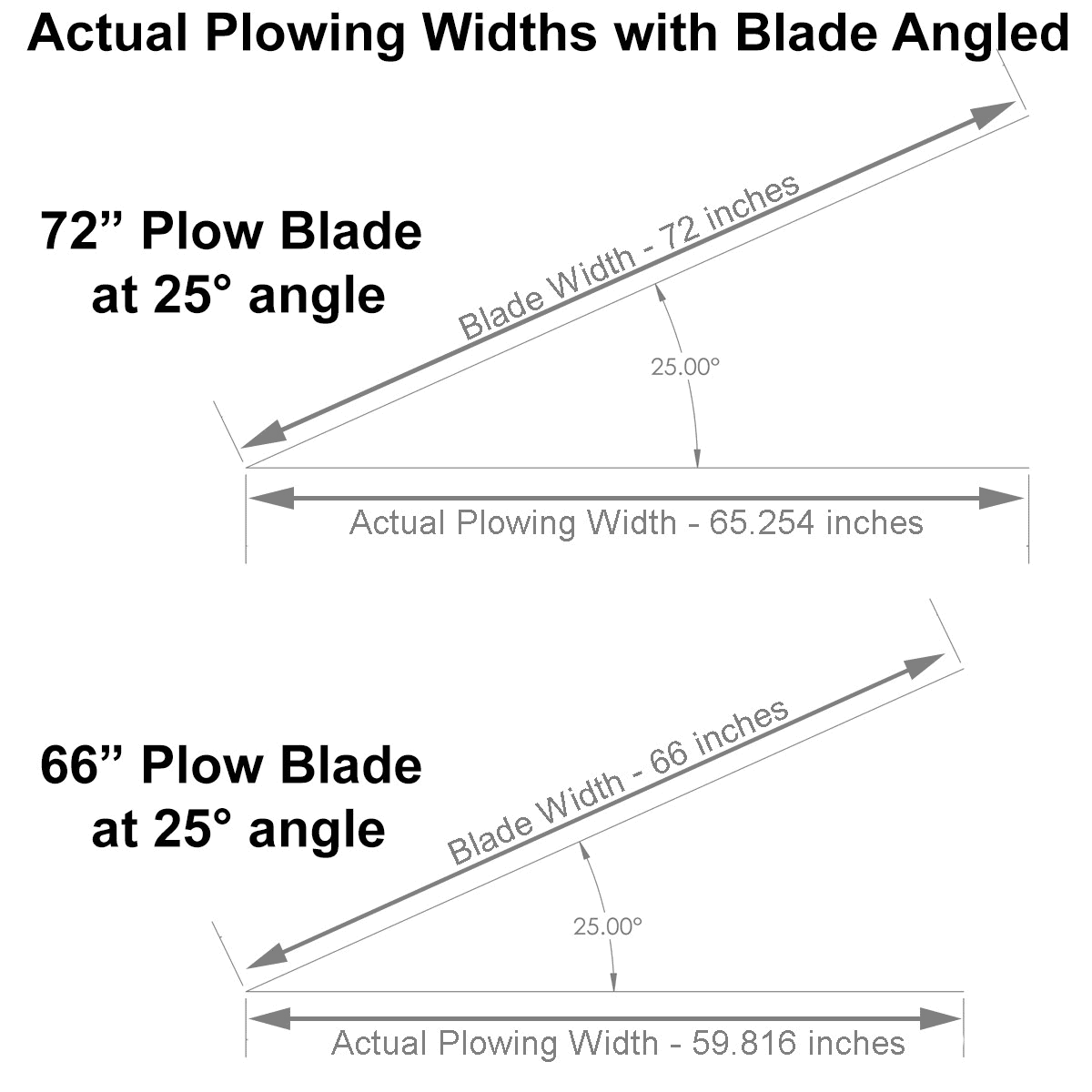

• Turn system allows you to easily position your plow in 10 different angles - 0, 12.5°, 25°
• Simple detachment system with the pull of a pin
• Structural tube steel cross bar for added lateral rigidity
• Quick Release Pins included
• 13.5 inches center to center for plow mount tabs
• Extended Push Tubes are designed to be used with SxS/UTVs that have tracks

Pushtube Lift Kits:

• Pushtube Lift Kits bolt directly to the pushtubes, providing 2 or 4 inches of lift
• Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
• Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)

Mounts:

2009-2014 Polaris Ranger Full Size
2010-2014 Polaris Ranger Crew Full Size
Please Note: does NOT fit 2013-2017 Ranger XP900 (or Crew)

2010-2014 Polaris Ranger 400
2017-2020 Polaris Ranger 500 Mid Size
2014-2021 Polaris Ranger 570 Midsize
2014-2021 Polaris Ranger 570 Crew Mid Size
2013-2014 Polaris Ranger 800 Midsize
2015-2017 Polaris Ranger ETX

2016-2022 Polaris Ranger 570 Full Size (Round ROPS / Round Tube Roll Cage)
Note: will NOT fit 2022 Polaris Ranger SP 570

Please Note: Includes Mount Plate, Hardware List, Installation Instructions. Hardware may not be included.
2010-2014 Polaris Ranger 400
2017-2020 Polaris Ranger 500 Mid Size
2014-2021 Polaris Ranger 570 Midsize
2014-2021 Polaris Ranger 570 Crew Mid Size
2013-2014 Polaris Ranger 800 Midsize
2015-2017 Polaris Ranger ETX

2016-2022 Polaris Ranger 570 Full Size (Round ROPS / Round Tube Roll Cage)

2015-2017 Polaris Ranger 570 Full Size
2015-2017 Polaris Ranger 570 Crew Full Size
2016-2017 Polaris Ranger 570 XP 4x4 (Channel Tube Roll Cage)

2013-2019 Polaris Ranger XP900
2013-2019 Polaris Ranger XP900 Crew

2017-2020 Polaris Ranger 1000 XP
2017-2020 Polaris Ranger 1000 XP Crew
2015-2018 Polaris Ranger 1000 Diesel
2016-2018 Polaris Ranger 1000 Diesel Crew
2019-2020 Polaris Ranger XP 1000 Northstar

2002-2008 Polaris Ranger
2008-2009 Polaris Ranger Crew

2021-2022 Polaris Ranger 1000 EPS and XP (requires Polaris front brushguard)
2021-2023 Polaris Ranger 1000 Premium (requires Polaris front brushguard)
2022 Polaris Ranger 570 SP Premium
2022 Polaris Ranger 570 SP NorthStar

NOTE: does NOT work with base model
NOTE: does NOT work with extended pushtubes
NOTE: lift kits will NOT work with mount plate MA11752
NOTE: interference is possible when plow is turned at extreme angles when using tracks

2-inch Receiver Plow Mount
All machines with front 2-inch receiver already installed
