CageWRX Super Shorty Cage Kit - Can-Am Maverick X3

CageWRX Super Shorty Cage Kit - Can-Am Maverick X3

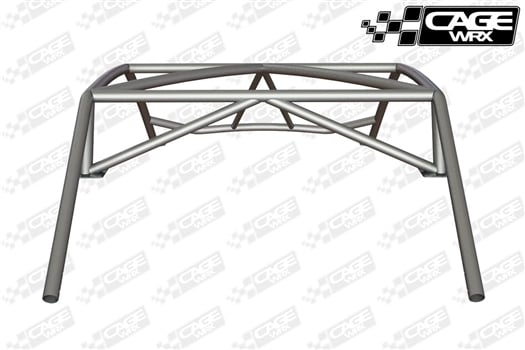

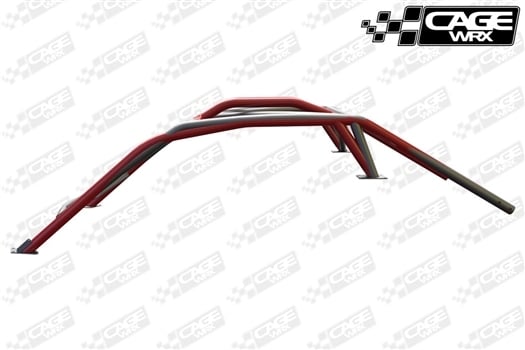

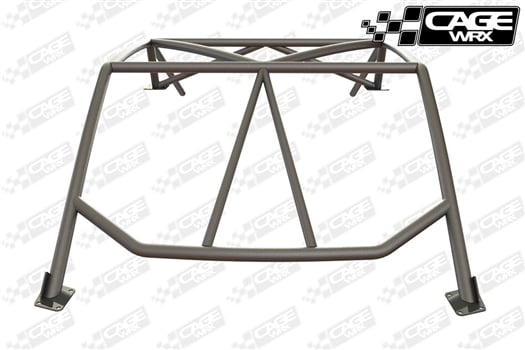

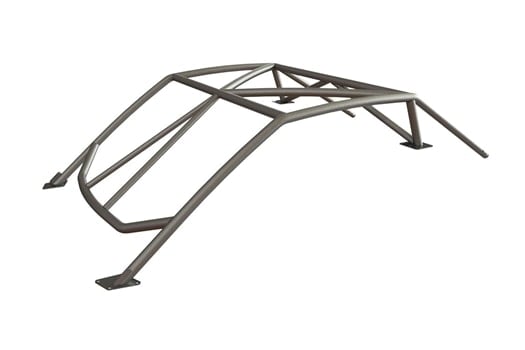

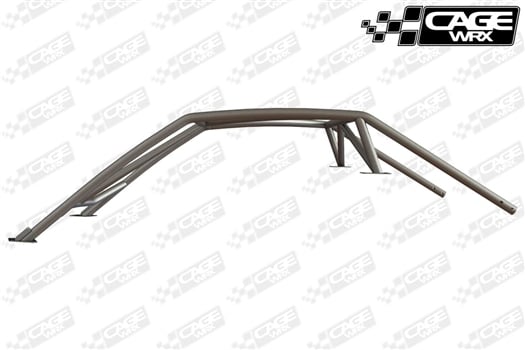

Ready-to-weld Roll Cage Kit for CanAm Maverick X3 all models (2 seater)

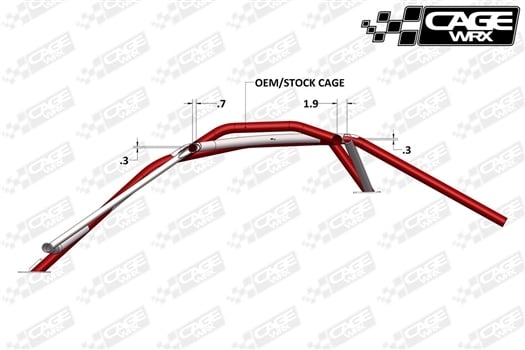

Laidback design provides a significantly lower roll cage in a clean and strong design. Our Super Shorty roll cage utilizes a very slight radius roof line. All tubes are DOM steel and mandrel bent and laser cut for exact fit. Tube junctions are keyed to aid in the assembly. Chassis clamps and plates are all provided. No grinding or other work is required. The kit can be assembled and welded on chassis without the need for a separate fixture. Everything needed to replace the stock roll cage is provided. Kit must be assembled and welded by a competent fabricator.

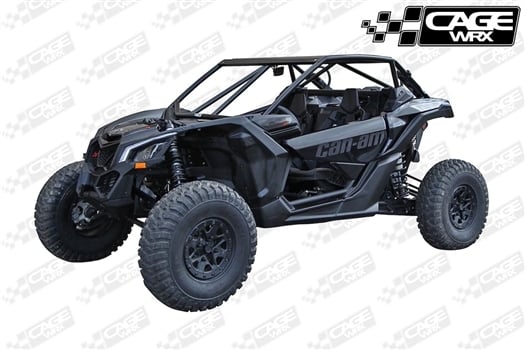

The factory roll cage will need to be completely removed which requires cutting off the roll cage and grinding flat existing mounts. Removal of most of the factory plastic is also required including drilling out stock rivets. Our Super Shorty Roof kit for the X3 is designed to match perfectly with this cage. The CanAm Maverick X3 has the ability to adjust the seat height approximately 2 inches. With the adjustment, we estimate that people 6' 4" and shorter would fit in this cage with headroom for a helmet.

Features:

• Fits CanAm Maverick X3 all models
• High-grade DOM steel
• 1.75" diameter main tubes
• .095" wall thickness on all tubes
• Mounts to all six stock locations
• 77 lbs. complete cage weight
• ROOF NOT INCLUDED IN KIT.

What's In The Box?

• 13 Laser Notched DOM steel tubes with tab and slot design for easy positioning of tubes
• 4 .188" HRPO thick laser cut mounting plates
• 2 Whip mounts
