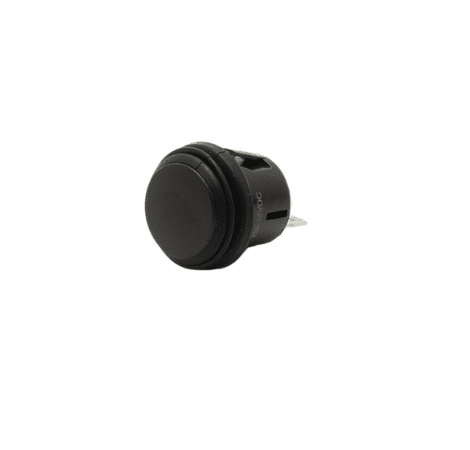

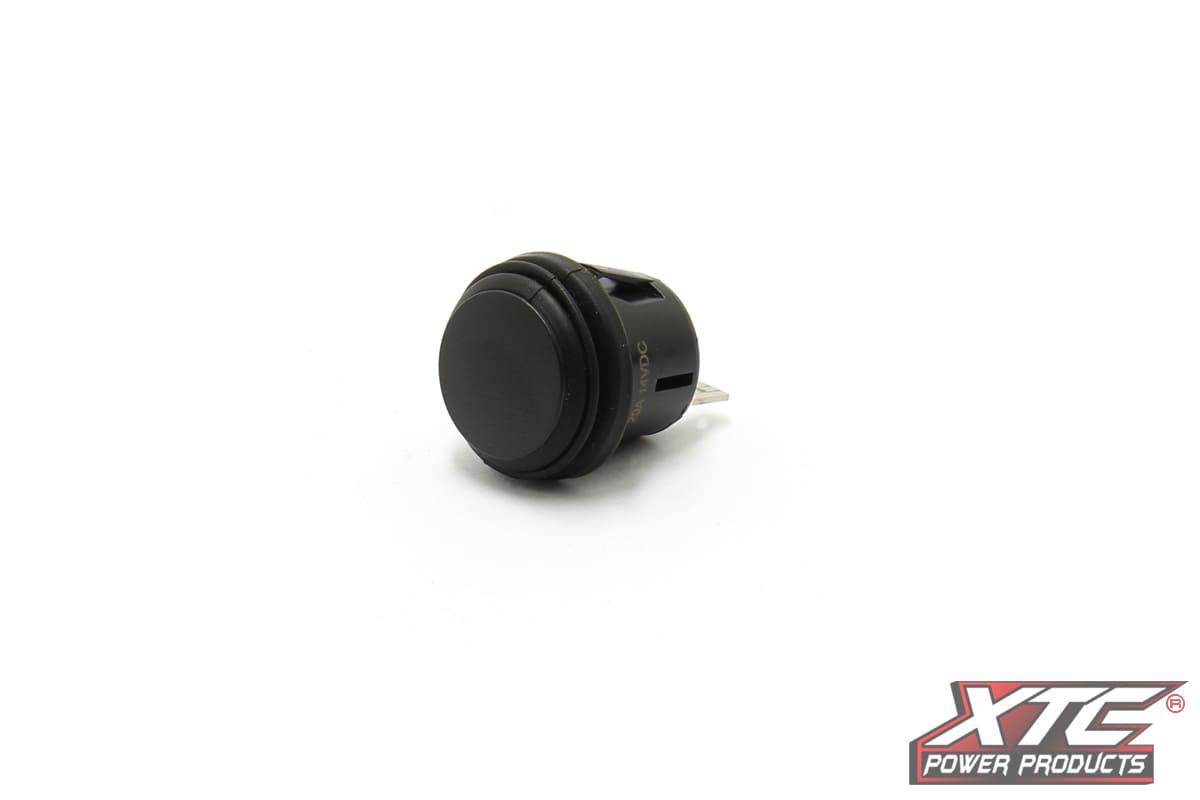

XTC ON/OFF SPST Momentary Push Button Switch

XTC ON/OFF SPST Momentary Push Button Switch

XTC Rocker Switch Bodies are used with XTC Power Control Systems and Accessory Harnesses. The Switch Bodies include a brightly lit LED designed to shine through a custom laser-cut rocker switch cover, sold separately. There are multiple LED color options to choose from, including red/red, red/blue, blue/blue, amber/amber, and none lit. The Switch Bodies are a standard rocker switch cut-out size that comes integrated on most UTV’s OE Dash. Although the Switch body is rated for 20 Amps of current, it should be used with a relay whenever the load exceeds 15 Amps to prolong the switch’s life.

Feaatures:

• Non Lit – Round Black

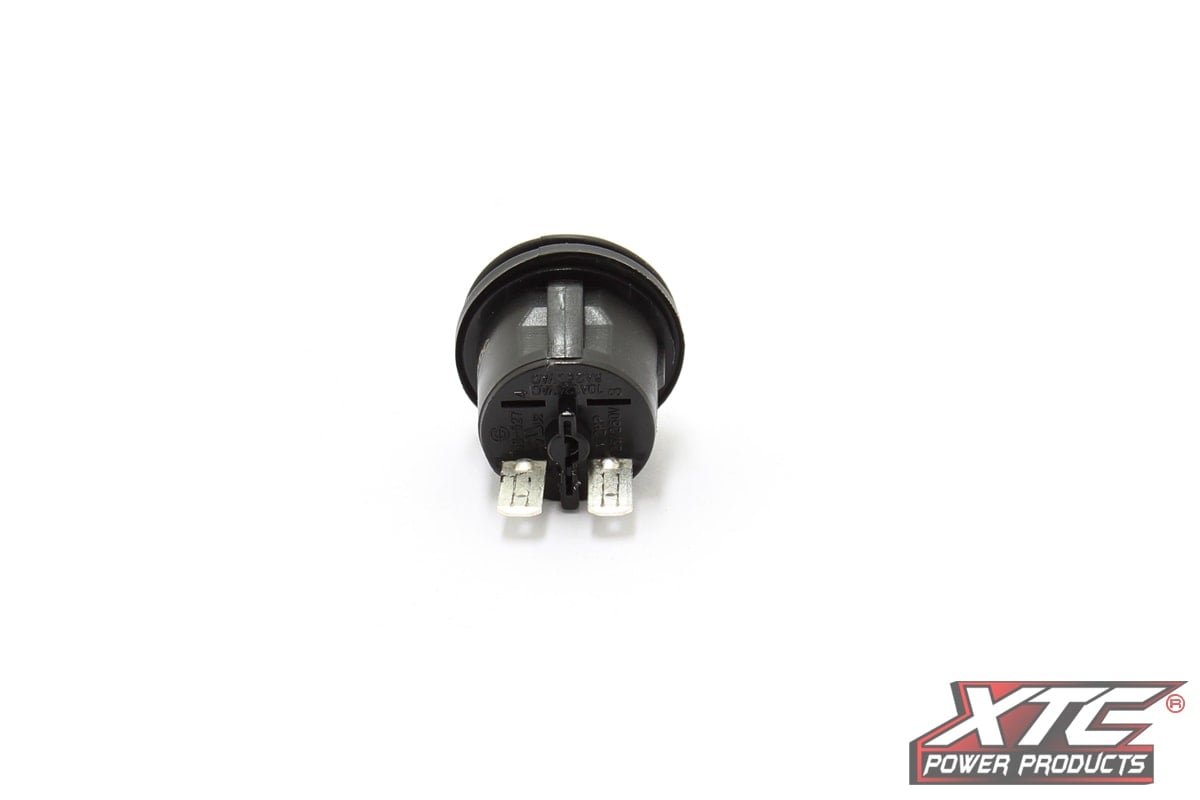

• 2 Terminals

• Momentary SPST (ON) – OFF Switch

• Mounts in 13/16″ Hole

• Uses insulated .187″ female quick disconnect terminals

Specifications:

• Weight: 2 oz

• Dimensions: 2.5 × 4 × 1 in


Installation Instructions:

• Switch-Cutout-Template.Pdf
