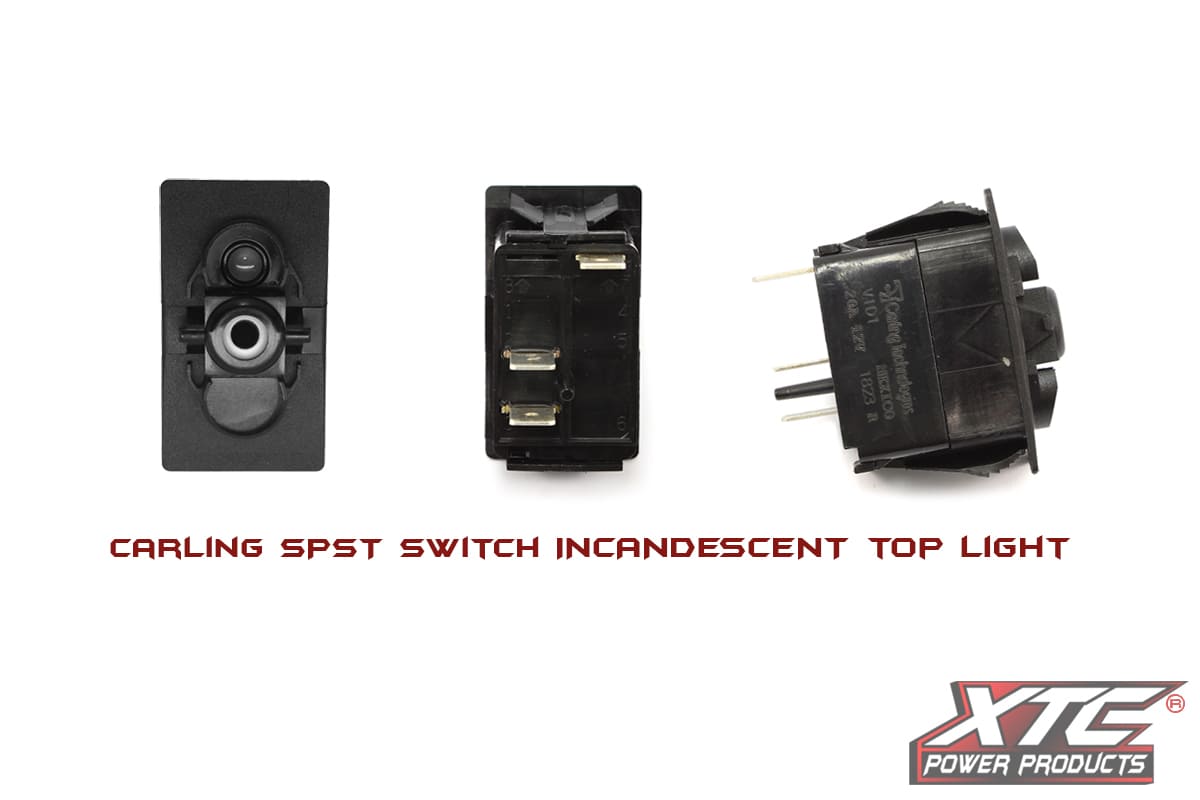

XTC ON/OFF SPST Carling Rocker Switch w/ Incandescent Backlight

XTC ON/OFF SPST Carling Rocker Switch w/ Incandescent Backlight

XTC Rocker Switch Bodies are used with XTC Power Control Systems and Accessory Harnesses. The Switch Bodies include a brightly lit LED designed to shine through a custom laser-cut rocker switch cover, sold separately. There are multiple LED color options to choose from, including red/red, red/blue, blue/blue, amber/amber, and none lit. The Switch Bodies are a standard rocker switch cut-out size that comes integrated on most UTV’s OE Dash. Although the Switch body is rated for 20 Amps of current, it should be used with a relay whenever the load exceeds 15 Amps to prolong the switch’s life.

Fitment:

• Incandescent Light Bulb

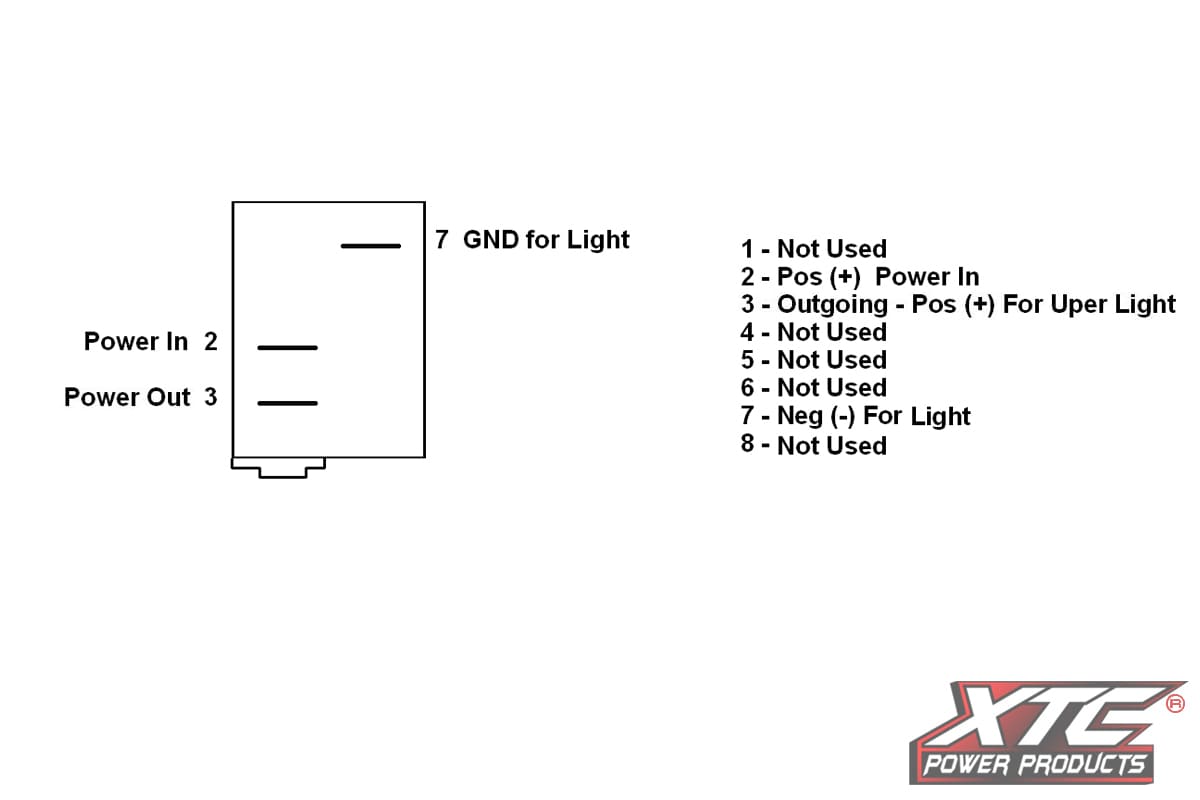

• Contura V Switch Body w/ 3 Terminals

• SPST ON-OFF Switch 20A 12V

• Upper Incandescent Bulb is ON when the upper part of the rocker is pressed

• No Lower LED

• No rear barriers between terminals

• Works with XTC Power Control Systems all models

• Insulated 1/4″ female quick disconnect terminals can also be used

Specifications:

• Weight: 2 oz

• Dimensions: 2.5 × 4 × 1 in

Installation Instructions:

• Switch-Cutout-Template.Pdf
