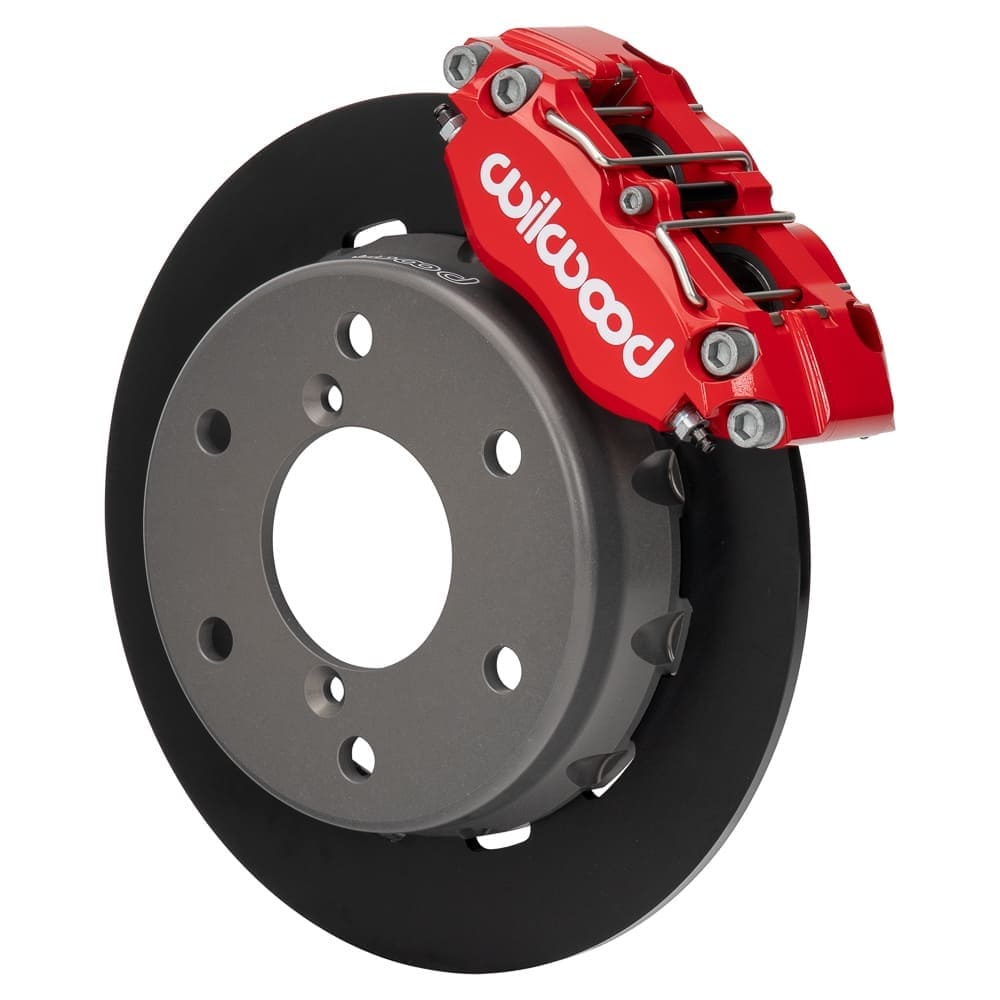

Wilwood Can-Am Maverick R Front Brake Kit - Red

Wilwood Can-Am Maverick R Front Brake Kit - Red

NDPR Front UTV Brake Kit: Wilwood’s matched NDPR front and rear UTV brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum four piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.

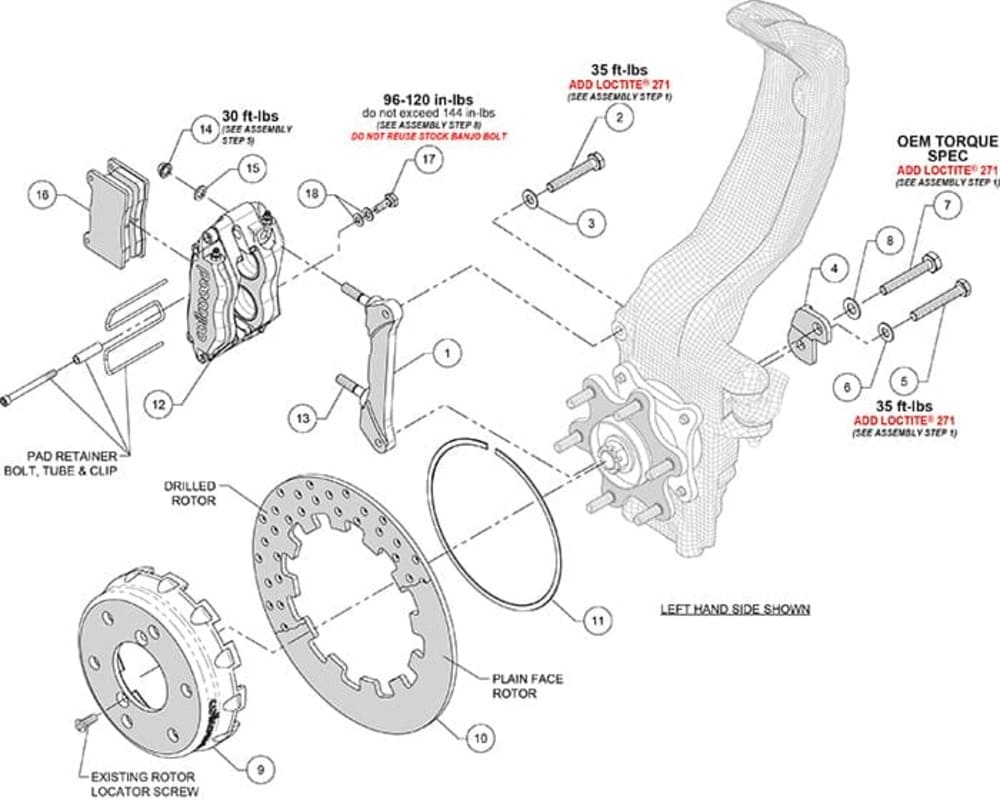

Installation Instructions:

Notes:

• Brake Kits are designed to fit OE Factory Spindles.
• Brake Kit may fit other vehicles

Fitment:

Specifications:

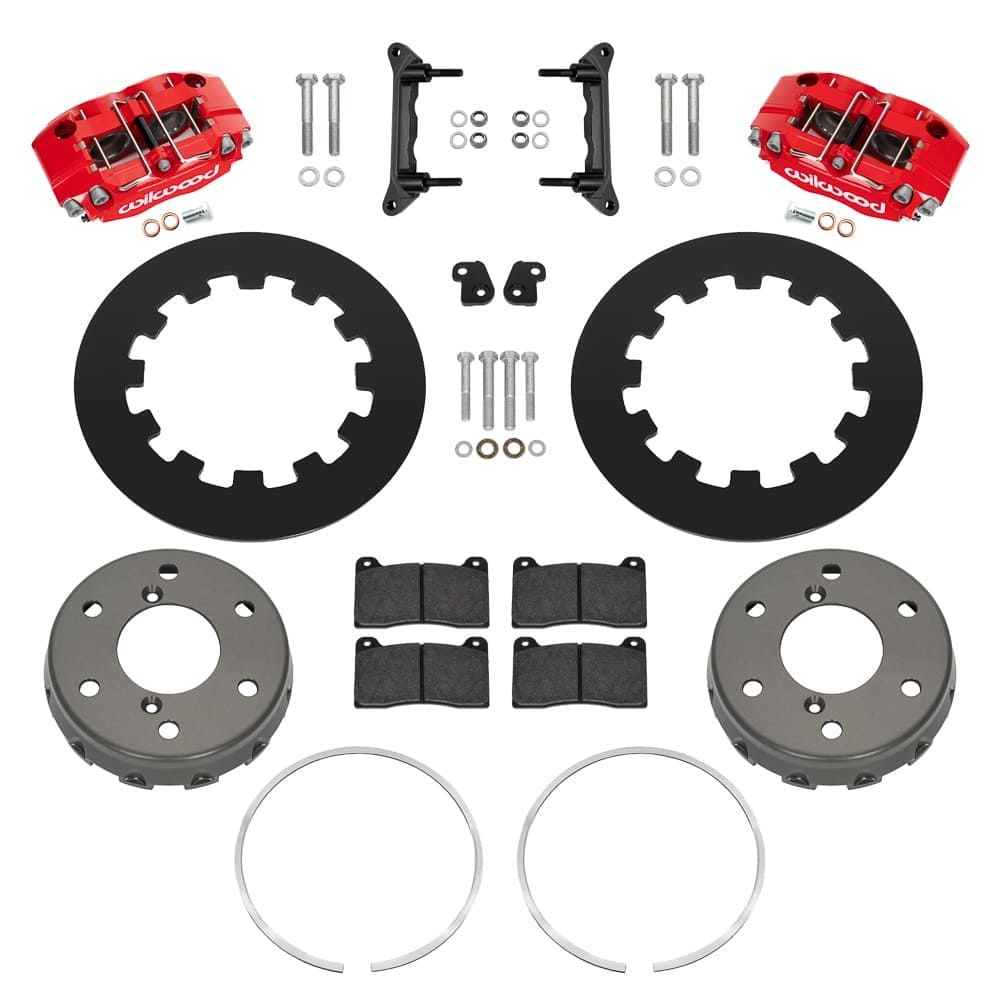

Kit Components & Specifications

Calipers
Type:	NDPR
Finish Color:	Red Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.62
Piston 2 Bore (in):	1.62
Piston Area (In²):	4.12
Piston Type:	Stainless
Mount Type:	Radial
Brake Pad Plate:	7812
Brake Pad Area (In²):	6.36
Brake Pad Volume (In³):	2.1
Pad Compound:	BP-20

Rotors
Type:	Solid Steel Rotor
Style:	Plain Face
Surface Finish:	Black Electro Coat
Material:	Steel
Outside Diameter (in):	11.60
Width (in):	0.25
Vane Count:	Solid
Design Type:	Solid
Bedded:	No
Dynamically Balanced:	No

Rotor Hats
Type:	Big Brake Dynamic Lug Drive - Flared Bell
Material:	Aluminum
Finish Color:	Type III Anodize
Hat Offset Dimension (in):	1.210
Bolt Circle 1:	6 x 5.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:	0.590
Stud Diameter - BC 2:	0.000
Stud Diameter - BC 3:	0.000
