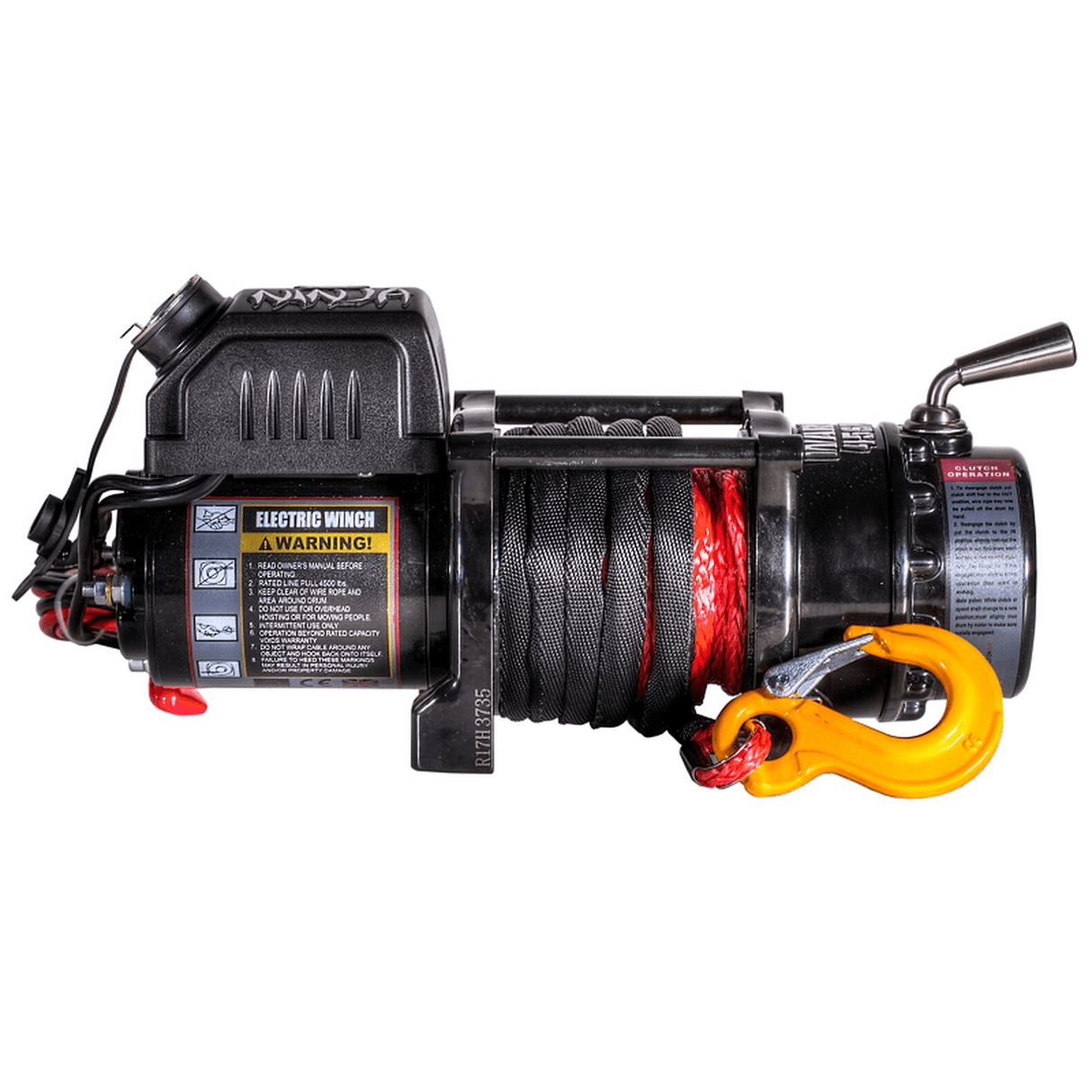

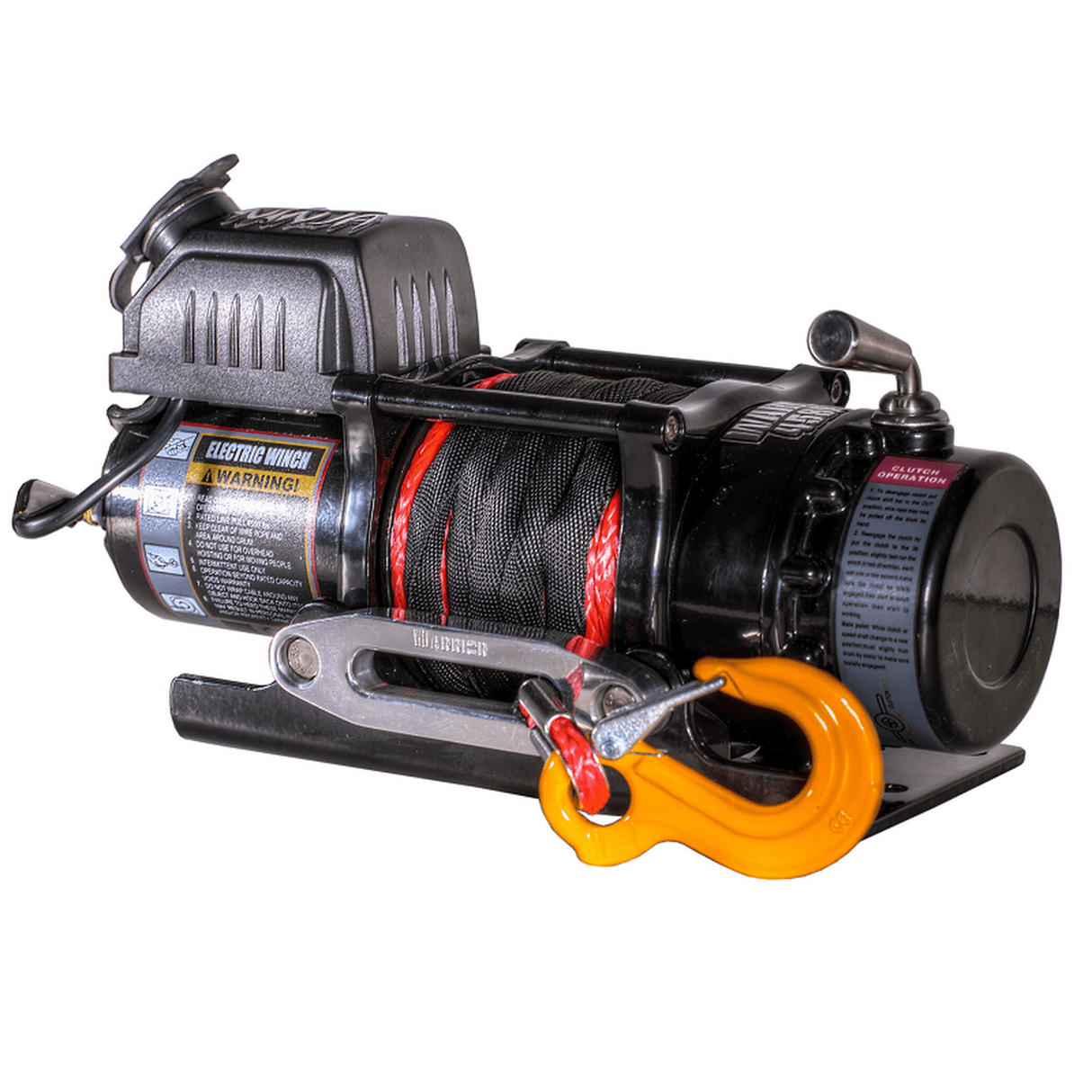

Warrior Ninja 4500 Synthetic Winch C4500N-SR
$317.18
$373.15
Unit price
/
Select an option
Warrior Ninja 4500 Synthetic Winch C4500N-SR
High quality three stage planetary gearing ensure this is one of the quietest and smoothest winches on the market. The silky smooth performance and the full load holding brake make it the perfect solution for high spec applications.
OUTSTANDING FEATURES
- Power in and Power out
- High Torque 1.95hp Motor
- HD Waterproof Contactors
- Full Steel Planetary Gearing
- Mount Plate as Standard
- Full Load Holding Break
- Can fit tow ball mount
| Rated Line Pull | 4500 lbs (2041 kg) |
|---|---|
| Motor | 12v : 1.95hp / 1.37kw |
| Gearing | 172:1 |
| Braking Action | Auto in the drum |
| Drum Size Dia x L | 45 x 97mm |
| Cable Dia x L | 6mm x 15m |
| Dimensions | 360 x 126 x 165mm |
| Weight | 13kg |
| Mounting Pattern | 129 x 96mm |
| Certification | CE |
| Layer of Wire Rope | Line Pull lbs (kgs) |
|---|---|
| 1 | 4500 (2041) |
| 2 | 3642 (1652) |
| 3 | 3060 (1388) |
| 4 | 2638 (1196) |
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) |
Amp Draw 12v | Amp Draw 24v |
|---|---|---|---|
| 0 | 11.6 (3.6) | 20 | 15 |
| 1500 (680) | 9.2 (2.8) | 70 | 40 |
| 2500 (1134) | 7.8 (2.4) | 100 | 65 |
| 3500 (1587) | 6.6 (2.0) | 140 | 80 |
| 4500 (2041) | 4.9 (1.5) | 200 | 130 |

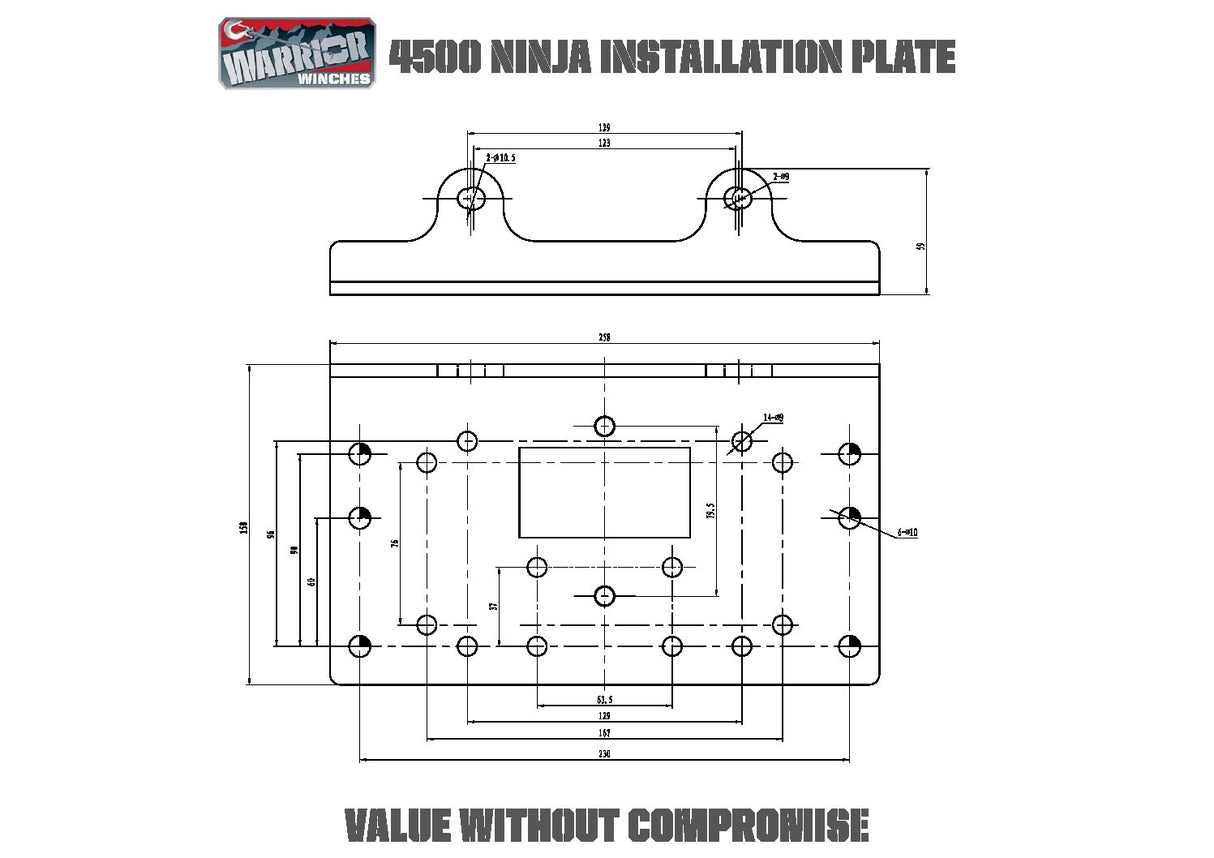

Click here for Installation Plate

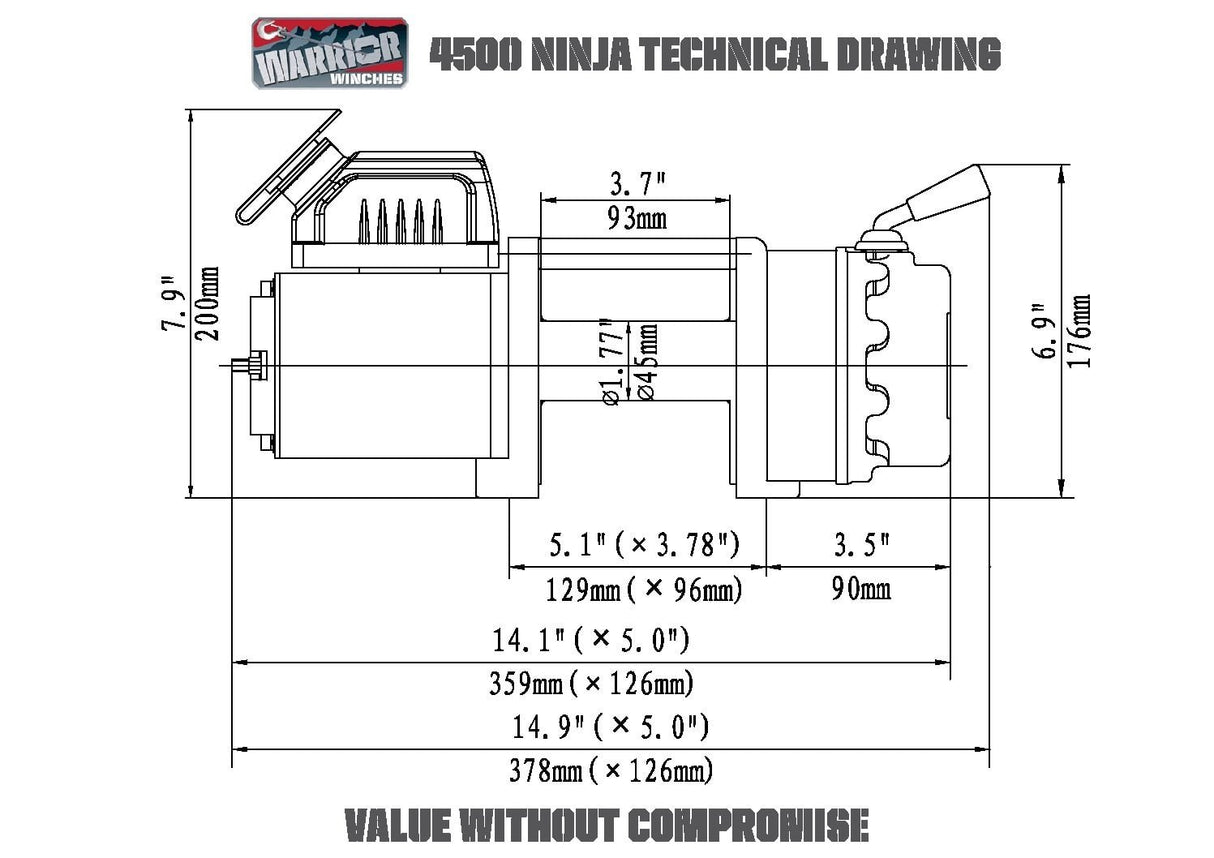

Click here for Technical Diagram
Click here for User Manual
ACCESSORIES INCLUDED
-
1/4 Hook
-
3m Ninja Wired Remote Handset
-
Aluminium Fairlead
-
Heavy Duty Battery Leads
-
Mounting Hardware
-
Mounting Tray
-
Synthetic Rope 6mm x 15m
