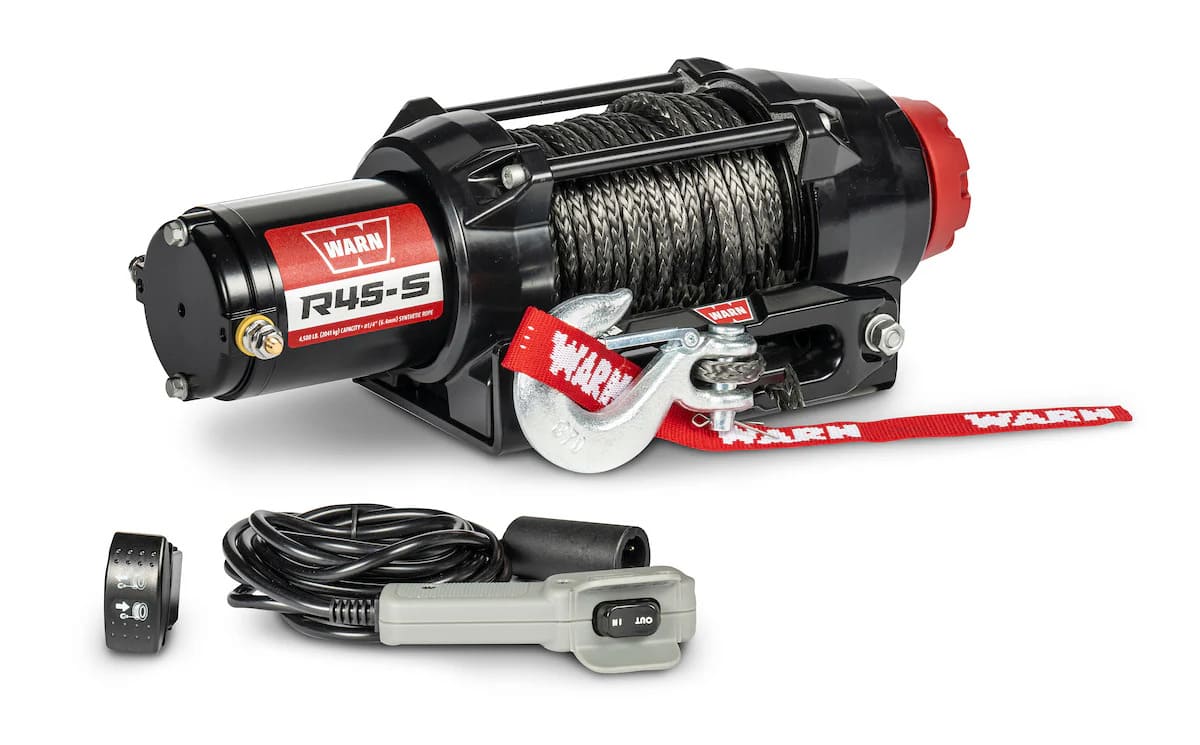

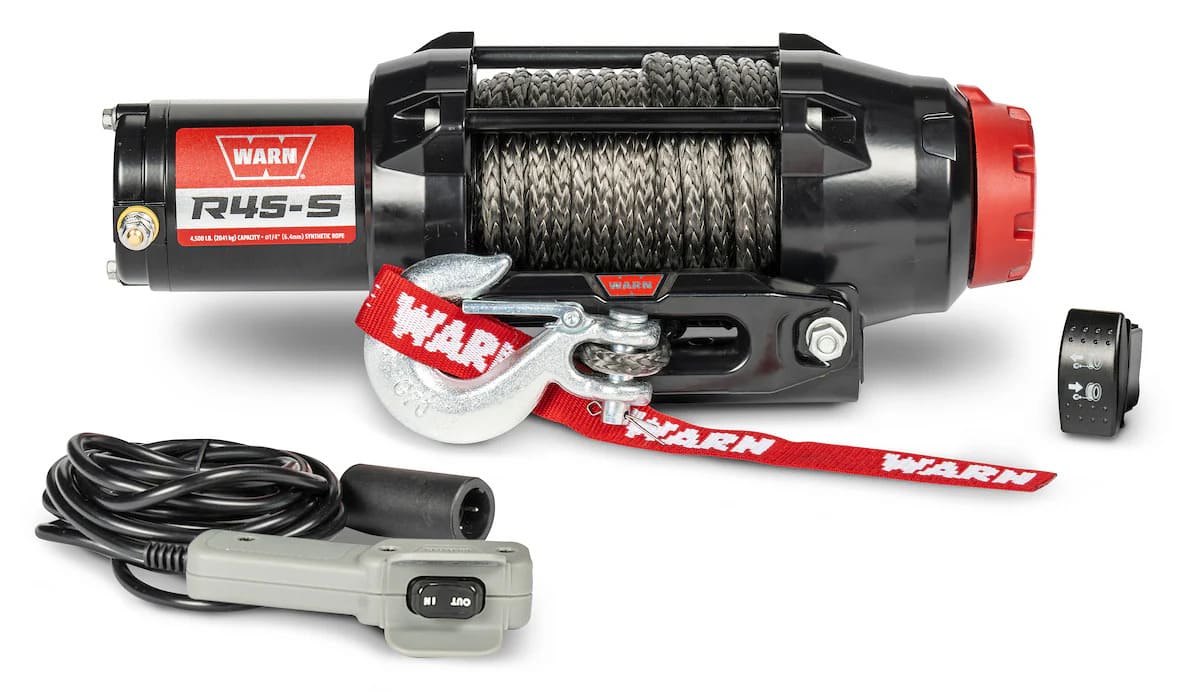

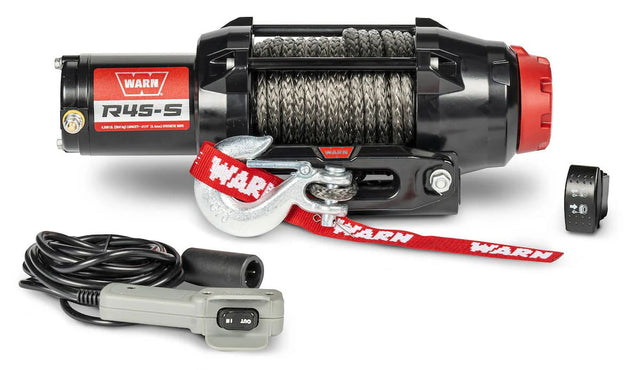

Warn 110040 R-Series 4500 lb Synthetic Rope Winch

Warn 110040 R-Series 4500 lb Synthetic Rope Winch

Warn R-Series Powersports Winches offer reliable performance from a name you can trust. With capacities ranging from 2,500 lbs. to 6,000 lbs.—our highest capacity powersports winch ever— we offer something for every ATV, UTV, or even something as small as a pickup or SUV. R-Series has the features you want, the power you need, and a price that won’t leave you stuck looking at lesser brands.

Engineered in-house at our Oregon headquarters, these winches are built to Warn’s specs and put through rigorous testing and quality control measures. All-metal gear trains, IP67 waterproofing, a compact design, and steel or synthetic rope make R-Series the top standard-duty powersports winches on the market. After all, if they’re going to wear a red Warn W, they must be better than good, they need to be great.

Specifications:

• Rated line pull: 4,500lbs (2041kg) single-line

• Motor: 12V DC permanent magnet

• Sealing: IP67 rated waterproof

• Gear train: 3-stage planetary

• Fasteners: Zinc plated

• Rope: 50’ x 1/4” (15m x 6.3mm) synthetic

• Hook: Zinc plated

• Fairlead: Cast aluminum hawse

• Primary control: Dash-mounted rocker switch

• Remote control: Hand-held corded remote included

• Brake: Mechanical brake

• Dimensions: length: 14.6” (371mm), height: 4.7” (120mm), width: 4.6” (117mm)

• Mounting Bolt Pattern: 3" x 6.59" (76.2mm x 167.4mm)
