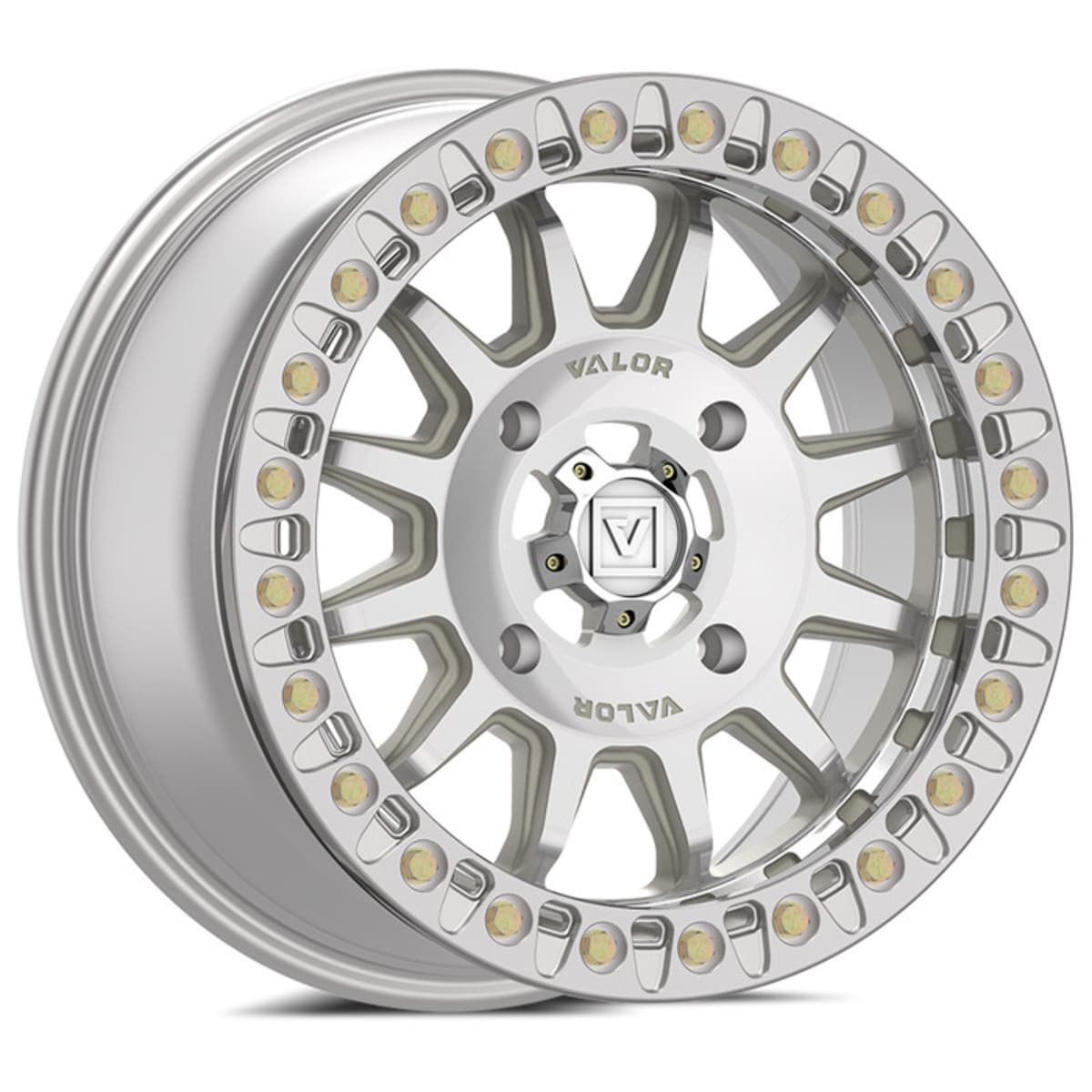

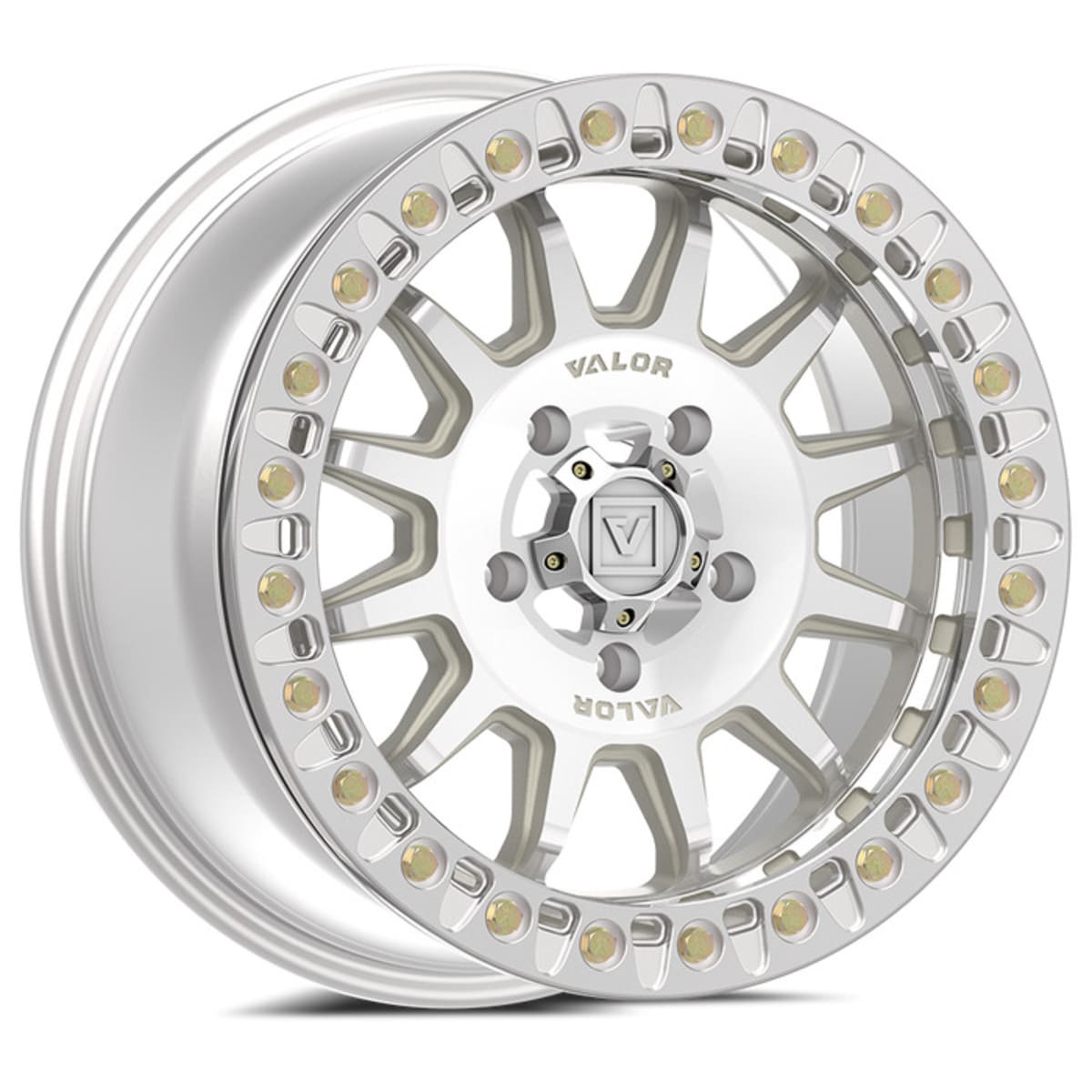

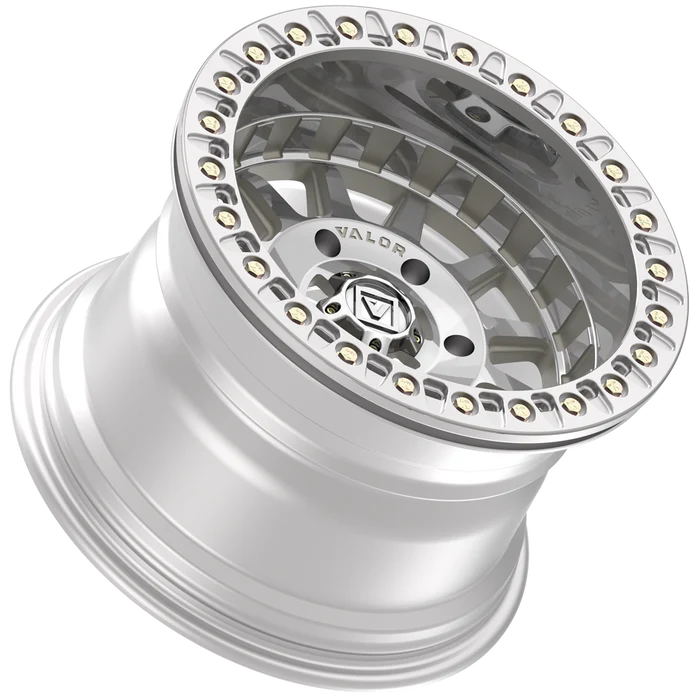

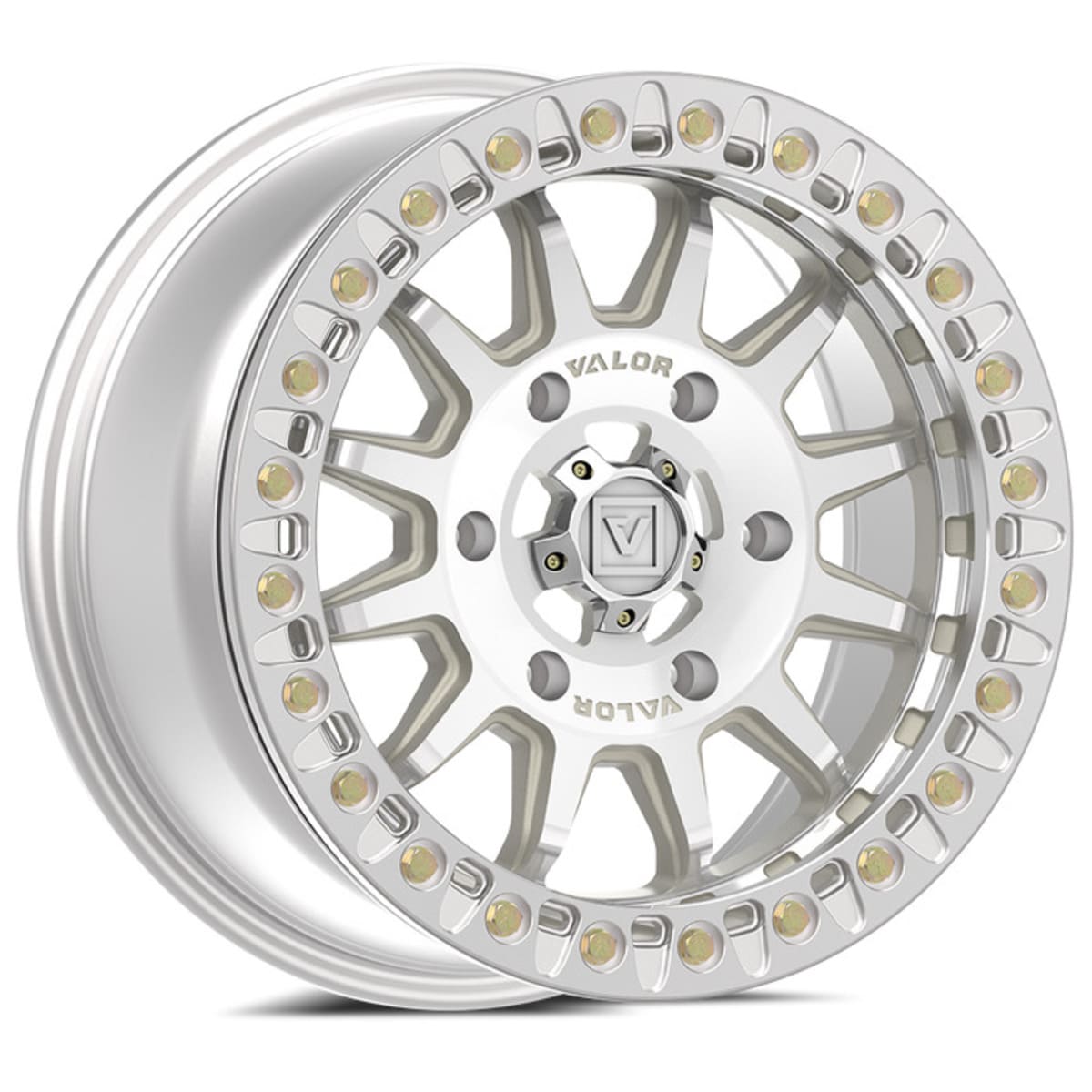

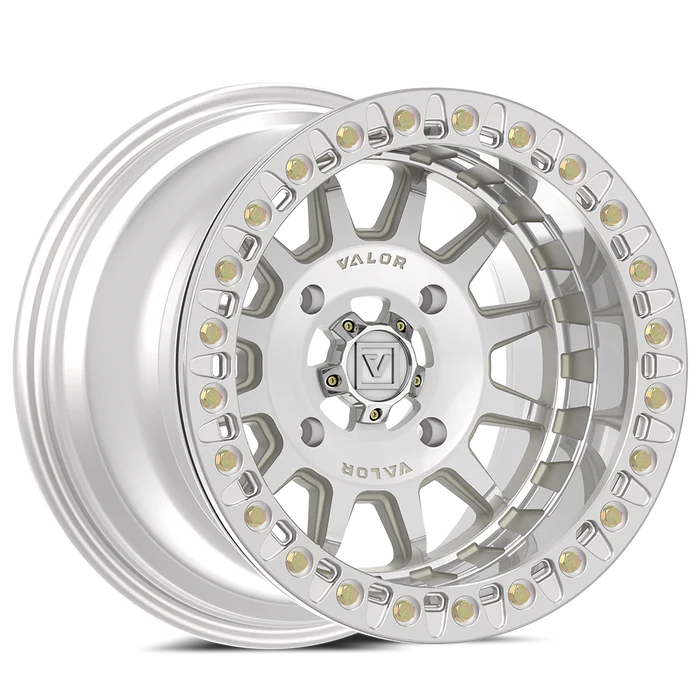

Valor Off-Road V09 Beadlock - Raw Machined

Valor Off-Road V09 Beadlock - Raw Machined

The V09 Flow Formed beadlock UTV wheel comes with a billet satin black center cap. Please note that the Satin Black and Brushed Charcoal versions of the V09 come with varying center cap logo finishes. The V09 utilizes a billet beadlock ring in gloss black paint finish. All Installation hardware is satin black.

We take a lot of pride in designing products and finishes that will last you a lifetime of enjoyment. All Valor Offroad products undergo a barrage of brutal safety and quality assurance tests so that no matter where you ride, or whatever mother nature throws your way, we've got you covered.

Looking for a custom fitment or custom finish? Check out all of our Valor Offroad center caps here.

Fitment:

The V09 Flow Formed Beadlock UTV wheel is available in 15x7 and 17x8 with fitments for all modern UTVs and ATVs (4x137, 4x156, 5x114.3, 6x139.7).

Not sure whether this wheel will fit your UTV, SxS or ATV, or unsure what all of this bolt pattern noise is all about? Give us a call and we will make sure you're good to go. After hours? No problem, check out this handy wheel fitment guide that should help address most common fitments.

Installation:

We have a blog post dedicated to showing you step by step instructions on how to mount your Valor Offroad beadlock UTV wheels. Check out the post here: How to install UTV beadlock wheels

Before airing your tires up, we recommend torquing each beadlock bolt to 18 ft lbs in a star pattern. Always use a quality torque wrench to ensure proper specification.

Kit Includes:

Each of our Valor Offroad UTV wheel styles is carefully wrapped in just the right amount of protective material to ensure a safe trip from our warehouse to your door. We are hyper selective in our packaging design and shipping to remove any unnecessary or redundant packaging.

Unless noted, your cap will match the finish of the wheel selection. Each cap includes all necessary installation hardware and will come pre-installed. See all Valor Offroad center caps.

Each wheel purchase comes with wheel and center cap. Each center cap includes all necessary installation hardware and will come pre-installed. See all Valor Offroad center caps.

All Valor Offroad beadlock wheels include all necessary mounting hardware on the bottom of the box. Please ensure you remove all packaging before descarding boxes.

Need lug nuts (installation kit)? Check out our full assortment of UTV wheel installation kits here or check out our fitment guide to figure out what Installation Kit you need.

15" Wheel Specifications:

• V09-1570P4037SB
  • Size: 15x7

  • Bolt Pattern: 4x137

  • Offset: +40mm (5+2)

  • Hub Bore: 112mm

  • Wheel Weight (LBS): 16.96

  • Max Load (LBS): 1600

  • Finish: Satin Black

  • Ring Finish: Gloss Black

  • Cap: VCAP2-B-FORGEGB
• V09-1570P4056SB
  • Size: 15x7

  • Bolt Pattern: 4x156

  • Offset: +40mm (5+2)

  • Hub Bore: 132mm

  • Wheel Weight (LBS): 16.96

  • Max Load (LBS): 1600

  • Finish: Satin Black

  • Ring Finish: Gloss Black

  • Cap: VCAP2-B-FORGEGB
• V09-1570P4005SB
  • Size: 15x7

  • Bolt Pattern: 5x114.3 (5x4.5)

  • Offset: +40mm (5+2)

  • Wheel Weight (LBS): 16.96

  • Max Load (LBS): 1600

  • Finish: Satin Black

  • Ring Finish: Gloss Black

  • Cap: VCAP2-B-FORGEGB
• V09-1570P4006SB
  • Size: 15x7

  • Bolt Pattern: 6x139.7 (6x5.5)

  • Offset: +40mm (5+2)

  • Wheel Weight (LBS): 16.96

  • Max Load (LBS): 1600

  • Finish: Satin Black

  • Ring Finish: Gloss Black

  • Cap: VCAP2-B-FORGEGB

17" Wheel Specifications:

• V09-1780P4037SB
  • Size: 17x8

  • Bolt Pattern: 4x137

  • Offset: +40mm (6+2)

  • Wheel Weight (LBS): 20.40

  • Max Load (LBS): 1600

  • Finish: Satin Black

  • Ring Finish: Gloss Black

  • Cap: VCAP2-B-FORGEGB
• V09-1780P4056SB
  • Size: 17x8

  • Bolt Pattern: 4x156

  • Offset: +40mm (6+2)

  • Wheel Weight (LBS): 20.40

  • Max Load (LBS): 1600

  • Finish: Satin Black

  • Ring Finish: Gloss Black

  • Cap: VCAP2-B-FORGEGB
• V09-1780P4005SB
  • Size: 17x8

  • Bolt Pattern: 5x114.3 (5x4.5)

  • Offset: +40mm (6+2)

  • Wheel Weight (LBS): 20.40

  • Max Load (LBS): 1600

  • Finish: Satin Black

  • Ring Finish: Gloss Black

  • Cap: VCAP2-B-FORGEGB
• V09-1780P4006SB
  • Size: 17x8

  • Bolt Pattern: 6x139.7 (6x5.5)

  • Offset: +40mm (6+2)

  • Wheel Weight (LBS): 20.40

  • Max Load (LBS): 1600

  • Finish: Satin Black

  • Ring Finish: Gloss Black

  • Cap: VCAP2-B-FORGEGB

Black Out Your Center Caps:

Logo Swap Kit: We've got logo swap kits for all wheel styles and all cap styles for those of you wanting the black out look. Super easy to install (less than 5 minutes for all four caps) and won't break the bank.

Valor Offroad:

V09 Beadlock: The V09 Flow Formed UTV wheel combines two manufacturing technologies; both traditional casting and flow forming, to create a professional grade UTV wheel in both strength and light weight.

When compared with conventional casting, flow formed wheels have greater precision accuracy, better surface finish quality, material hardening, and optimized grain structure. Flow forming not only creates a superior UTV wheel, but also is more efficient in the manufacturing process.

Weighing in at 16.96 lbs, for the 15x7 and 20.40 lbs for the 17x8, the V09 is one of the lightest aluminum beadlock UTV wheels on the market. Fitments for all modern UTV vehicles including Polaris RZR, Pro R, Can-Am Maverick R, Kawasaki KRX, Honda Talon and many more.

Wheel Finish:

Satin Black: The satin black paint finish on the Valor Offroad V09 Flow Formed was developed to withstand any kind of punishment you can sling at it. Scratches happen (we think of them as badges of honor) but know your paint will hold up under normal wear and tear and will routine care.

Each satin black V09 wheel is finished off with a satin black cap with white logo and gloss black billet beadlock ring.

Valor Offroad:

Alpha on V09: Next level off-roading requires next generation products. The Alpha UTV tire by Valor Offroad was developed exclusively for the powersports industry. Made in the USA, tested in the Rocky Mountains, learn what makes The Alpha different from your current UTV tires.

The Source Blog:

What is a Flow Formed UTV Wheel? Not sure what the hype is behind Flow Formed manufacturing? We break down the science and the benefits behind one of the most exciting techniques used to make lightweight UTV wheels.

Industry Leading:

Lightweight Design: Flow formed and incredibly tough, the V09 was meticulously engineered to shave unnecessary weight and boost load rating strength. The V09 utv wheel is like no other wheel on the market. View All Weights

Technical Detail:

Finish: The V09 beadlock UTV wheel is available in satin black paint or satin brushed charcoal with gloss black beadlock ring and hardware.

Quality: Manufactured using only A356 aluminum with T6 heat treatment for one super strong wheel. Engineered to exceed SAE 2530 safety specifications.

Design: Timeless straight twelve spoke utv wheel design. Billet aluminum beadlock ring increases strength and sheds unnecessary weight.

Safety: Strong 1600 lbs. load rating to ensure you get back to the trailhead or basecamp when you want to. Lifetime limited structural warranty.

Bolt-on:

Billet Cap: The V09 rolls out all of our manufacturing skills, including the all new billet, all metal cap. Want to customize your wheels with a fresh coat of powder? Now you can include your caps to match. This bolt-on 15mm cap is only available on the V09 and does not fit our other wheels.
