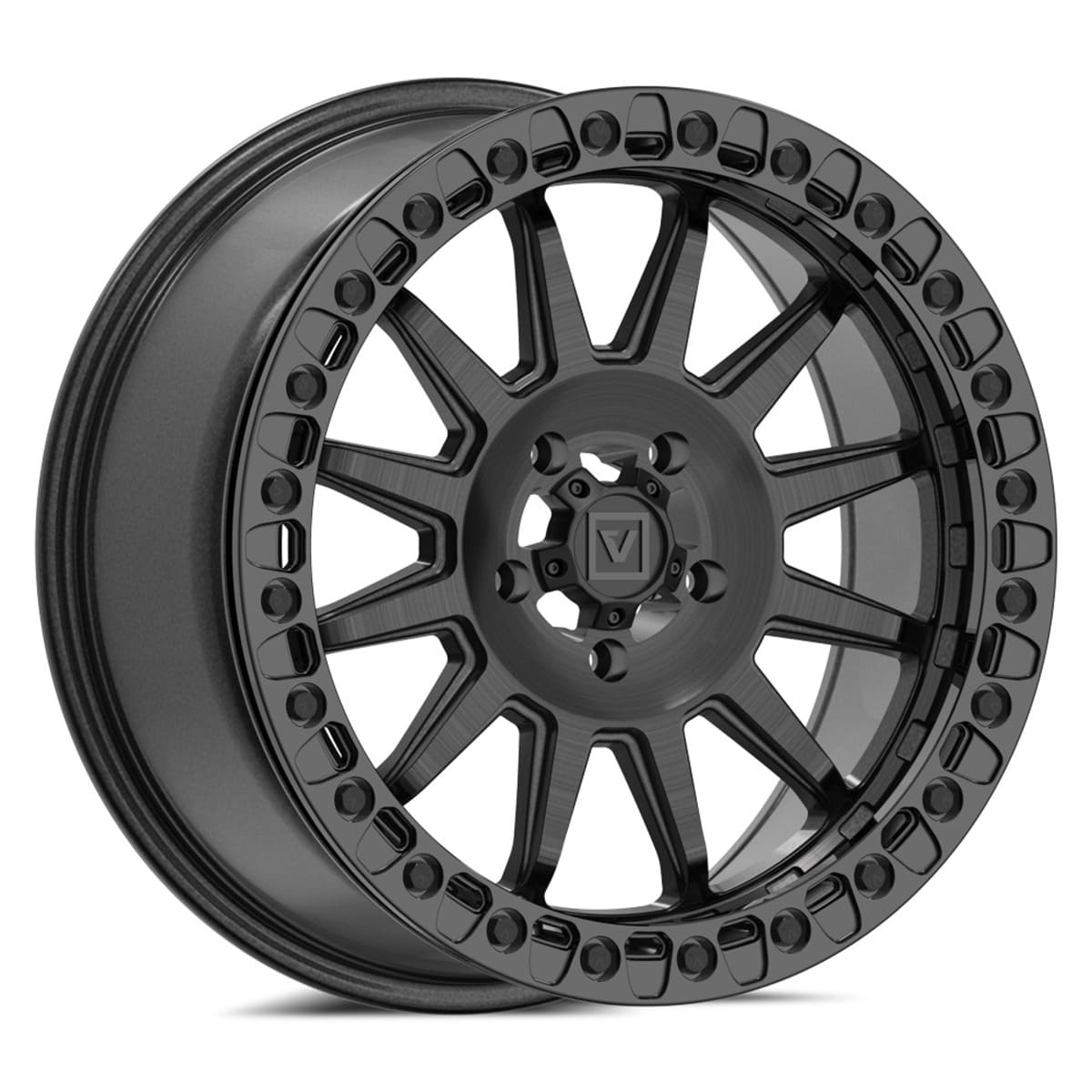

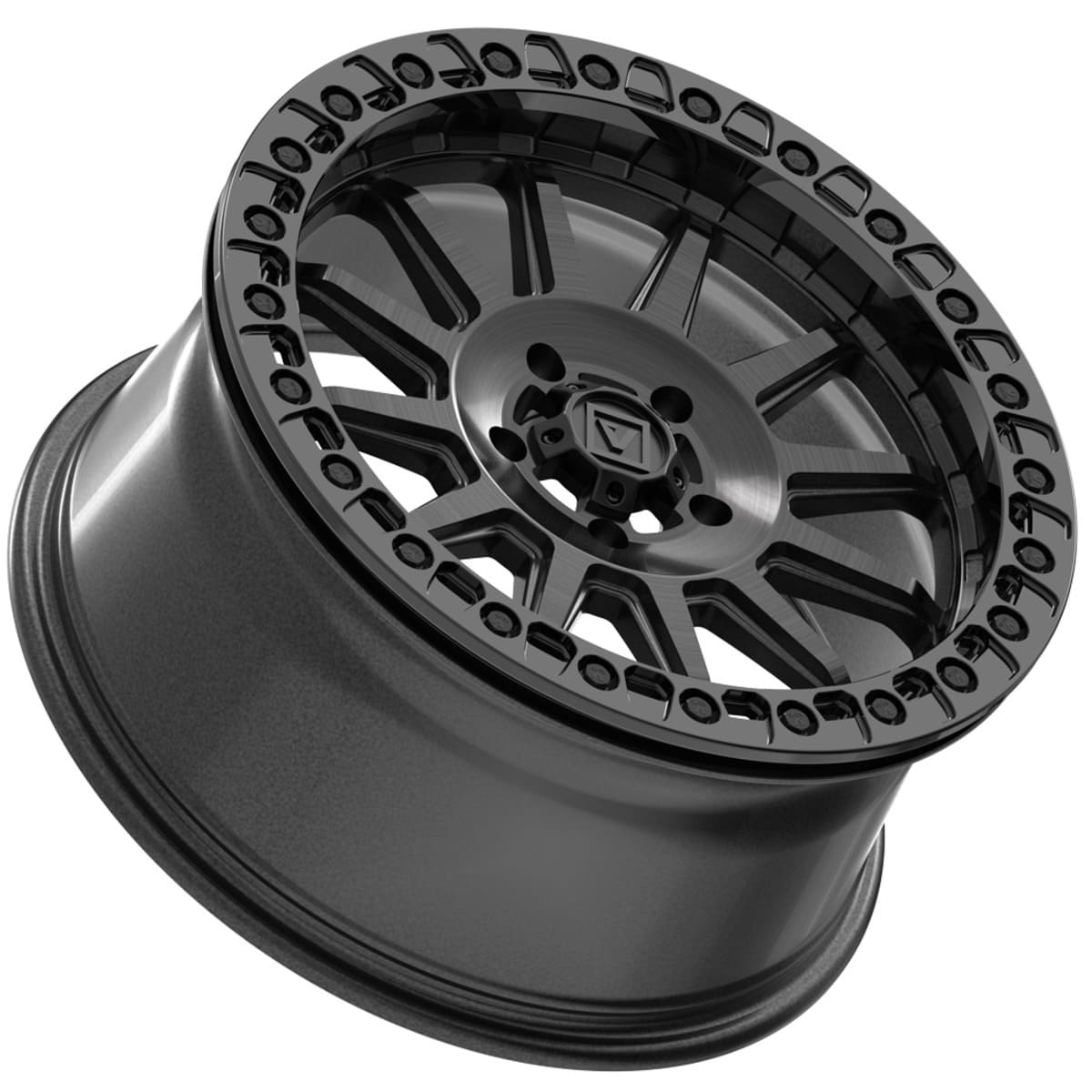

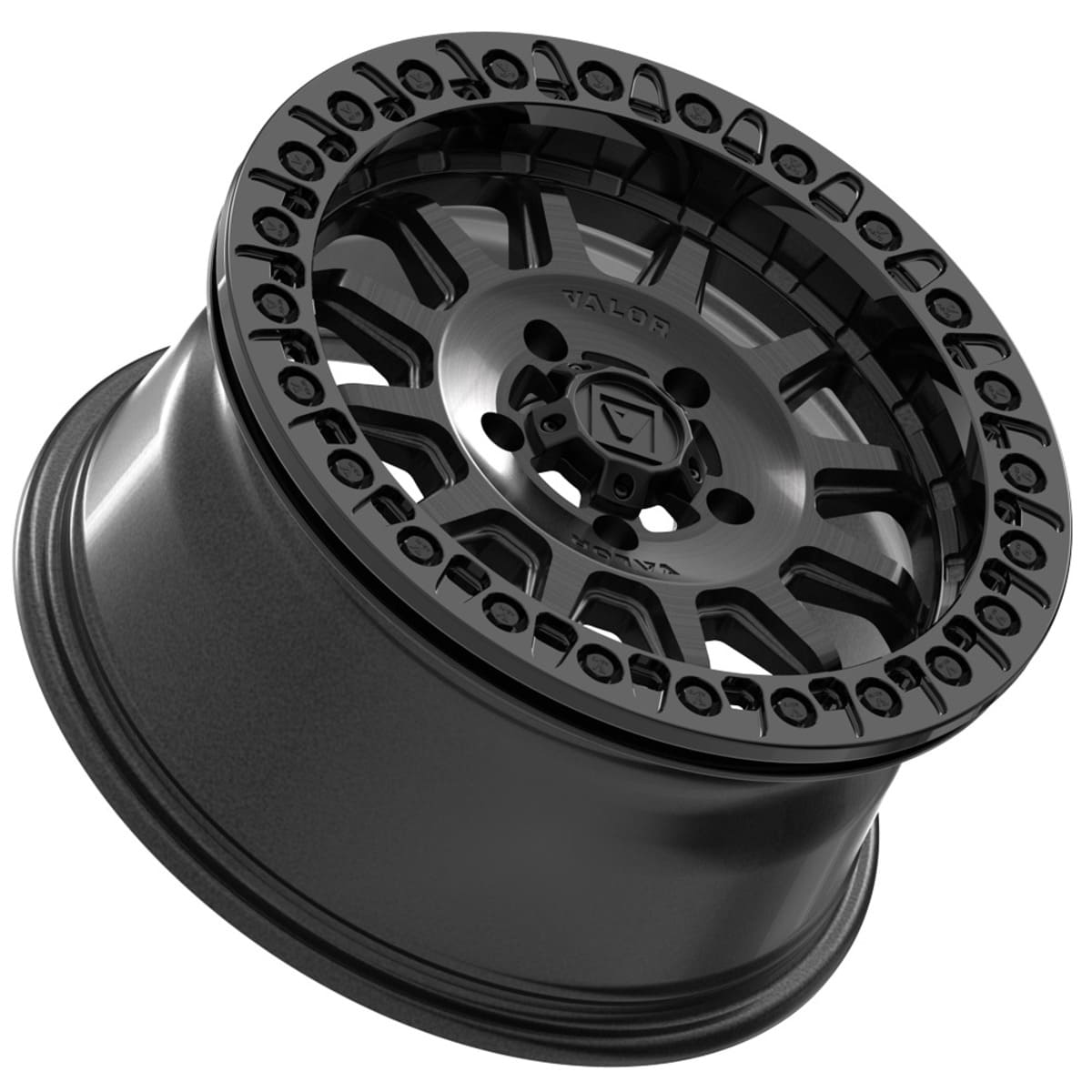

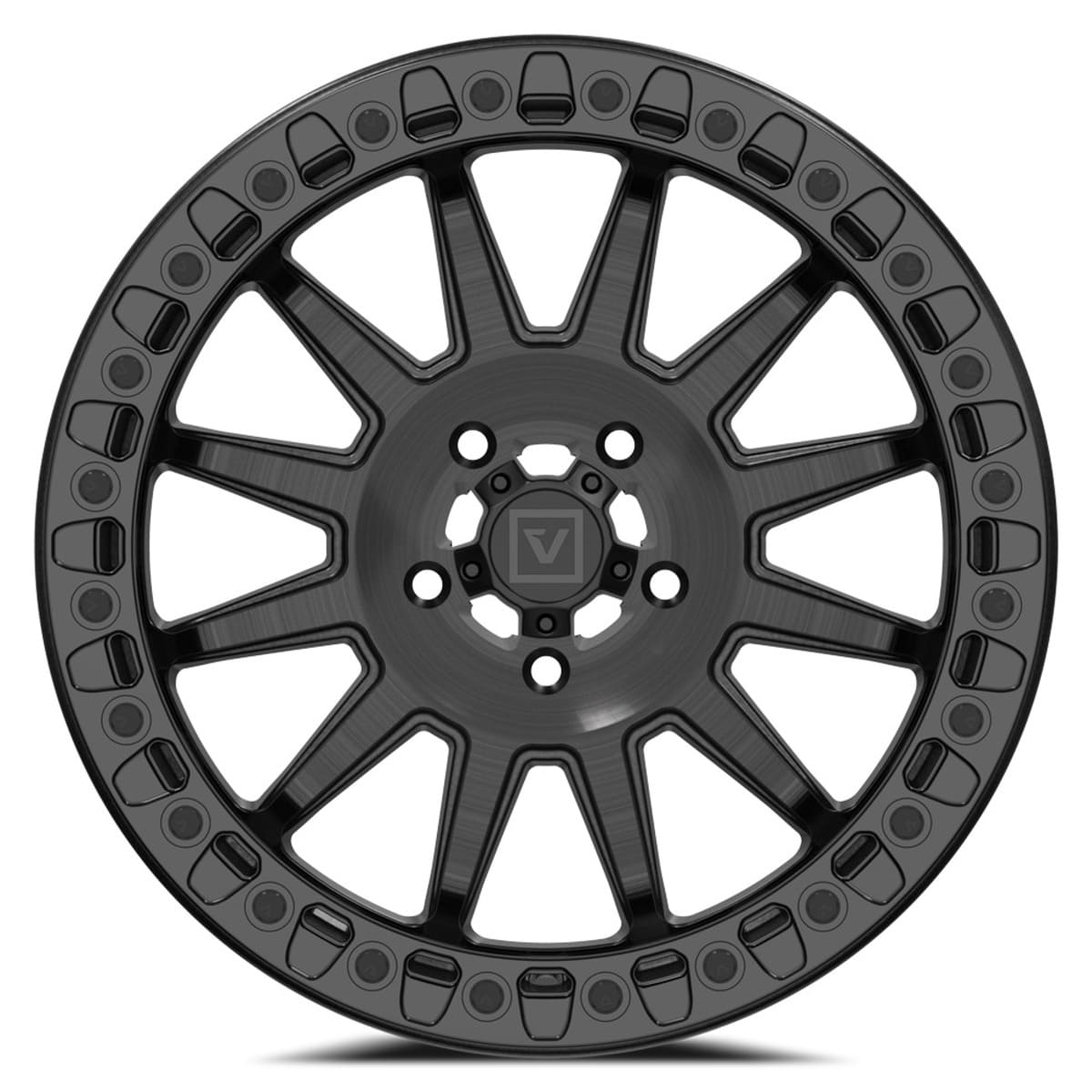

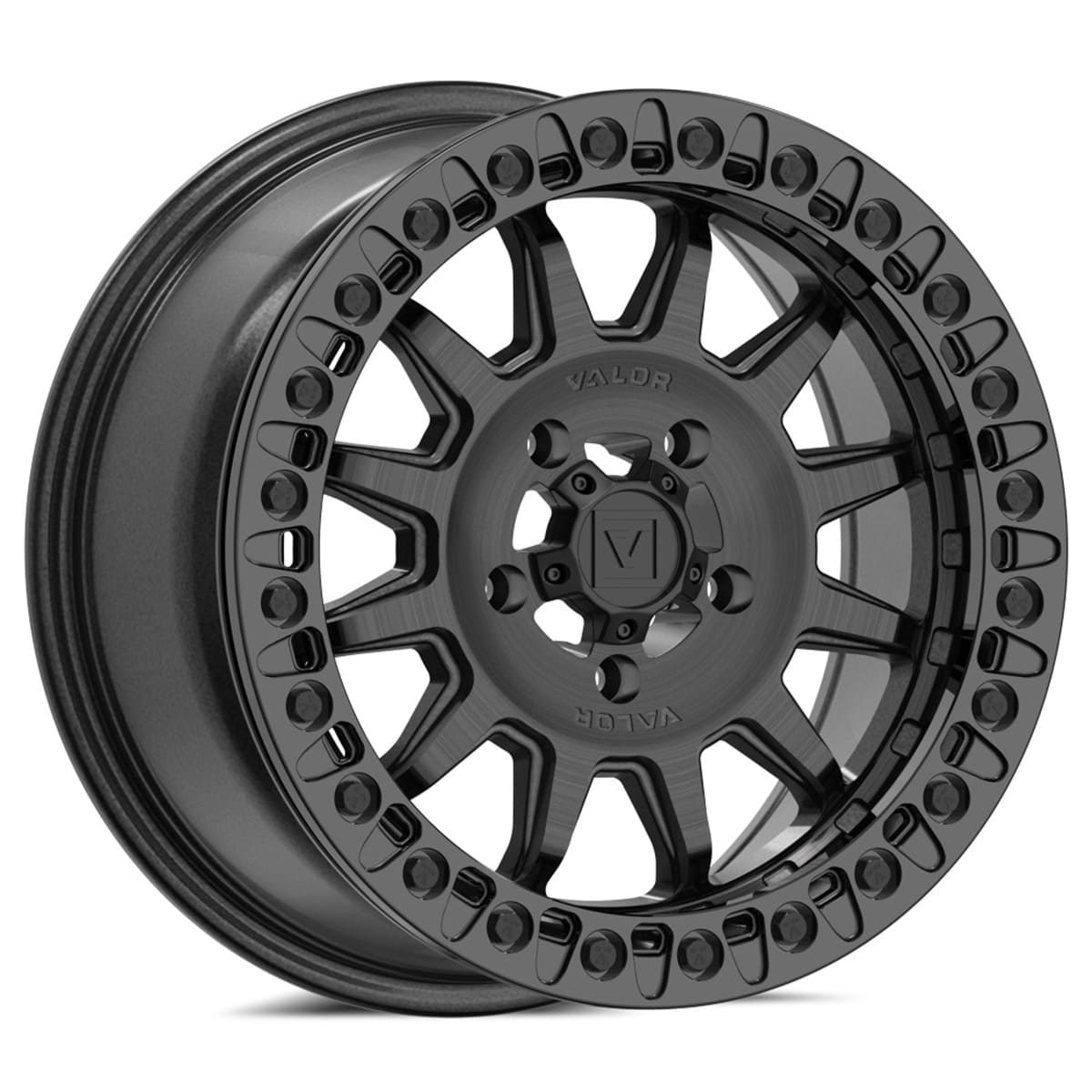

Valor Off-Road V09 Beadlock - Brushed Charcoal
Valor Off-Road V09 Beadlock - Brushed Charcoal
V09 Finishes
- Brushed Charcoal
The V09 Brushed Charcoal finish features textured brushed aluminum with dark charcoal tint. Gloss black billet beadlock ring. Gloss black cap with matching Valor Off-road logo.
- Satin Black
The V09 Satin Black finish features black on black with a satin black wheel and gloss black billet beadlock ring. Cap is a matching satin black with embossed white Valor Off-road logo.
Valor Off-Road:
V09 Beadlock
The V09 Rotary Forged UTV wheel combines two manufacturing technologies; both traditional casting and forging, to create a professional grade UTV wheel in both strength and light weight. Weighing in at 16.96 lbs, for the 15x7 and 20.40 lbs for the 17x8, the V09 is one of the lightest aluminum beadlock UTV wheels on the market.
The V09 beadlock UTV wheel is manufactured using only A356 aluminum with T6 heat treatment for one super strong wheel. Forged 6061 aluminum beadlock ring. Clean twelve spoke design with debossed VALOR "V" logo. Off-Road inspired and reinforced inner lip. Engineered to exceed SAE 2530 safety specifications. Bolt-on shorty center cap with embossed white logo.
New Finish:
Brushed
Charcoal
The new Brushed Charcoal paint finish on the Valor Off-Road V09 Rotary Forged UTV wheel is unlike any wheel in the industry. Each wheel is meticulously brushed to expose the grain of the aluminum alloy. The wheel is then sent to paint booth to get a super thick coat of charcoal tinted clear coat.
Each wheel is finished off with a satin black cap and gloss black forged billet beadlock ring.
Valor Off-Road:
Alpha on V09
Next level off-roading requires next generation products. The Alpha UTV tire by Valor Off-Road was developed exclusively for the powersports industry. Made in the USA, tested in the Rocky Mountains, learn what makes The Alpha different from your current UTV tires.
Industry Leading:
Light Weight Design
Rotary-Forged and incredibly tough, the V09 was meticulously engineered to shave unnecessary weight and boost load rating strength. The V09 UTV wheel is like no other wheel on the market.
V09 15x7 = #16.96 lbs
V09 17x8 = #20.40 lbs
Technical Detail:
Finish
The V09 beadlock UTV wheel is available in satin black paint or satin brushed charcoal with gloss black beadlock ring and hardware.
Quality
Manufactured using only A356 aluminum with T6 heat treatment for one super strong wheel. Engineered to exceed SAE 2530 safety specifications.
Design
Timeless straight twelve spoke UTV wheel design. Forged aluminum beadlock ring increases strength and sheds unnecessary weight.
Safety
Strong 1600 lbs. load rating to ensure you get back to the trailhead or basecamp when you want to. Lifetime limited structural warranty.
Bolt-on:
Forged Cap
The V09 rolls out all of our manufacturing skills, including the all new forged billet, all metal cap. Want to customize your wheels with. fresh coat of powder? Now you can include your caps to match. This bolt-on 15mm bolt-on cap is only available on the V09 and does not fit our other models.
V09 Detail:
Product Finish
The V09 Rotary Forged beadlock UTV wheel comes with a billet forged satin black center cap. Please note that the Satin Black and Brushed Charcoal versions of the V09 come with varying center cap logo finishes. The V09 utilizes a billet forged beadlock ring in gloss black paint finish. All Installation hardware is satin black.
We take a lot of pride in designing products and finishes that will last you a lifetime of enjoyment. All Valor Offroad products undergo a barrage of brutal safety and quality assurance tests so that no matter where you ride, or whatever mother nature throws your way, we've got you covered.
Looking for a custom fitment or custom finish? Check out all of our Valor Off-Road center caps here.
Fitments
The V09 Rotary Forged Beadlock UTV wheel is available in 15x7 and 17x8 with fitments for all modern UTVs and ATVs (4x137, 4x156, 5x114.3, 6x139.7).
Each of our Valor Off-Road UTV wheel styles is carefully wrapped in just the right amount of protective material to ensure a safe trip from our warehouse to your door. We are hyper selective in our packaging design and shipping to remove any unnecessary or redundant packaging.
Unless noted, your cap will match the finish of the wheel selection. Each cap includes all necessary installation hardware and will come pre-installed.
All Valor Off-Road beadlock wheels include all necessary mounting hardware on the bottom of the box. Please ensure you remove all packaging before descarding boxes.
Part Number Explanation
Example: V09-1570P4037SB
V09: Style Number
15: Wheel Diameter
70: Wheel Width (7")
P40: Positive (+)25mm Offset
37: Bolt Pattern (4x137)
SB: Satin Black Finish
15” Wheel Specs:
V09-1570P4037BC
Size: 15x7
Bolt Pattern: 4x137
Offset: +40mm (5+2)
Hub Bore: 112mm
Wheel Weight (LBS): 16.96
Max Load (LBS): 1600
Finish: Brushed Charcoal
Ring Finish: Gloss Black
Cap: VCAP2-B-FORGEGB
V09-1570P4056BC
Size: 15x7
Bolt Pattern: 4x156
Offset: +40mm (5+2)
Hub Bore: 132mm
Wheel Weight (LBS): 16.96
Max Load (LBS): 1600
Finish: Brushed Charcoal
Ring Finish: Gloss Black
Cap: VCAP2-B-FORGEGB
V09-1570P4005BC
Size: 15x7
Bolt Pattern: 5x114.3 (5x4.5)
Offset: +40mm (5+2)
Wheel Weight (LBS): 16.96
Max Load (LBS): 1600
Finish: Brushed Charcoal
Ring Finish: Gloss Black
Cap: VCAP2-B-FORGEGB
V09-1570P4006BC
Size: 15x7
Bolt Pattern: 6x139.7 (6x5.5)
Offset: +40mm (5+2)
Wheel Weight (LBS): 16.96
Max Load (LBS): 1600
Finish: Brushed Charcoal
Ring Finish: Gloss Black
Cap: VCAP2-B-FORGEGB
17” Wheel Specs:
V09-1780P4037BC
Size: 17x8
Bolt Pattern: 4x137
Offset: +40mm (6+2)
Wheel Weight (LBS): 20.40
Max Load (LBS): 1600
Finish: Brushed Charcoal
Ring Finish: Gloss Black
Cap: VCAP2-B-FORGEGB
V09-1780P4056BC
Size: 17x8
Bolt Pattern: 4x156
Offset: +40mm (6+2)
Wheel Weight (LBS): 20.40
Max Load (LBS): 1600
Finish: Brushed Charcoal
Ring Finish: Gloss Black
Cap: VCAP2-B-FORGEGB
V09-1780P4005BC
Size: 17x8
Bolt Pattern: 5x114.3 (5x4.5)
Offset: +40mm (6+2)
Wheel Weight (LBS): 20.40
Max Load (LBS): 1600
Finish: Brushed Charcoal
Ring Finish: Gloss Black
Cap: VCAP2-B-FORGEGB
V09-1780P4006BC
Size: 17x8
Bolt Pattern: 6x139.7 (6x5.5)
Offset: +40mm (6+2)
Wheel Weight (LBS): 20.40
Max Load (LBS): 1600
Finish: Brushed Charcoal
Ring Finish: Gloss Black
Cap: VCAP2-B-FORGEGB
