UTV Stereo Elite Series 1600W 5-Channel Amplifier

UTV Stereo Elite Series 1600W 5-Channel Amplifier

Designed for high performance audio systems, these UTV Stereo "Elite Series" amplifiers are packed with plenty of power. They are built rugged to withstand the elements with an IP67 water-resistant rating loaded with features, these "Elite Series" amps were designed to keep any enthusiast satisfied.

Features:

• Die-Cast Aluminum Chassis

• IP67 Rated Dustproof & Water-resistant
• IRS Full Range Class-D Technology for Efficiency & Performance

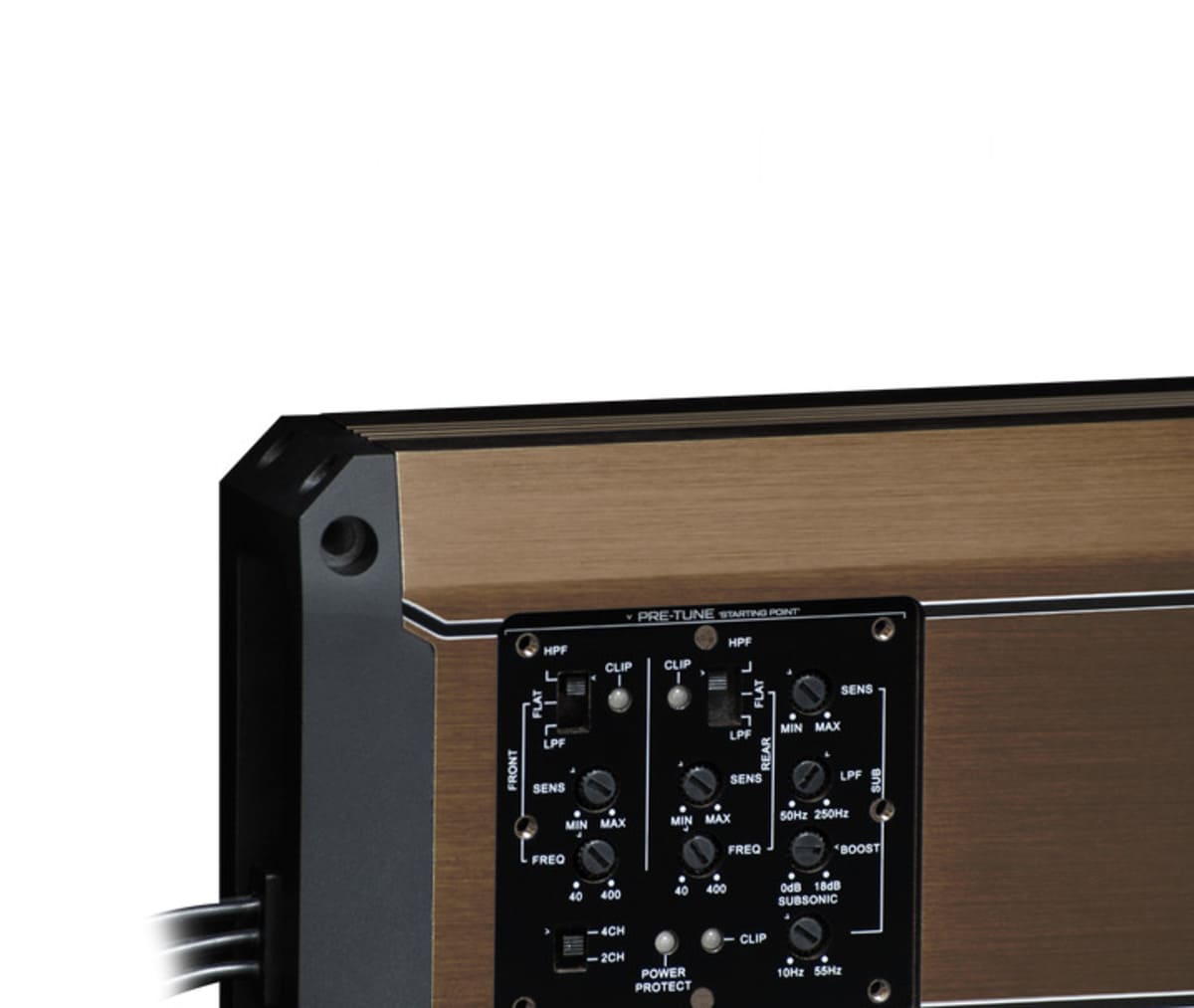

• Top Panel Tuning Control Access
• Ultra Compact Size for Easy Installation
• Surface Mount Component Technology
• Verified for Audio Precision Quality Control
• Stable & Reliable Four-Layer PCB Trace layout
• Power, Protection, and Clipping LED Indicators
• Short Circuit, Thermal, High/Low Voltage Protection
• Excellent Signal to Noise Ratio & FM Noise Rejection

Specifications:

• RMS Power Output at 2 Ohm: 200W x 4CH + 800W
• RMS Power Output at 4 Ohm: 125W x 4CH + 500W
• RMS Power Output at 4 Ohm Bridged: 400W X 2CH (F&R CH'S)
• Crossover Range: HPF: 40-400Hz (F&R CHs) LPF: 50-250Hz (SUB)
• Frequency Range: 20-20KHz / 20-250Hz
• Water resistant IP67 Certified
• Conformal Coated PCB Certified

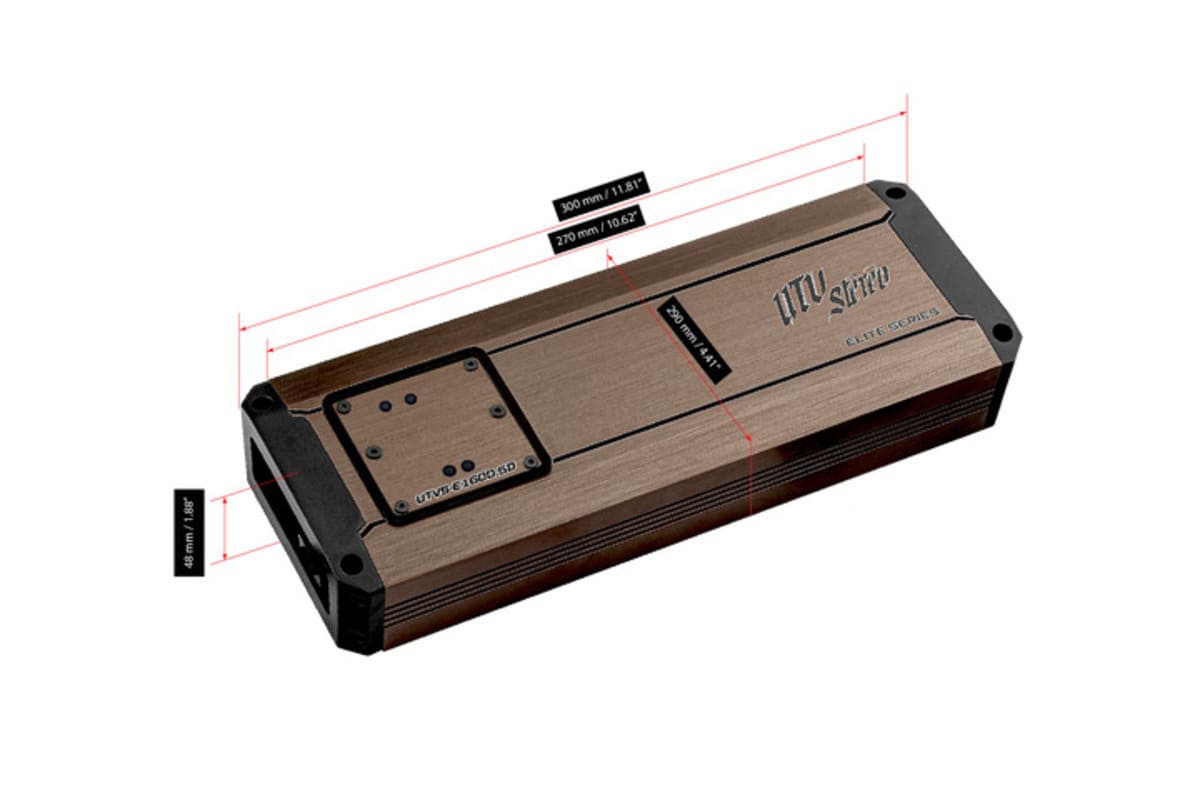

• Dimensions: 11.83” x 4.41” x 1.89”

Instruction:
