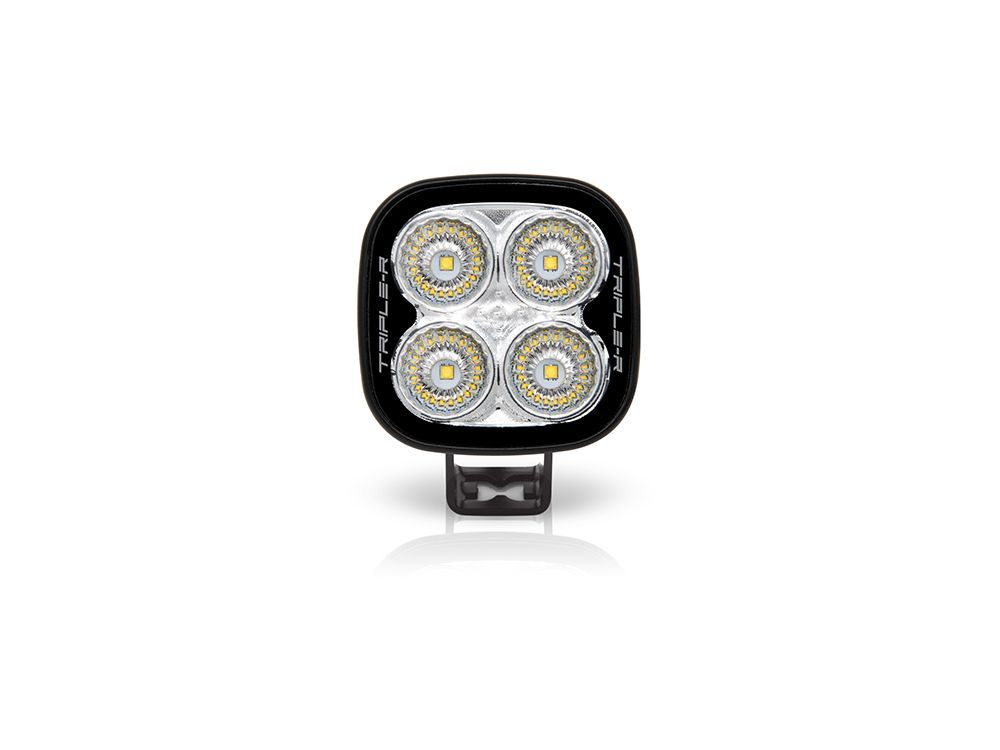

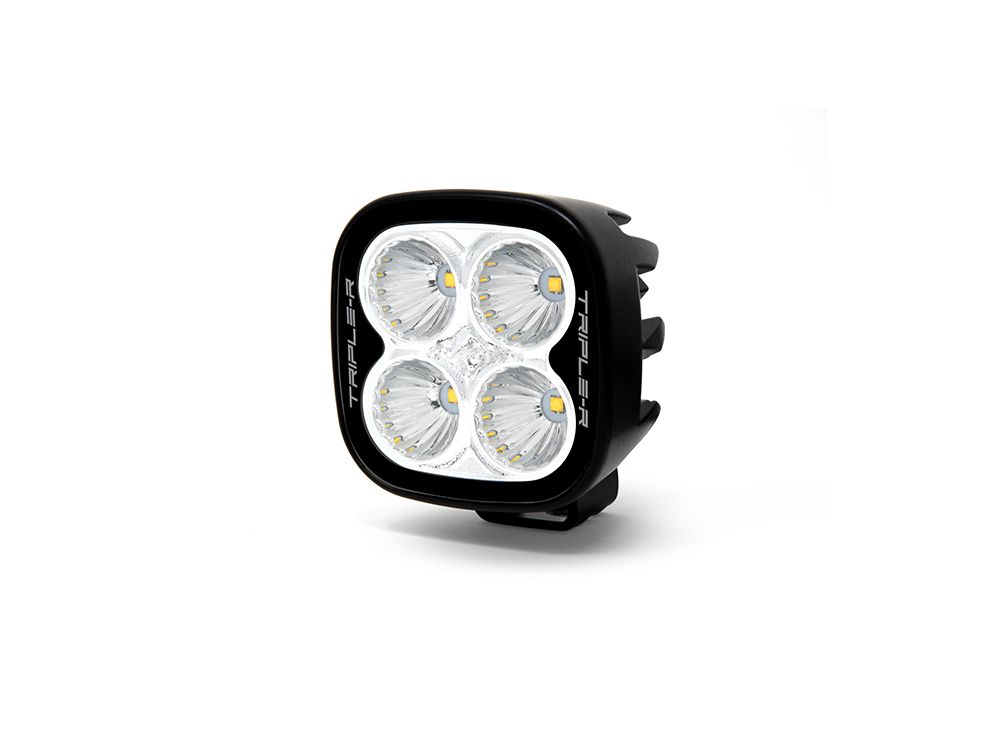

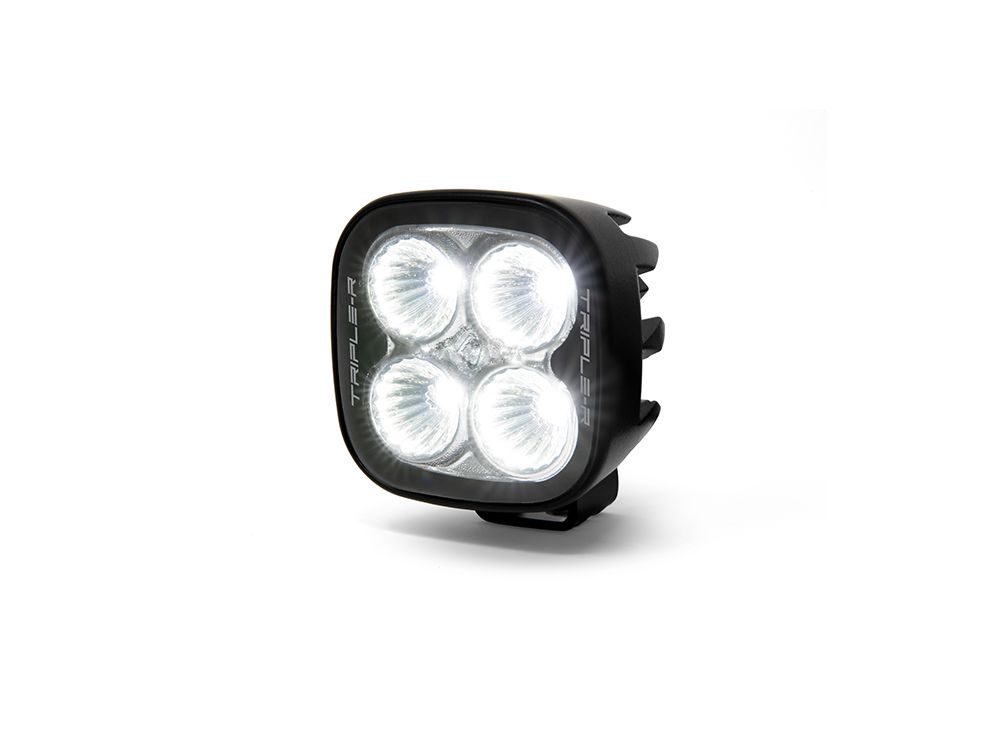

Triple R Lighting Utility-25
The Utility-25 is a hugely versatile, medium-duty work light, which through the latest advances in LED lighting technology, gives superior levels of light output considering its compact size. The lamp is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types.
Measuring 3.15" x 3.15" and capable of operating between 10-32V, the Utility-25 utilises highly efficient 6W LEDs from a world-leader in LED design and manufacture. Like all Triple-R products, the color temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range. The vacuum-metallized optics harness the 3,016 raw lumens delivering 78 degree spread (to 10% of peak intensity). The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the lamp to be run at a higher drive current without compromising the longevity of the LEDs themselves.
Designed and manufactured in the UK, the Utility-25 is a product built to last, and to withstand harsh environments, backed up by a comprehensive 5yr warranty*. The polycarbonate lens with hardcoat, is bonded in place to guarantee water-tightness (IP69K), while the lamps have undergone extensive testing to comply with regulations in relation to vibration, shock, and corrosion resistance. Advanced electronic design ensures full EMC protection to CISPR-25 (Class 5†) standards.
Supplied with male/female Deutsch connectors (part no. DT06-2S/DT04-2P), the Utility-25 also comes supplied with a satin black-painted stainless-steel mounting system, which allows flexibility in mounting the light in many different orientations.
Features:
- UNECE approved Work Light (Reg 10)
- High density, premium ‘bin’ LEDs
- Advanced optical design delivers superior lighting performance

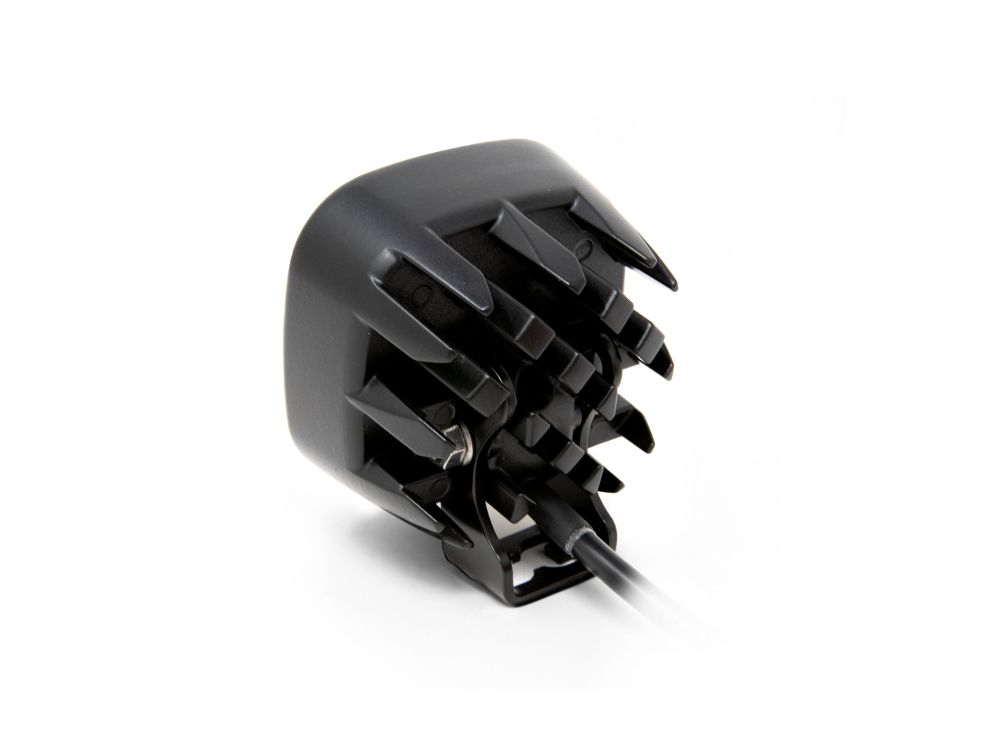

- CAE optimized 'Matrix' cooling system offers improved thermal dynamics
- Electronic thermal management system optimizes light output to preserve longevity of the LEDs
- Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
- EMC protected - CISPR 25: 2008 (Class 5)
- Over voltage protected
- Reverse polarity protected
- ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
- IP67 watertight
- 5-year warranty*
- Supplied with pre-wired male/female 2-pin Deutsch connectors
- Designed and manufactured in UK
- † - CISPR-25 (Class 5) applies to 12V usage only unless specified
* -5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.
Technical Specifications:
Based on: 1x Utility-25.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
Weight | 360 gr |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 3016 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 4 |
Power Consumption | 25 Watts |
Current Draw (at 14.4V) | 1.6 Amps |
CERTIFICATION | |
Work Lamp | ECE R10 |
IP Rating | IP68 / IP69K |
Salt Spray Test | ISO 9227 (250H) |
EMC Protection | CISPR-25: 2008 (Class 5†) |
OPERATING CONDITIONS | |
Shock | TBC |
Vibration (BS EN 60068) | 10Hz-2000Hz, 10gn |
Operating Temperature | -40deg C ... +90degC |

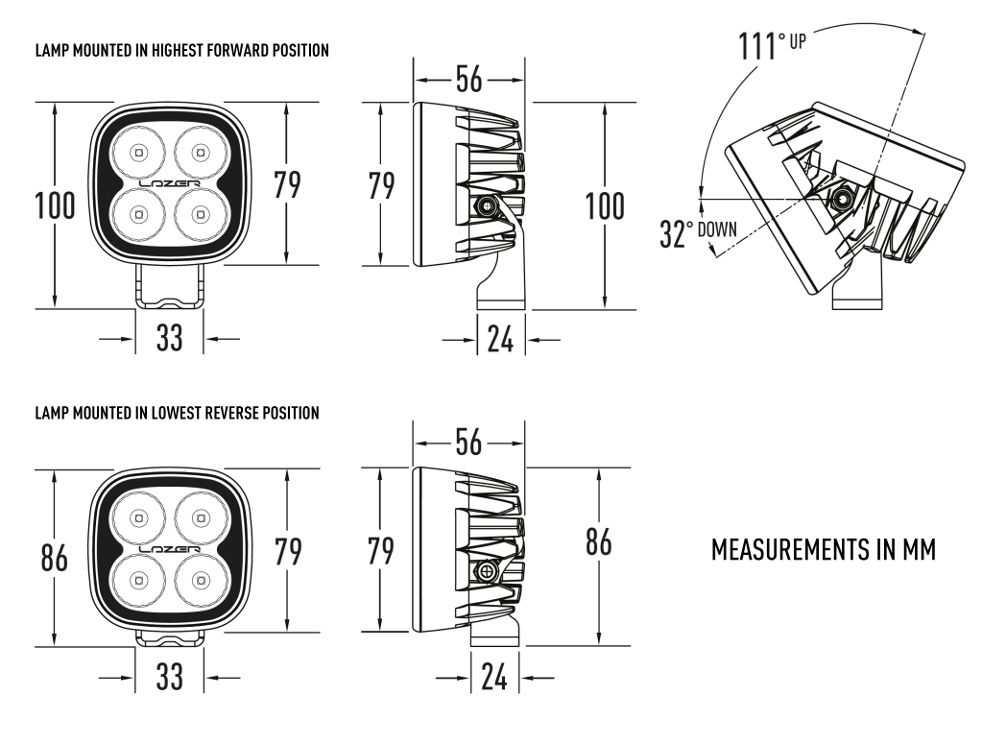

DIMENSIONS | |
Width | 80 mm |
Depth | 56 mm |
Height | 80 mm |

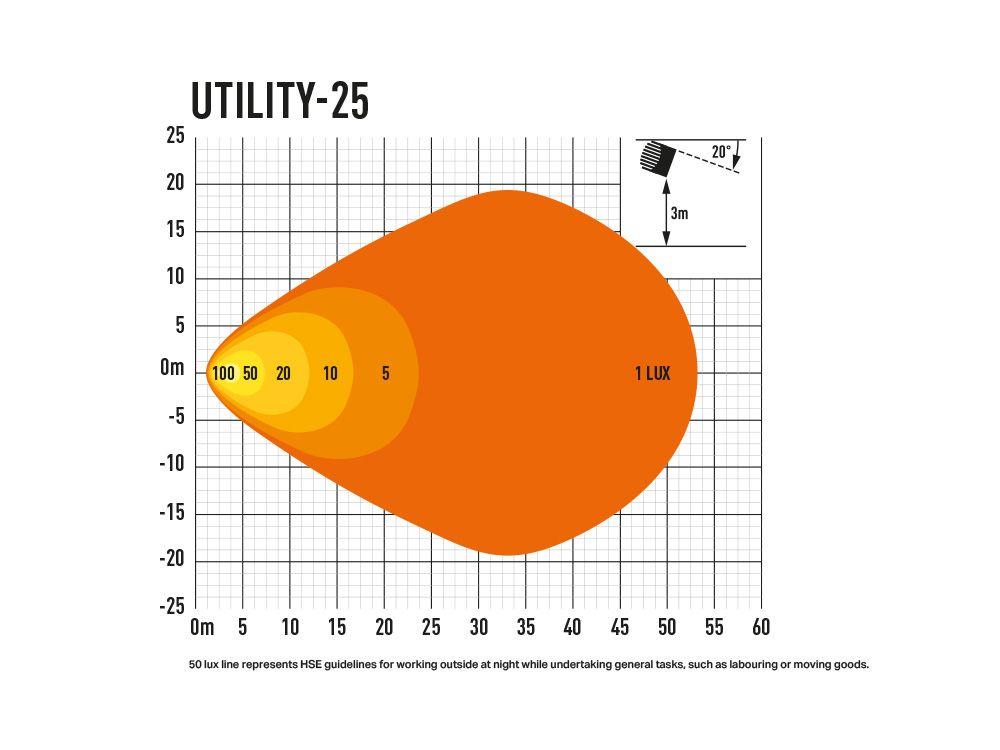

PHOTOMETRIC DATA | |
1Lx Line | 54m |
5Lx Line | 24m |
20Lx Line | 12m |

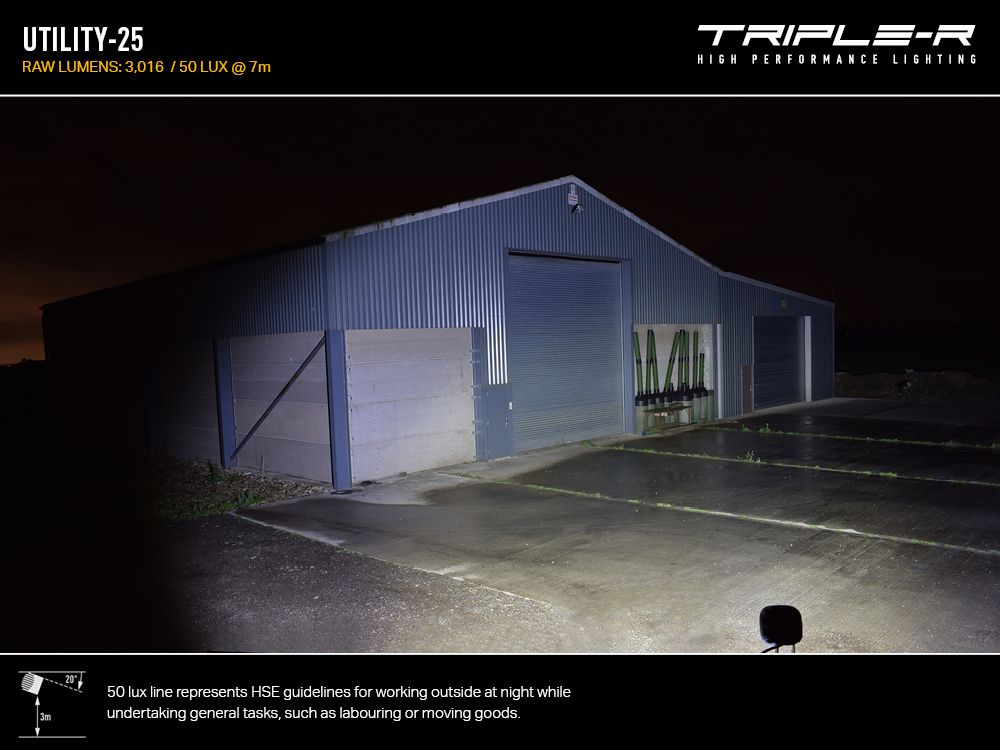

* 50Lx Line | 7m* |
* - 50Lx represents HSE guidelines for effective illumination when working outdoors at night.
† - CISPR-25 (Class 5) applies to 12V usage only unless specified.
What's Included:
- x1 Utility-25 LED Work Lamp
- x1 Mounting Bracket
Instructions:
