Triple R Lighting Two-Lamp Wiring Kit (6-Pin, Superseal, 12V)

Triple R Lighting Two-Lamp Wiring Kit (6-Pin, Superseal, 12V)

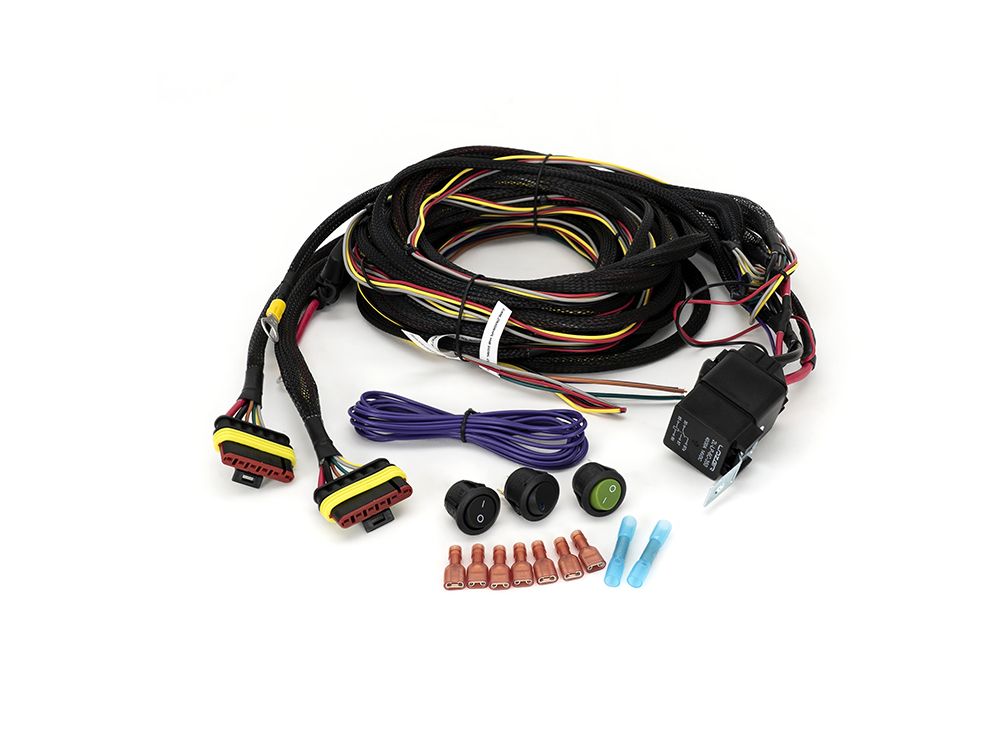

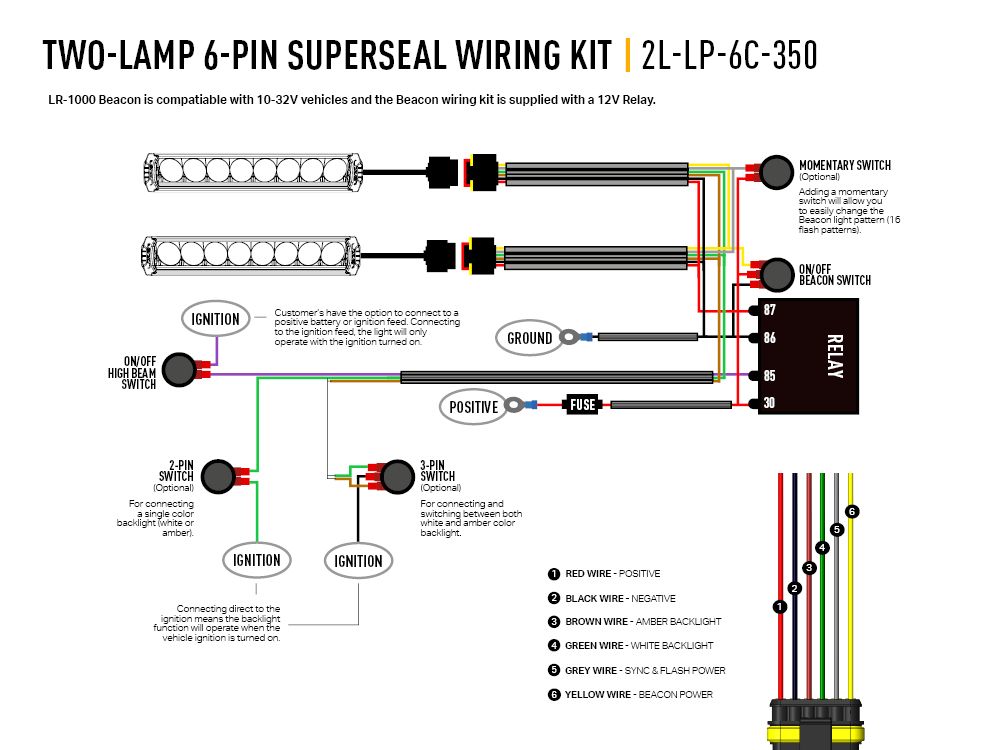

The ideal solution for wiring a pair of Triple-R Lights high performance LED spotlights, which also feature integrated Backlight and Beacon function. The setup is quick, easy, and reliable with 6-pin superseal connections and no configuration procedures. The kit features a 12V relay (in waterproof housing), 30A fuse, a battery terminal at one end, and 3.5m of flex on lamp cables, and allows for the operation of Triple-R Lights products in parallel with the standard lighting on the vehicle.

All Triple-R Lights are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring into your vehicle system.

Compatible with:

• LR-1000 with Beacon

Features:

• Two-Lamp Wiring Kit for Triple-R Lights products with integrated backlight and Beacon function
• 3.5m cable lengths
• Includes 12V relay and 30 amp fuse
• Superseal connections
• High beam trigger wire allows for operation of lights in parallel with standard high beams
• Conduit cable sections for added protection in engine bay

Instructions:

• UT50 Beacon Instructions (107.03 KB)
