Triple R Lighting Two-Lamp Wiring Kit (3-Pin, Superseal, 12V)

Triple R Lighting Two-Lamp Wiring Kit (3-Pin, Superseal, 12V)

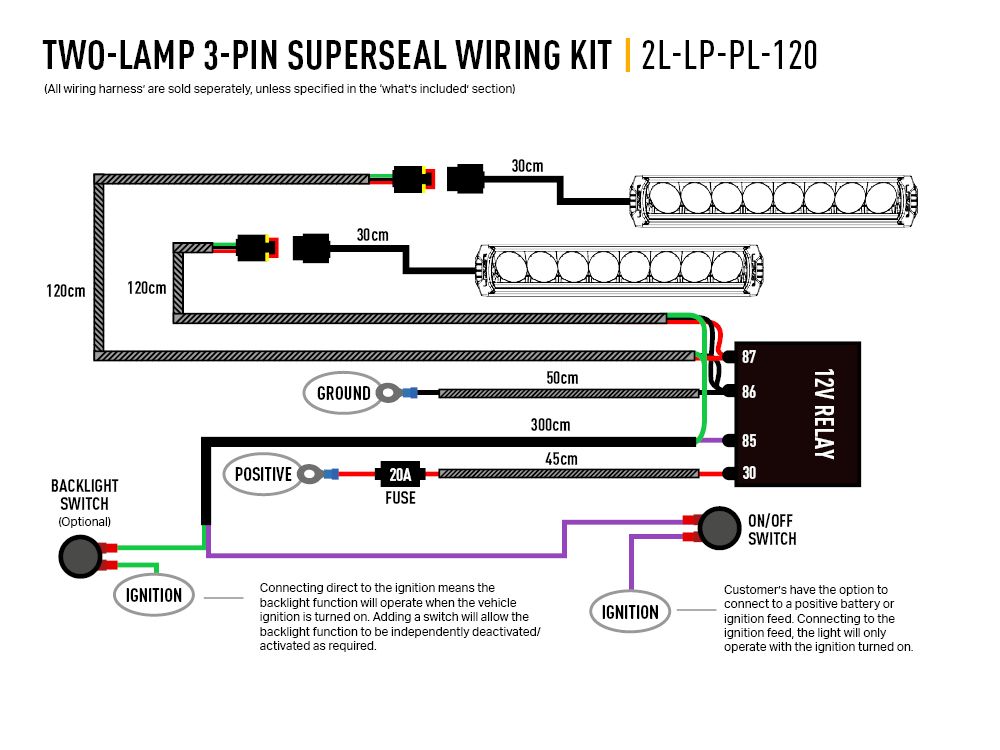

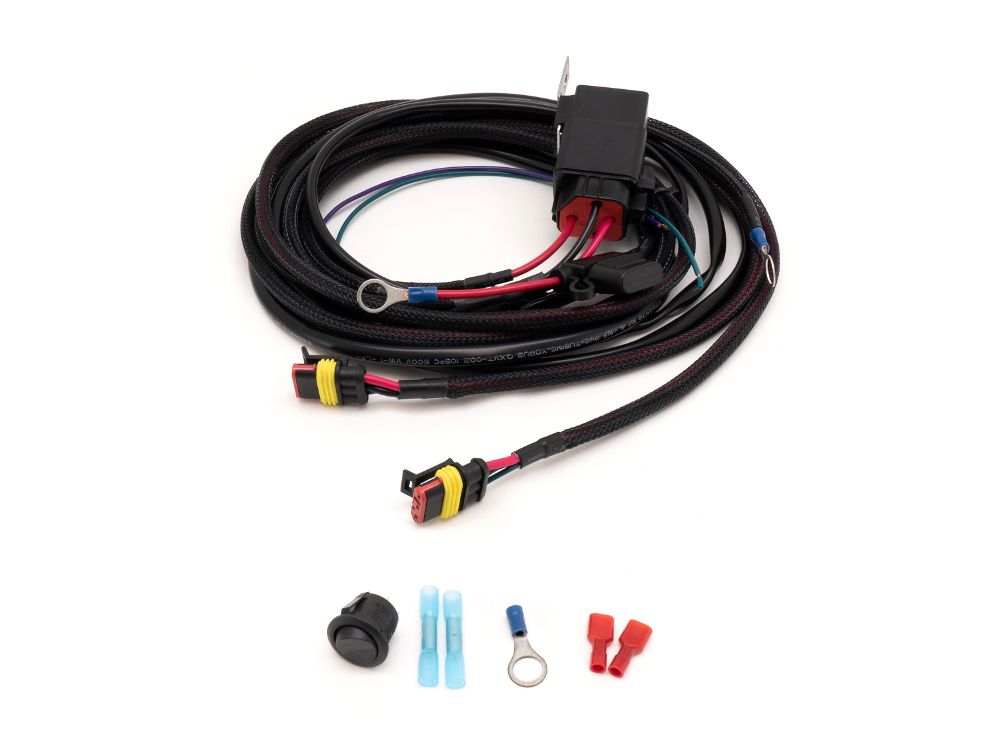

Two-Lamp wiring kit for Triple-R Lights’ High Performance LED lights. The setup is quick, easy, and reliable with 3-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 3m of flex on the lamp cable, and allows for the operation of Triple-R products either in parallel with the standard lighting on the vehicle (DOT/SAE approved products only), and/or via an independent switch which can be mounted inside your vehicle.

All Triple-R Lights are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

Compatible with:

• LR-750

• LR-850

• LR-1000

• Linear-12 Elite (with DRL)

• Sentinel 7'' Elite

• Sentinel 9''


Not suitable for two LR-1250 (with Backlight) or Linear-18 Elite (with DRL). To power two of these lights, please use two one-lamp wiring kits (1L-LP-PL-120).

Features:

• Two-Lamp Wiring Kit for Triple-R Lights High Performance LED Lights (see product text for compatibility)
• 1.2m cable lengths
• Includes 12V relay and 30 amp fuse
• 3-pin superseal connections
• Includes optional on/off switch for independent operation of high beam
• Braided cable sections for added protection in engine bay

Instructions:

• UT50 Beacon Instructions (107.03 KB)

Video Instruction:
