Triple R Lighting Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)

Triple R Lighting Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)

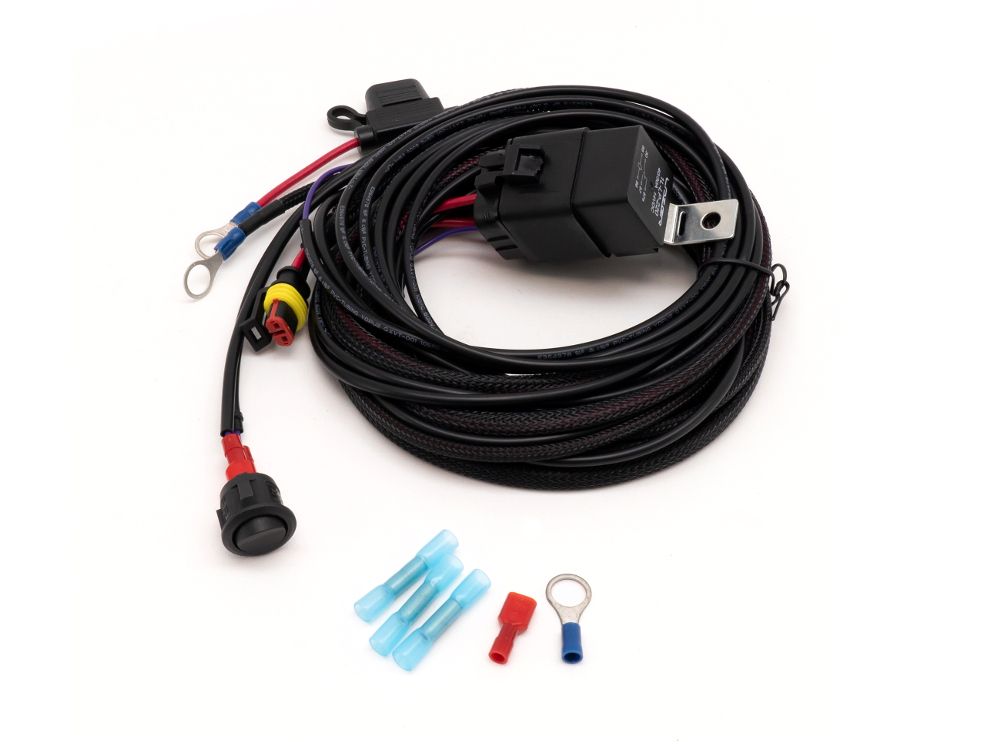

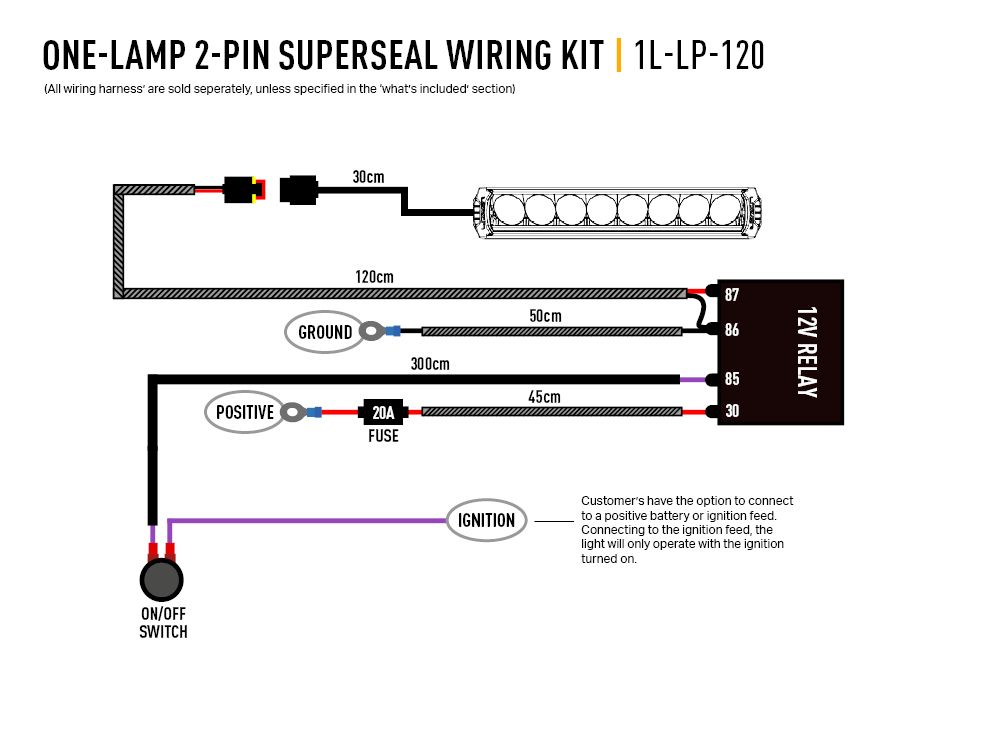

One-Lamp wiring kit for Triple-R Lights’ High Performance LED lights. The setup is quick, easy, and reliable with 2-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 1.2m of flex on the lamp cable, and allows for the operation of Triple-R products either in parallel with the standard lighting on the vehicle (DOT/SAE approved products only), and/or via an independent switch which can be mounted inside your vehicle.

All Triple-R Lights are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

Compatible with:

• LR-750 Elite

• LR-850 Elite

• LR-1000 Elite

• Linear-6 Elite

• Linear-36

• Linear-42

• Linear-48

• Sentinel 7''

• Sentinel 9'' Elite


Features:

• One-Lamp Wiring Kit for Triple-R LED Lights (see product description for compatibility)
• 1.2m cable length
• Includes 12V relay and 20 amp fuse
• 2-pin Superseal connections
• Includes optional on/off switch for independent operation of high beam
• Braided cable sections for added protection in engine bay

Instructions:

• UT50 Beacon Instructions (107.03 KB)

Video Instruction:
