Triple R Lighting Single-Lamp Harness Kit (4-Pin, Deutsch Dt, 12V)

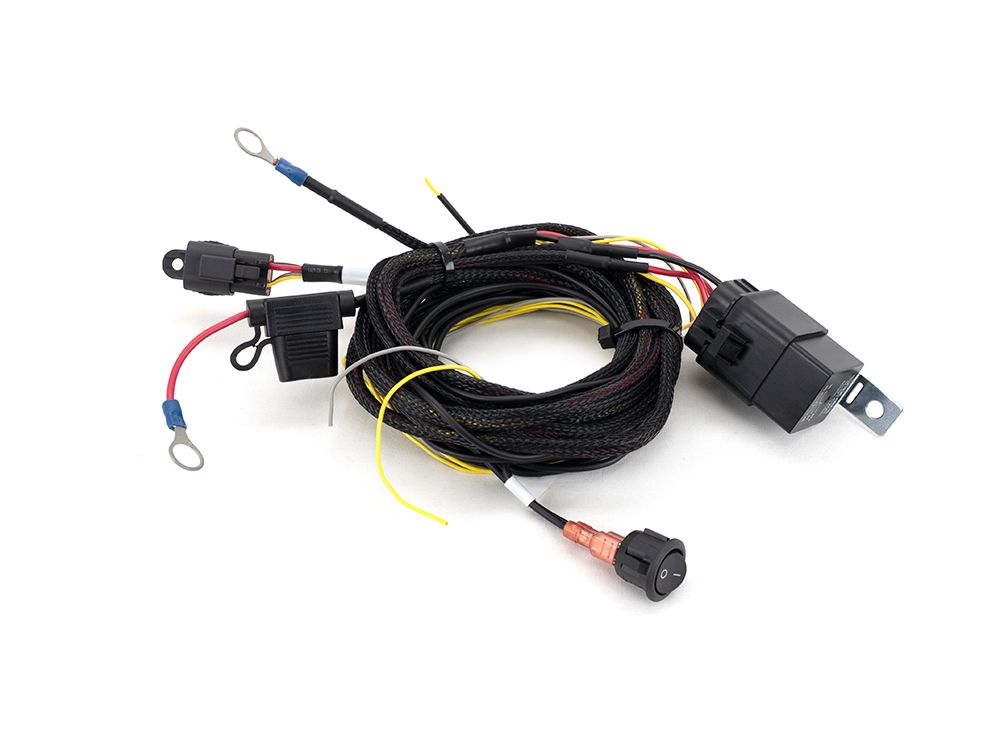

One-Lamp wiring kit for Triple-R Lights’ High Performance LED lights. The setup is quick, easy, and reliable with 4-pin Deutsch connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 3m of flex on the lamp cable, and allows for the operation of Triple-R products either in parallel with the standard lighting on the vehicle (DOT/SAE approved products only), and/or via an independent switch which can be mounted inside your vehicle.

All Triple-R Lights are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

Compatible with:

• Carbon-2 Drive (Gen3)
• Carbon-2 Spot (Gen3)
• Carbon-4 Drive (Gen3)
• Carbon-4 Spot (Gen3)
• Carbon-6 Drive (Gen3)
• Carbon-6 Spot (Gen3)
• RP Hyperspot

Features:

• Single-Lamp Wiring Kit for Carbon-6 (Gen3) or RP Hyperspot LED lights
• 2m cable lengths
• Includes 12V relay and 25 amp fuse
• Relay holder approved to IP53 when mounted in a vertical (upright) orientation
• Deutsch DT06-4S connections
• Includes on/off switch for independent operation of lights
• Braided cable sections for added protection in engine bay

Instructions:

• UT50 Beacon Instructions (107.03 KB)
