Triple R Lighting Single-Lamp Harness Kit (2-Pin, Aptiv, 12V)

Triple R Lighting Single-Lamp Harness Kit (2-Pin, Aptiv, 12V)

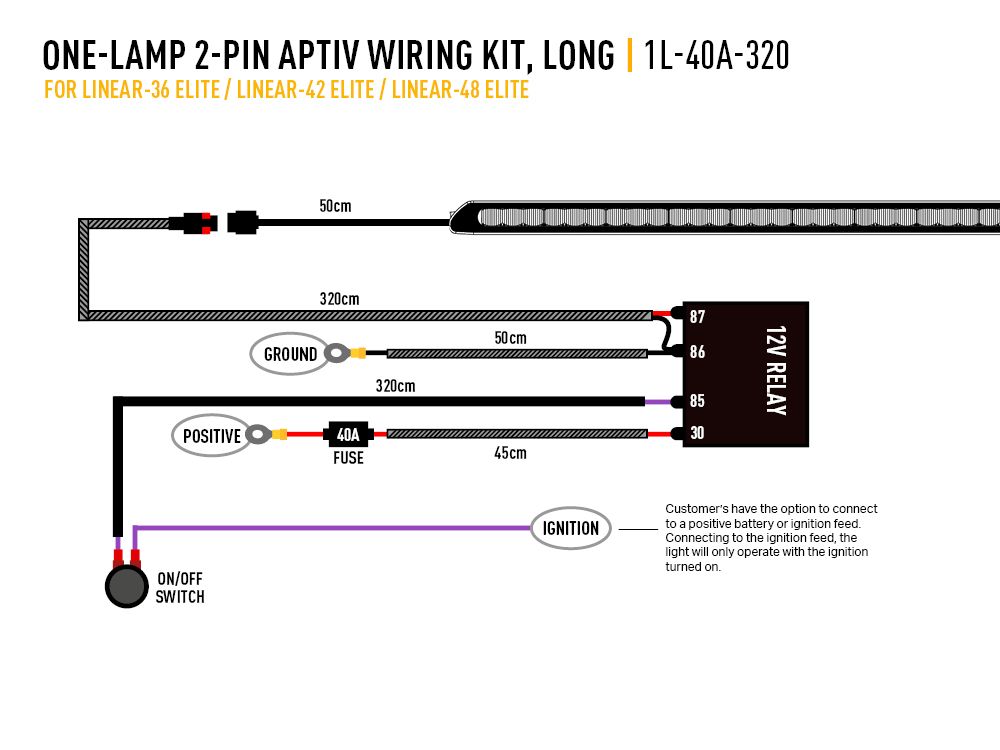

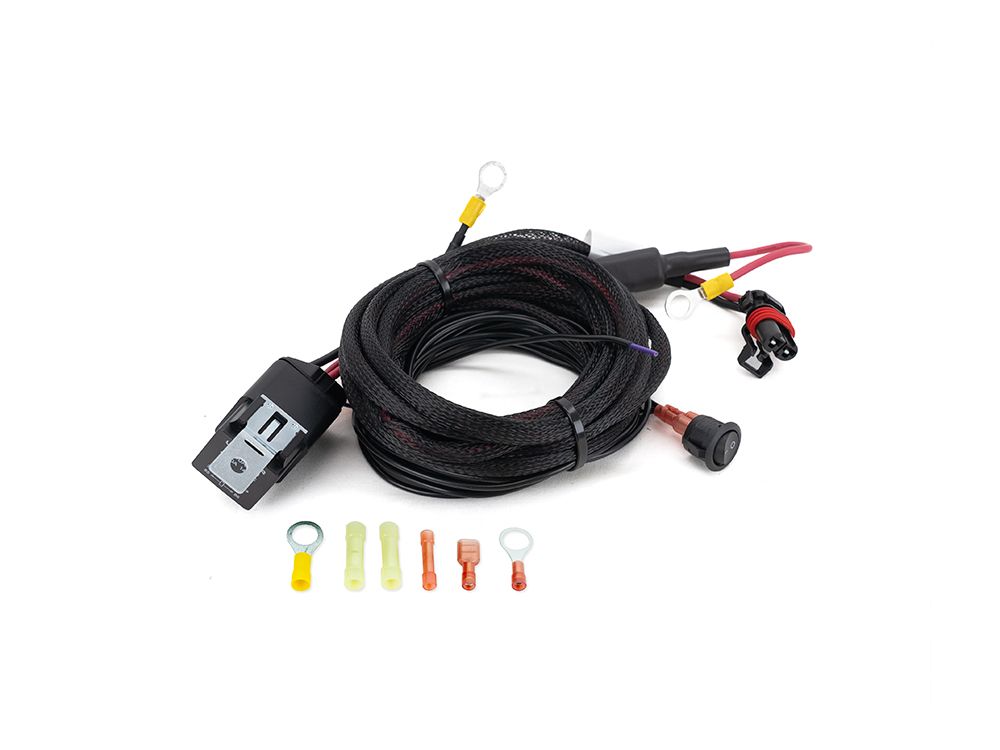

One-Lamp wiring kit for Triple-R Lights’ High Performance LED lights. The setup is quick, easy, and reliable with 2-pin Aptiv connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 3m of flex on the lamp cable, and allows for the operation of Triple-R products either in parallel with the standard lighting on the vehicle (DOT/SAE approved products only), and/or via an independent switch which can be mounted inside your vehicle.

All Triple-R Lights are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

Compatible with:

• Linear-36 Elite

• Linear-42 Elite

• Linear-48 Elite

Note - all lamps above are supplied as new with the Single-Lamp Wiring Kit included.

Features:

• One-Lamp Wiring Kit for Triple-R Lights LED Lightbars (see product text for compatibility)
• 3.2m cable length
• Includes 12V relay and 40 amp fuse
• Deutsch connection
• Includes on/off switch for independent operation
• Braided cable sections for added protection in engine bay

Instructions:

• UT50 Beacon Instructions (107.03 KB)
