Triple R Lighting Sentinel Flat Transfer Plate

Triple R Lighting Sentinel Flat Transfer Plate

Designed for Sentinel 9” LED spotlights with ‘Slim’ mounting bracket, the Flat Transfer Plate is designed to enable lamps to be forward mounted between 32mm – 57mm. Ideal when looking to mount lights with limited clearance at the rear of the lights.

Made from 5mm stainless steel with satin black e-coat, the transfer plates perfectly match the finish of the original Sentinel lamp bracket (compatible with ‘Slim’ mount only), while providing maximum corrosion resistance to ensure your install stays looking in mint condition for years.

Supplied in pairs

Features:

• Supplied in pairs
• Produced from 5mm stainless steel
• Electro-Coated to automotive 1000hr corrosion specifications
• Finished in stain black to match Sentinel lamp bracket
• Supplied with stainless steel fixtures
• Flexibility to move light forwards 32mm – 57mm
• Compatible with Sentinel ‘Slim’ mount brackets only
• Designed & manufactured in UK

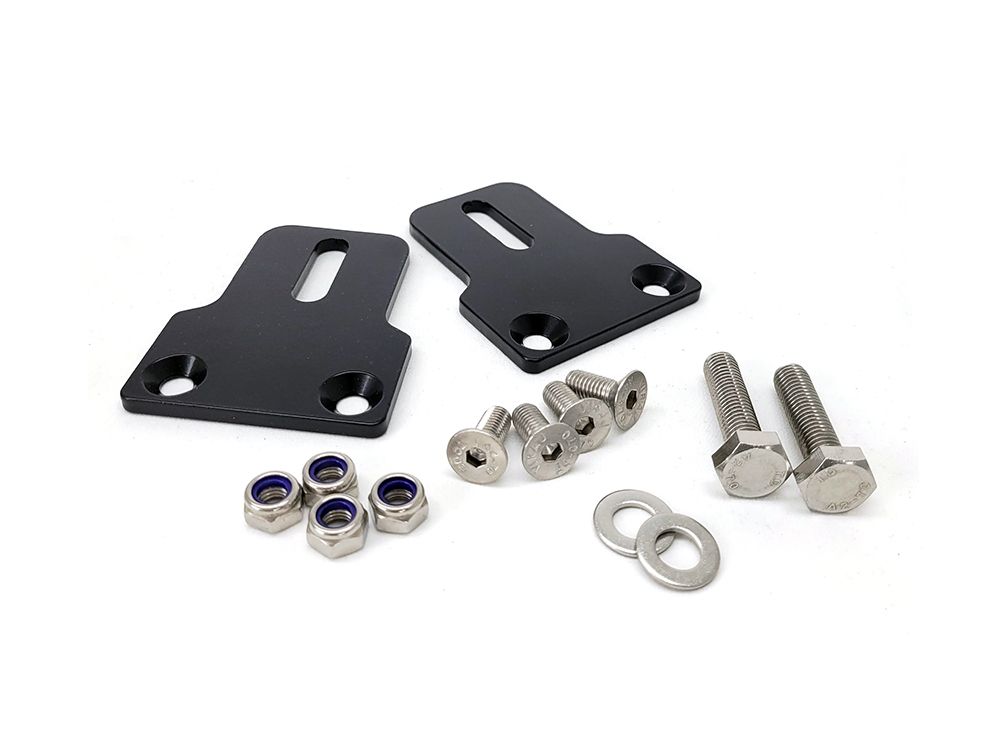

What's Included:

• x2 Flat Transfer Plates
• x4 M8 x 20mm Countersunk Bolts
• x4 M8 Nyloc Nuts
• x2 M10 x 40mm Bolts
• x2 M10 x 40mm Bolts
• 4x M8 Nyloc Nuts
• x2 M10 Washers

Instructions:

• (1144K) Flat Transfer Plate - Sentinel (584.05 KB)
• UT50 Beacon Instructions (107.03 KB)
