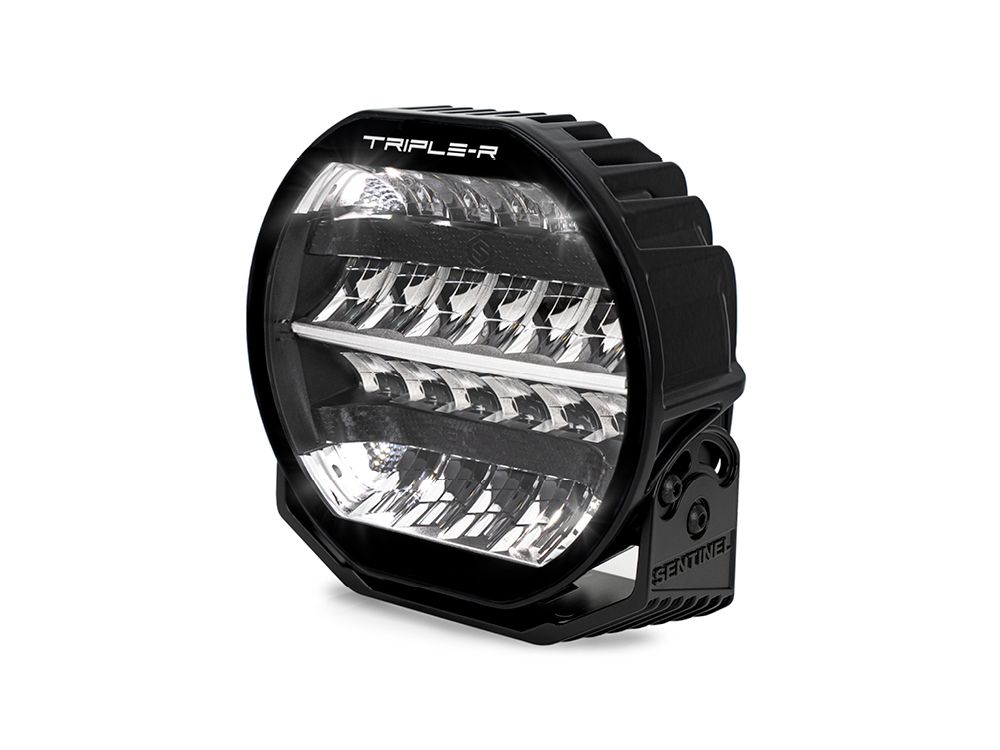

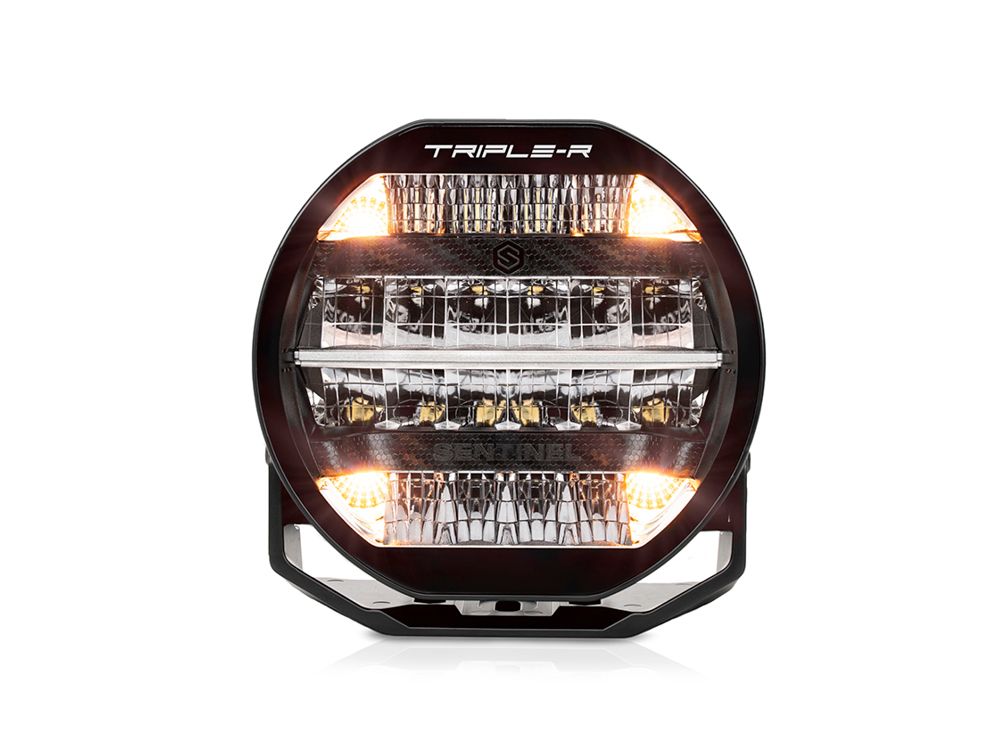

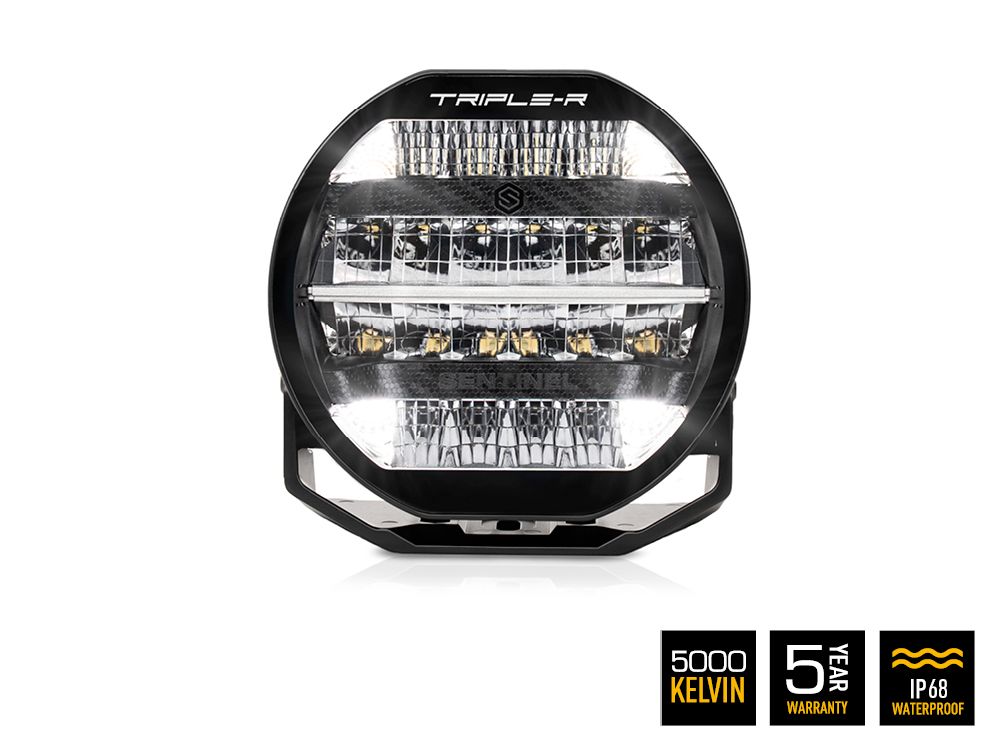

Triple R Lighting Sentinel 9" Elite with Backlight

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Triple-R Lights’ name. Available in Standard or Elite grades, the former incorporates 20 high power LEDs and comes available with a black stealth finish inside the lamp. The Elite product by comparison is only available with the black internal appearance, but with a combination of 32 high power LEDs, represents the very best lighting performance as expected from a product bearing the ‘Elite’ tag.

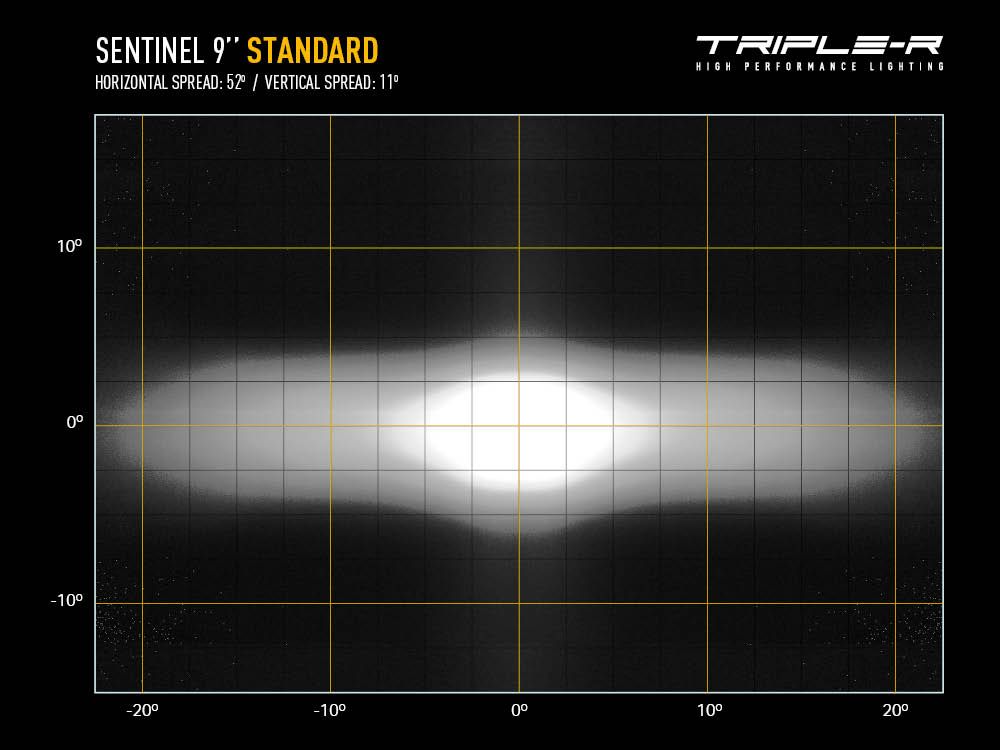

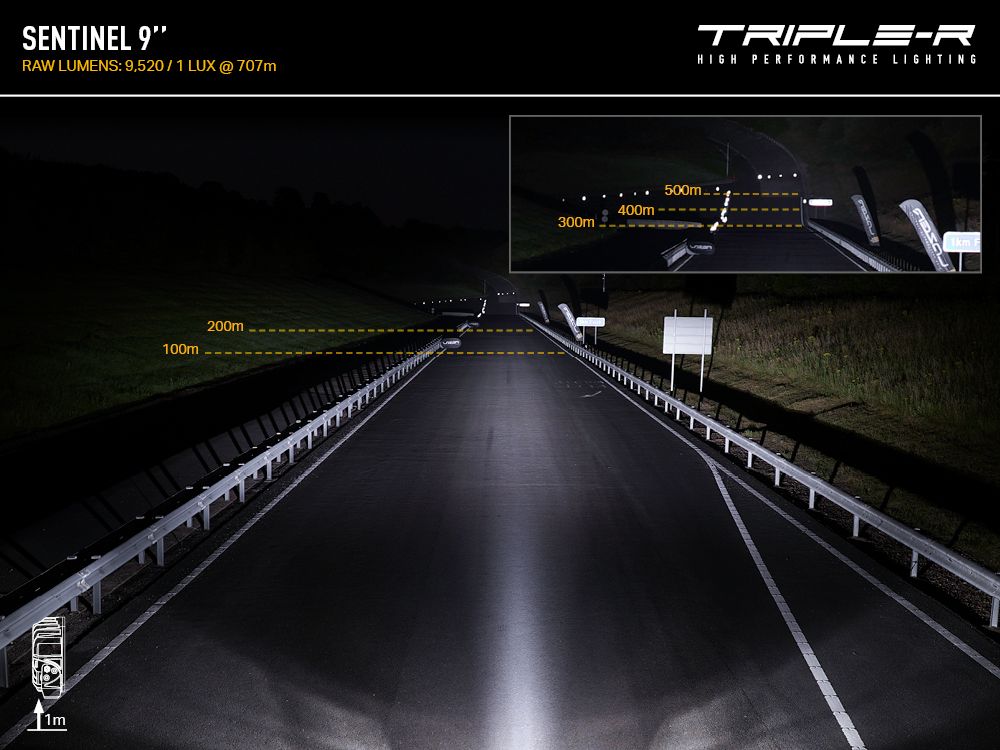

Sentinel lamps, in the ‘Standard’ range, produce a lighting performance, emitting 9,529 raw lumens, the lamps deliver 1 lux reaching to over 700m; impressive in itself, but considering the 52 degrees horizontal beam angle, this is a product that has been designed to deliver maximum visibility for all manner of road and off-road use. Like all Triple-R products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead.

The stealth design of the black Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. Conversely the chrome variant of the lamp utilises white PCBs, coupled with chrome bezel feature for a striking appearance sure to get noticed for all the right reasons. Both versions have the option to connect white or amber back/side light function, for an even more distinct look.

The lamps are supplied with a ‘wide’ diecast aluminium mounting bracket, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black, for a product protected against aesthetic deterioration or corrosion. An alternative ‘slim’ mounting bracket, along with a range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.

As with all Triple-R products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.

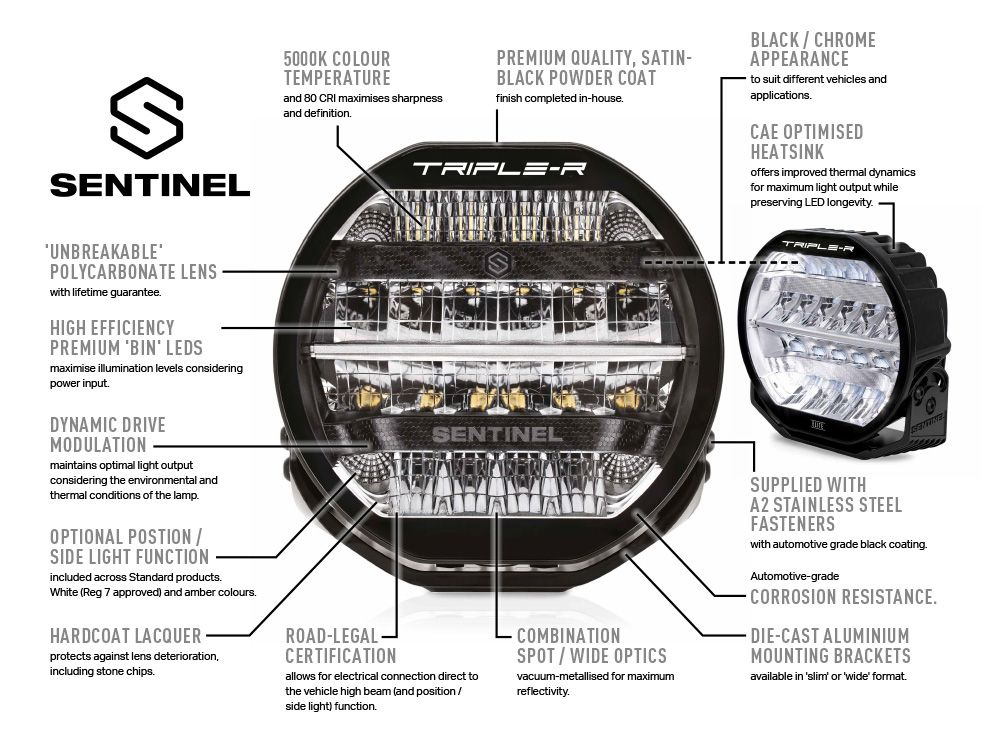

Features:

• Combination of 20 premium ‘bin’ LEDs
• Black or Chrome internal appearance available
• 5000K LED colour temperature and 80CRI maximises sharpness and definition

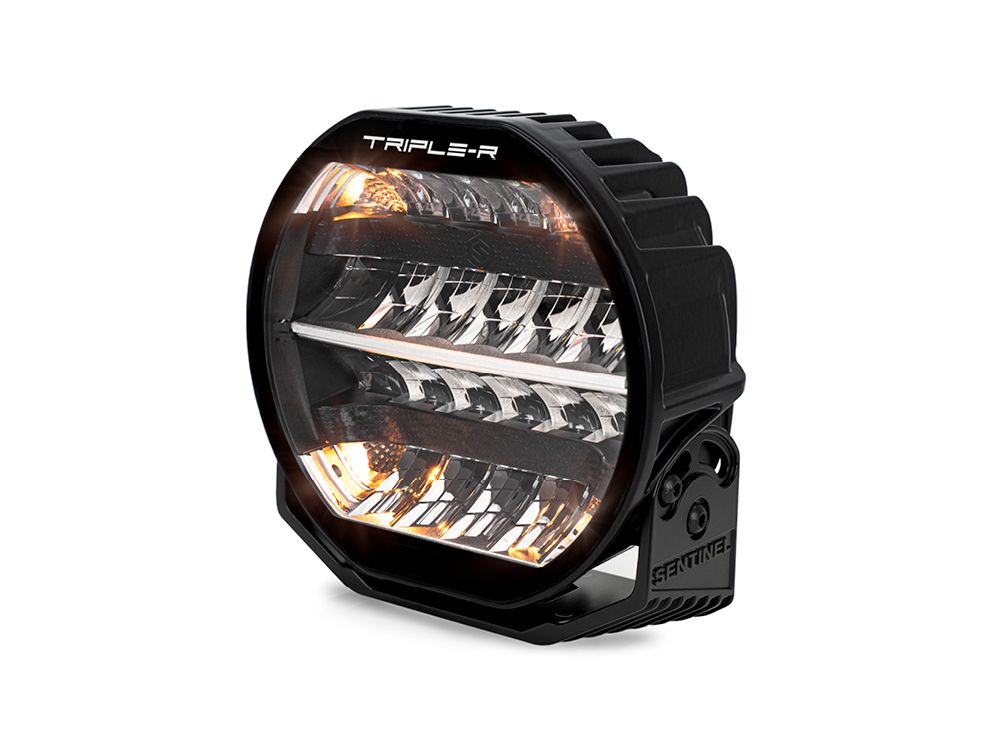

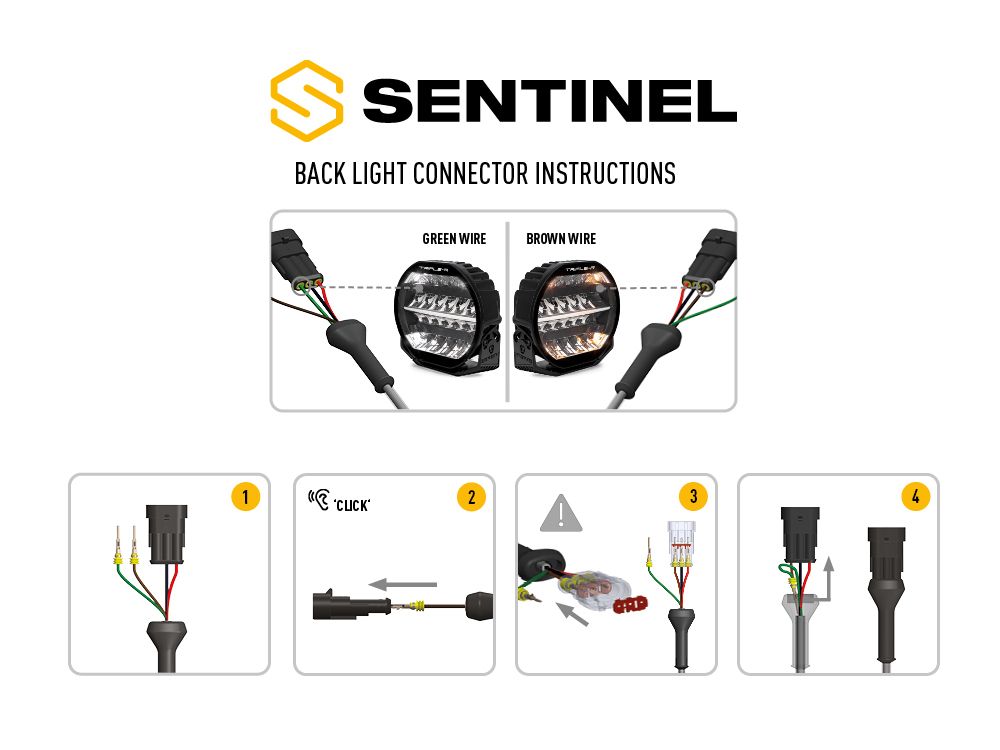

• Integrated white and amber back light function
• Ultra-reflective vacuum-metallised spot and wide optics
• Contemporary lamp design
• Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• A2 stainless steel fasteners with automotive grade black coating
• UNECE approved Reg 10
• IP68 watertight – 1.5m submersion (30mins)
• 5-year warranty
• Supplied with pre-wired male/female 3-pin Superseal connectors
• Designed & manufactured in UK

Technical Specifications:

Based on 1x Sentinel 9''.

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45^o left/right, and +/- 10^o up/down. For more information – click here.

What's Included:

• 1x Sentinel 9'' LED Light
• 1x Wide Mount (1141K)
• 1x Black Lens Cover
• 1x Fitting Instructions


Instructions:

• Sentinel 9'' Standard - Product Information Card (US) (4.18 MB)
• Lamp Instructions - Triple-R-Lights (2.03 MB)
• UT50 Beacon Instructions (107.03 KB)


Video Instructions:
