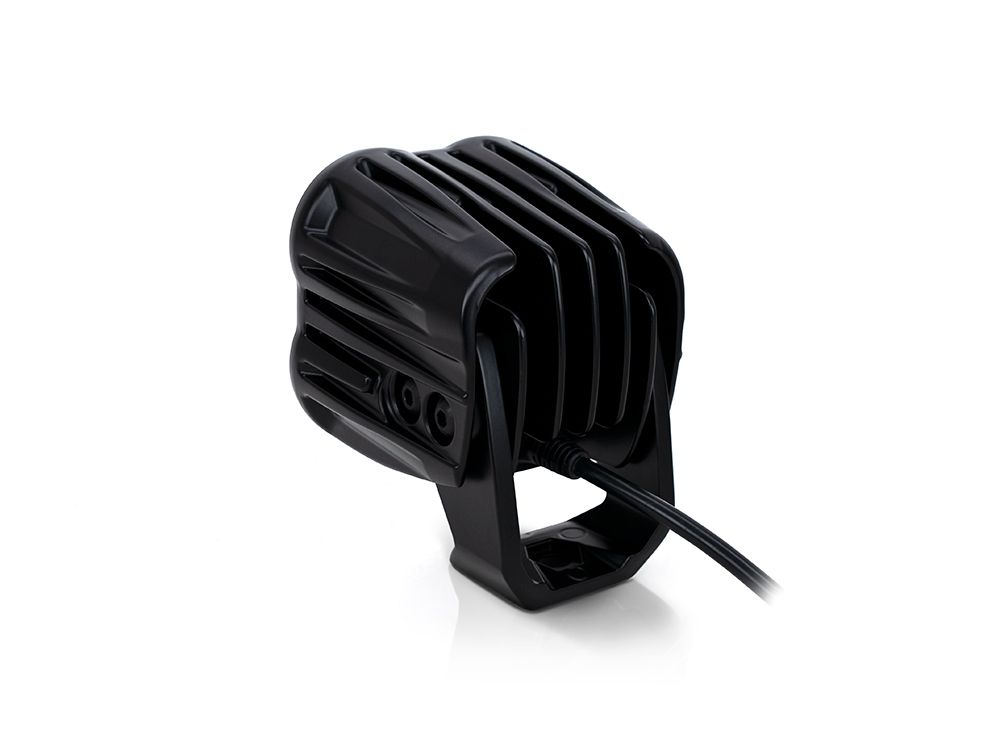

Triple R Lighting RP - Spot
The RP Spot is an ‘off-road’ LED light built for performance and durability. Boasting 4x premium-bin 20W LEDs, the lamp produces 8,940 raw lumens which combine with the ultra-reflective, vacuum-metallised ‘boost’ optics specially designed and engineered to deliver light over an impressive distance (1 lux @ 392m), but still with 20 degrees left/right spread of light.

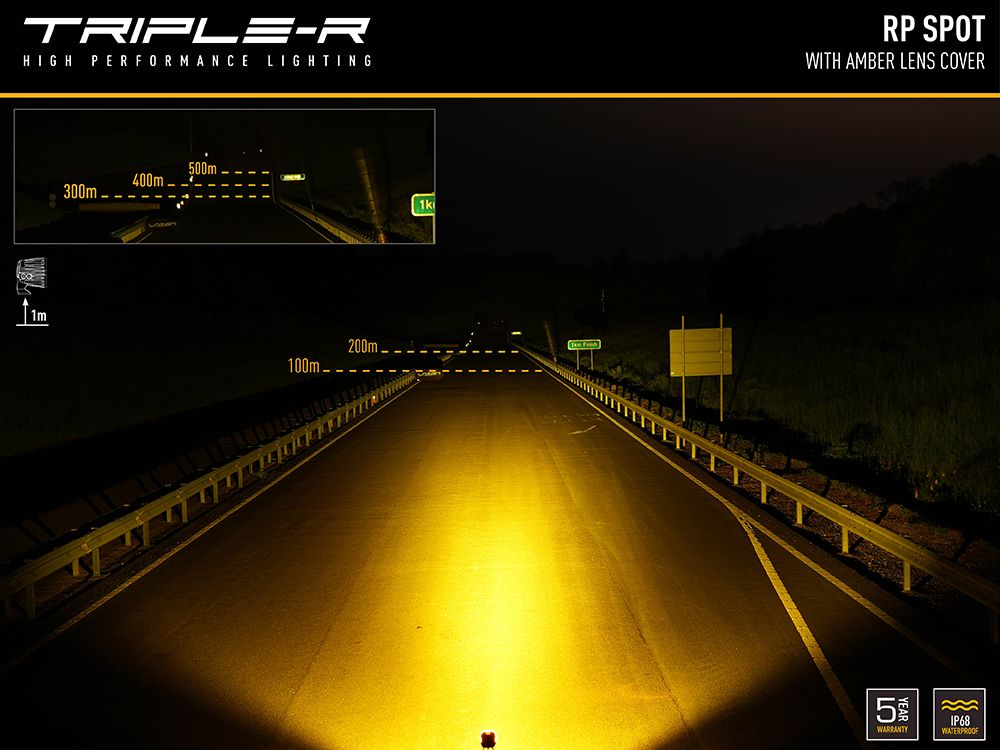

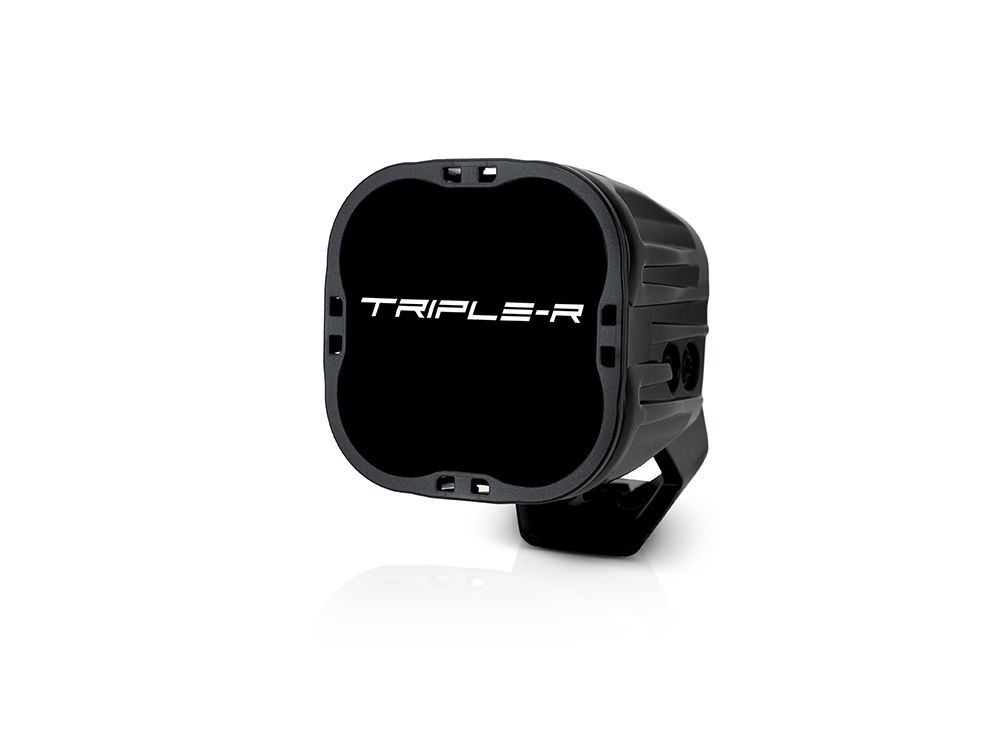

To compliment and enhance the impressive light output a comprehensive range of clip-on lens covers are available, including yellow and diffuser lenses. A black ‘Triple-R’ branded lens cover is included with each light.
Like all Triple-R Lights products the RP Spot has been designed, engineered, and manufactured in-house, in the UK. The product is built to withstand harsh environments backed up by our comprehensive 5year warranty. Design features including: electronic thermal management, ‘unbreakable’ polycarbonate lens with hardcoat varnish, and a CAE optimised heatsink, mean this is a product to be trusted to deliver for many years.
Features:
- Utilizing 4 high-intensity 20W LEDs
- Vacuum-metallized ‘boost’ optics deliver spot beam pattern
- Marine grade Aluminium lamp body
- A2 Stainless Steel fasteners, delta-sealed for maximum corrosion protection.
- CAE optimized cooling system with Electronic Thermal Management
- 5000k color temperature
- Comprehensive range of lens covers available
- Die-cast, heavy-duty mounting bracket
- ‘Unbreakable’ polycarbonate lens with hardcoat
- Automotive grade corrosion resistance
- IP68 / IP69k approved
- Over voltage protected
- Reverse polarity protected

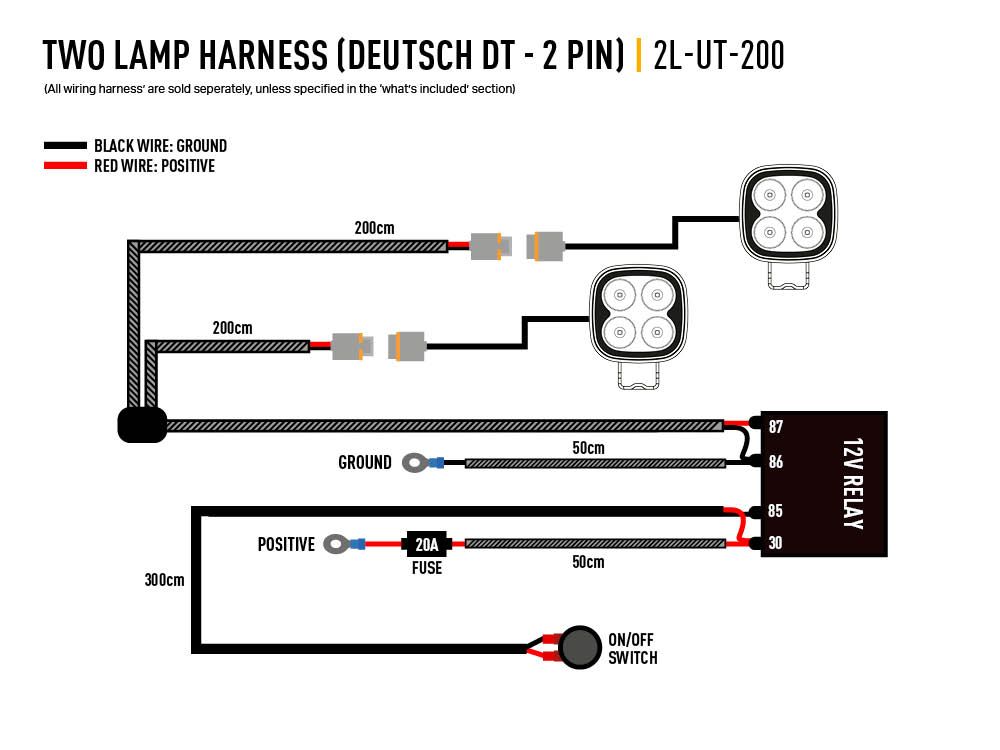

- Includes male/female (2-pin) Deutsch connectors
- 5year warranty
- Made in the UK
Technical Specifications:
Based on: 1x RP Spot.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hrs |
Weight | 2.4 lbs |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 8940 Lm |
Total Driver 'FOV' Flux † | 6079 Lm |
Colour Temperature | 5000k |
Number of High Output LEDs | 4 |
Power Consumption | 80 W |
Current Draw (at 14.4V) | 5.6 A |

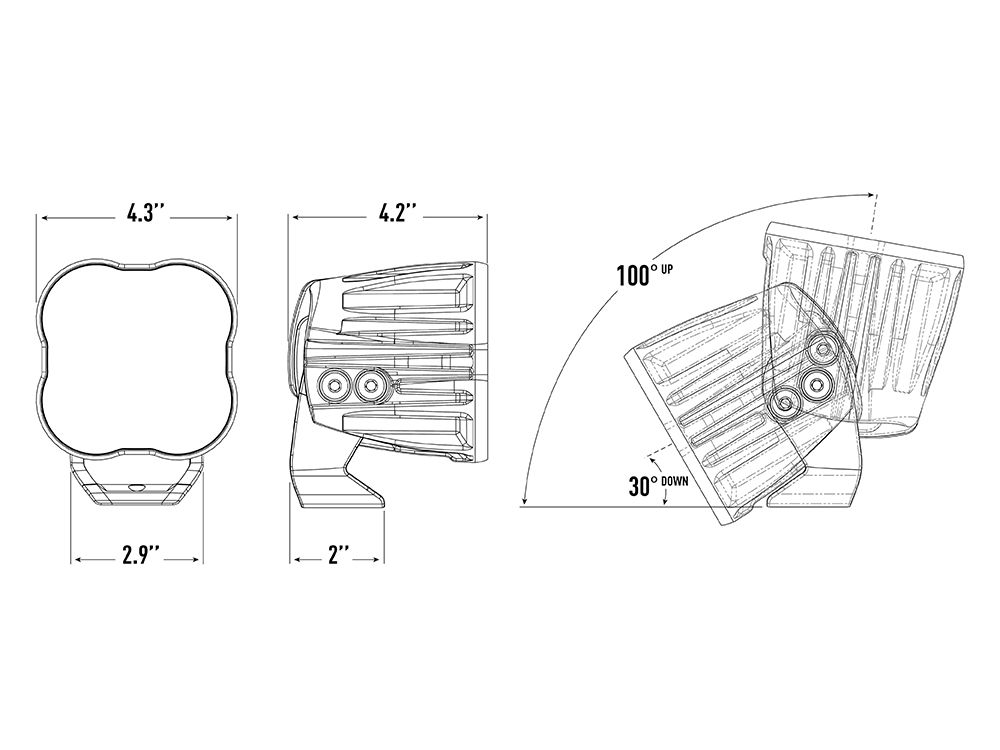

DIMENTIONS | |
Width | 4.3'' |
Depth | 4.2'' |
Height | 4.3'' |

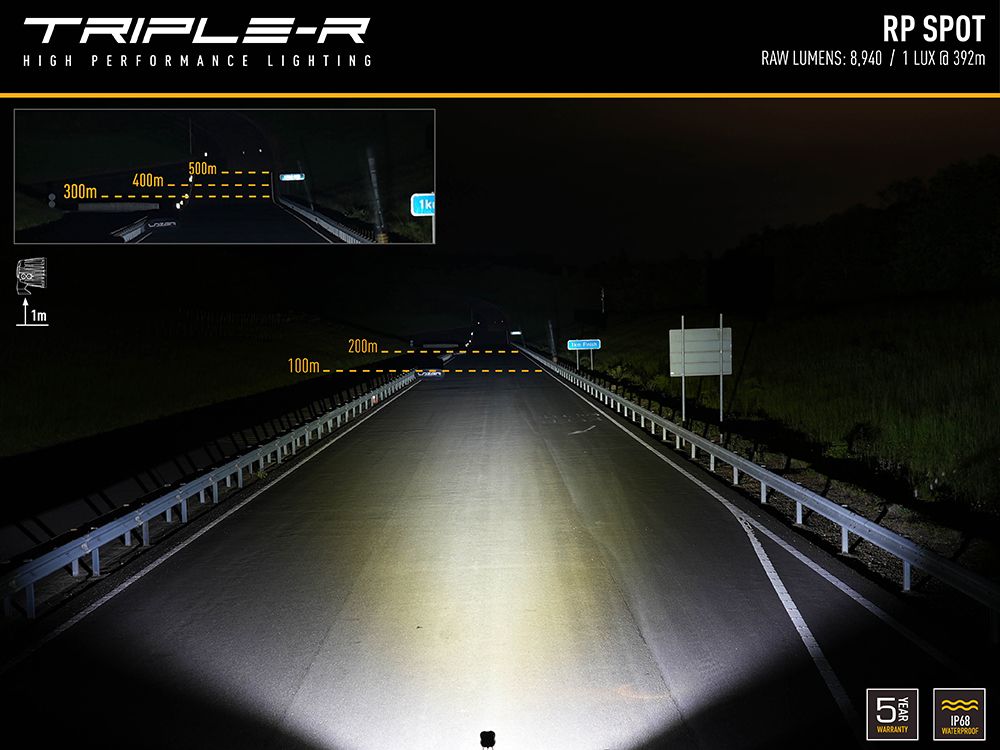

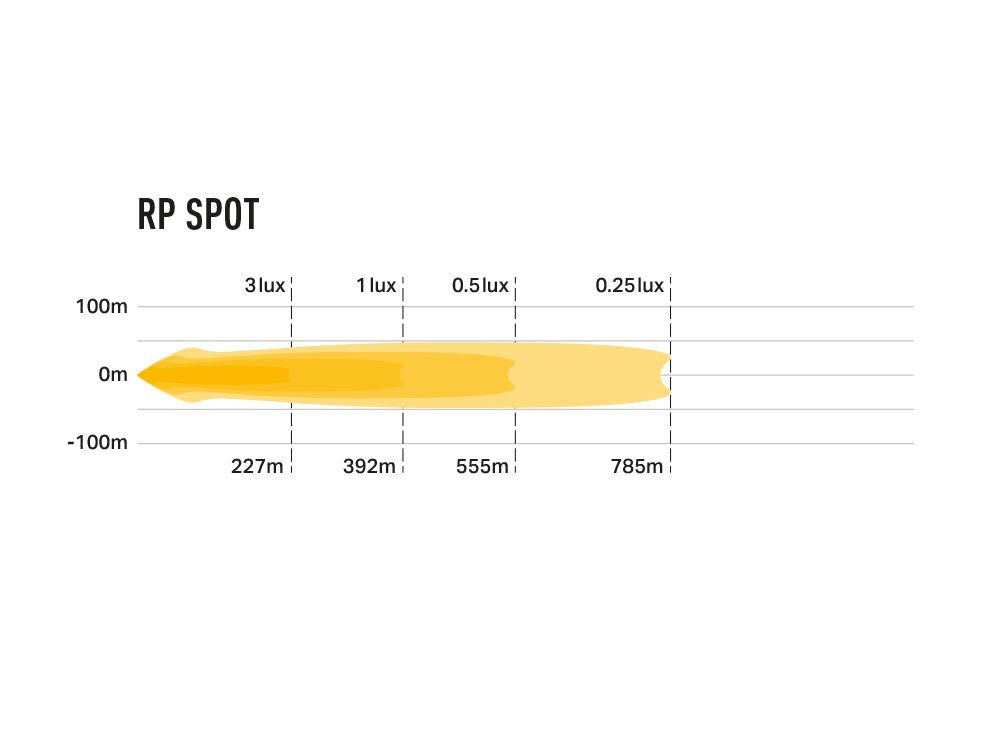

PHOTOMETRIC DATA | |

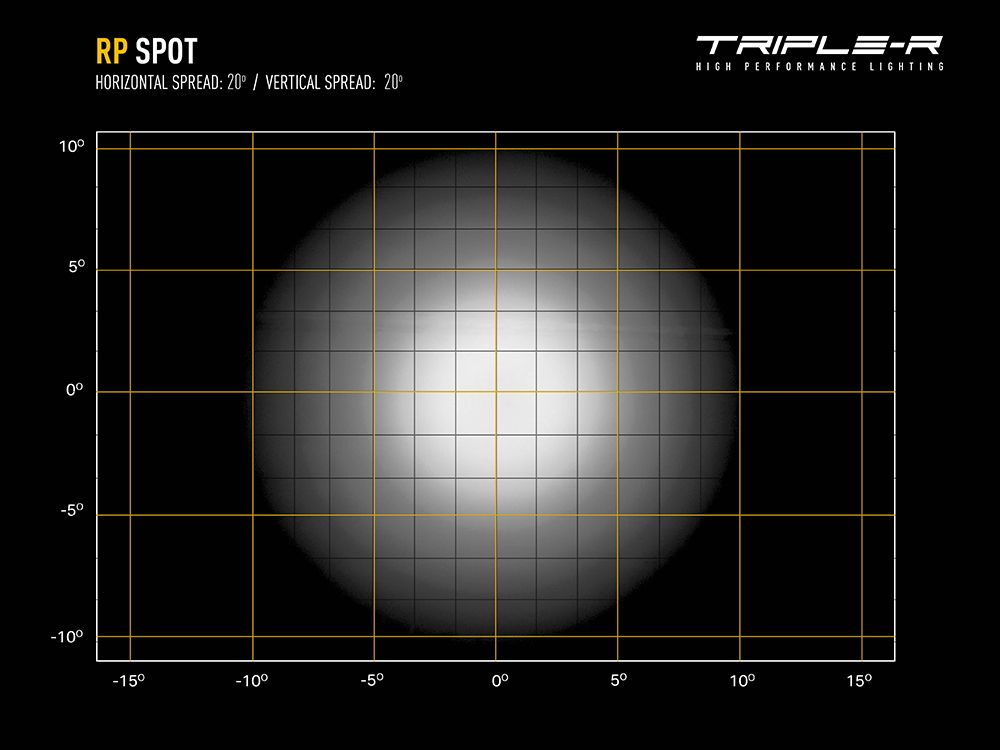

Horiz Beam Angle | 20° |
0.25 lx Line | 785m |
0.5 lx Line | 555m |
1 lx Line | 392m |
3 lx Line | 227m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included:
- x1 RP Spot LED Lamp
- x1 Lamp Mounting Bracket
- x1 Black Lens Cover
- x1 Installation Instructions
