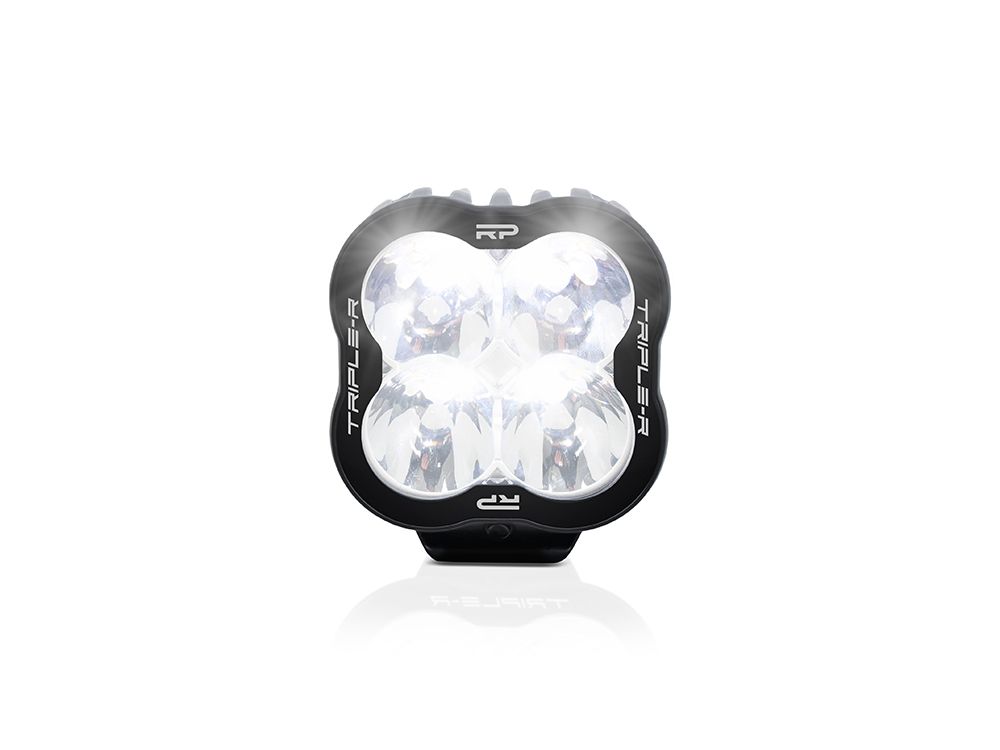

Triple R Lighting RP Hyperspot
Triple R Lighting RP Hyperspot

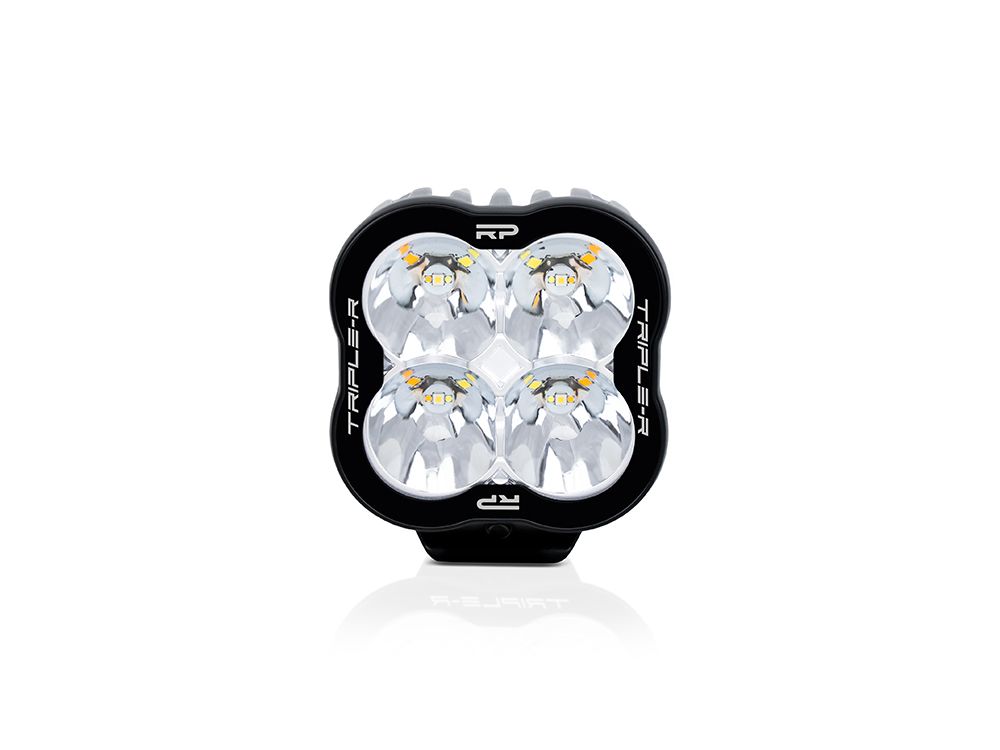

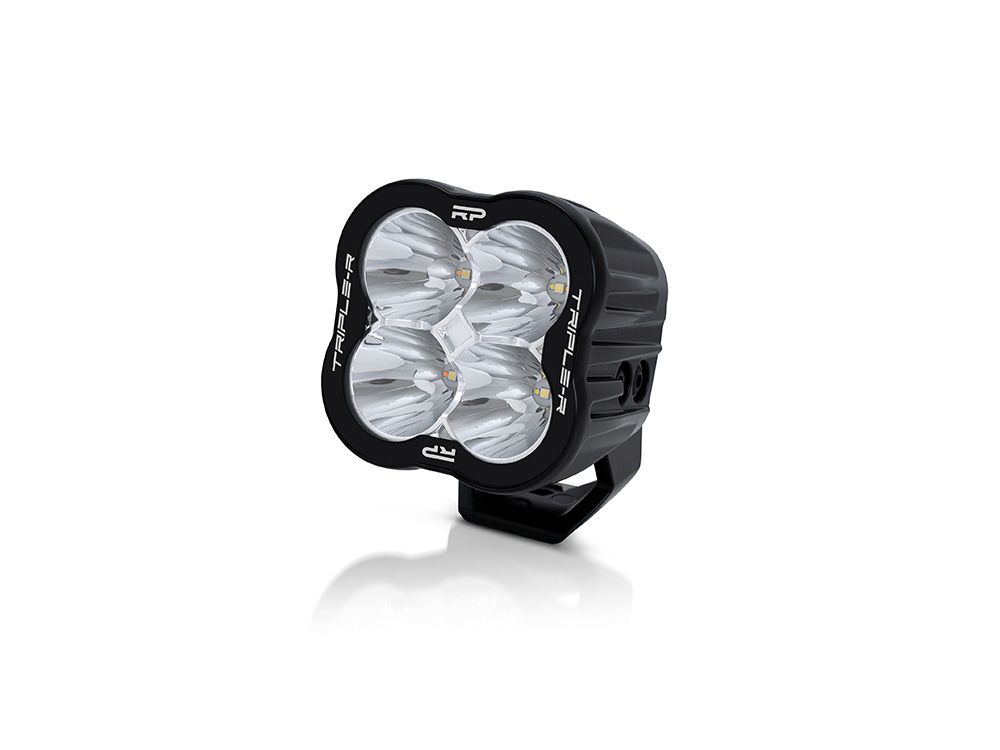

The RP Hyperspot is an ‘off-road’ LED light built for performance and durability. Comprising 4x premium-bin, high-intensity LEDs with an overall power rating of 45W, the lamp produces 4,520 raw lumens which combine with the ultra-reflective, vacuum-metallized ‘boost’ optics specially designed and engineered to deliver light over an impressive distance (1 lux @ 524m). Incorporated within the RP Hyperspot is a backlight feature, with customers having the option to select white or amber color options.

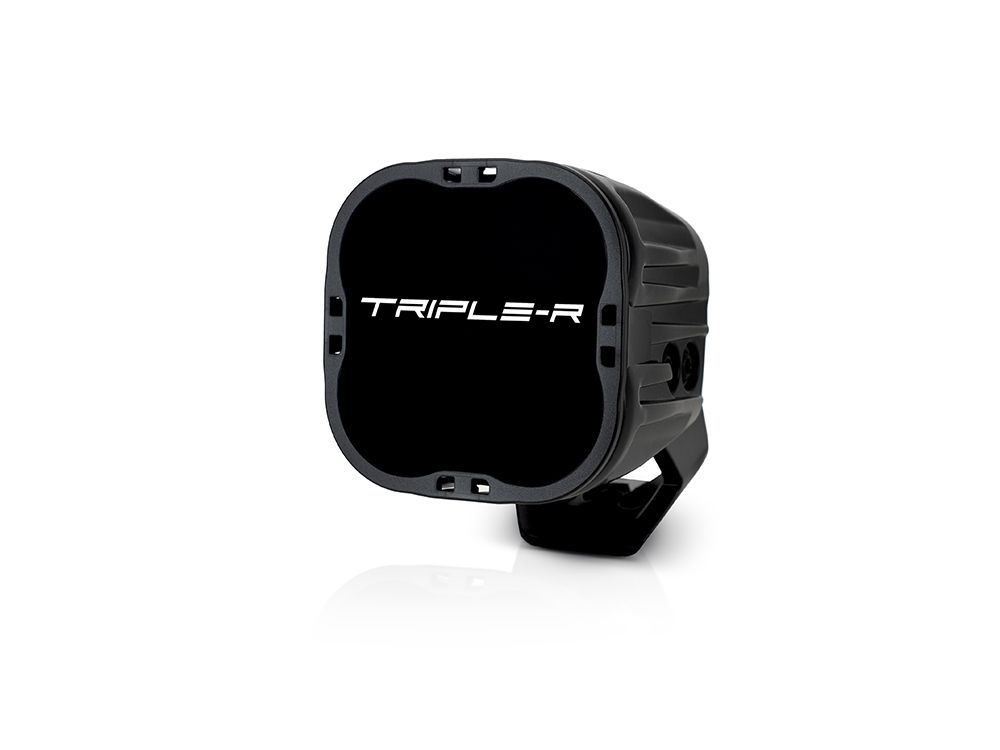

To compliment and enhance the impressive light output a comprehensive range of clip-on lens covers are available, including yellow and diffuser lenses. A black ‘Triple-R’ branded lens cover is included with each light.
Like all Triple-R Lights products, the RP Hyperspot has been designed, engineered, and manufactured in-house, in the UK. The product is built to withstand harsh environments backed up by our comprehensive 5year warranty. Design features including: electronic thermal management, ‘unbreakable’ polycarbonate lens with hardcoat varnish, and a CAE optimised heatsink, mean this is a product to be trusted to deliver for many years.

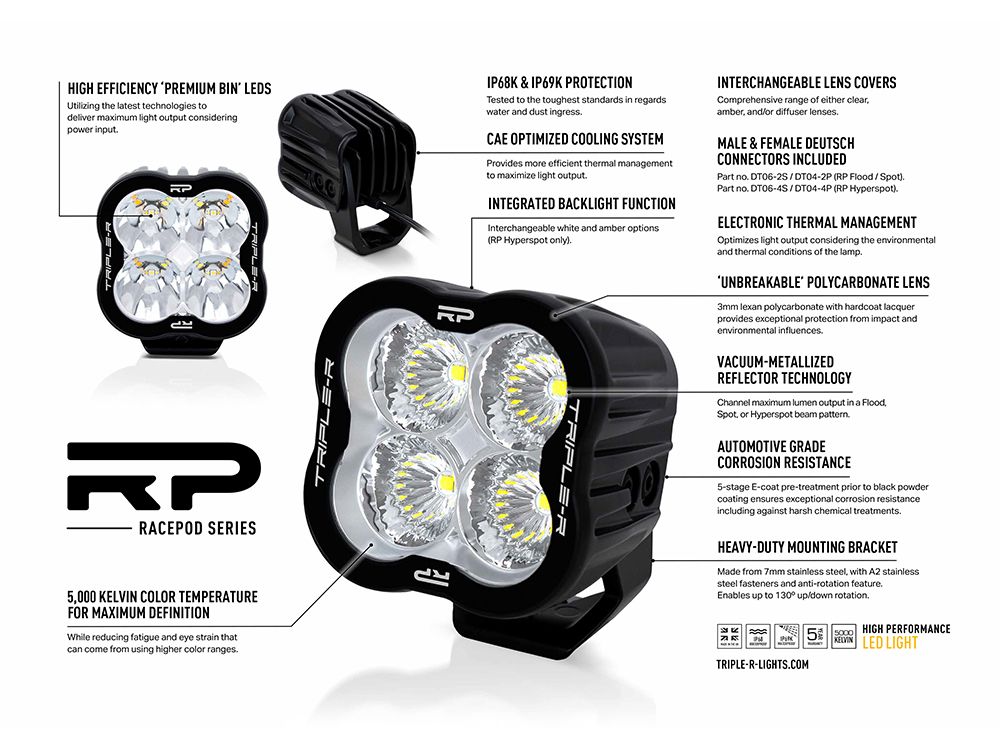

Features:
- Utilizing 4 high-intensity LEDs
- Vacuum-metallized ‘boost’ optics deliver Hyperspot beam pattern

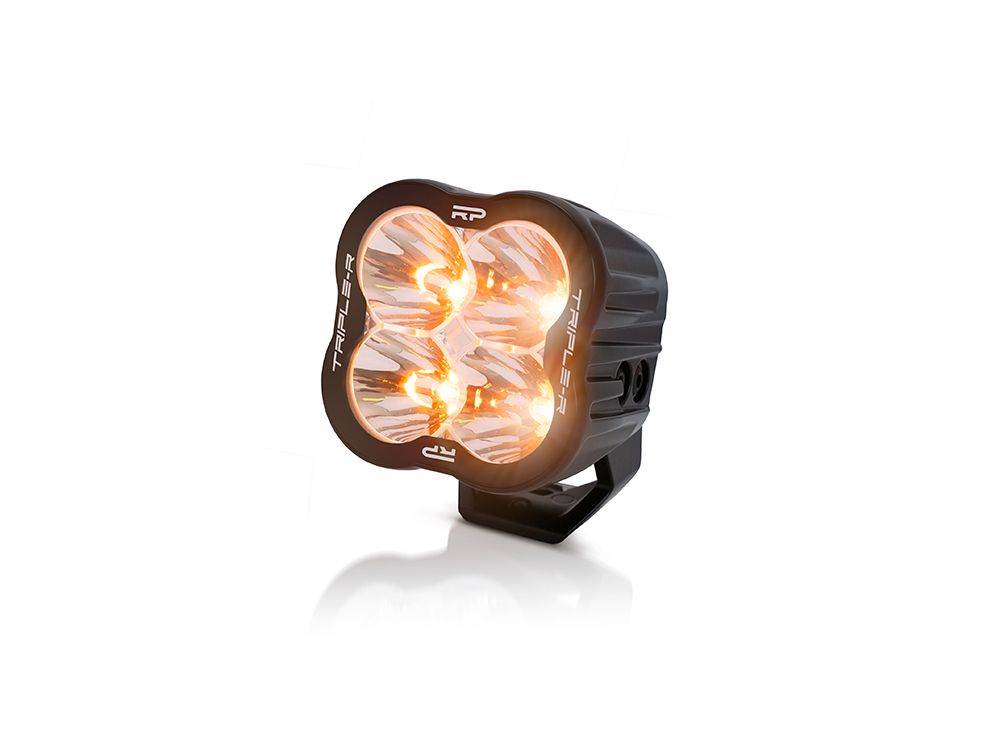

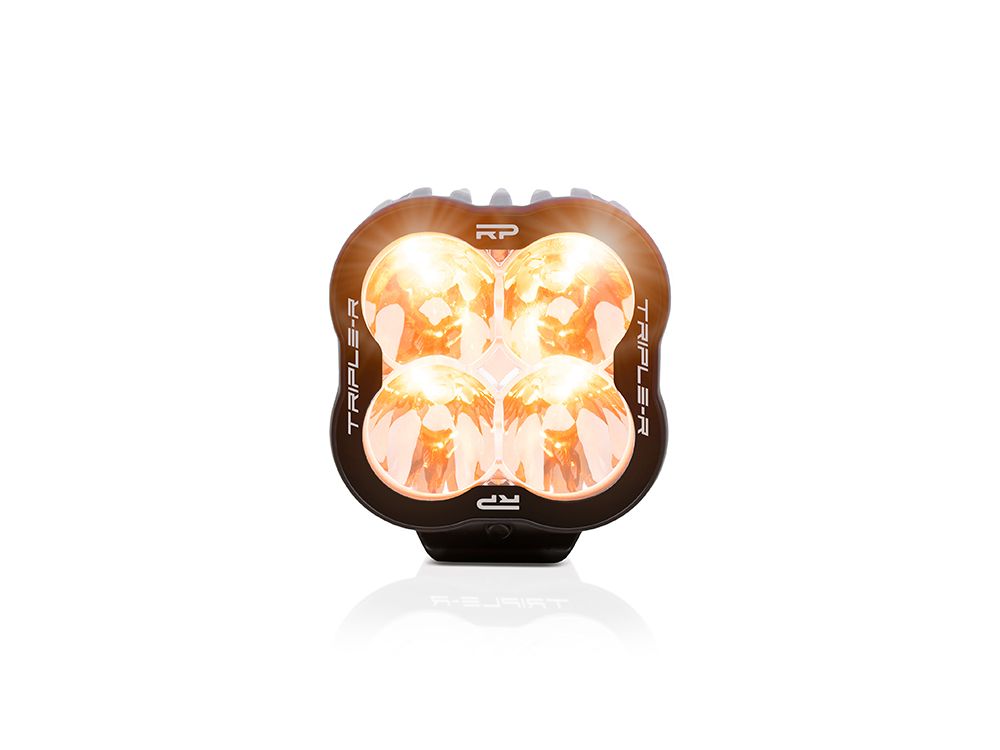

- Integrated white/amber backlight function

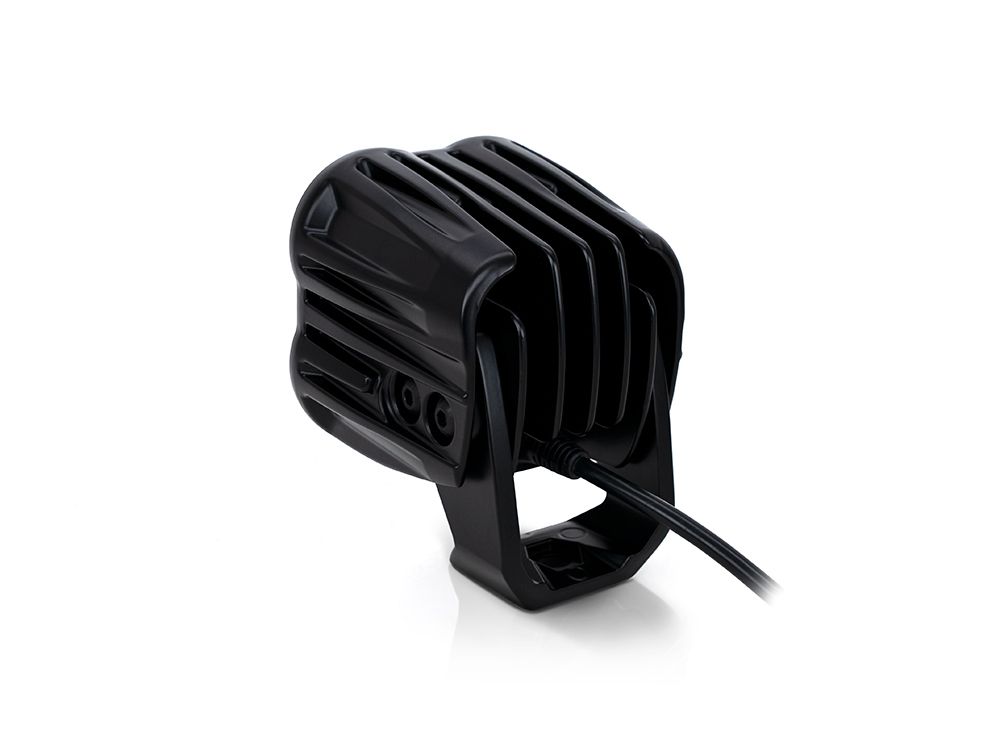

- CAE optimized cooling system with Electronic Thermal Management
- 5000k color temperature
- Comprehensive range of lens covers available
- Die-cast, heavy-duty mounting bracket
- ‘Unbreakable’ polycarbonate lens with hardcoat
- Marine grade corrosion resistance
- IP68 / IP69k approved
- Over voltage protected
- Reverse polarity protected

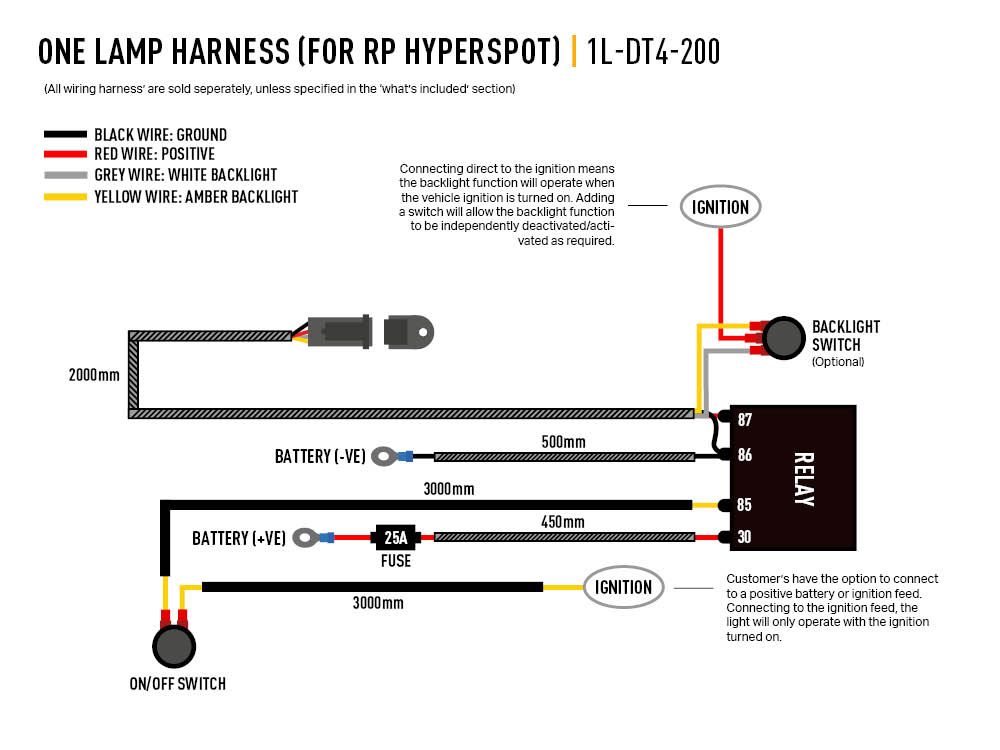

- Includes male/female (4-pin) Deutsch connectors
- 5year warranty
- Made in the UK
Technical Specifications:
Based on: 1x RP Hyperspot.
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hrs |
| Weight | 2.4 lbs |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 4520 Lm |
| Total Driver 'FOV' Flux † | 3268 Lm |
| Color Temperature | 5000k |
| Number of High Output LEDs | 4 |
| Power Consumption | 41 W |
| Current Draw (at 14.4V) | 2.8 A |
| DIMENSIONS | |
| Width | 4.3'' |
| Depth | 4.2'' |
| Height | 4.3'' |
| PHOTOMETRIC DATA | |
| Horiz Beam Angle | 10° |
| 0.25 lx Line | 1049m |
| 0.5 lx Line | 742m |
| 1 lx Line | 524m |
| 3 lx Line | 303m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included:
- x1 RP Hyperspot LED Lamp
- x1 Lamp Mounting Bracket
- x1 Black Lens Cover
- x1 Installation Instructions
Instructions:
