Triple R Lighting LR-850
Triple R Lighting LR-850

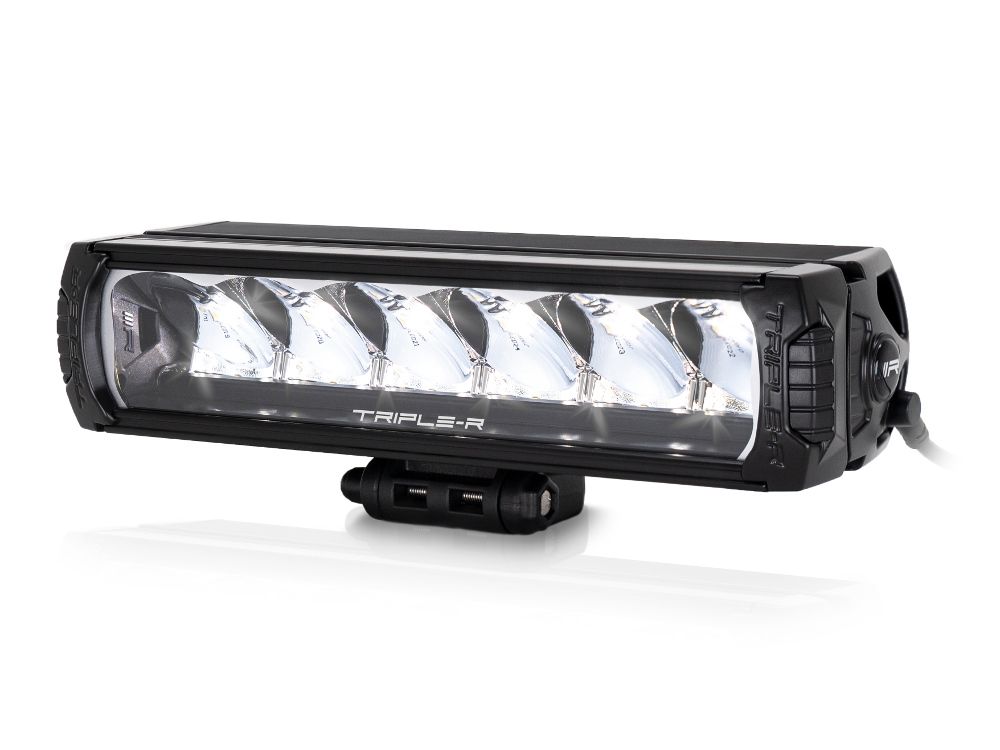

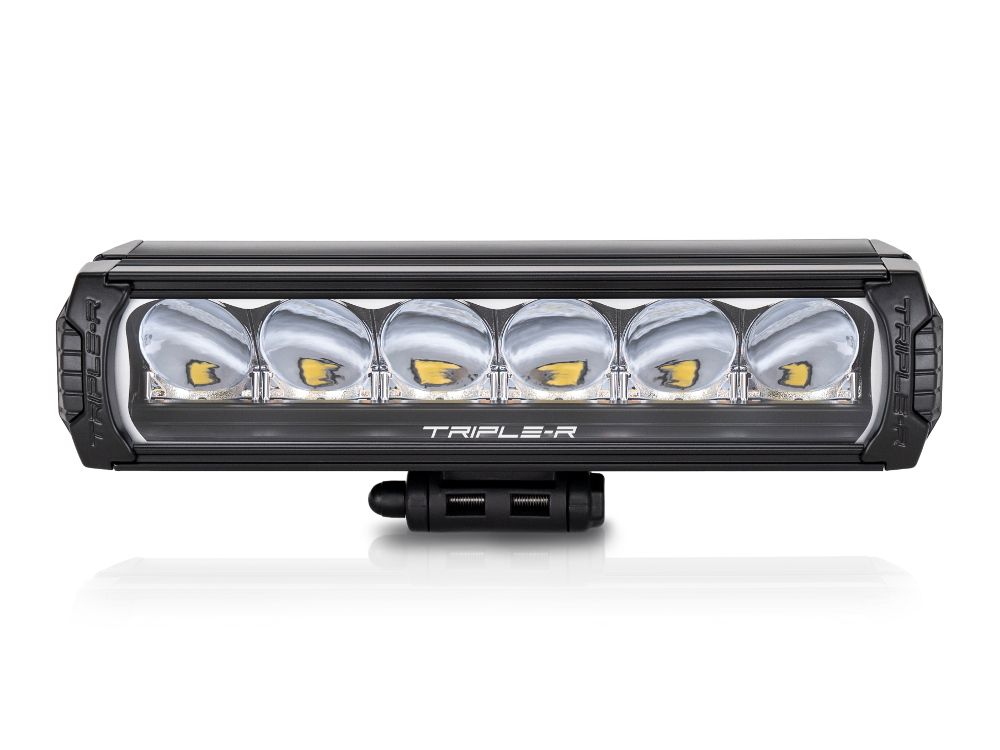

The LR-850 is a versatile high-performance LED light solution delivering a spot beam pattern to an impressive 530m (1 lux). With performance and reliability borne out of development and testing at the highest levels of professional motorsport, the LR-850 is a product to be trusted for all off-road, and on-road applications. With the option to connect white or amber backlight, combined with the refined styling and premium features of the light, this is a product to stand-out day and night.
At 13” in length and weighing just 2.4lbs, the LR-850 is built tough yet delivers a serious punch despite its relatively diminutive proportions. ‘Premium bin’ high intensity LEDs, upgraded in 2020/1, deliver 6930 raw lumen at a natural 5000k color temperature. The long-range lighting is supplemented by a 19 degree spread of light ensuring a comfortable night drive experience, even over prolonged periods of time.
Like all aspects of the products design, nothing has been left to chance in pursuit of the best lighting performance, while also maximising the lights longevity and reliability. All LR Series lights come with a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

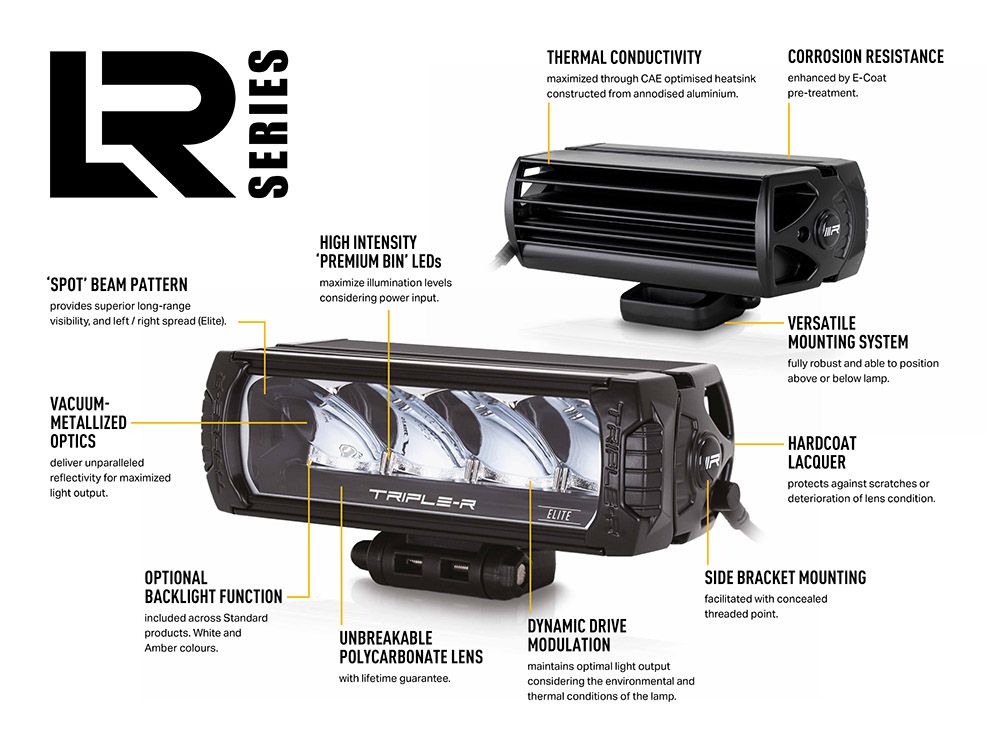

Features:
- Highly efficient LED technologies (upgraded in 2020/21)

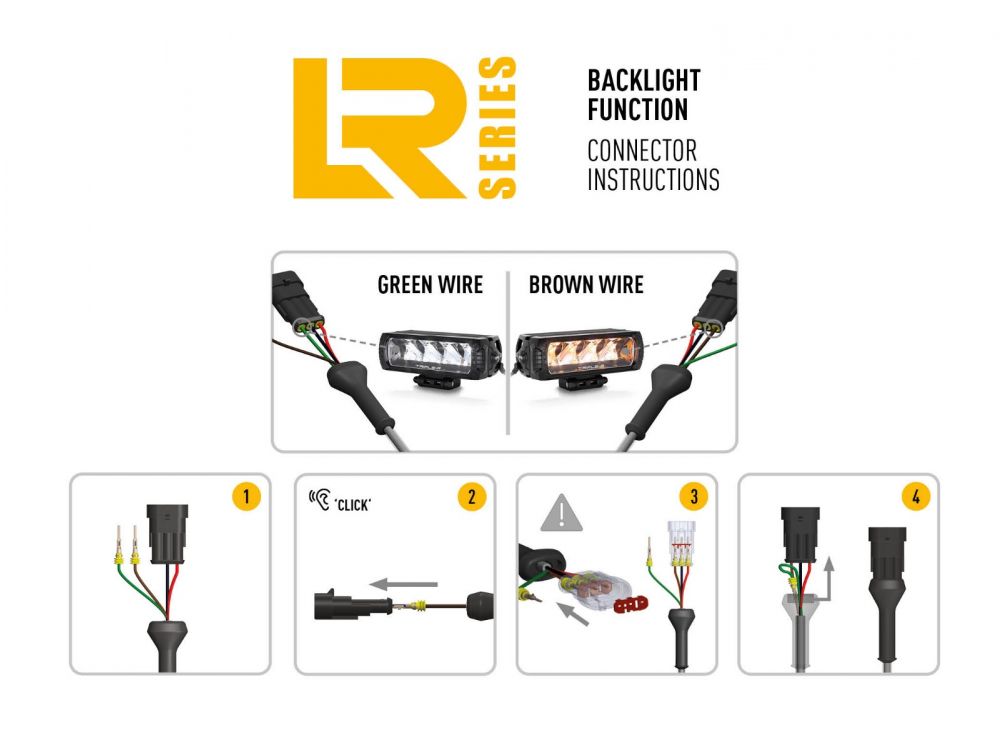

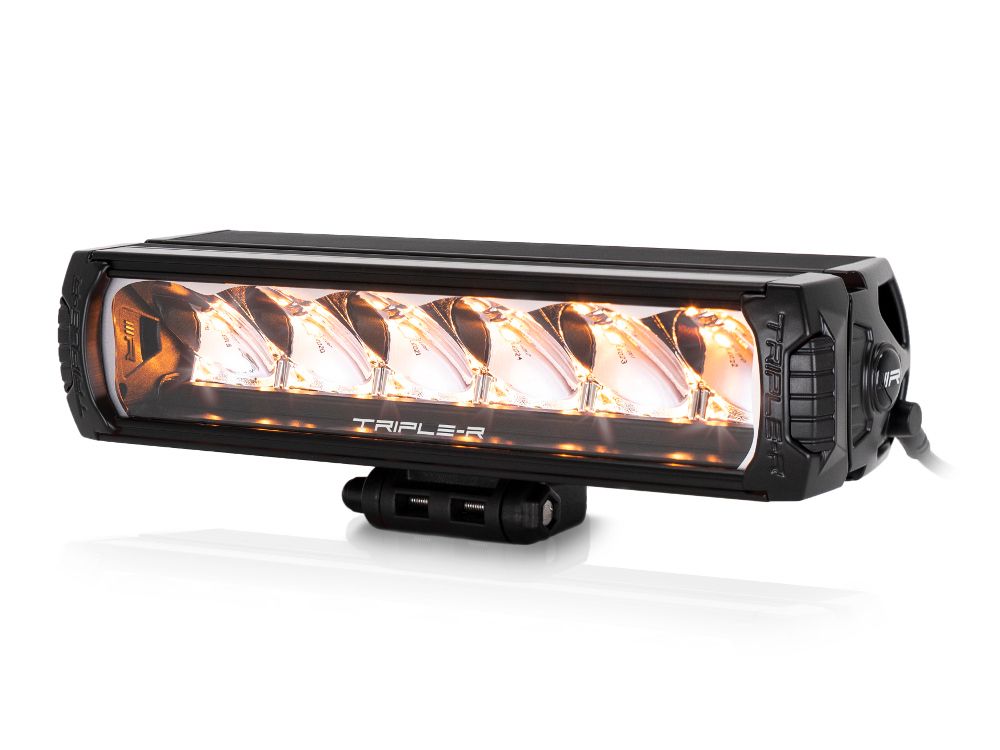

- Integrated white or amber backlight function
- Ultra-reflective vacuum-metallised optics deliver spot beam pattern
- Contemporary lamp design
- Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

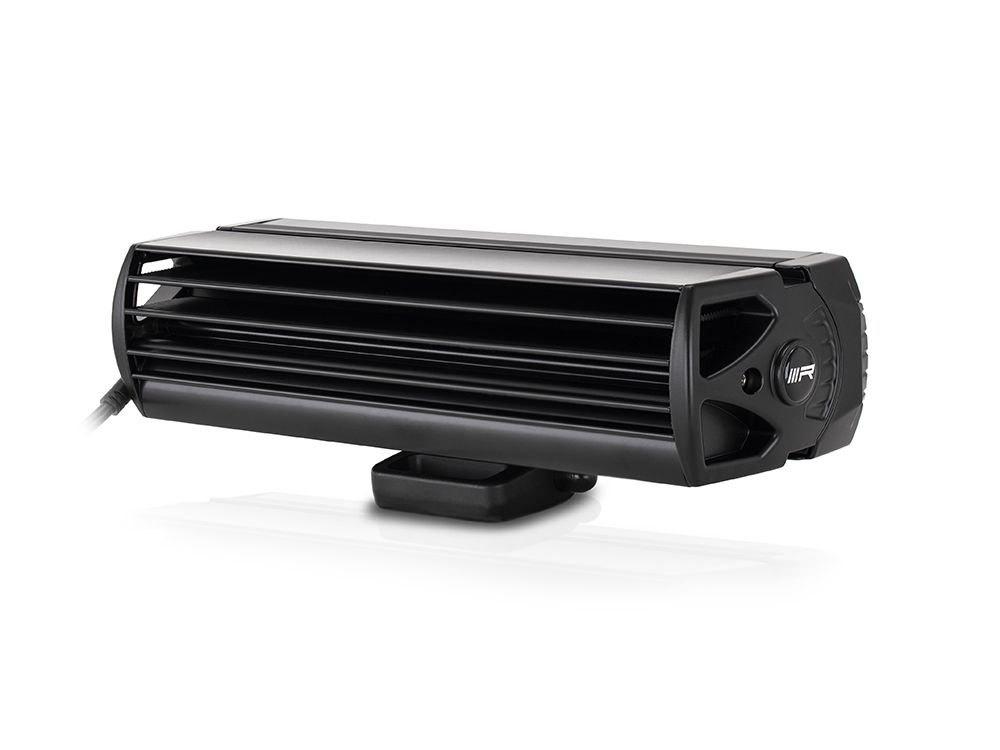

- CAE optimised heatsink offers improved thermal dynamics
- Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
- Electronic thermal management
- Pressure equalization through GoreTex Breather technology
- ‘Unbreakable’ and hardcoated polycarbonate lens
- IP68 watertight
- 5-year warranty

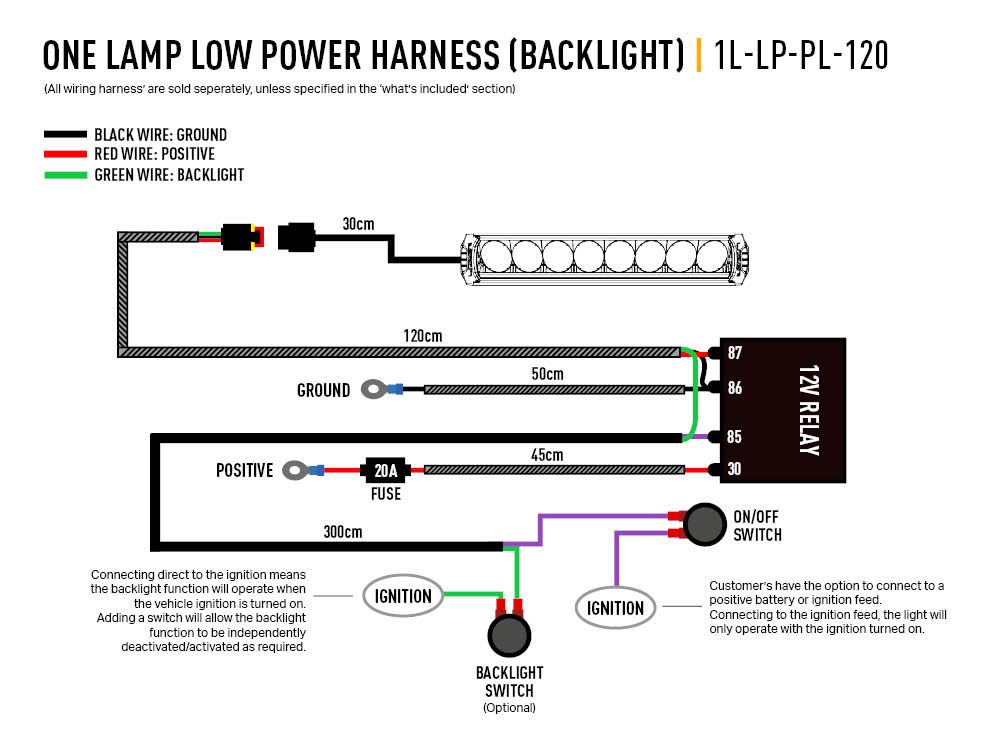

- Wiring harness kits available
- Designed & manufactured in the UK
Technical Specifications:
Based on: 1x LR-850.
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| IP Rating | IP68 |
| Weight | 2.4lbs |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 6930 Lm |
| Total Driver 'FOV' Flux † | 4179 Lm |
| Color Temperature | 5000k |
| Number of High Output LEDs | 6 |
| Power Consumption | 66 Watts |
| Current Draw (at 14.4V) | 4.6 Amps |
| DIMENSIONS | |
| Length | 12.7" |
| Depth | 4.06" |
| Height | 2.87" |

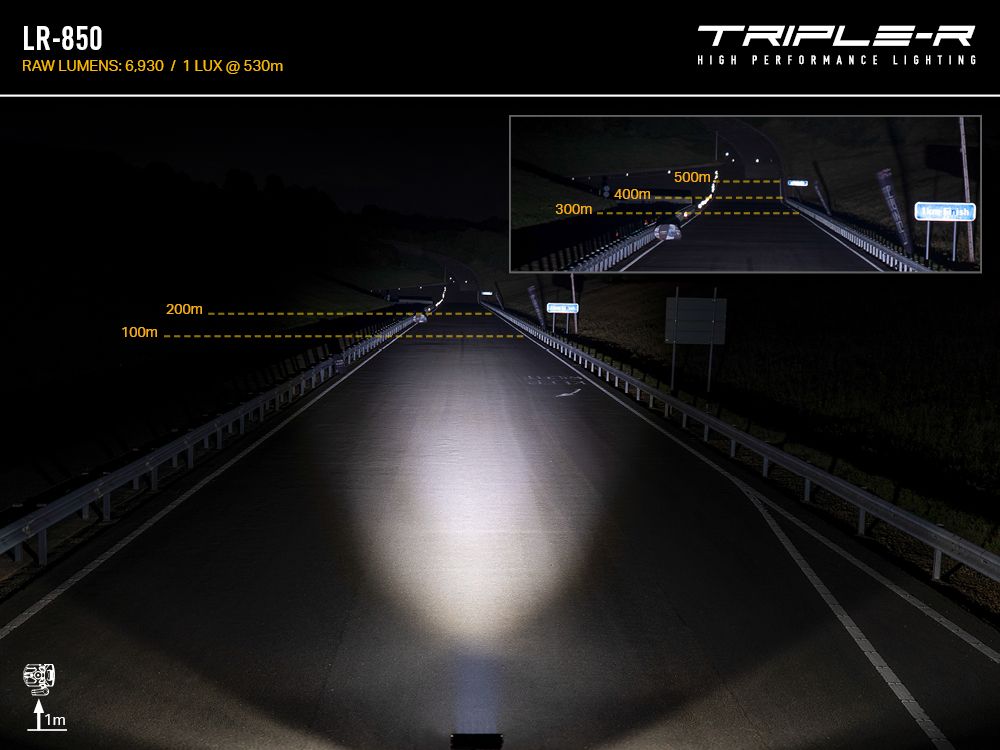

| PHOTOMETRIC DATA | |
| Horiz Beam Angle | 19 Deg |
| 0.25 lx Line | 1061 metres |
| 0.5 lx Line | 750 metres |
| 1 lx Line | 530 metres |
| 3 lx Line | 306 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included:
- x1 LR-850 LED Light
- x1 Centre Mount (1114K)
- x1 Installation Instructions
Instructions:
Video Instructions:
