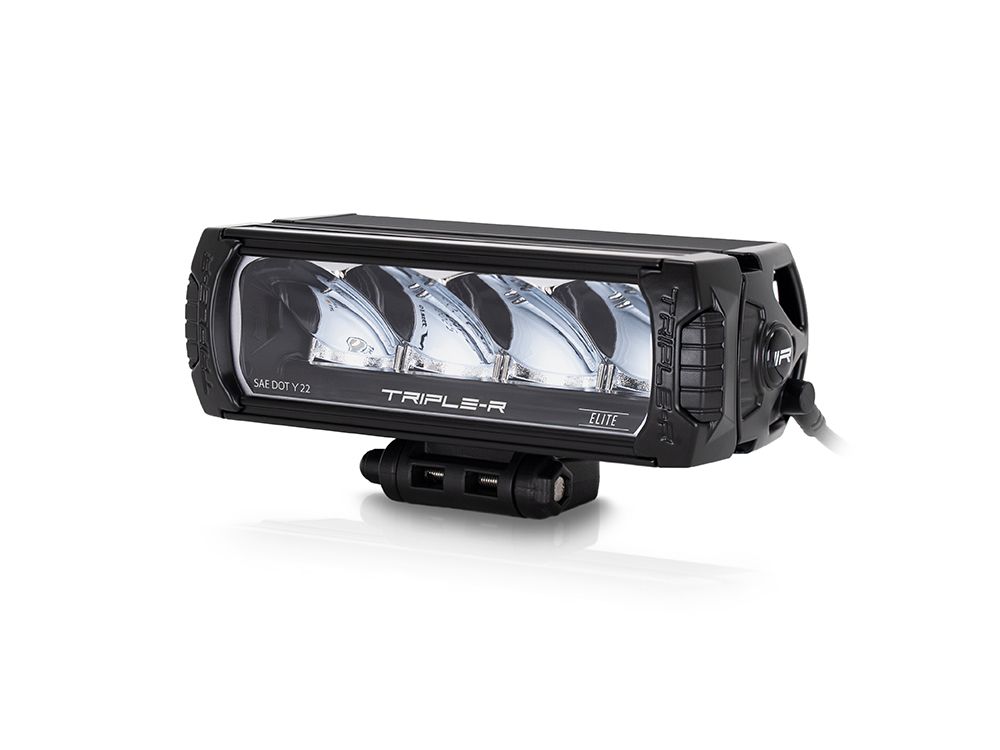

Triple R Lighting LR-750 Elite
Triple R Lighting LR-750 Elite

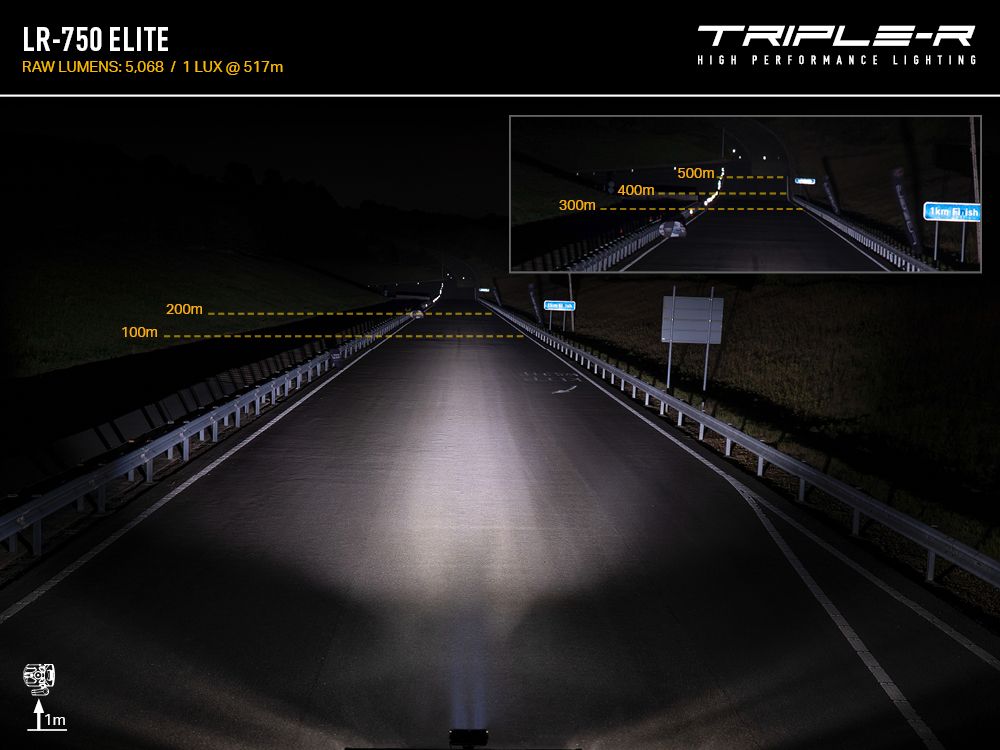

The pinnacle of LED lighting technology, the LR-750 Elite is simply unrivalled in regards lighting performance, styling, and reliability. Through advanced electronics and material design, high intensity LEDs delivering 1 lux to 517m, and a combination of high efficiency LEDs delivering 42 degrees spread lighting, emit over 5000 raw lumens at a natural 5000k color temperature, for a perfectly tuned beam pattern for all types of off and on-road driving. The clean, contemporary design and refined styling elements of the LR Series make this a product to shine day and night.

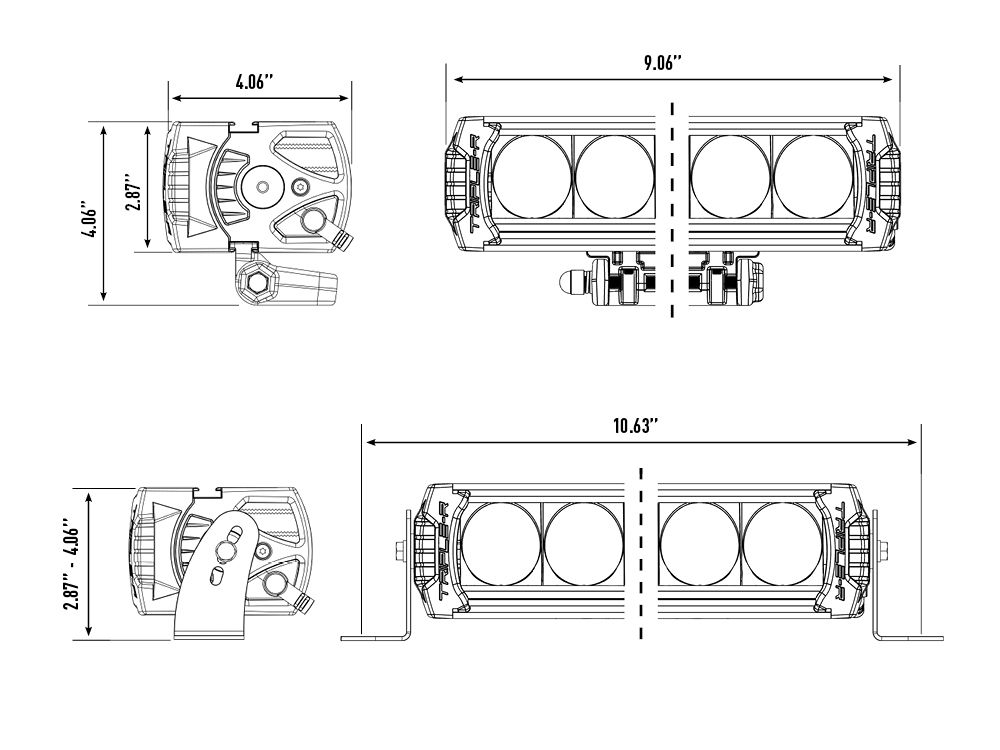

Measuring 9” in length and weighing just 1.7lbs, the LR-750 Elite has long been adopted at the highest level of professional motorsport, yet superior build quality borne out of our in-house design, engineering, and manufacturing ensures no compromise in the LR-750s reliability or longevity. All LR Series lights come with a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

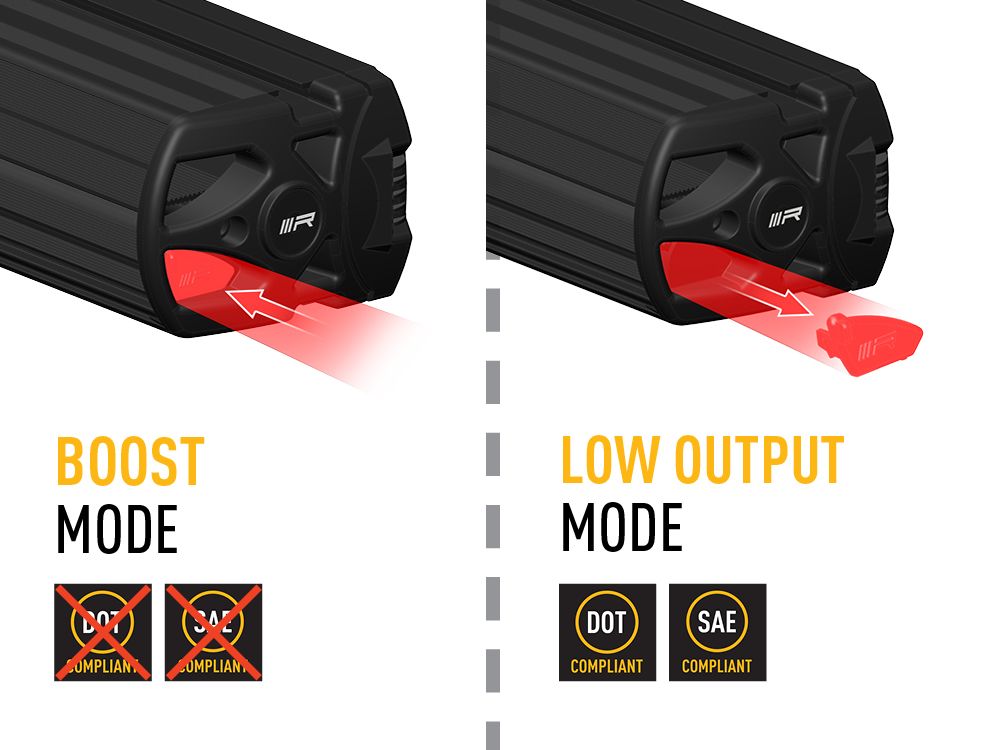

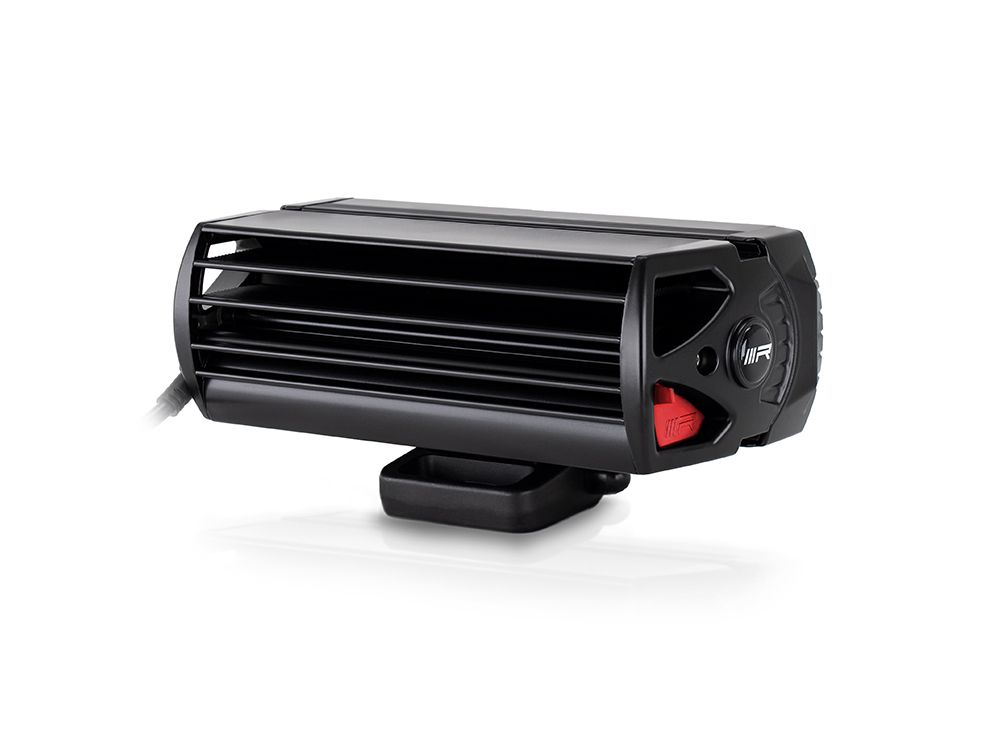

The LR-750 Elite features dual-output technology. Operating at 100% the light represents the very best output and optimized light distribution for off-road use. Reducing the light output, through removal of a 'Boost Cap' fixed to the side of the light, allows the light to operate in DOT compliant mode for use on public highways, dependent on state-specific laws. Please check the attached graphic for more information

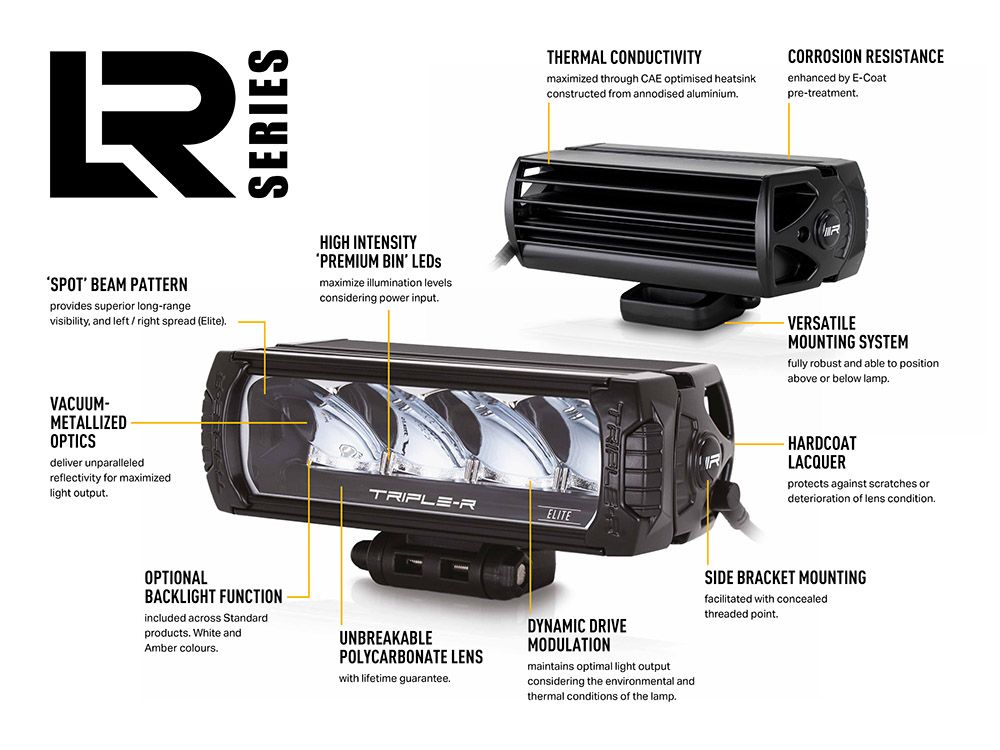

Features:
- Highly efficient LED technologies
- Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern
- Contemporary lamp design
- Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
- CAE optimised heatsink offers improved thermal dynamics
- Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
- Electronic thermal management
- Pressure equalization through GoreTex Breather technology
- ‘Unbreakable’ and hardcoated polycarbonate lens
- IP68 watertight
- 5-year warranty

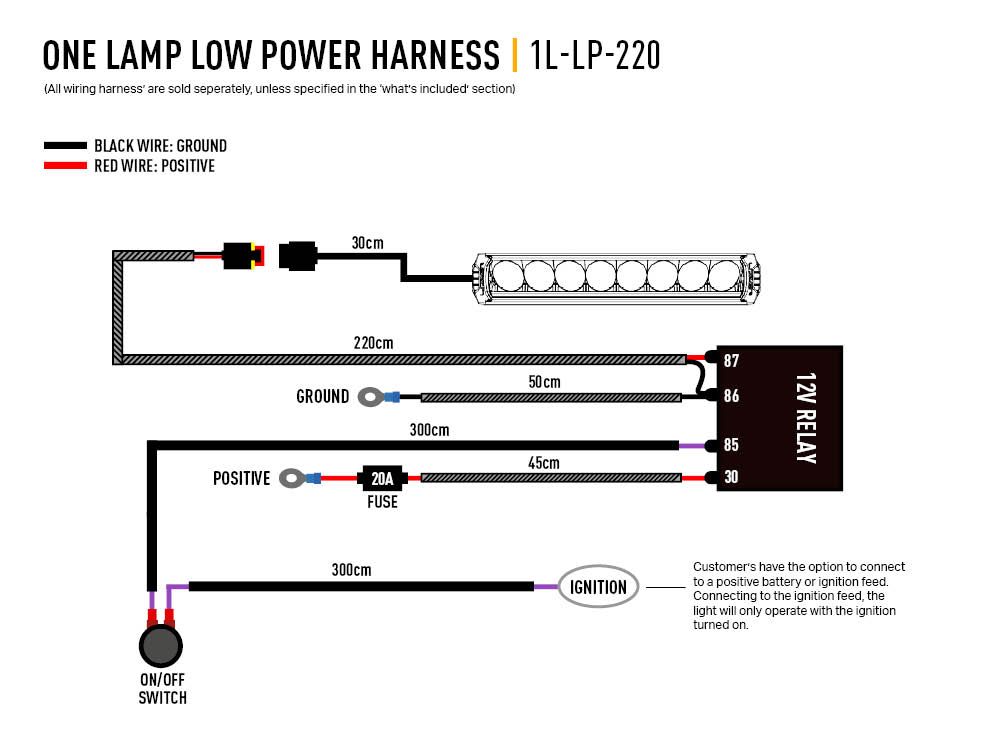

- Wiring harness kits available
- Designed & manufactured in the UK
Technical Specifications:
Based on: 1x Triple-R 750 Elite.
|
Boost Mode |
Low Output Mode | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 1.7 lbs | 1.7 lbs |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux |
5068 Lm |
1267 Lm |
| Total Driver 'FOV' Flux † | 3340 Lm | 835 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 4 | 4 |
| Power Consumption | 45 Watts | 11.5 Watts |
| Current Draw (at 14.4V) | 3.1 Amps | 0.8 Amps |
| CERTIFICATION | ||
| DOT Compliant | No | Yes |
| SAE Compliant | No | Yes |

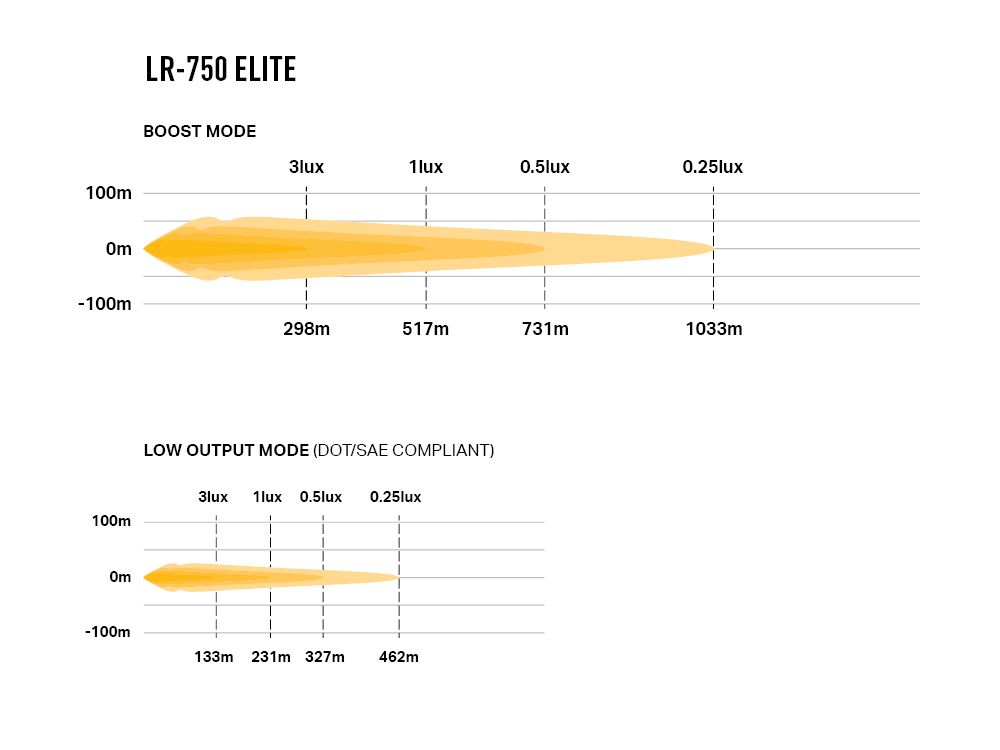

| PHOTOMETRIC DATA | ||

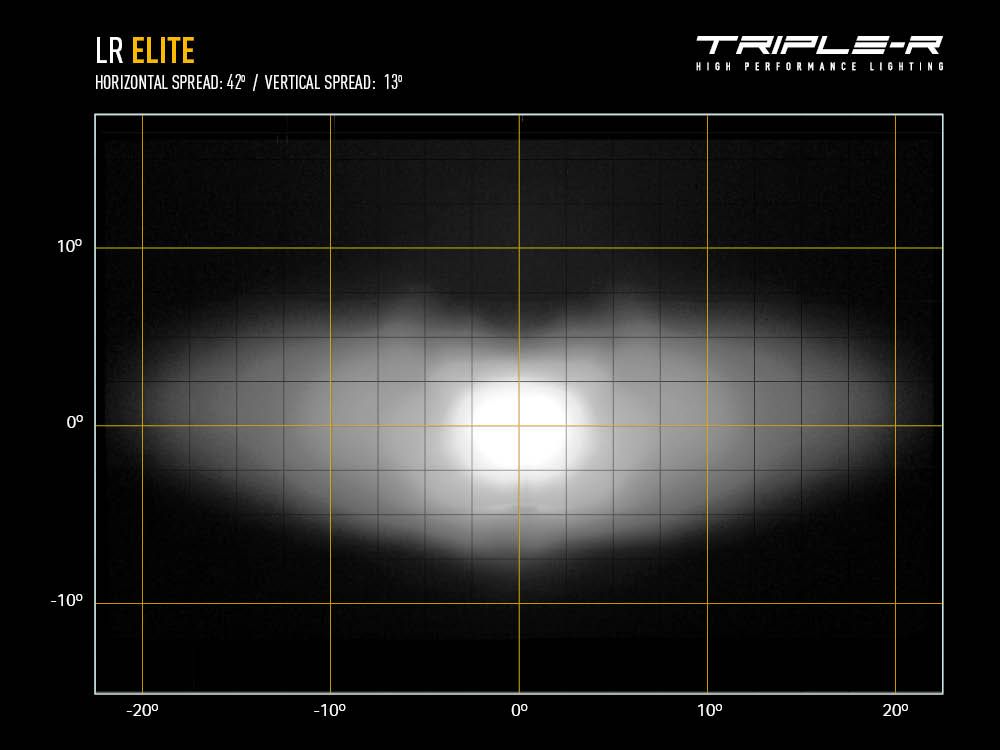

| Horiz Beam Angle | 42 Deg | 42 Deg |
| 0.25 lx Line | 1033 metres | 462 metres |
| 0.5 lx Line | 731 metres | 327 metres |
| 1 lx Line | 517 metres | 231 metres |
| 3 lx Line | 298 metres | 133 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included:
- 1x LR-750 Elite LED Light
- 1x Centre Mount Kit (1114K)
- 1x Fitting Instructions
Instructions:
Video Instructions:
