Triple R Lighting LR-28 Elite
SKU: TR-LR28-EL-B
1 10

Triple R Lighting LR-28 Elite

SKU: TR-LR28-EL-B
$1,145.00
Custom Icon
Earn $22 Fueled Cash
This item ships FREE

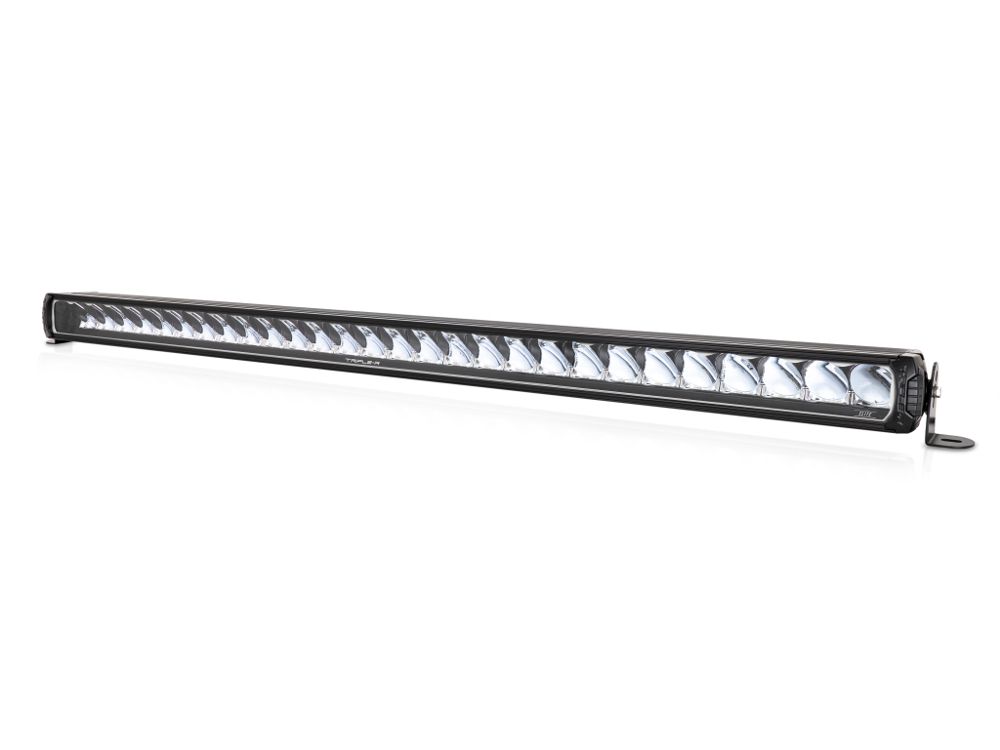

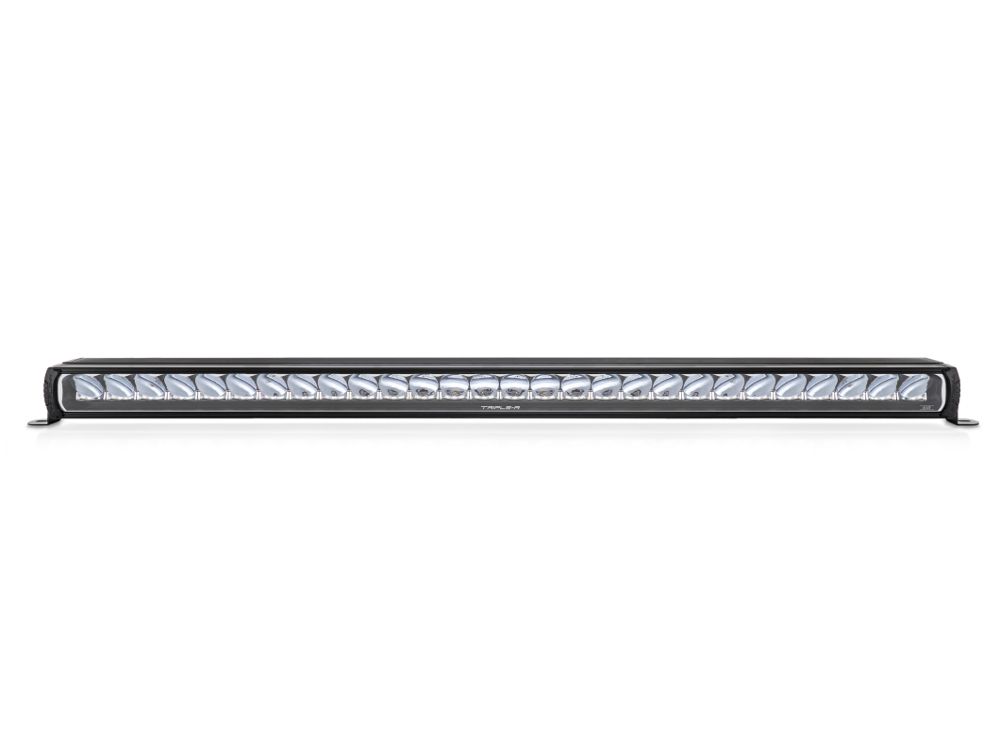

Triple R Lighting LR-28 Elite

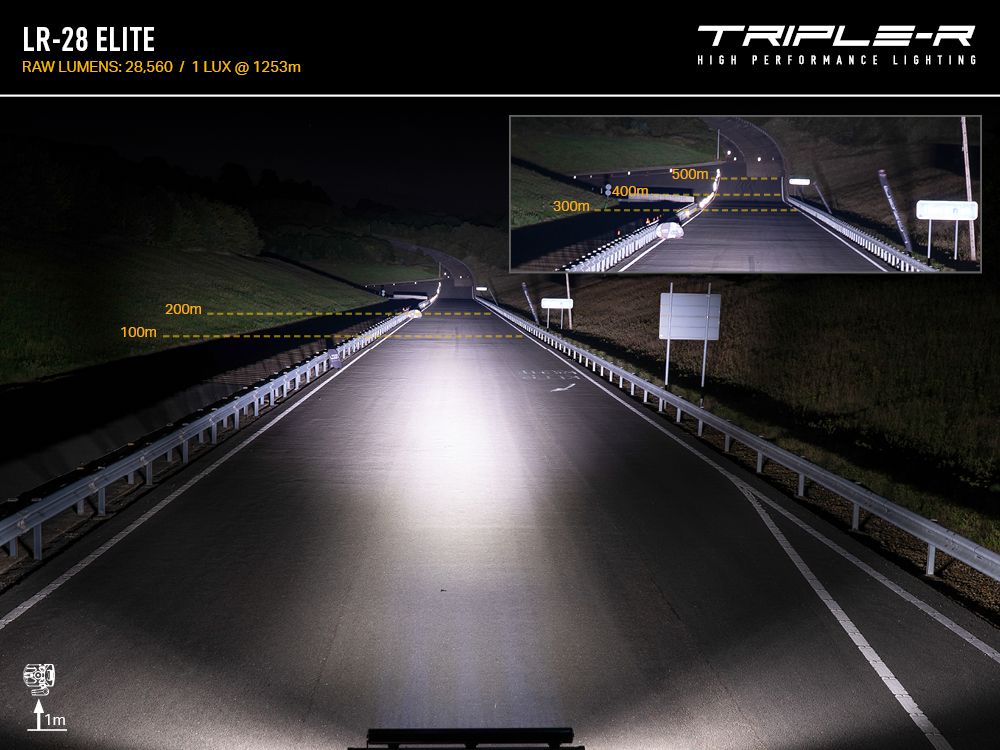

Boasting 28,560 raw lumens, and delivering 1 lux to 1253m, the LR-28 Elite provides exceptional distance illumination with an enviable 30 degree spread of light, guaranteeing a superior night driving experience. With lighting performance and reliability borne out development and testing performed at the very highest levels of professional motorsport, the LR Series can be trusted whatever the application.

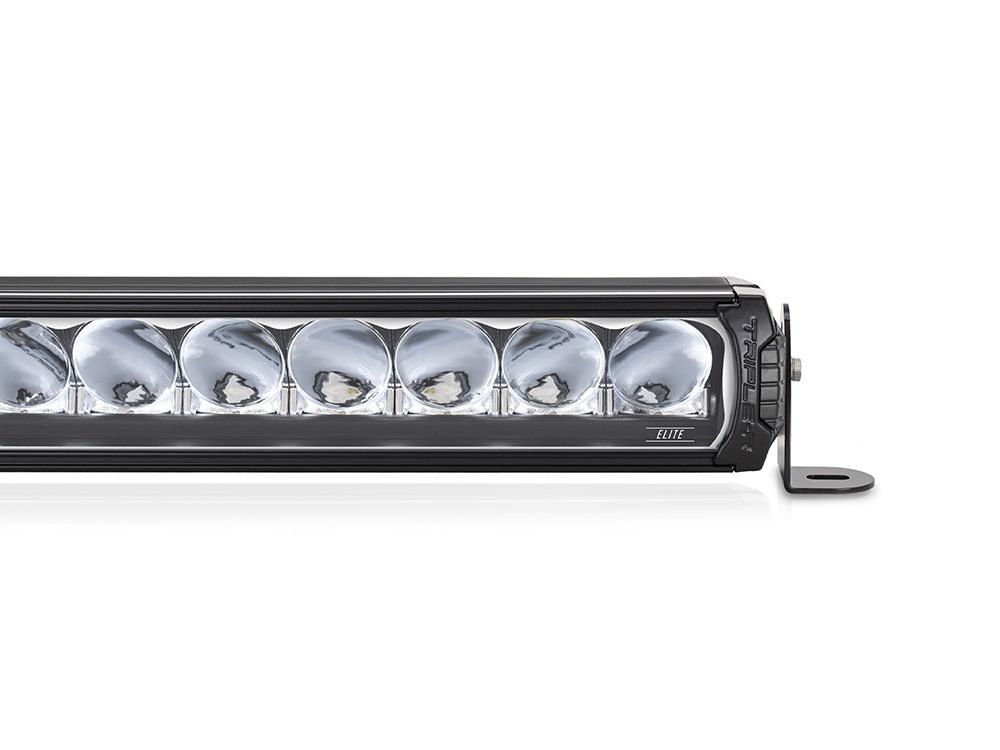

High intensity ‘premium bin’ LEDs located in the central section of the light provide the long-range visibility, while a combination of LEDs under each outer reflector provide the left/right spread. Like all aspects of the products design, nothing has been left to chance in pursuit of the best lighting performance, while also maximising the lights longevity and reliability. The perfectly homogenous beam pattern, combined with natural 5000k color temperature, provides excellent definition of the road or track ahead, whilst ensuring a comfortable drive even over prolonged periods of time.

Like all Triple-R light bars the LR Series benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

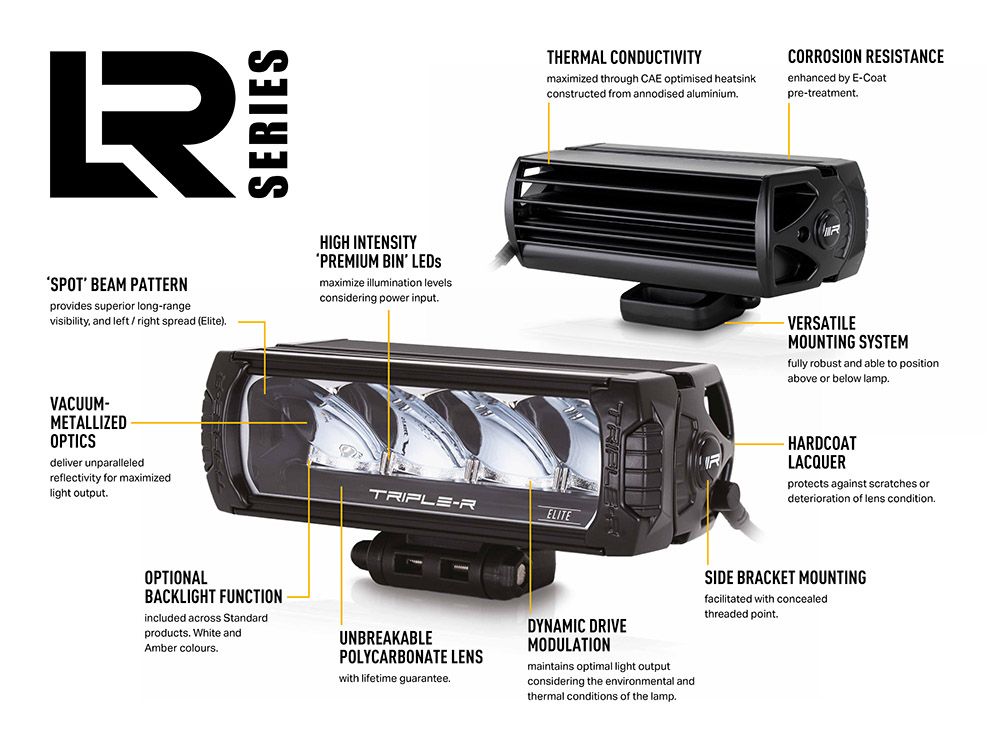

Features:

  • Highly efficient LED technologies (upgraded in 2020/21)
  • Ultra-reflective vacuum-metallized optics deliver perfectly tuned beam pattern
  • Contemporary lamp design
  • Includes versatile ‘Centre Mount’ mounting system plus side mounting brackets (1118K)
  • Aero design benefits low wind noise performance
  • CAE optimised heatsink offers improved thermal dynamics
  • Anodized pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
  • Electronic thermal management
  • Pressure equalization through GoreTex Breather technology
  • ‘Unbreakable’ and hardcoated polycarbonate lens (Lifetime Guarantee)
  • IP68 watertight
  • 5-year warranty

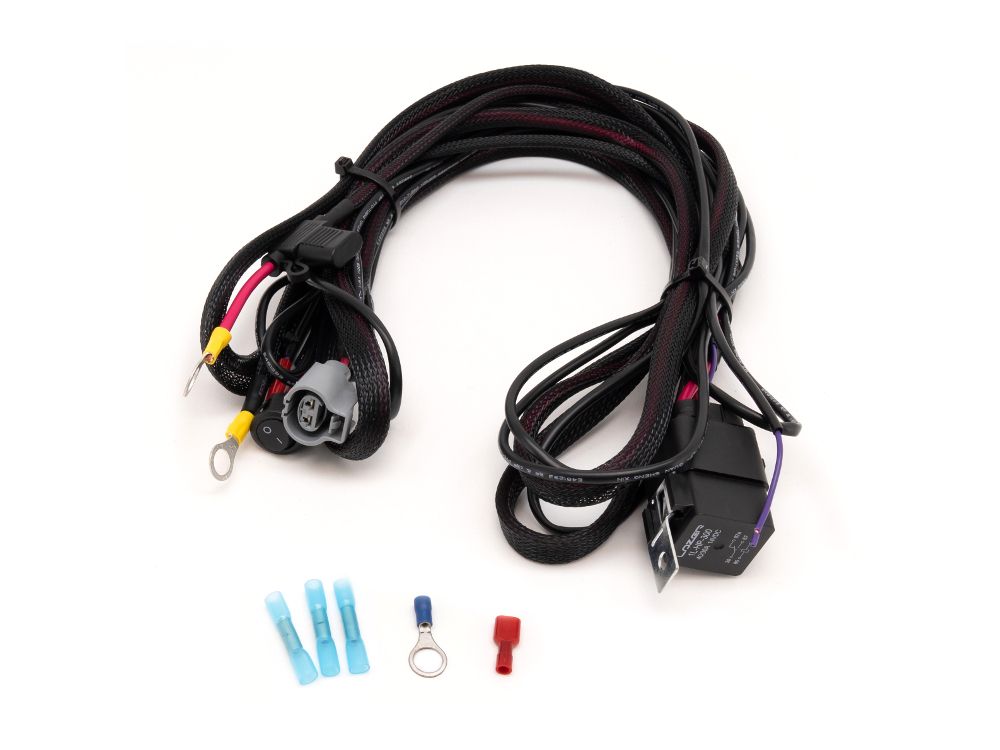

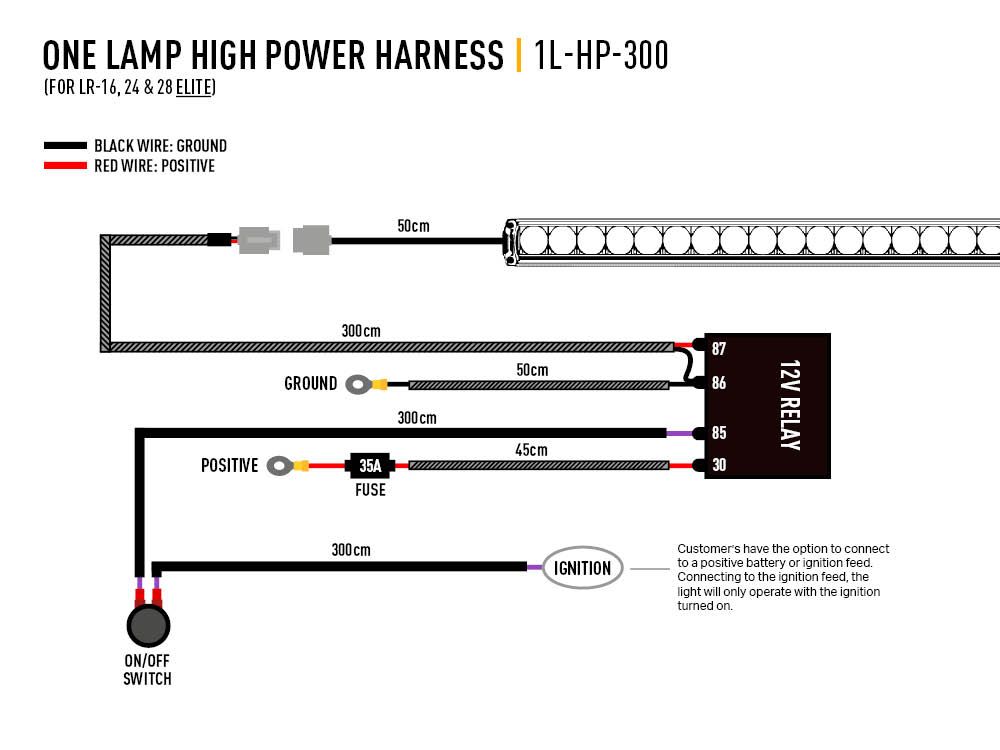

  • Wiring harness kit included (1L-HP-300)
  • Designed & manufactured in the UK



Technical Specifications:

Based on 1x LR-28 Elite.

Voltage Range 10-32V
LED Life 50,000 hrs
IP Rating IP68
Weight 8.6 lbs
HIGH BEAM FUNCTION
Total Luminous Flux 28560 Lm
Total Driver 'FOV' Flux † 18821 Lm
Color Temperature 5000k
Number of High Output LEDs 28
Power Consumption 326 Watts
Current Draw (at 14.4V) 22.6 Amps

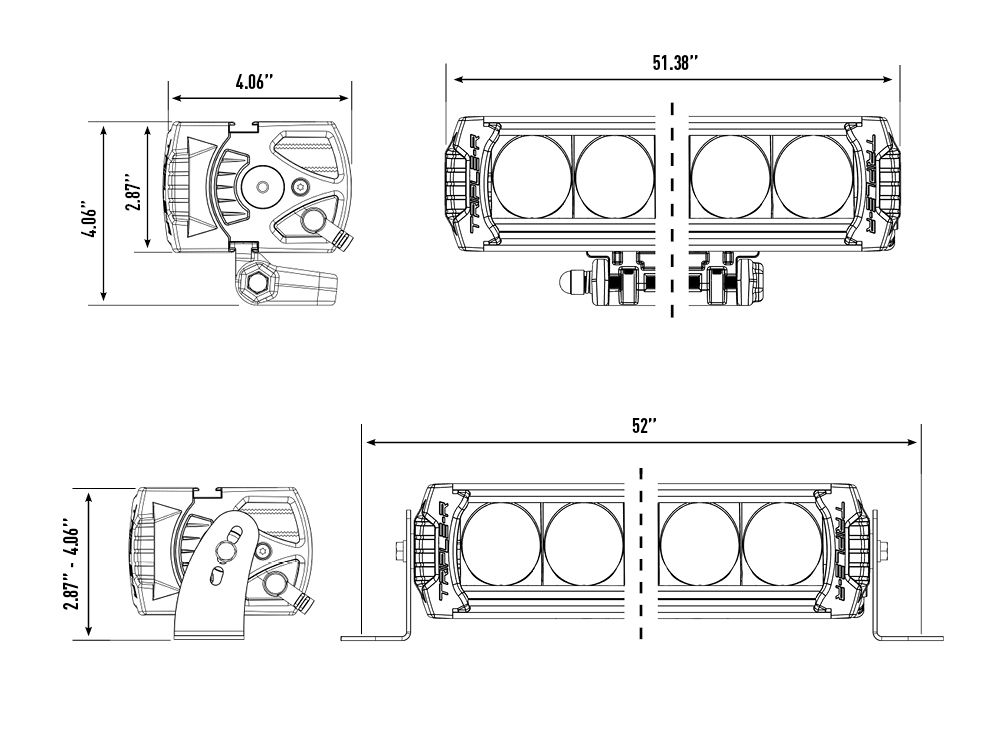

DIMENSIONS
Length 51.4"
Depth 4.06"
Height 2.87"

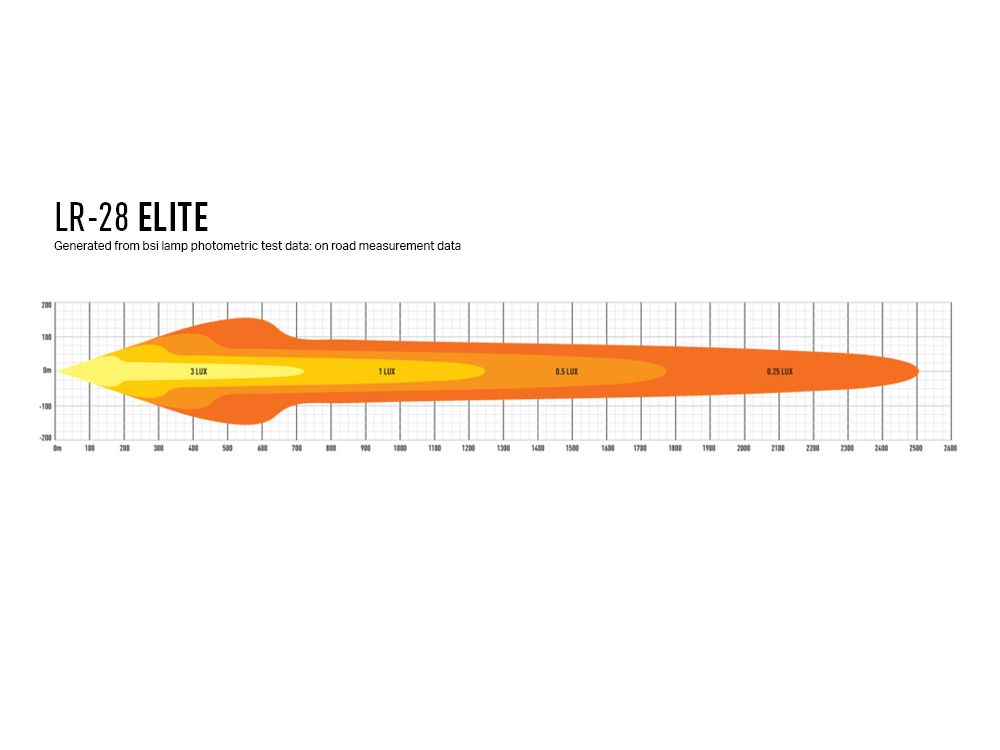

PHOTOMETRIC DATA

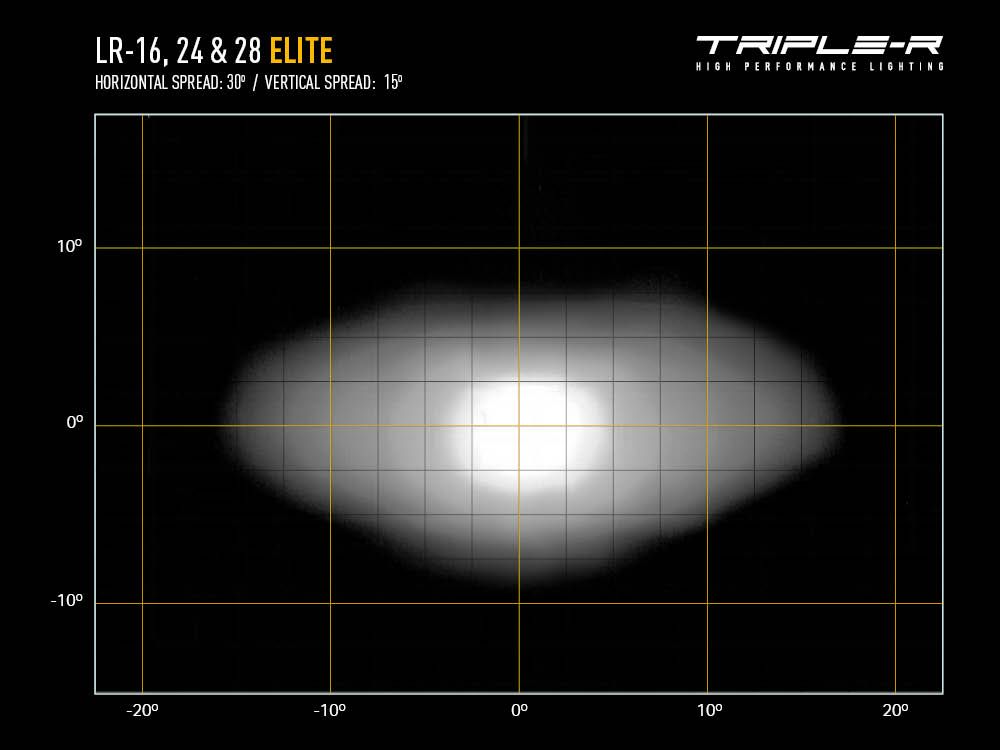

Horiz Beam Angle 30 Deg
0.25 lx Line 2506 metres
0.5 lx Line 1772 metres
1 lx Line 1253 metres
3 lx Line 724 metres
What's Included:
  • x1 LR-28 Elite LED Light
  • x1 Wiring Kit (1L-HP-300)
  • x3 Centre Mount (1114K)
  • x1 Side Mounting Kit (1118K)
  • x1 Installation Instructions
Instructions:
Video Instructions:
