Triple R Lighting LR-1250
SKU: TR-LR12-PL-B

Triple R Lighting LR-1250

SKU: TR-LR12-PL-B
$610.00
Custom Icon
Earn $12 Fueled Cash
This item ships FREE

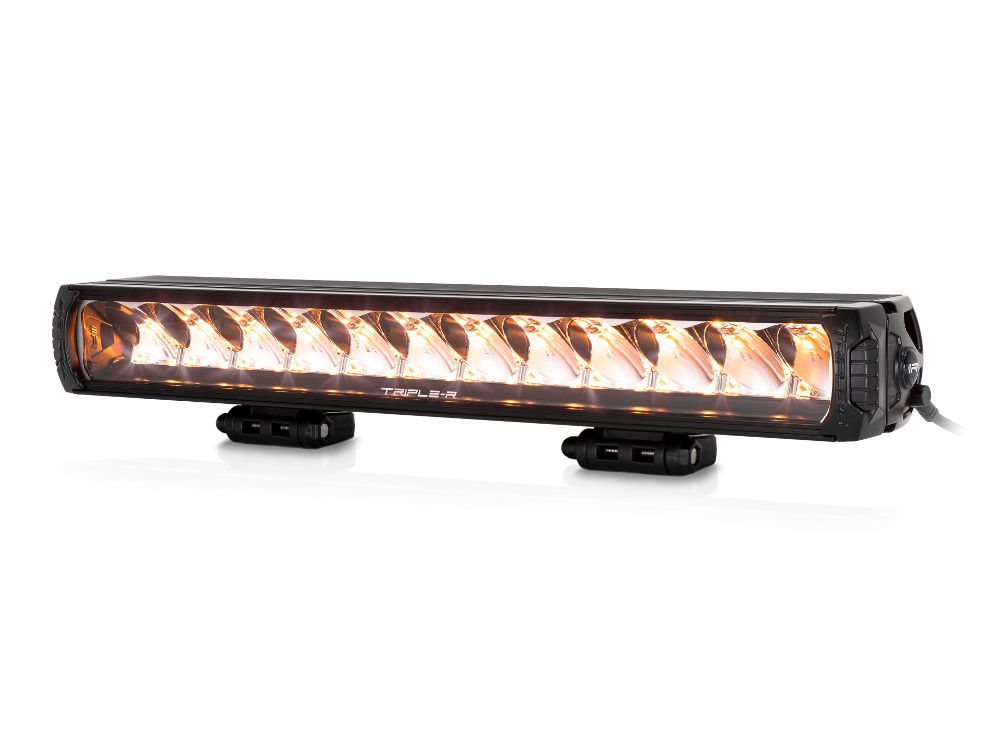

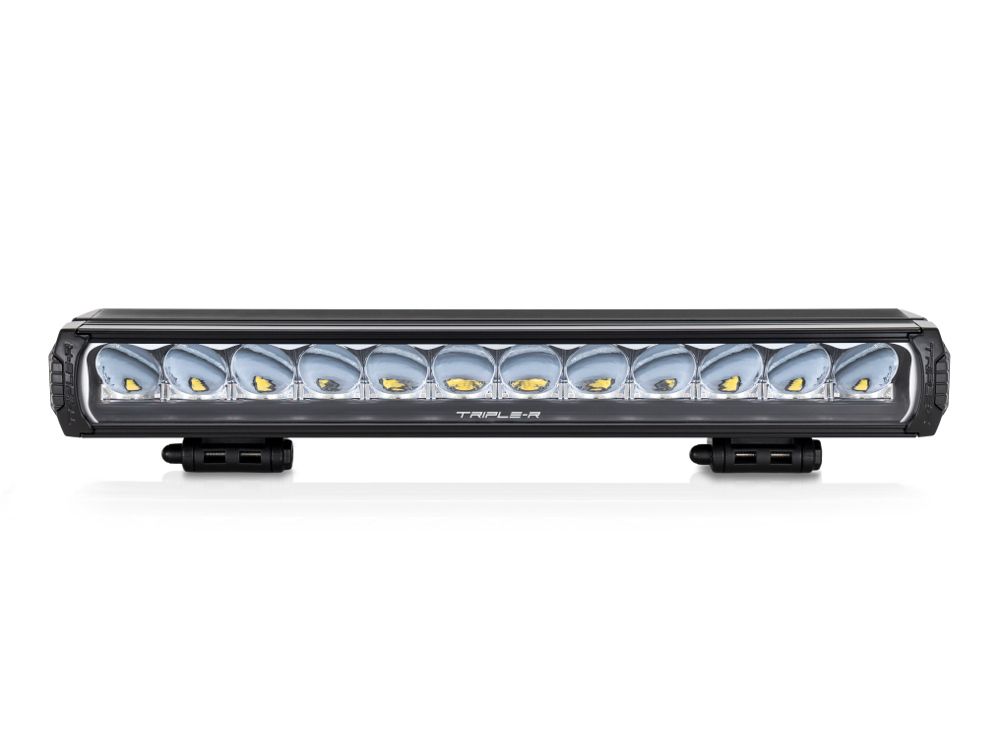

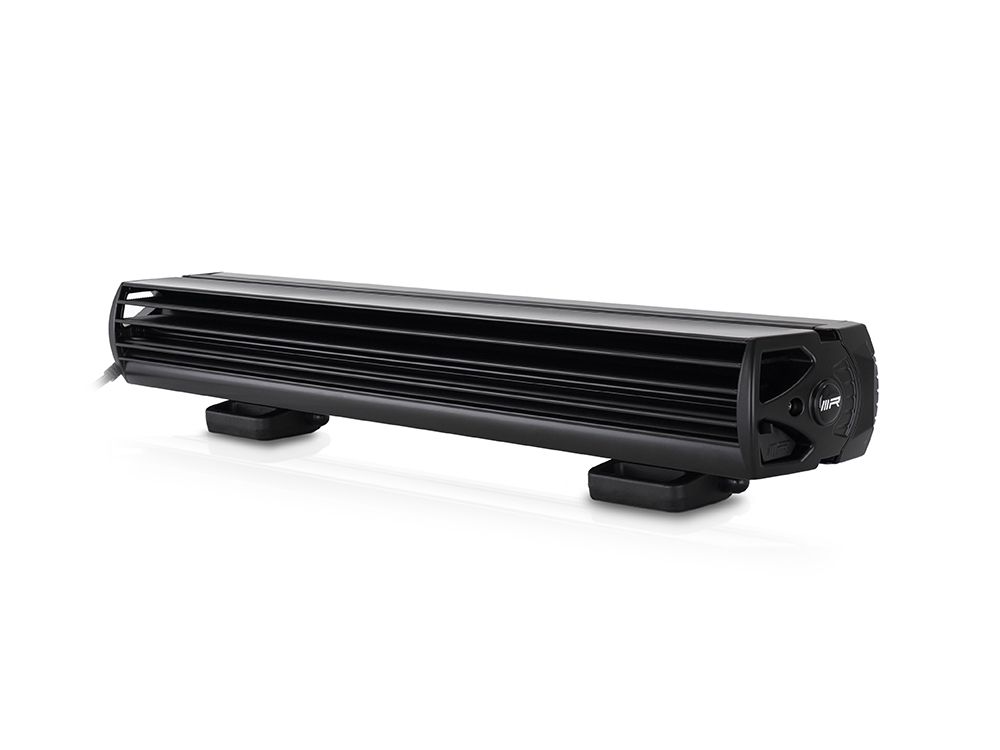

Triple R Lighting LR-1250

The LR-1250 is a versatile high-performance LED light solution delivering a spot beam pattern to an impressive 750m (1 lux). With performance and reliability borne out of development and testing at the highest levels of professional motorsport, the LR-1250 is a product to be trusted for all off-road, and on-road applications. With the option to connect white or amber backlight, combined with the refined styling and premium features of the light, this is a product to stand-out day and night.

At 23” in length and weighing 4.3lbs, the LR-1250 is built tough yet delivers a serious punch despite its lightweight design. ‘Premium bin’ high intensity LEDs, upgraded in 2020/1, deliver 13860 raw lumen at a natural 5000k color temperature. The long-range lighting is supplemented by a 19 degree spread of light ensuring a comfortable night drive experience, even over prolonged periods of time.

Like all aspects of the products design, nothing has been left to chance in pursuit of the best lighting performance, while also maximising the lights longevity and reliability. All LR Series lights come with a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

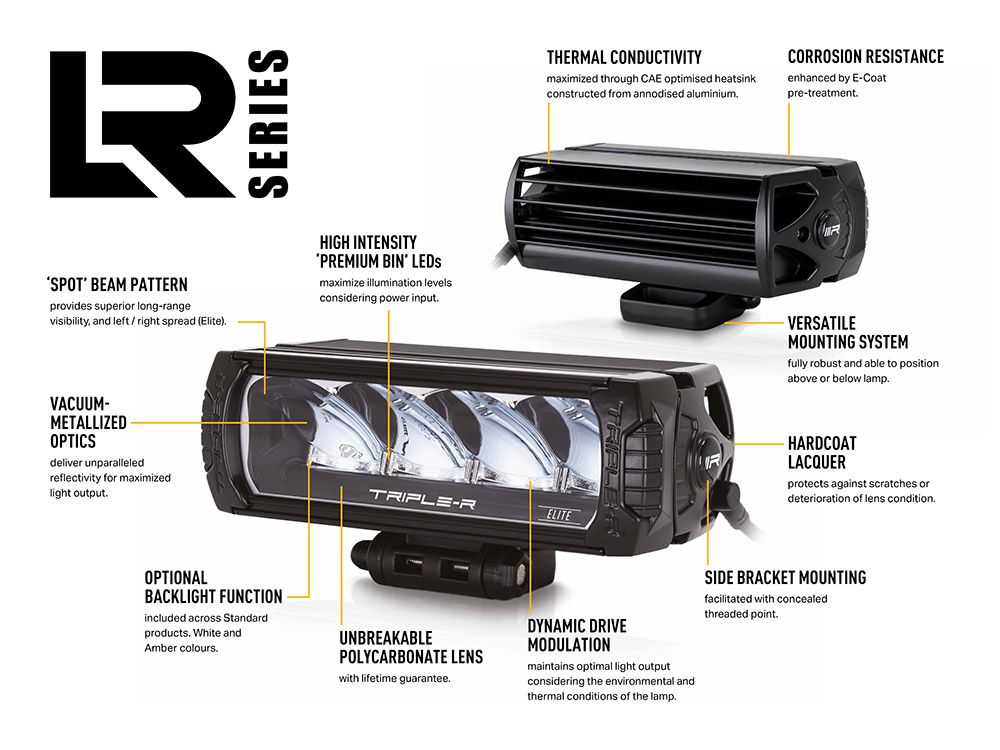

Features:
  • Highly efficient LED technologies (upgraded in 2020/21)

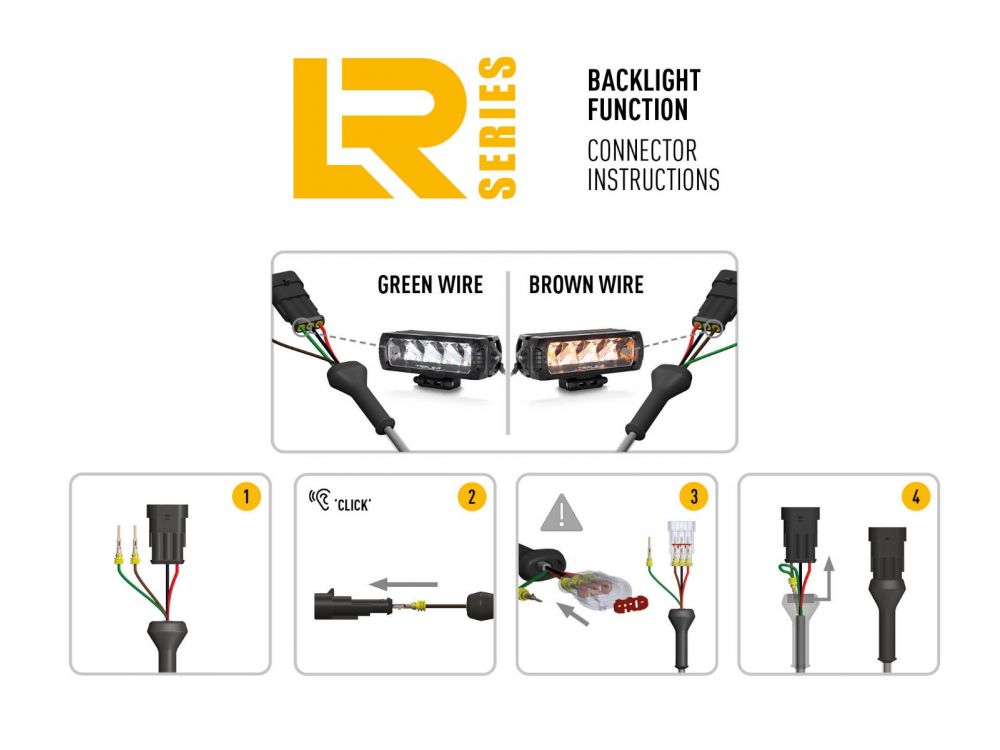

  • Integrated white or amber backlight function
  • Ultra-reflective vacuum-metallised optics deliver spot beam pattern
  • Contemporary lamp design
  • Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
  • CAE optimised heatsink offers improved thermal dynamics
  • Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
  • Electronic thermal management
  • Pressure equalization through GoreTex Breather technology
  • ‘Unbreakable’ and hardcoated polycarbonate lens
  • IP68 watertight
  • 5-year warranty

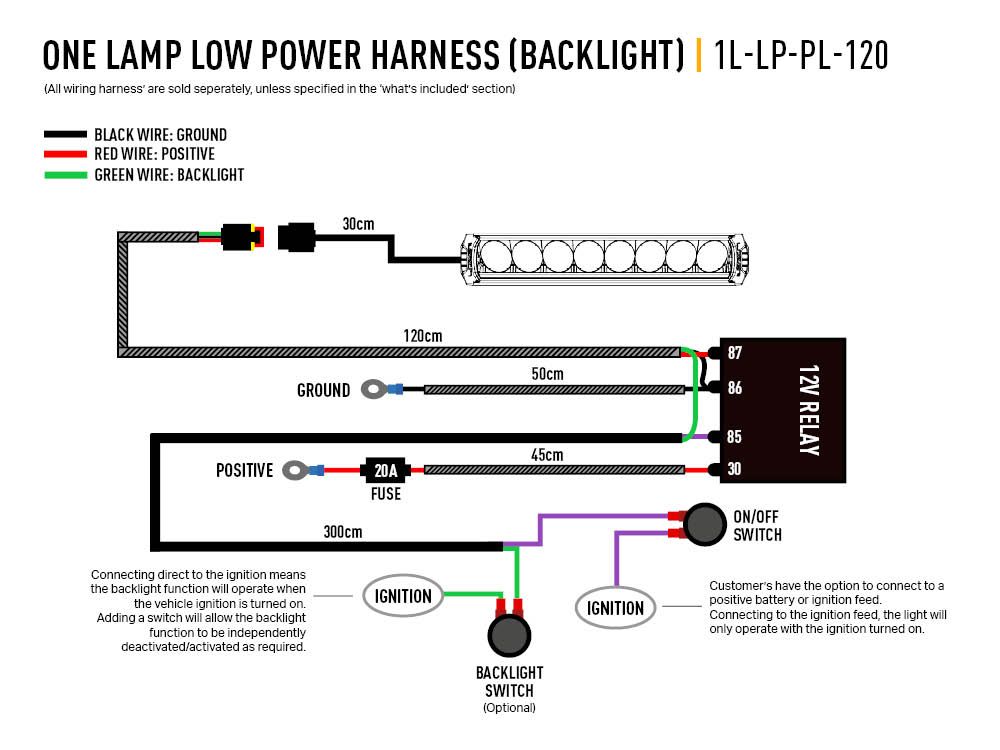

  • Wiring harness kits available
  • Designed & manufactured in the UK



Technical Specifications:

Based on: 1x LR-1250.

Voltage Range 10-32V
LED Life 50,000 hrs
IP Rating IP68
Weight 4.3 lbs
HIGH BEAM FUNCTION
Total Luminous Flux 13860 Lm
Total Driver 'FOV' Flux † 8358 Lm
Color Temperature 5000k
Number of High Output LEDs 12
Power Consumption 125 Watts
Current Draw (at 14.4V) 8.7 Amps
DIMENSIONS
Length 23.23"
Depth 4.06"
Height 2.87"

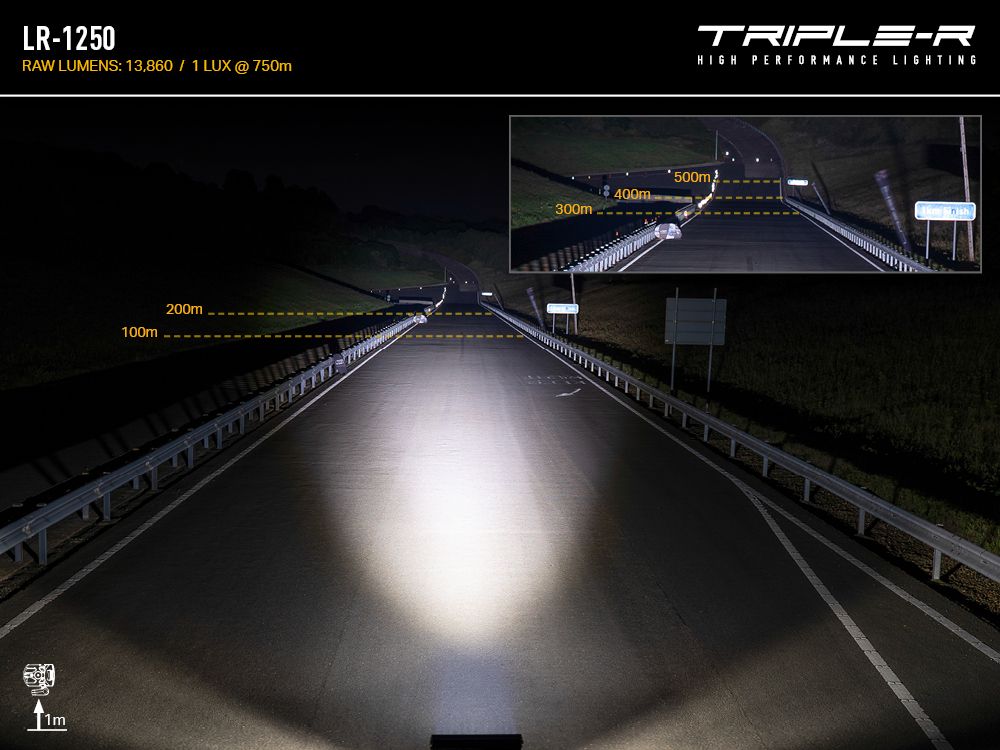

PHOTOMETRIC DATA
Horiz Beam Angle 19 Deg
0.25 lx Line 1500 metres
0.5 lx Line 1061 metres
1 lx Line 750 metres
3 lx Line 433 metres



† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included:
  • x1 LR-1250 LED Light
  • x2 Centre Mount (1114K)
  • x1 Installation Instructions
    Instructions:
    Video Instructions:
