Triple R Lighting LR-1000 Beacon
The iconic LR-1000, is now offered with integrated amber flashing beacon function. Incorporating 16 different forward-facing flash patterns, the additional safety functionality within the lamp, combines with the possibility to connect a white or amber backlight function, as well as the exceptional high beam light function to really set the LR-1000 apart from the competition.

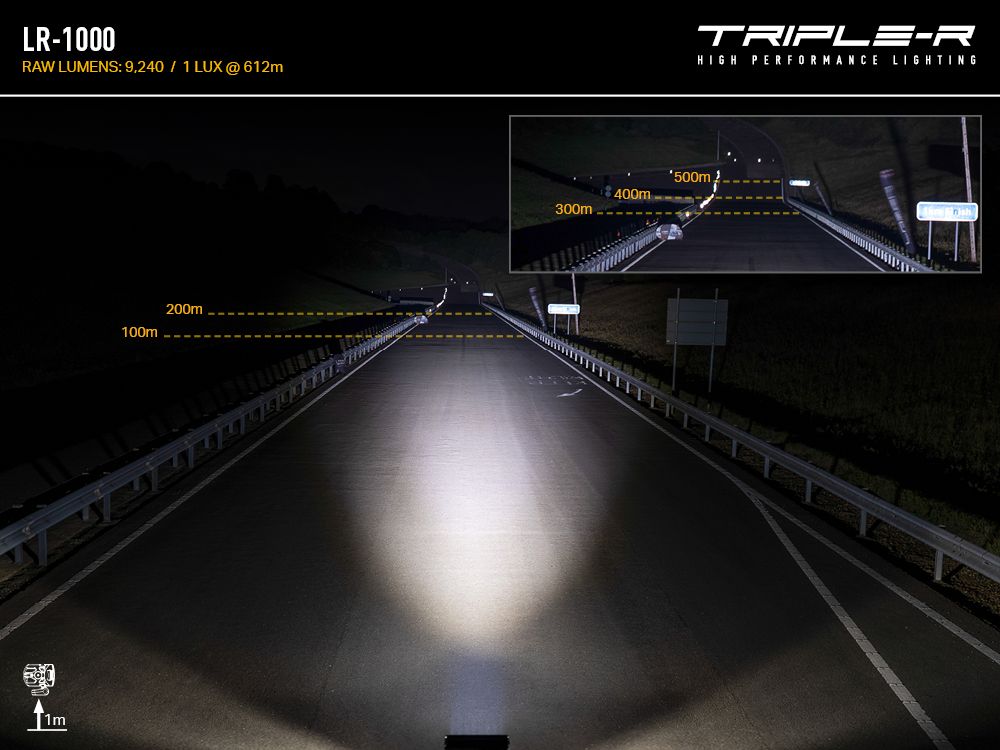

The LR-1000 is a high-performance LED light that delivers a spot beam pattern well suited for either offroad or on-road use. Recent styling updates to the LR Series have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. Boasting 9,240 lumen, and delivering 1 lux to 612m, the auxiliary LED light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle.

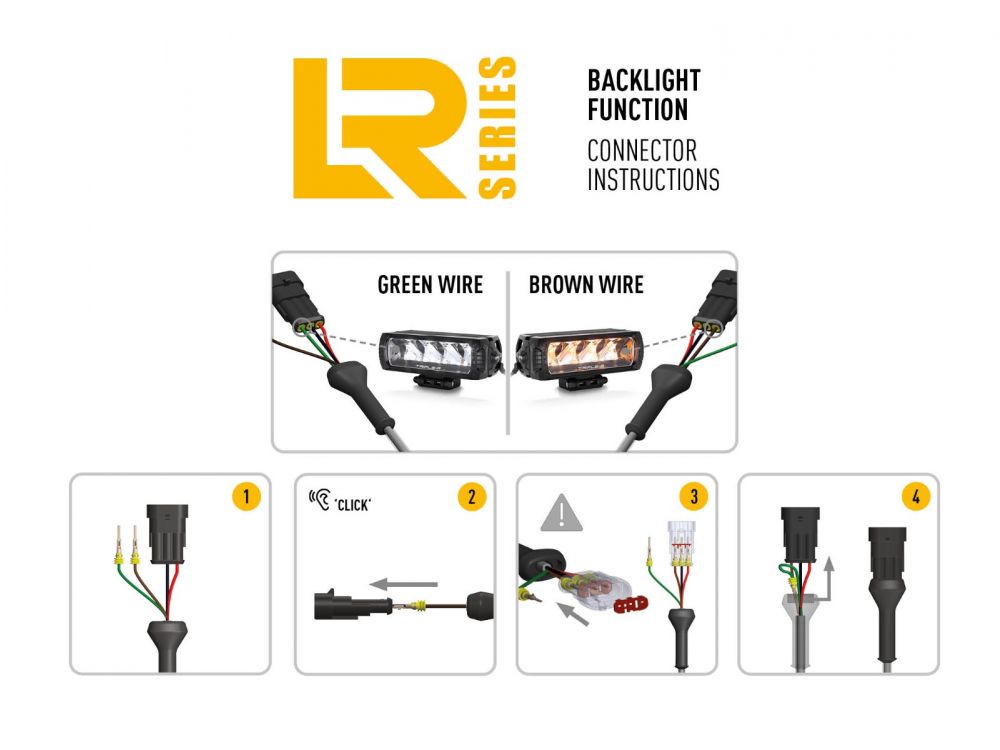

Included within the lamp is the option to connect an integrated Backlight function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber colored backlights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your LR-1000 act as a LED light only.

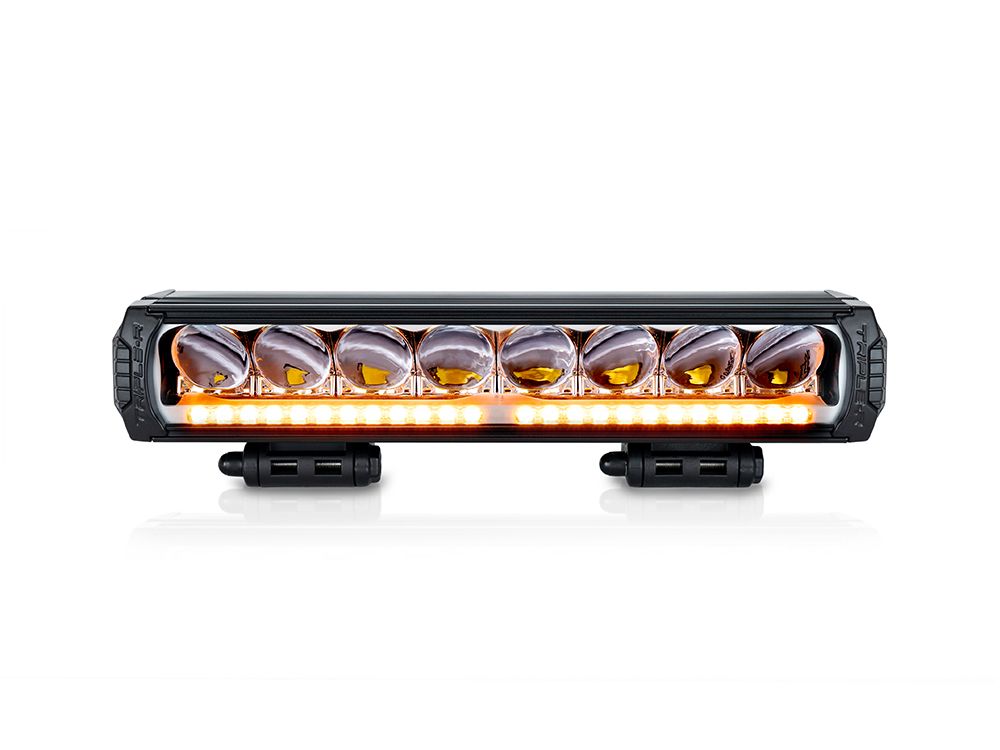

There are 16 different amber warning light patterns which can be selected and synchronized (between multiple lamps), at the point of installation, or using a momentary switch where the requirement is to change the flash pattern on demand. Examples of the different flash patterns can be seen in the Videos section.
Like all Triple-R Lights products, the LR-1000 with Beacon function has been designed and engineered to deliver a powerful driving light with perfectly homogenous beam pattern. The color temperature of the light, at 5000k, is carefully selected to maximize definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time. Performance is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty.
Features:
- Highly efficient 11W LED technology
- Integrated white or amber backlight function
- Integrated amber flashing beacon function
- Ultra-reflective vacuum-metallized optics deliver spot beam pattern
- Contemporary lamp design
- Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
- CAE optimized heatsink offers improved thermal dynamics
- Anodized pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
- Electronic thermal management
- ‘Unbreakable’ and hardcoated polycarbonate lens
- IP68 watertight
- 5-year warranty
- Designed & manufactured in UK
Technical Specifications:
Based on: 1x LR-1000 Beacon.
Voltage Range | 10-32V |
LED Life | 50,000 hrs |
IP Rating | IP68 |
Weight | 3.1 lbs |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 9240 Lm |
Total Driver 'FOV' Flux † | 5572 Lm |
Color Temperature | 5000k |
Number of High Output LEDs | 8 |
Power Consumption | 88 Watts |
Current Draw (at 14.4V) | 6.1 Amps |
PHOTOMETRIC DATA | |
Horiz Beam Angle | 19 Deg |
0.25 lx Line | 1225 metres |
0.5 lx Line | 866 metres |
1 lx Line | 612 metres |
3 lx Line | 354 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included:
- x1 LR-1000 Beacon LED Light
- x2 Centre Mount (1114K)
- x1 Installation Instructions
Instructions:
Video Instructions:
