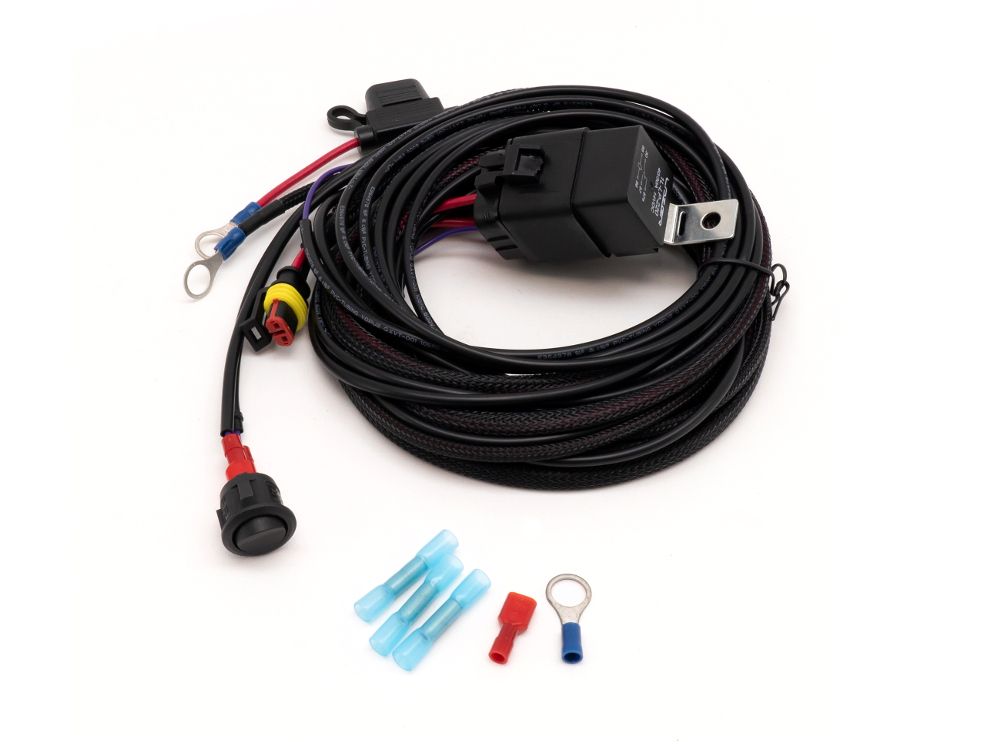

Triple R Lighting Long Single-Lamp Harness Kit (2-Pin, Superseal, 12V)
One-Lamp wiring kit for Triple-R Lights’ High Performance LED lights. The setup is quick, easy, and reliable with 2-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 3m of flex on the lamp cable, and allows for the operation of Triple-R products either in parallel with the standard lighting on the vehicle (DOT/SAE approved products only), and/or via an independent switch which can be mounted inside your vehicle.
All Triple-R Lights are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
- Compatible with:
- ST4 Evolution
- LR-750 Elite
- LR-850 Elite
- LR-1000 Elite
- Linear-6 Elite
- Linear-36
- Linear-42
- Linear-48
Features:
- One-Lamp Wiring Kit for Triple-R lights (see product text for compatibility)
- 3m cable length

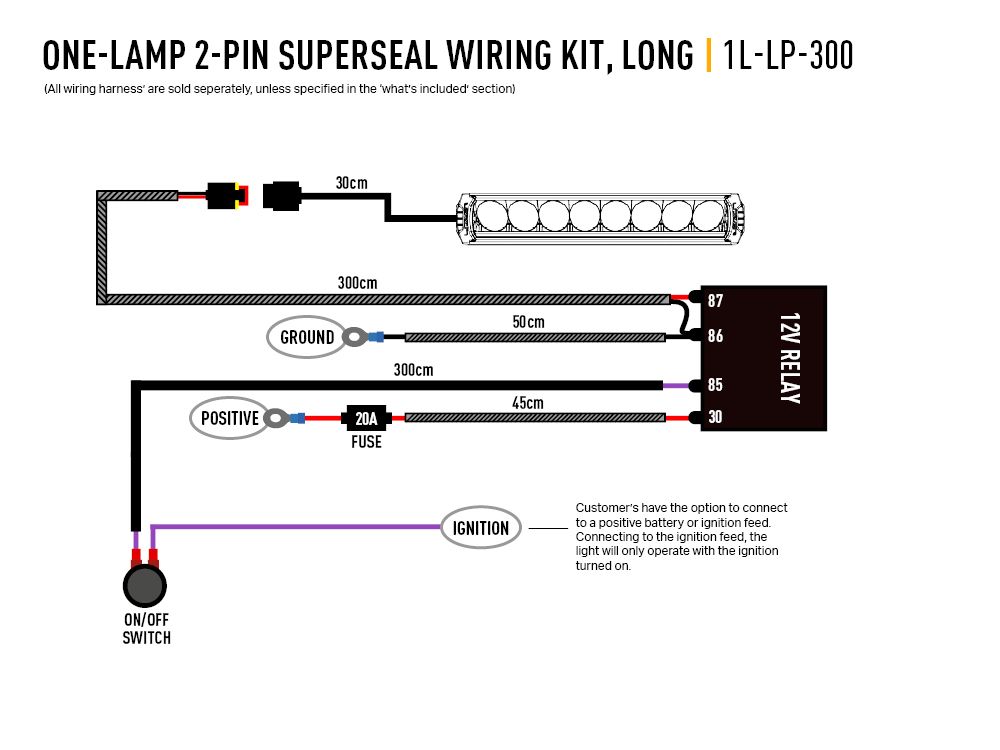

- Includes 12V relay and 20 amp fuse
- Superseal connections
- Includes optional on/off switch for independent operation of high beam
- Braided cable sections for added protection in engine bay
Instructions:
