Triple R Lighting Linear Centre Mounting Kit

Triple R Lighting Linear Centre Mounting Kit

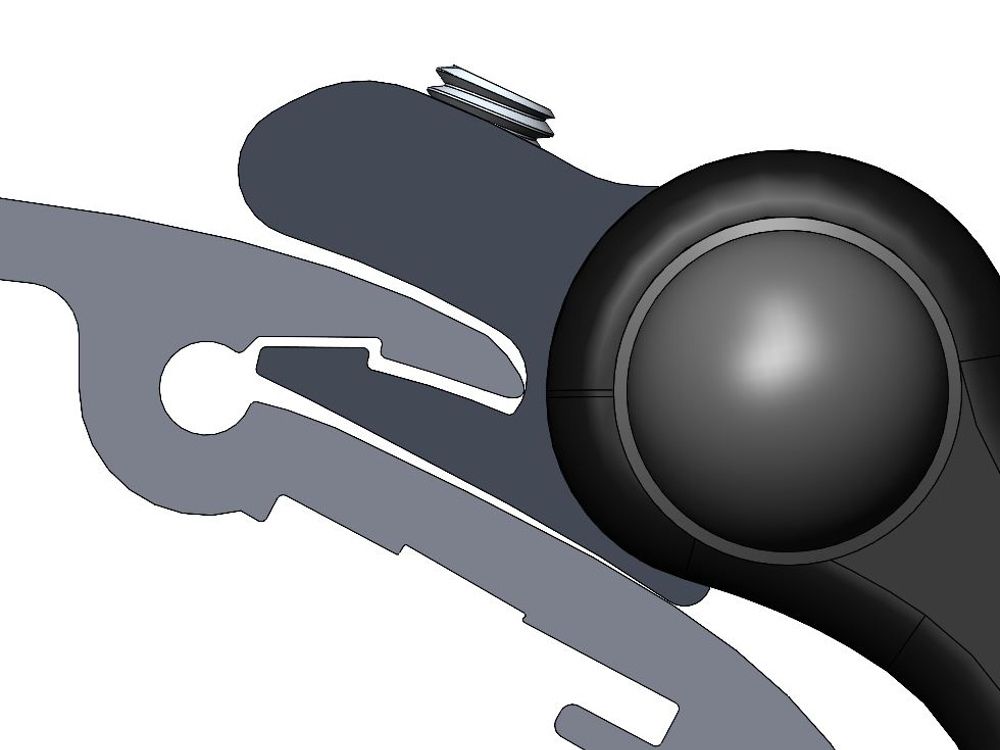

Linear centre mounting bracket includes A2 stainless steel hardware combined with extremely tough PA66 GF30 (glass filled nylon) ruggedised mounts. The mount fixes into the channel on the back of the Linear heatsink, and secured using M5 grub screws. Bracket orientation can be reversed in order to have the light mounted upwards or hanging down relative to the vehicle mounting point. Mounting kit includes anti-rotation features.

For use with Linear products only.

Features:

• A2 Stainless Steel hardware
• Uses PA66 GF30 (glass filled nylon) material
• Suitable for Linear lamps only
• Fully adjustable - mounting orientation can be reversed through 180 degrees
• Anti-rotation features

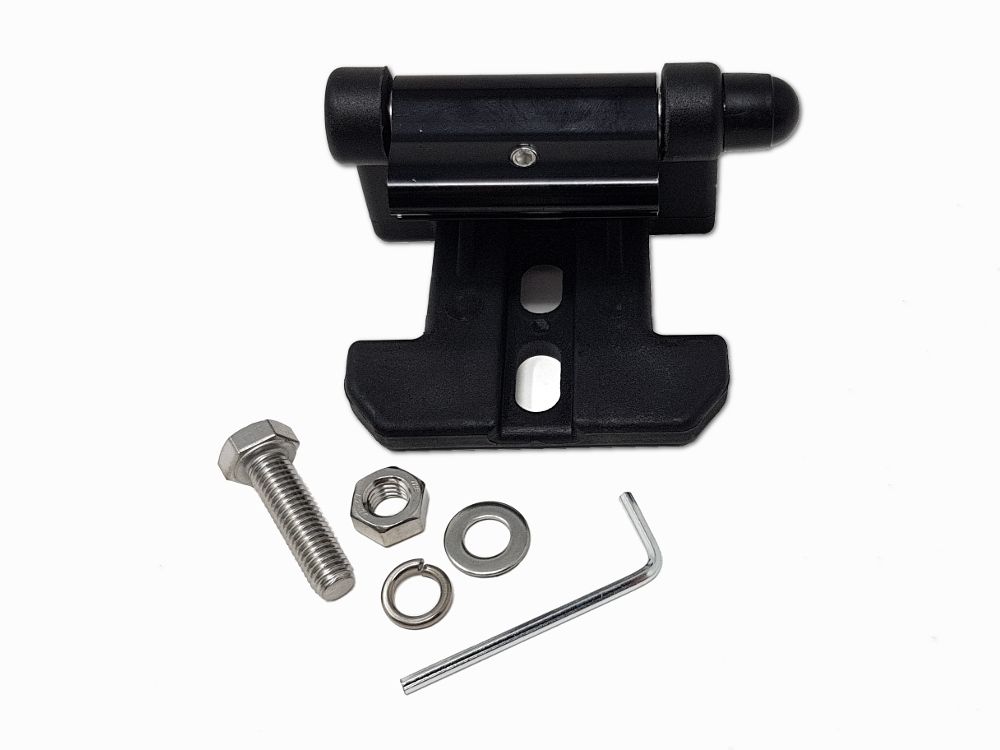

What's Included:

• 1x Centre Mount (for Linear)
• Fixtures

Instructions:

• (1124K) Linear Centre Mount (1.05 MB)
• UT50 Beacon Instructions (107.03 KB)
