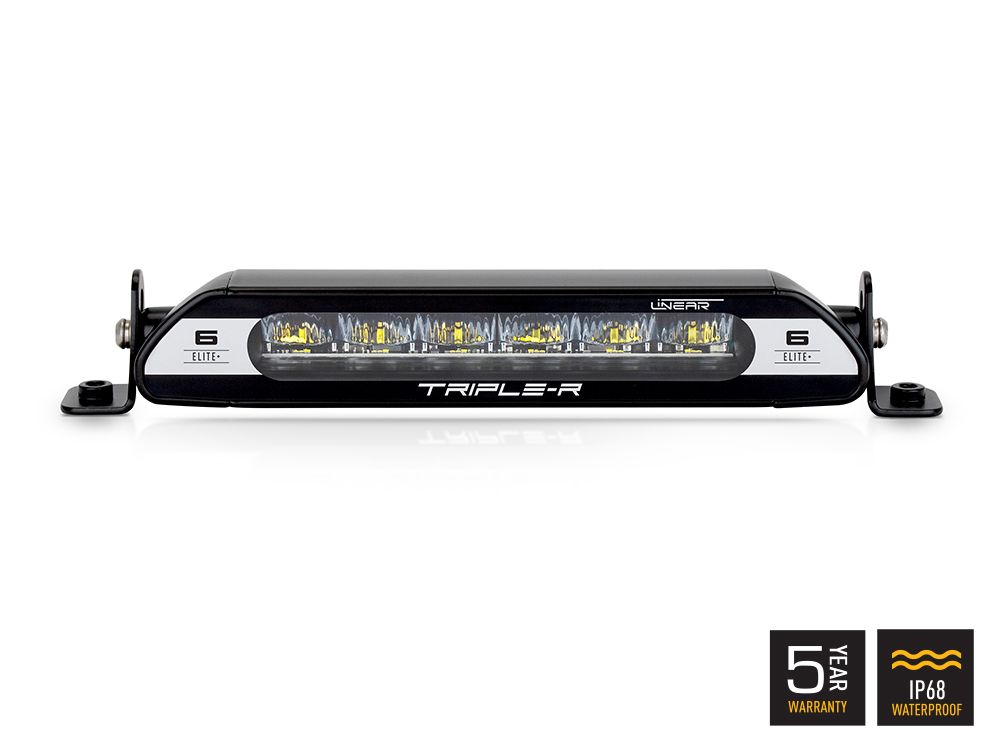

Triple R Lighting Linear-6 Elite+

Triple R Lighting Linear-6 Elite+

Representing an evolution in our highest performance LED lighting solutions, the Elite+ range comprises products with enhanced performance, light distribution, and functionality. Improvements are in part made through the placement of supplemental yellow LEDs in each of the lights, which can either combine with the already superior white light high beam function for awe-inspiring night-time visibility at a slightly softer, more relaxing colour temperature. Or the option to operate the yellow LEDs on their own, with that light angled slightly down and to the sides of the road or track making this function ideal in snow, fog, or dust conditions.

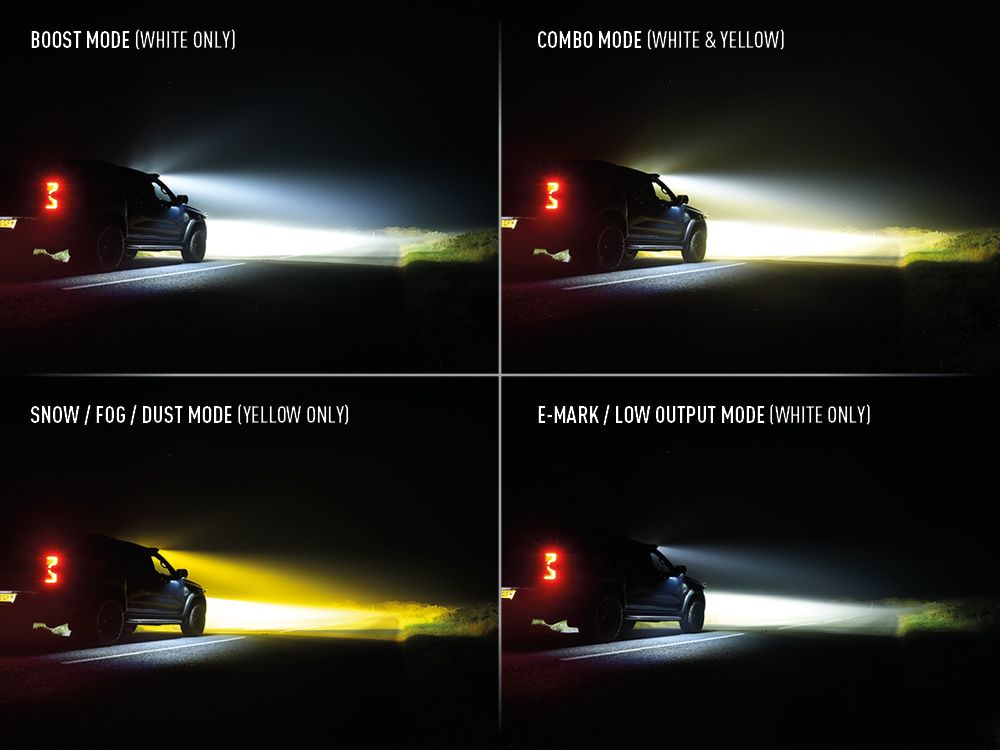

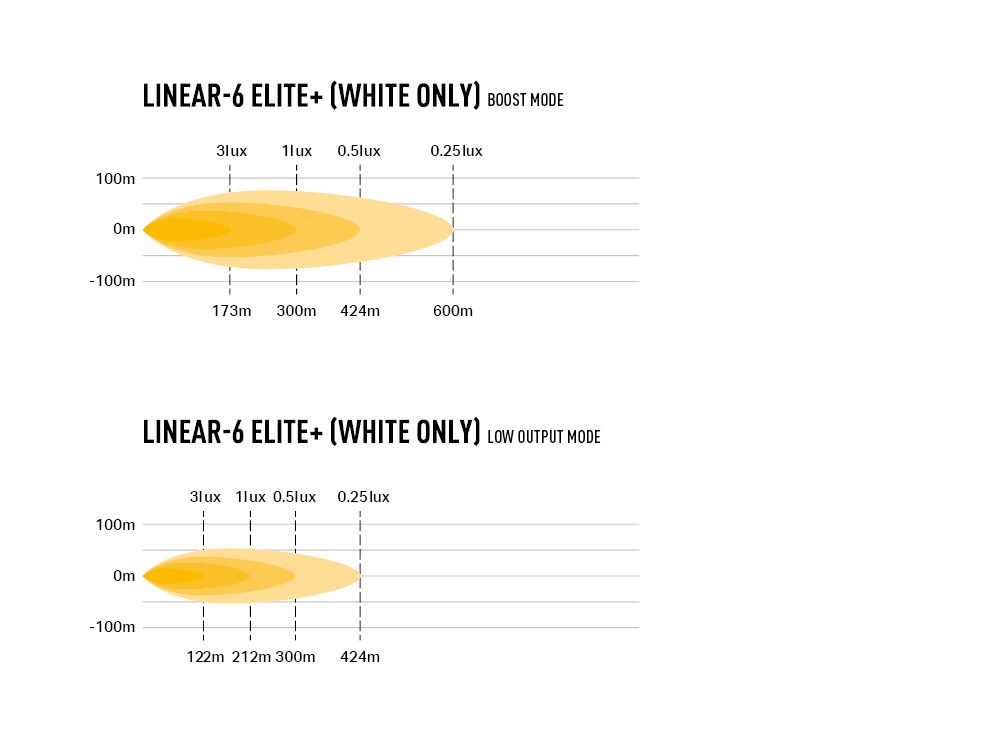

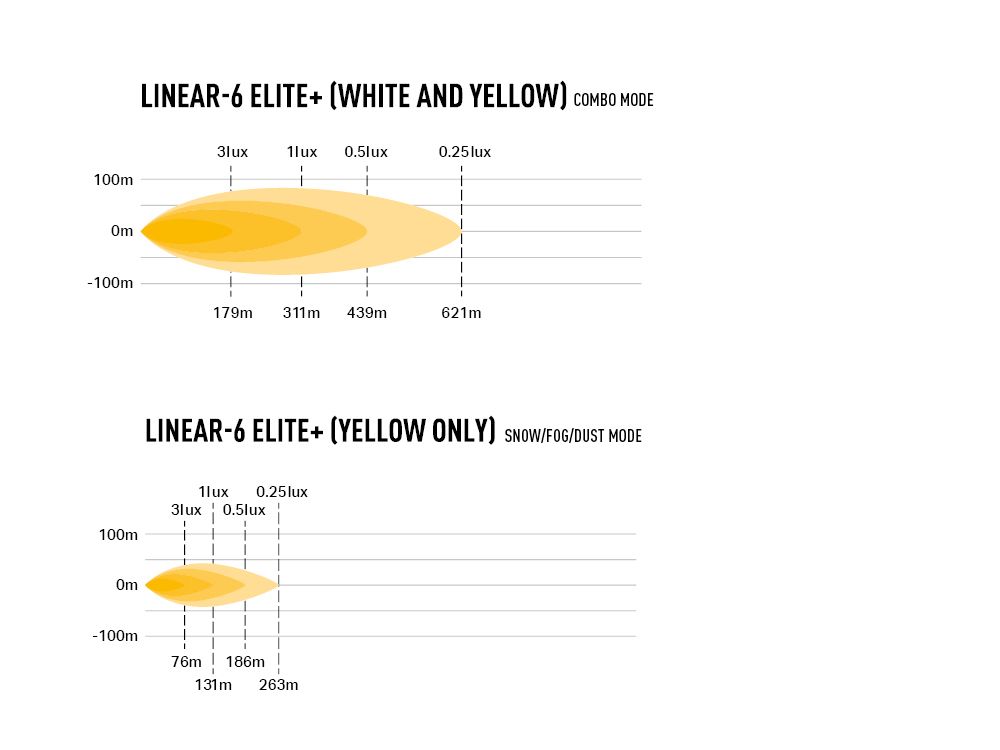

The lights are intended to cycle through the different lighting modes via a momentary switch. The lighting modes are: Boost (white only), Combo (white + yellow), Snow/Fog/Dust Mode (yellow only), and Low output Mode (white only). A memory function within the lamp means the previous mode selected will be in effect when your vehicle is restarted for example. Additionally, pressing and holding the momentary switch for 2 seconds will result in the light instantly jumping to the E-mark mode.

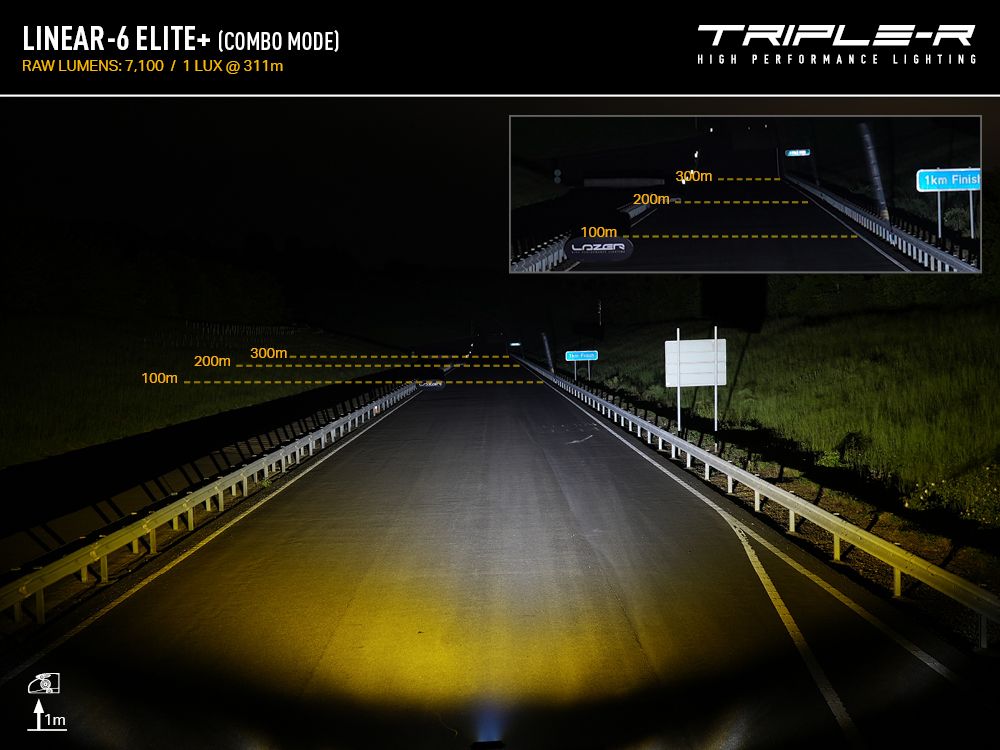

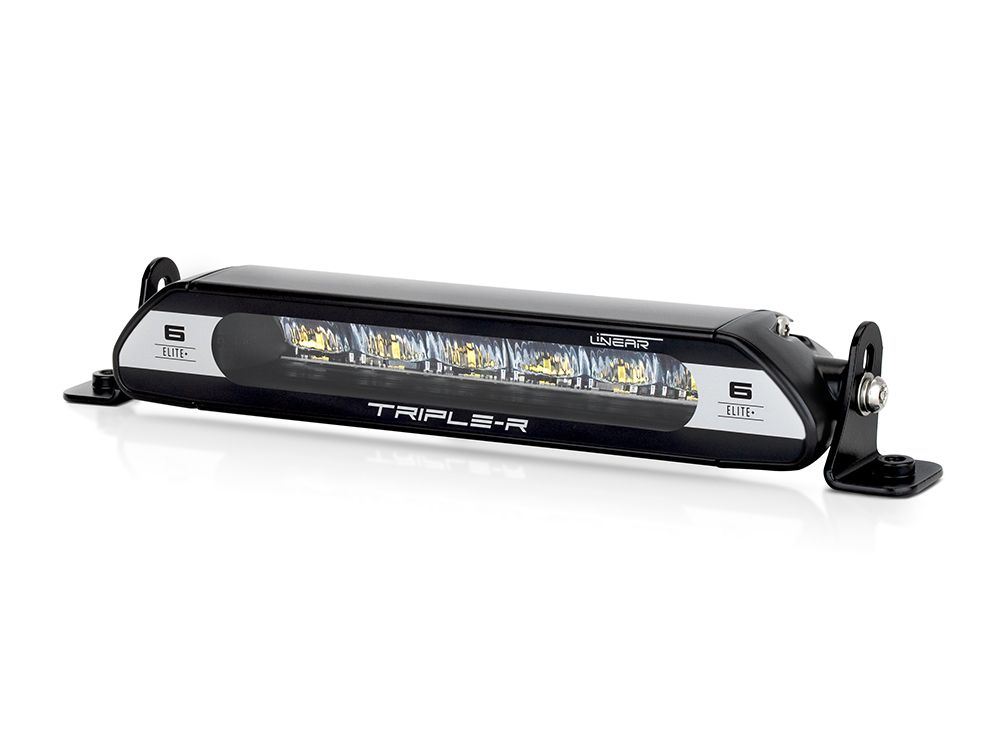

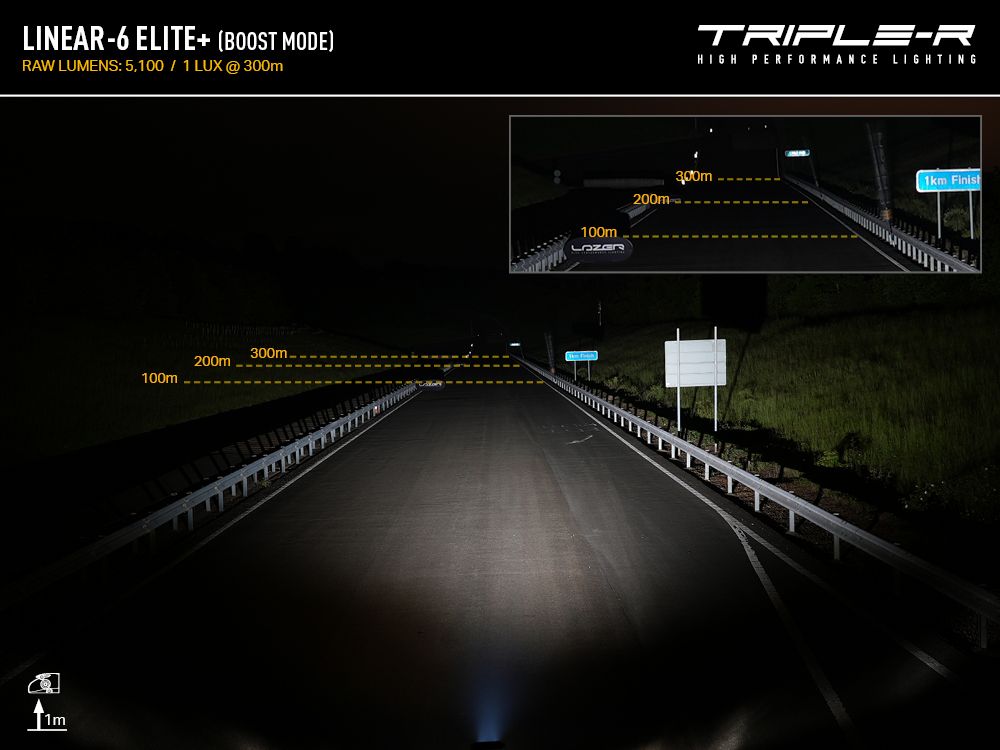

Despite the low-profile aero design of the Linear-6 Elite+, through advanced electronic design the light consists of an impressive 12 white LEDs and 6 yellow LEDs. With the light operating in Boost mode the white LEDs produce 5,100 raw lumen (25% more than the current Linear-6 Elite). Switching to ‘Combo’ mode the white and yellow LEDs combine to produce 7,100 raw lumen representing incredible lighting performance for an LED light bar of its size. All LEDs operating in combination results in 69W power consumption and 5.1Amps current draw (at 14V). Comprising three core cable from each lamp, the Linear-6 Elite+ is compatible with our one-lamp and two-lamp 3-pin superseal vehicle wiring kits.

Like all Triple-R Lights’ products, the Elite+ range has been designed, engineered, and is manufactured in-house in the UK to exacting standards, both in terms of performance, reliability, and appearance. With the light’s contemporary design, the styling and finish is impressive especially up-close, but the true wow moments comes when you turn the light on at night! Backed up by our comprehensive 5-year warranty, and Lifetime Lens Guarantee, this is a product you can have confidence will last for years in even the harshest environments.

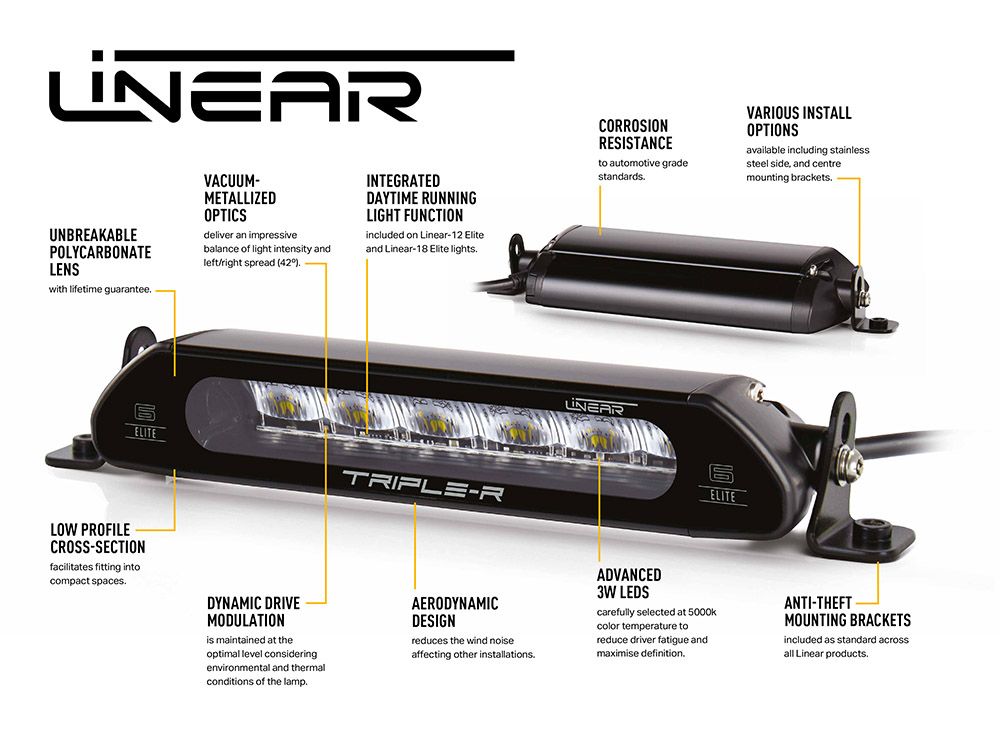

• Features:
• Combination of highly efficient white (5000k) and PC-yellow LEDs.

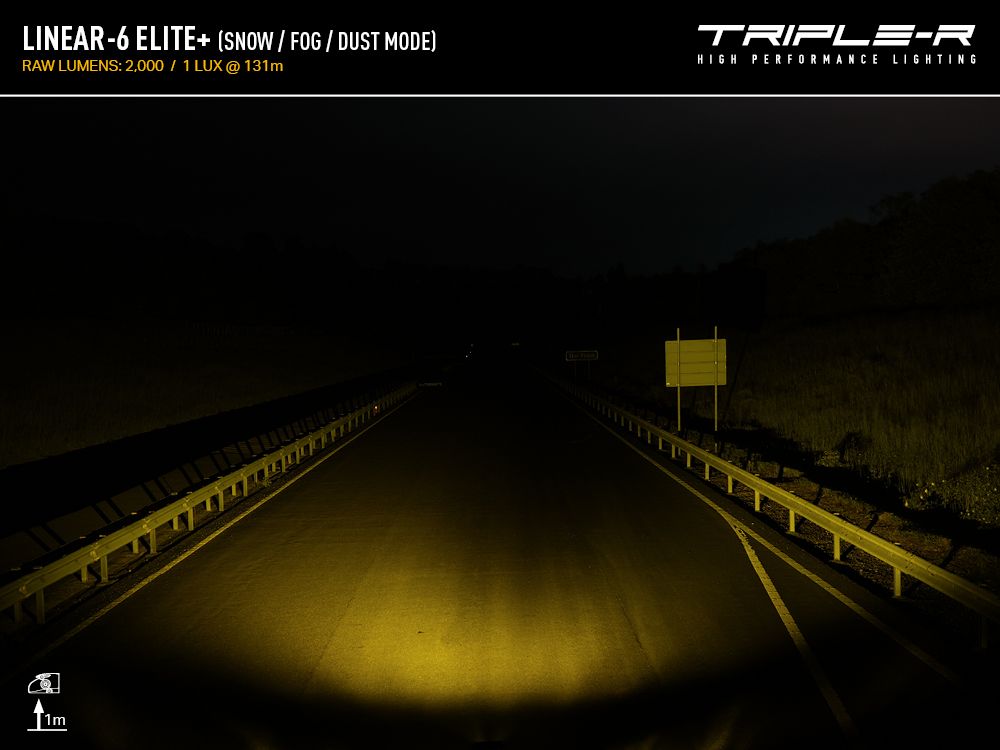

• Yellow LEDs optimised for use in snow / fog / dust conditions.

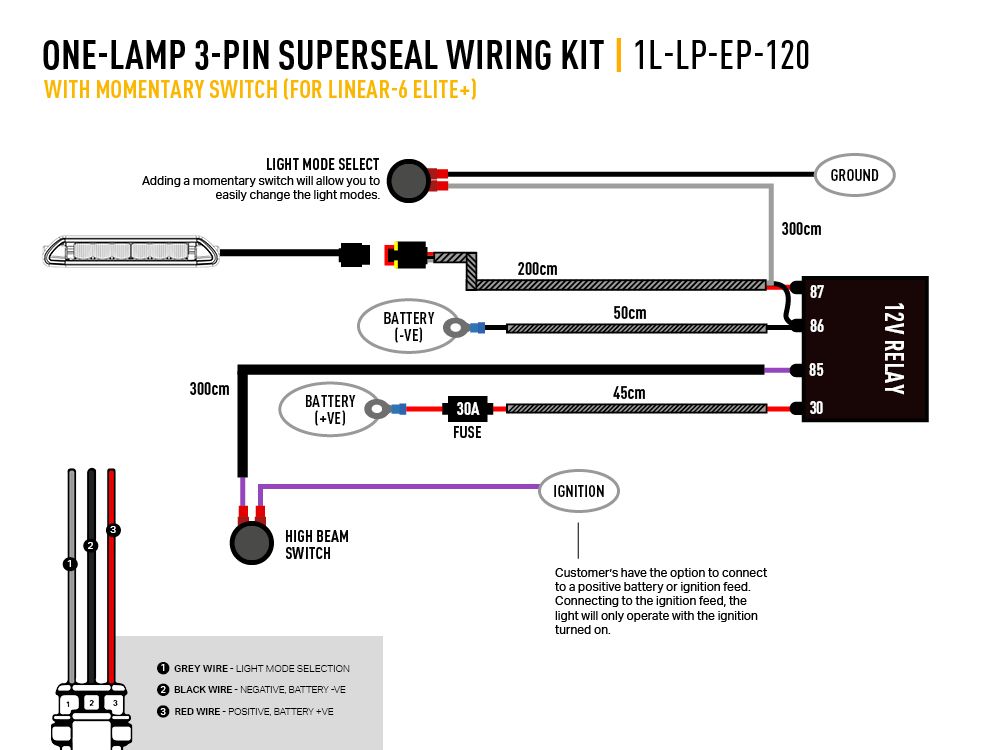

• Compatible One-Lamp / Two-Lamp Wiring Kits available.
• Momentary switch facilitates switching lighting modes.
• Memory function recalls preferred lighting mode without needing to re-select each journey.

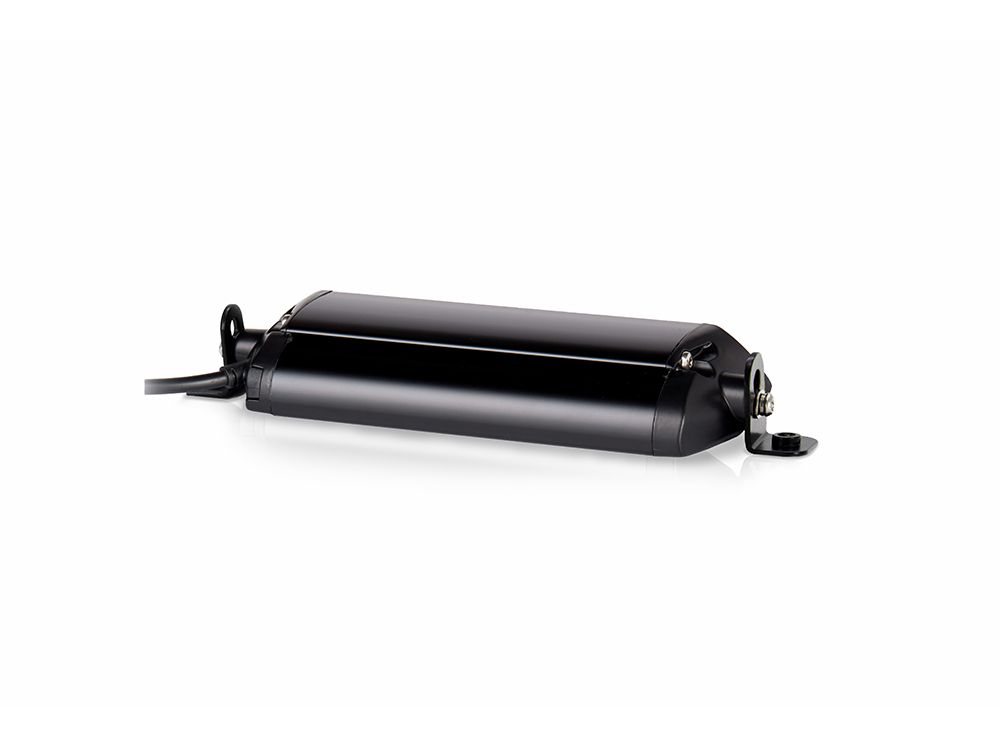

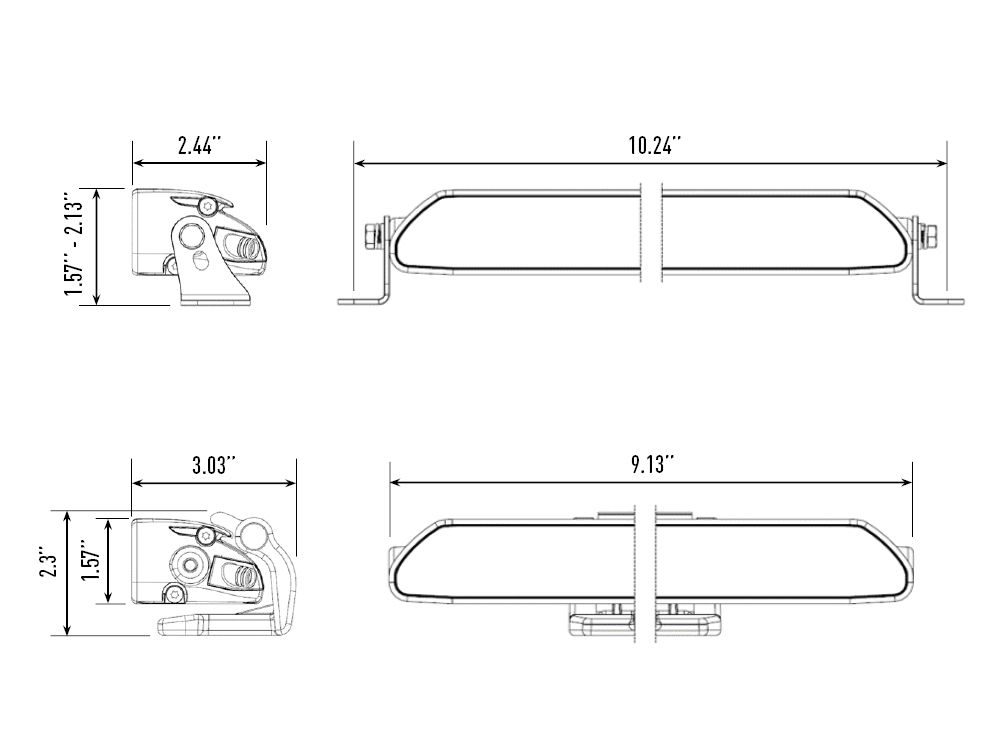

• Sleek, low profile design facilitates installation
• Flexible mounting options – anti-theft mounting brackets included
• CAE optimised heatsink offers improved thermal dynamics
• Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
• Electronic thermal management system optimises light output to preserve longevity of the LEDs .
• ‘Unbreakable’ and hardcoated polycarbonate lens
• IP68 watertight
• 5-year warranty
• Designed & manufactured in the UK

 Technical Specifications:

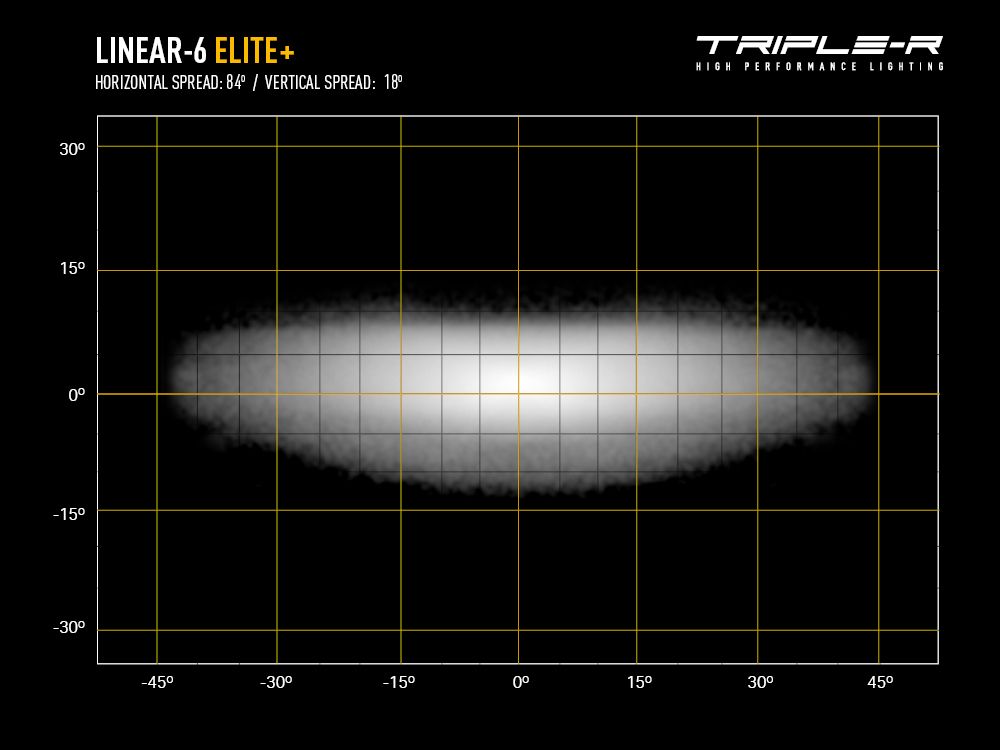

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45^o left/right, and +/- 10^o up/down. For more information – click here.

What Included:

• x1 Linear-6 Elite+ LED Lamp
• x1 Anti-Theft Side Mount (1127k)
• x1 Installation Instructions

Instructions:

• Linear-6 Elite+ - Instructions - Triple-R Lights (1.60 MB)
• Linear-6-Elite+ - Product Information Card - Triple-R Lights (1.83 MB)

Video Instructions:
