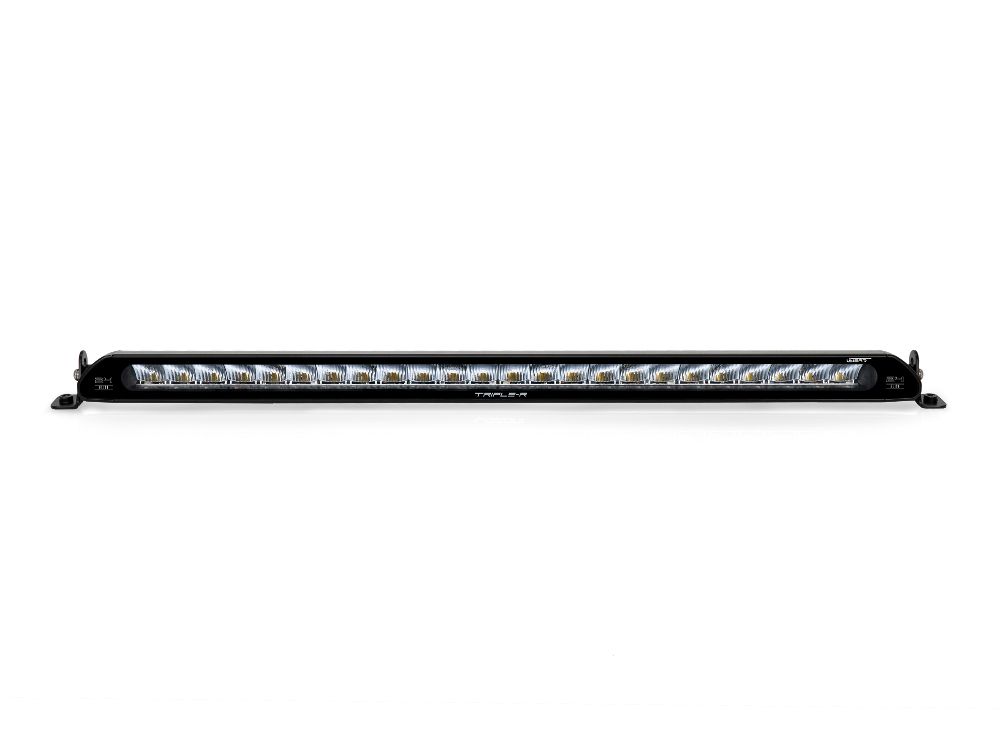

Triple R Lighting Linear-24 Elite

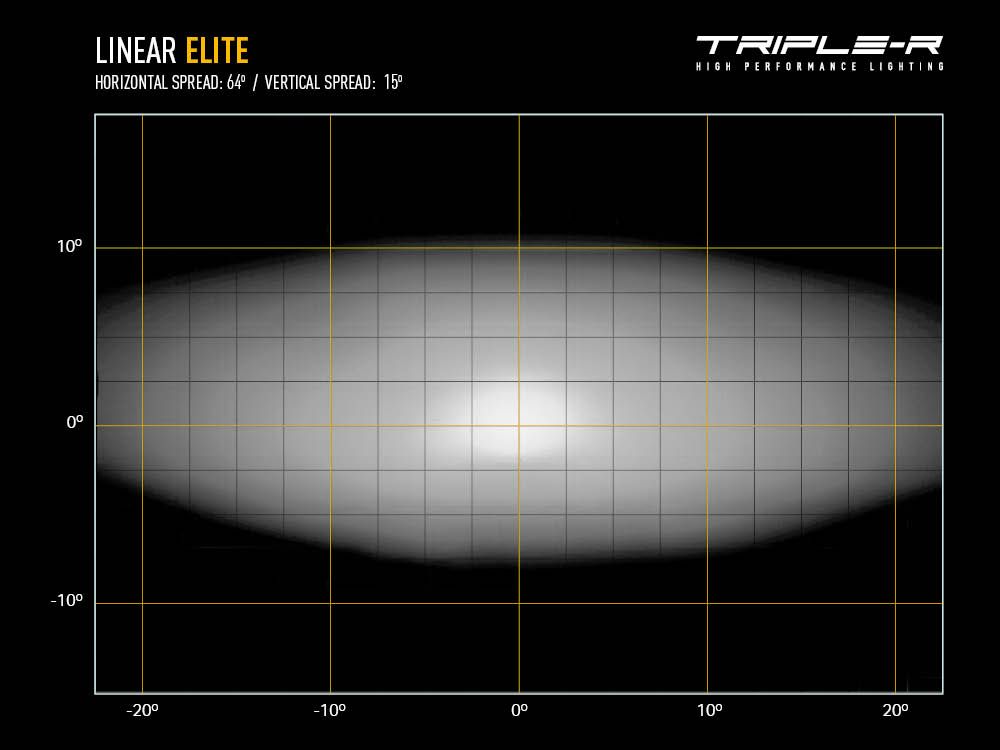

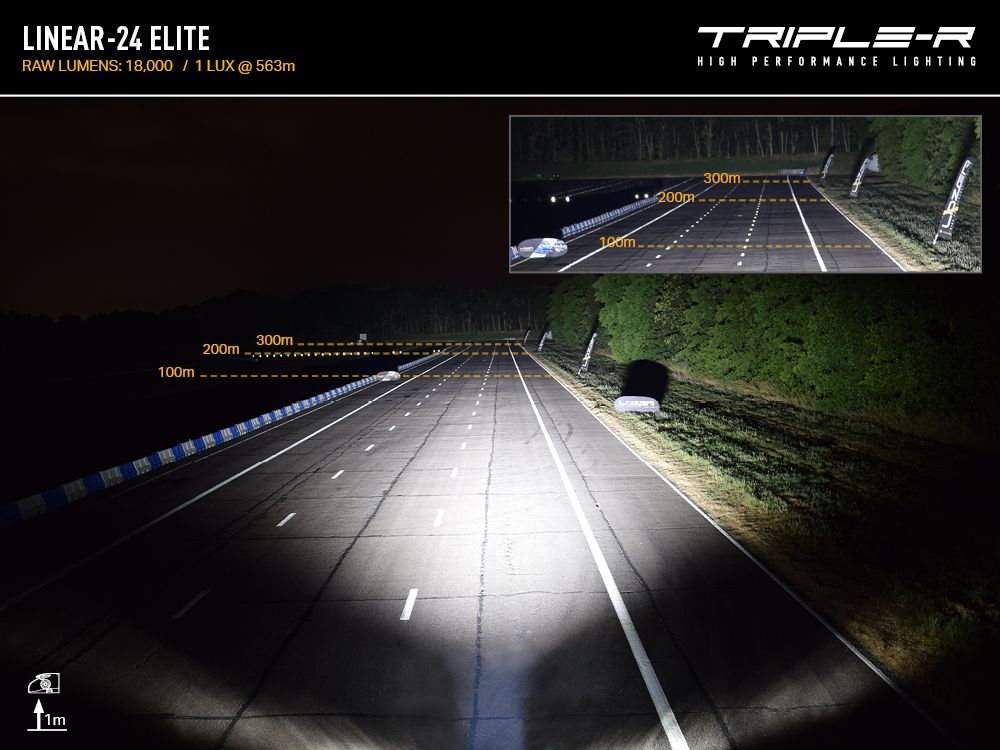

The Linear-24 Elite utilizes a combination of 48x highly efficient 3W LEDs which combine to deliver 18,000 raw lumens, and 1 lux to just under 563m. Impressive considering the lamp weighs 4.4lbs and has power consumption of 188W. Vacuum-metallized high-reflectivity optics are carefully designed and engineered in-house utilizing the latest CAD design and light simulation software, to deliver optimum light distribution in a drive beam pattern (64 degrees spread). The color temperature of the light at 5000K is carefully selected for its natural appearance proven to reduce driver fatigue.

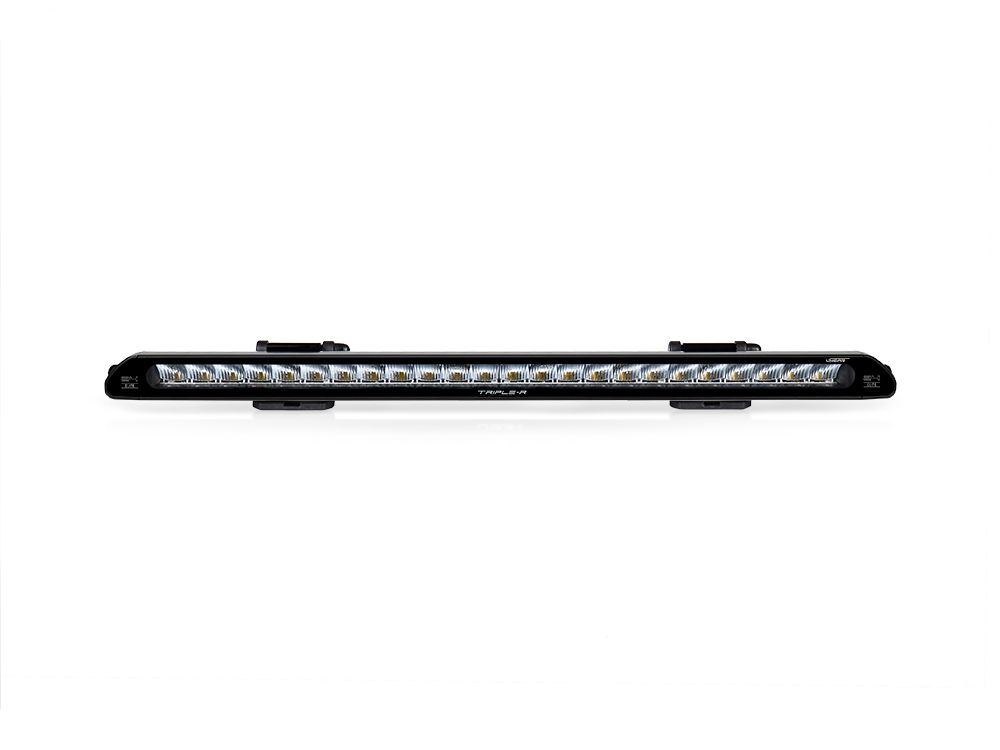

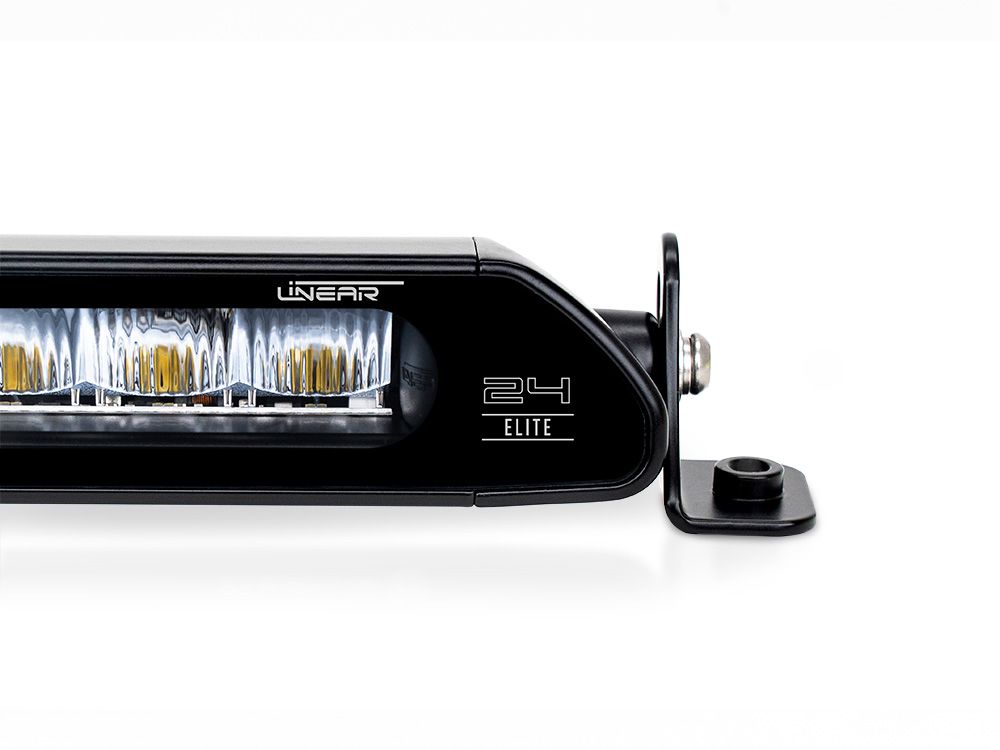

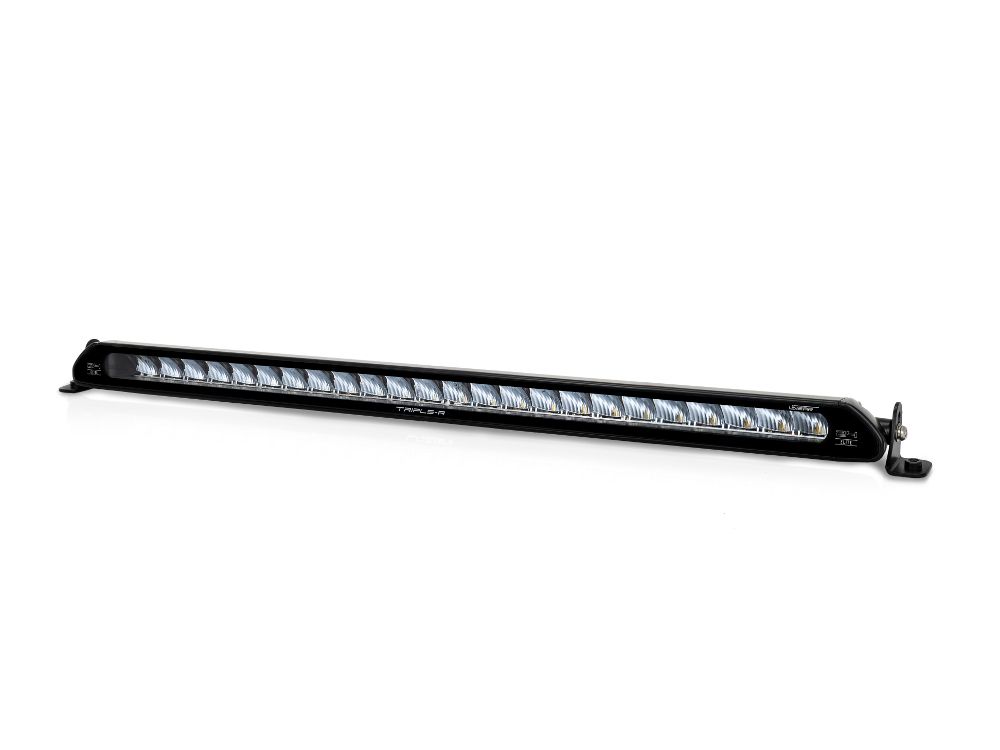

At 28” in length and under 2” in height, the Linear-24 Elite is easy to fit in tight and confined spaces, while the clean design of the Linear range provides for a premium look to impress on any vehicle. Supplied stainless steel side brackets allow flexibility in the mounting location and position, while anti-theft fasteners means the light will stay safe and secure.
Like all Triple-R light bars the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

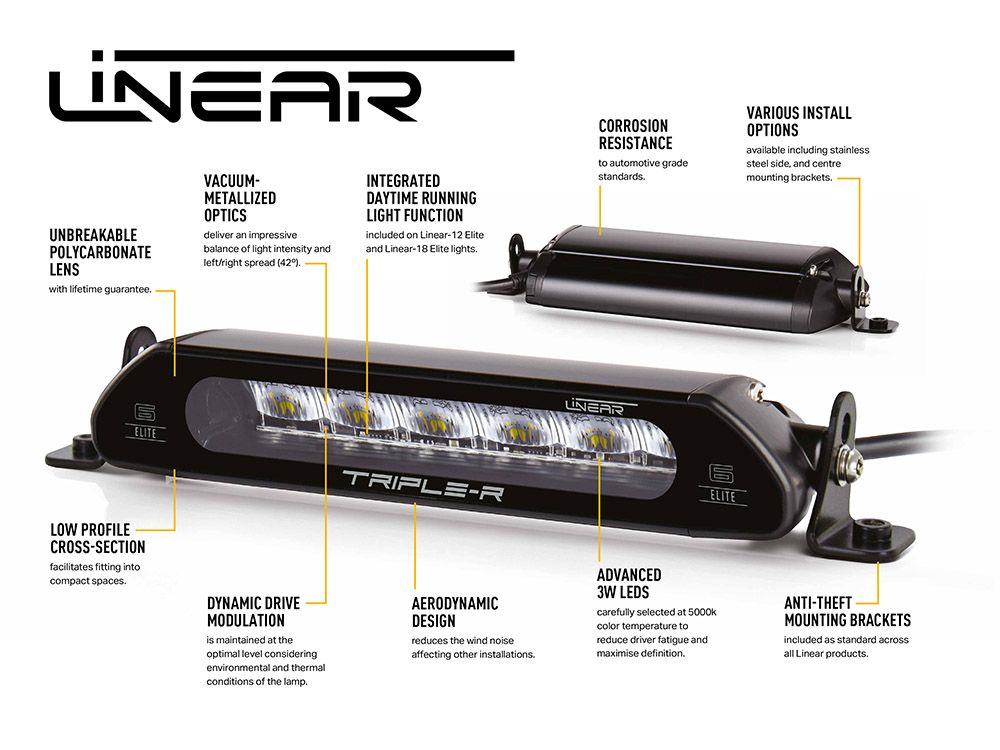

Features:
- Combination of highly efficient 3W ‘premium bin’ LEDs
- Vacuum-metallized optics deliver wide spread of light
- Flexible mounting options – anti-theft mounting brackets included
- Sleek, low profile design facilitates installation
- Electronic thermal management
- Pressure equalization through GoreTex Breather technology
- ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
- IP68 watertight
- 5 year warranty
- Supplied with male/female connectors (pre-wired)
- Designed & manufactured in UK
Technical Specifications:
Based on: 1x Linear-24 Elite LED lightbar.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
IP Rating | IP68 |
Weight | 2000 gr |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 18000 Lm |
Total Driver 'FOV' Flux † | 12815 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 48 |
Power Consumption | 188 Watts |
Current Draw (at 14.4V) | 14.4 Amps |

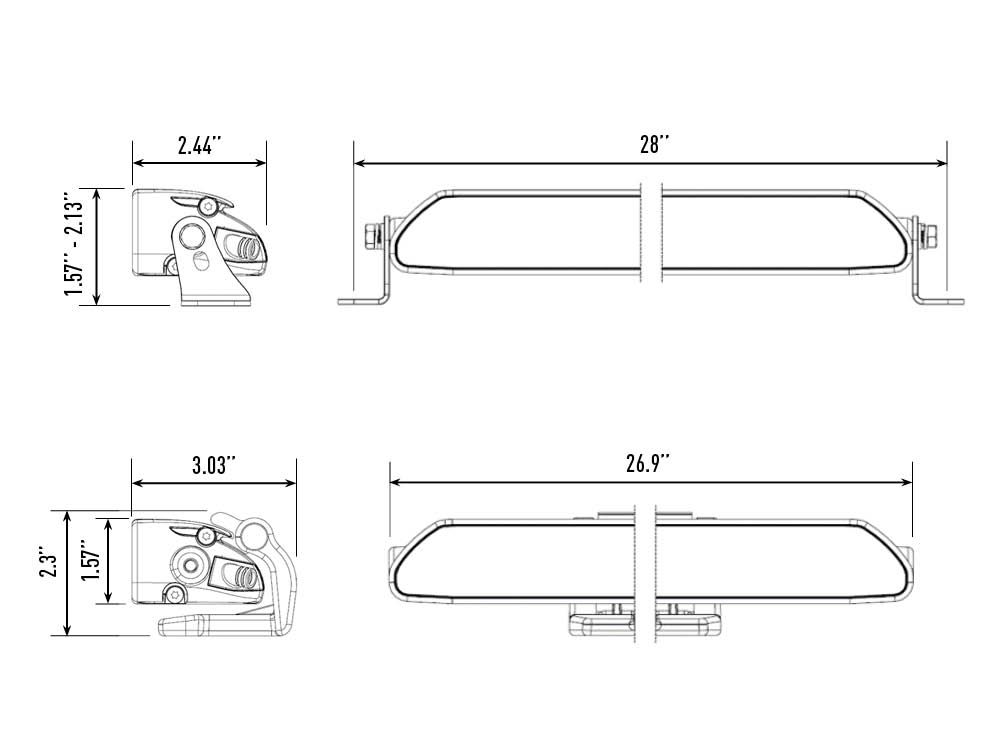

DIMENSIONS | |
Width | 682mm |
Depth | 62 mm |
Height | 40 mm |

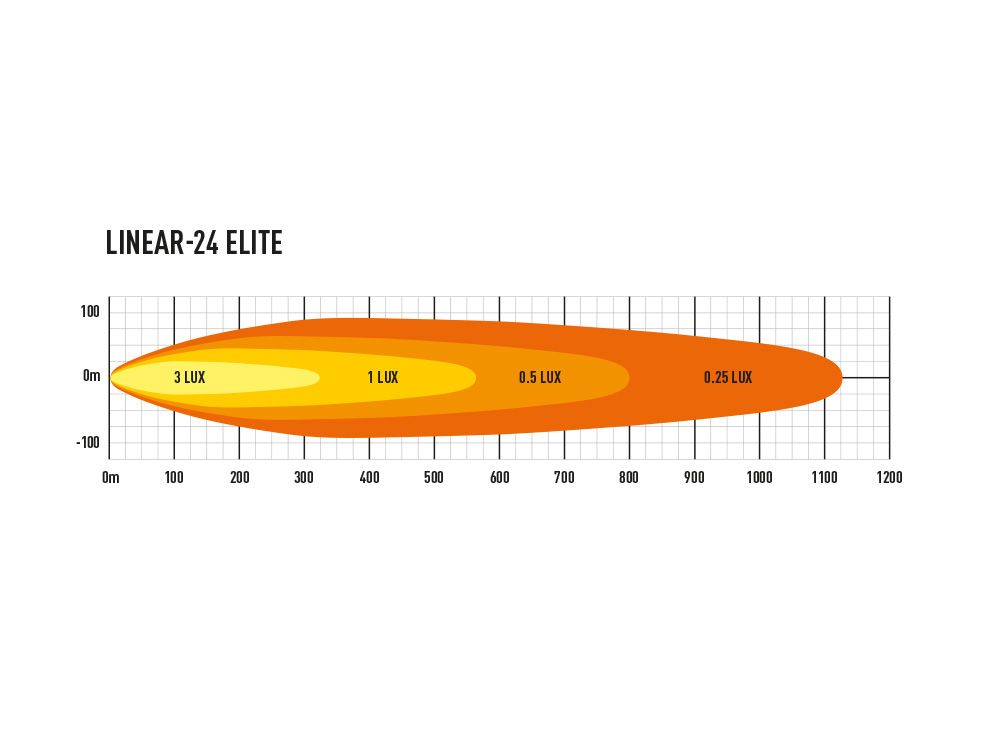

PHOTOMETRIC DATA | |
Horizontal Beam Angle | 64 degrees |
0.25 lx Line | 1126 metres |
0.5 lx Line | 796 metres |
1 lx Line | 563 metres |
3 lx Line | 325 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included:
- x1 Linear-24 Elite LED Lamp
- x1 Anti-Theft Side Mount (1127k)
- x1 Installation Instructions
Instructions:
Video Instructions:
