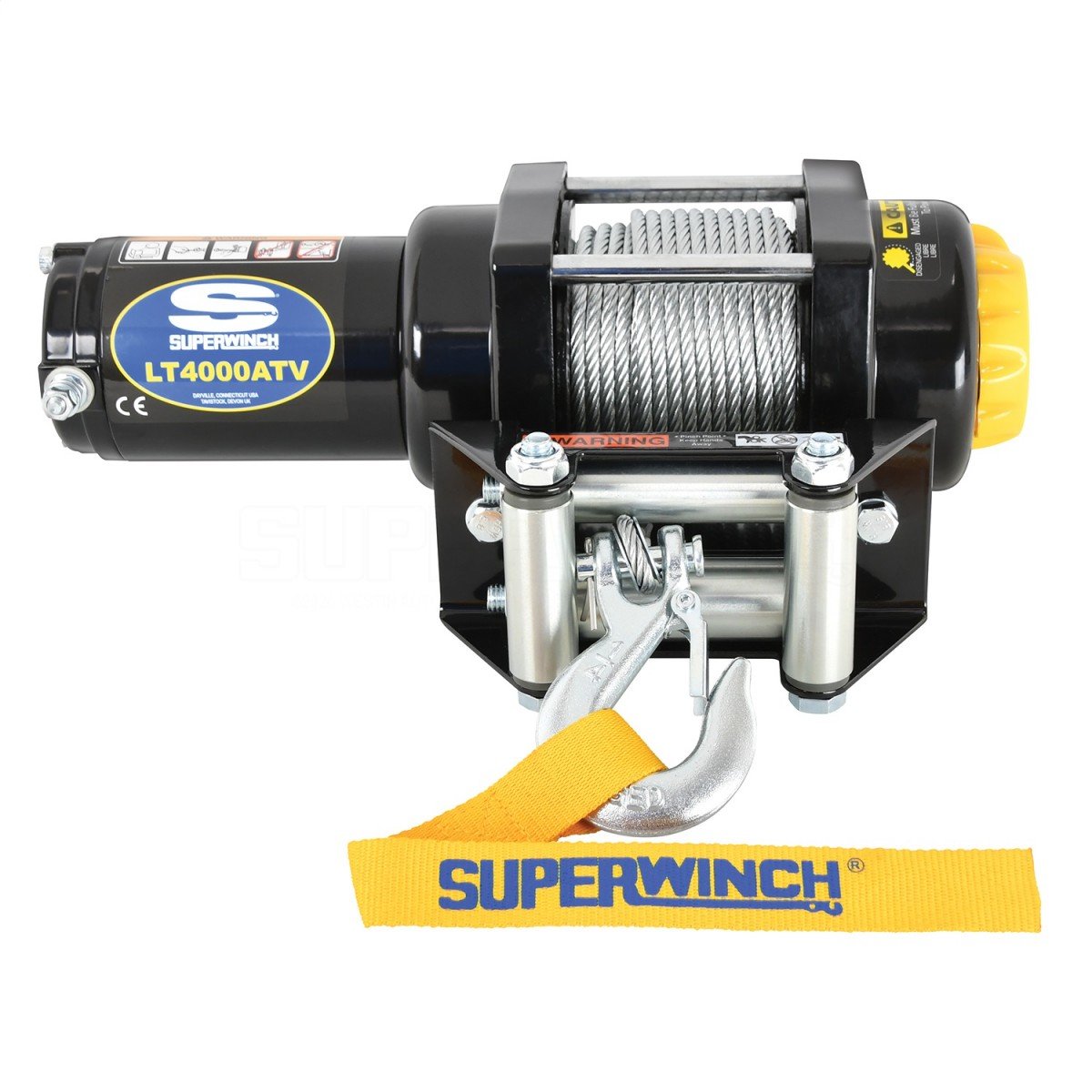

Superwinch 4000 LBS 12V DC 3/16in x 50ft Steel Rope LT4000 Winch
Built for action, the Superwinch LT4000 winch provides up to 4,000 lbs of reliable pulling power. This utility/multi purpose winch features a free-spooling pull-and-turn clutch and a handheld wired remote control, perfect for a variety of users. Perfected over the years, the LT Series offer unmatched durability and performance.
Features:
- 12V DC 4,000 lbs rated line pull

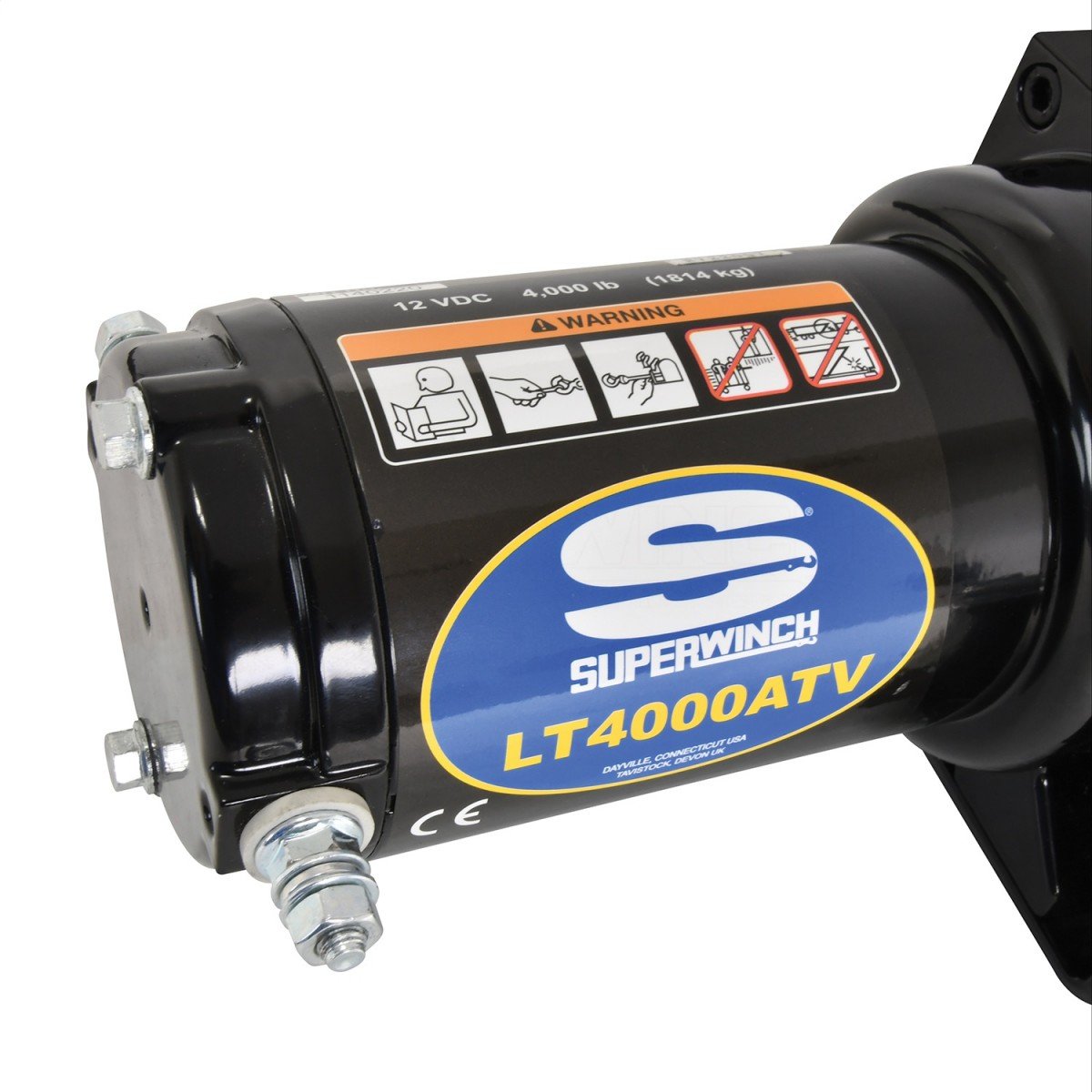

- Sealed 1.4 HP permanent magnet motor
- 3-Stage planetary gearing with 166:1 ratio
- Sealed solenoid, circuit breaker protected

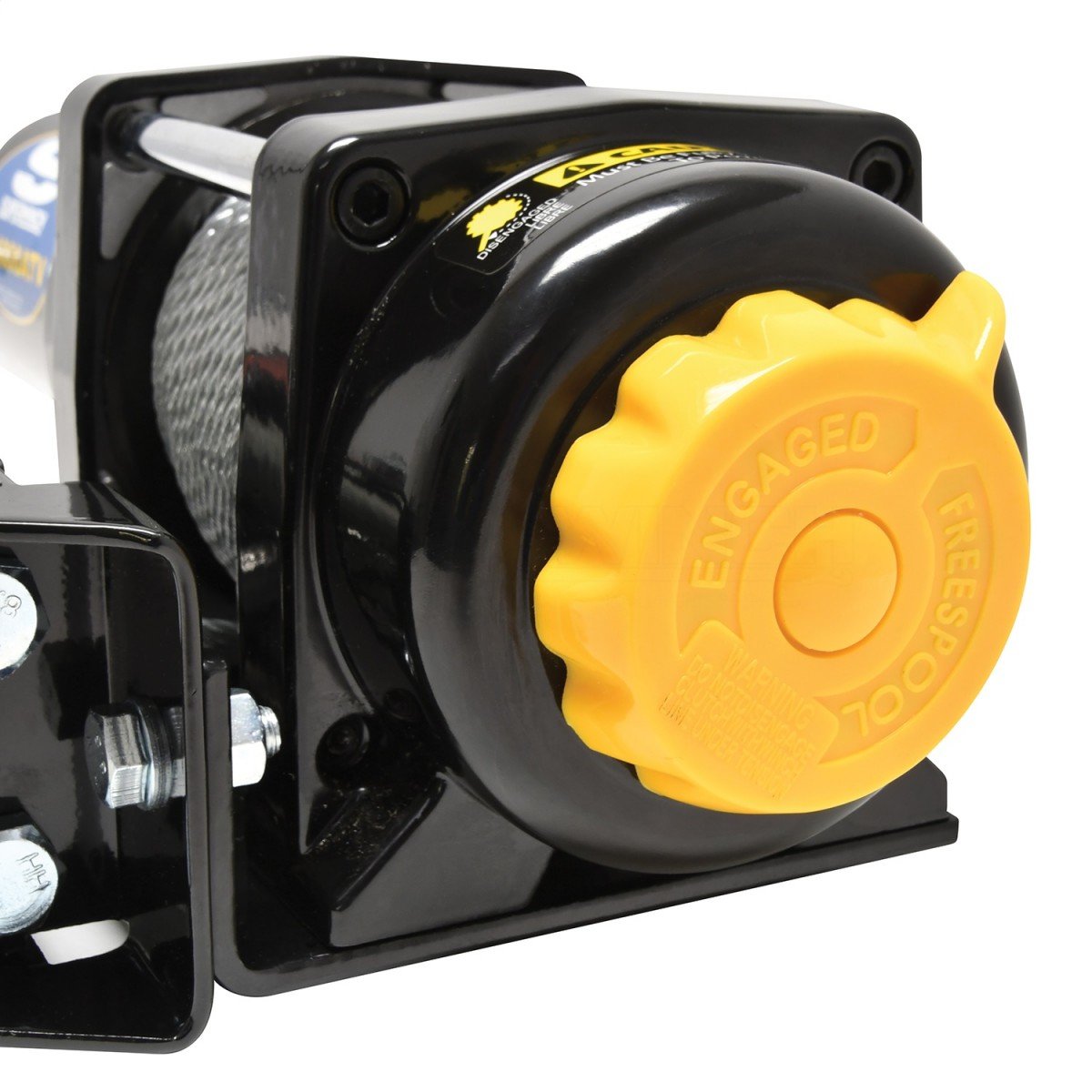

- Free-spooling, ergonomic control clutch

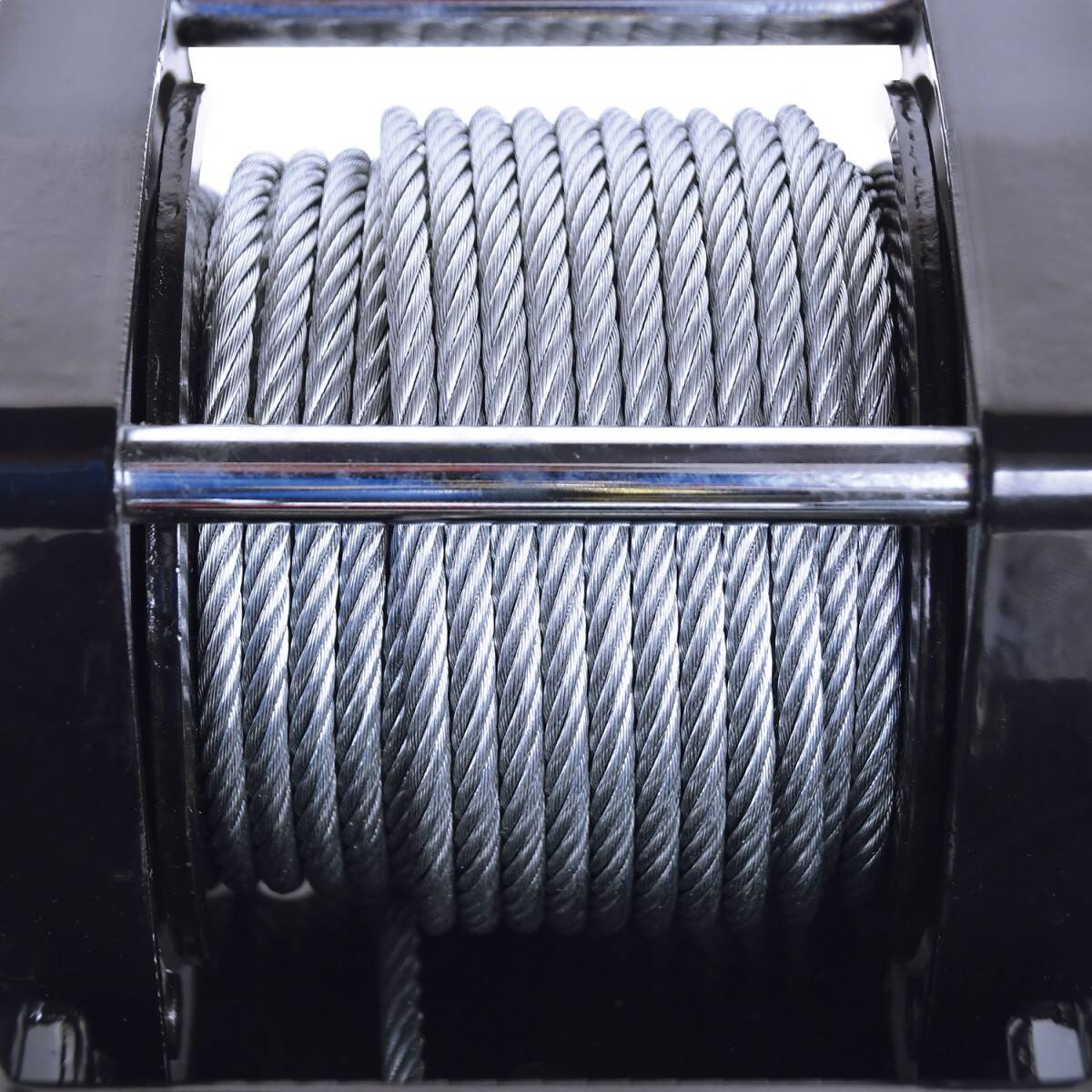

- 3/16 in x 50 ft steel wire rope

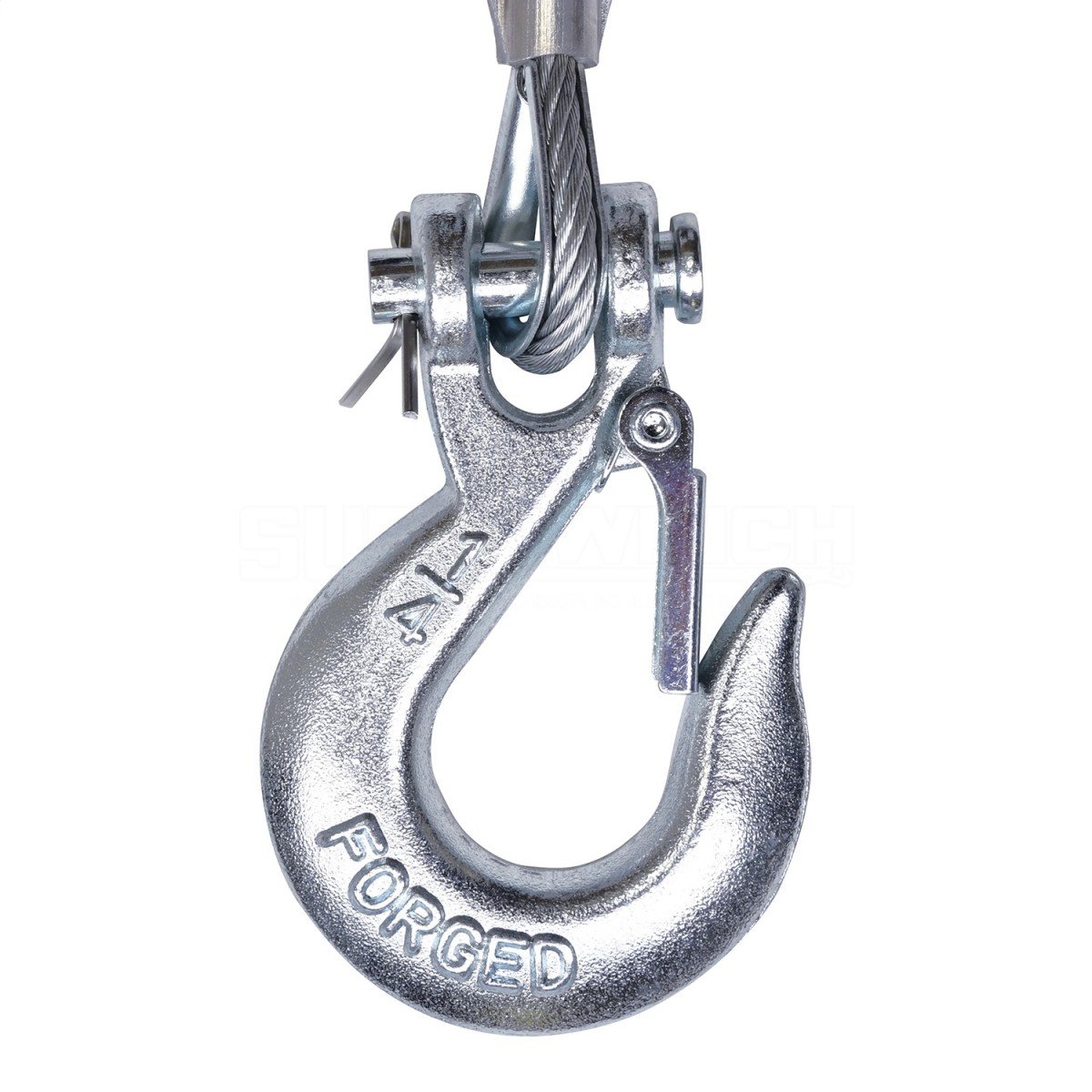

- Heavy-duty, clevis pinned, latched hook
- Zinc plated 4-way roller fairlead

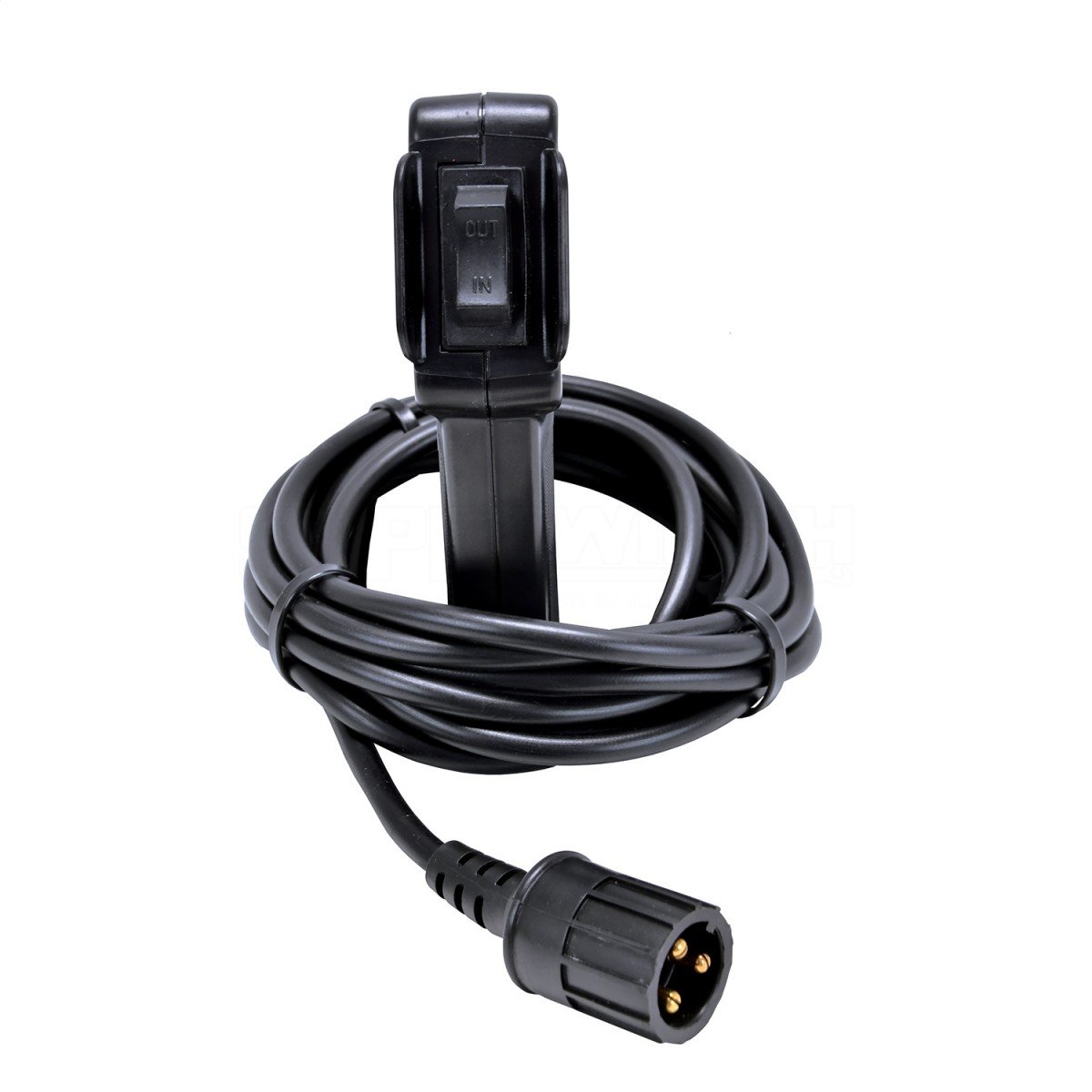

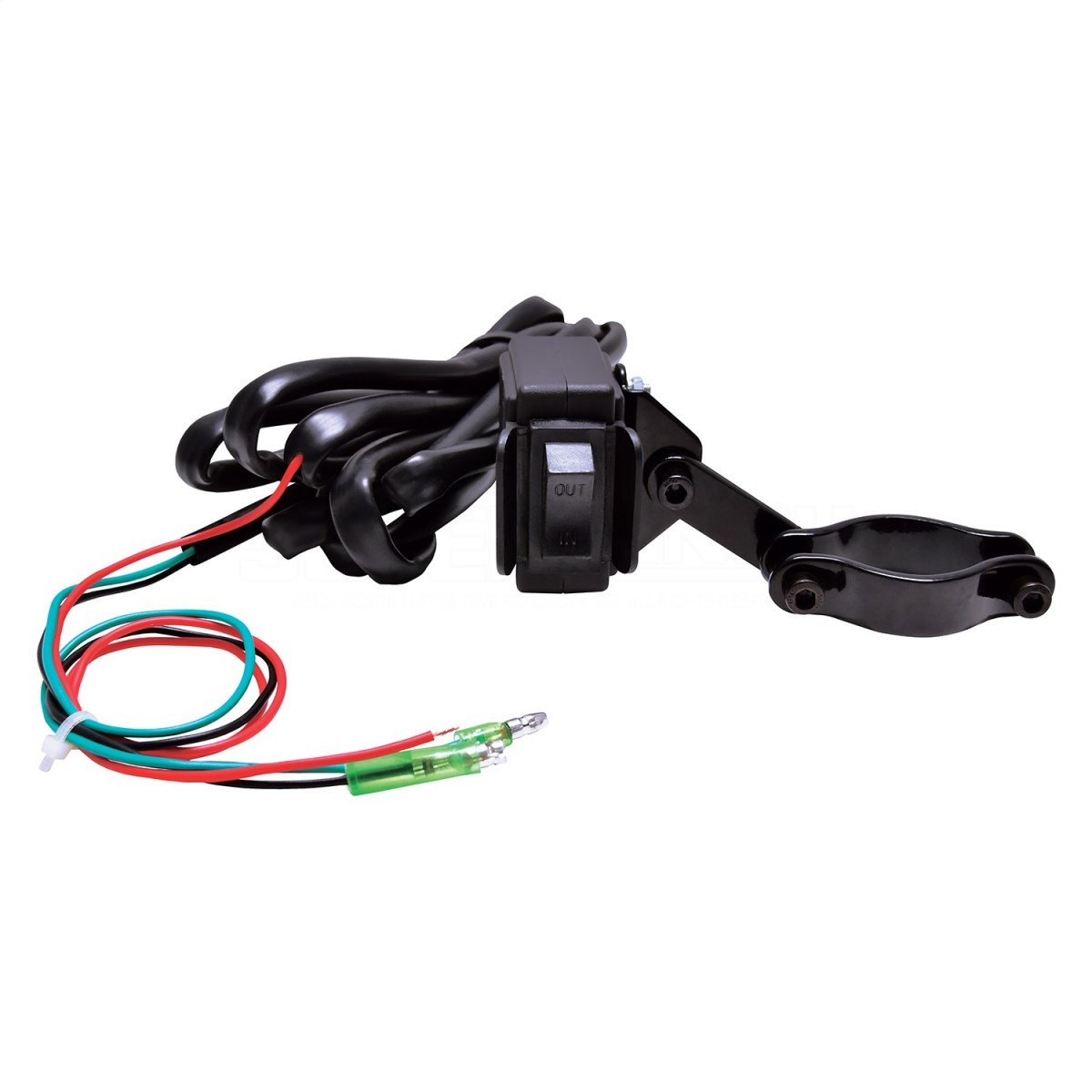

- 12 ft hand-held remote with handlebar mounted rocker switch
Instructions:
Specifications:
Brake |
Automatic, 100% Load Holding
|
Clutch |
Free-Spooling, Ergonomic Control
|
Dimensions | N/A |
Drum Diameter | 2.0in (50.2mm) |
Drum Length | 2.9in (74mm) |
Fairlead | Heavy-Duty 4-Way Roller |
Gear Ratio | 166:1 |
Gearing | 3-Stage Planetary |
Height | 0 |
Hook |
Heavy-Duty, Clevis Pinned Latched
|
Installed Weight | 25 lbs (11.34 kg) |
Length | 0 |
Line Pull, 0 lbs | 20 Amps Motor Draw/18 FPM (5.4 MPM) Line Speed |
Line Pull, 4,000 lbs | 210 Amps Motor Draw/4.5 FPM (1.3MPM) Line Speed |
Motor | Sealed 1.4 HP |
Mounting Bolt Pattern | 3.0in x 4.87in (76mm x 124mm) |
Rated Line Pull | 4,000 lbs (1814.3 kg) |
Remote | Handheld with 12ft cord plus Handle Bar Rocker Switch |
Rope | Steel Wire 3/16in x 50ft (4.8mm x 15.0m) |
Solenoid | Sealed Solenoid, Circuit Breaker Protected |
Warranty | 1 Year Limited |
Weight | 0 |
Width | 0 |
