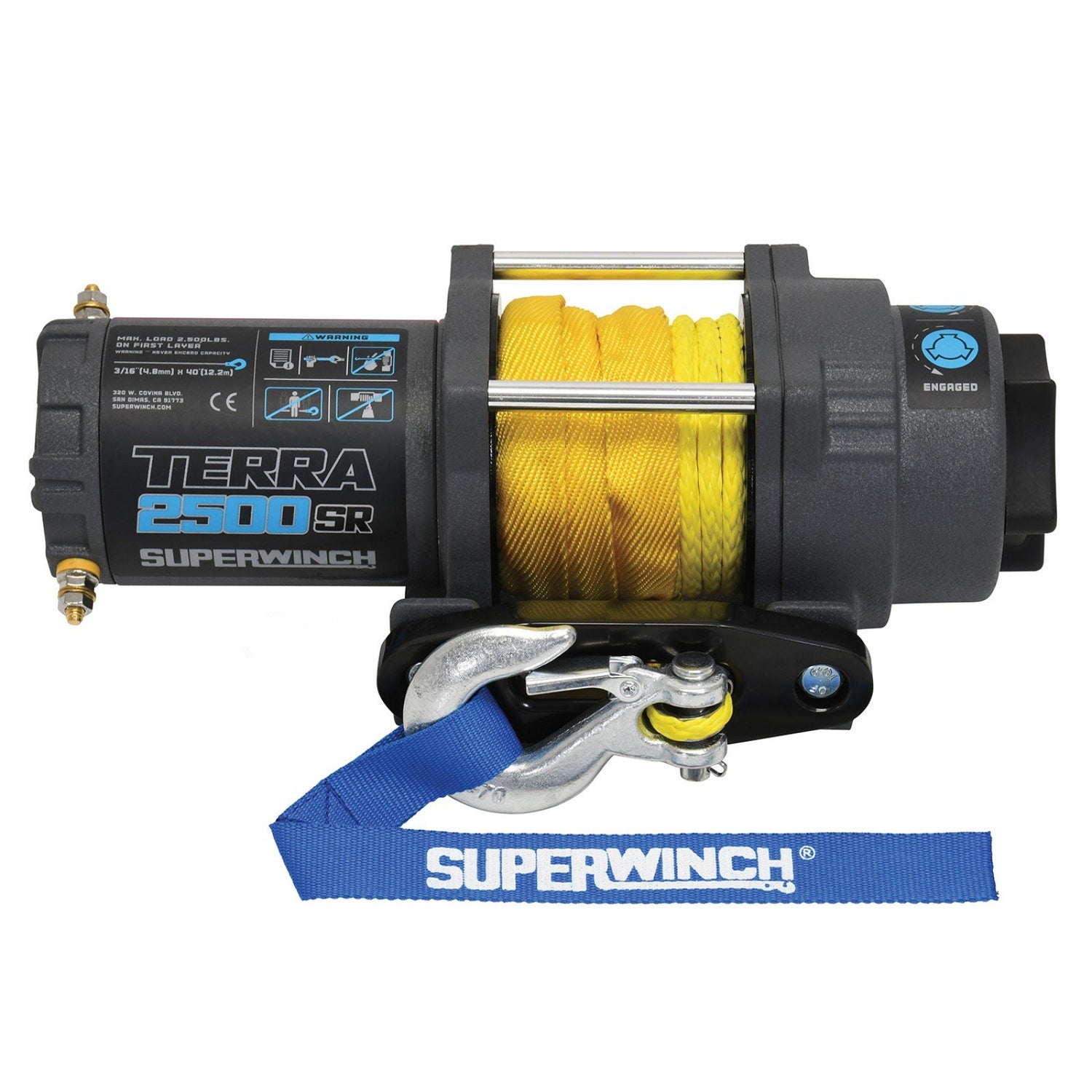

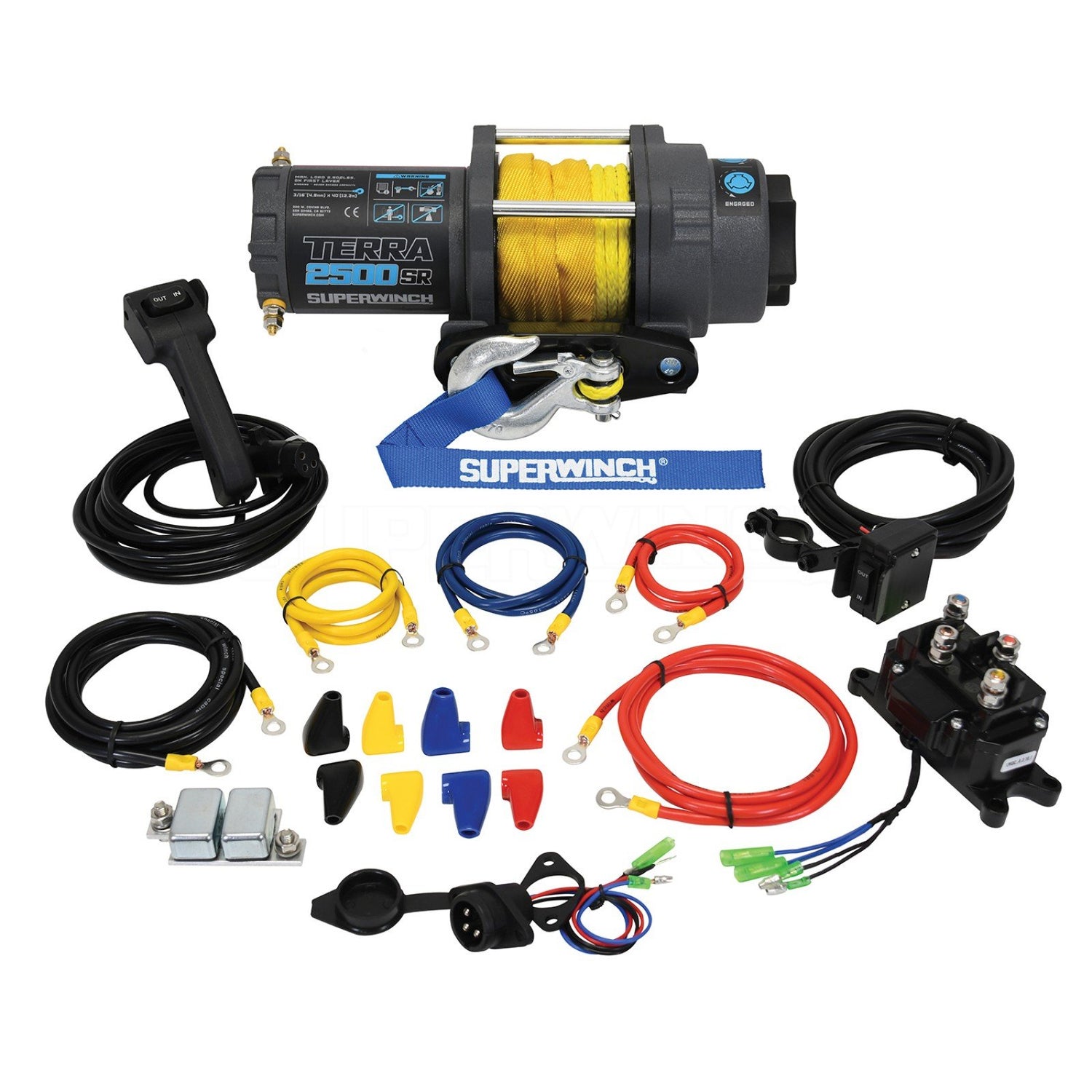

Superwinch 2500 LBS 12V DC 3/16in x 40ft Synthetic Rope Terra 2500SR Winch - Gray Wrinkle
The Superwinch Terra 2500SR is the standout performer in powersports ATV/UTV winching. It’s not a claim we make lightly and we back it up with stronger motors, wider gears, beefed up drums and durable synthetic rope. Designed with the toughest terrains in mind, this series of ATV and side by side winches, delivers a pull rating of 2,500 lbs. Features rugged all metal 3-stage planetary gear train construction.
Features:
- Rated line pull of 2,500 lbs

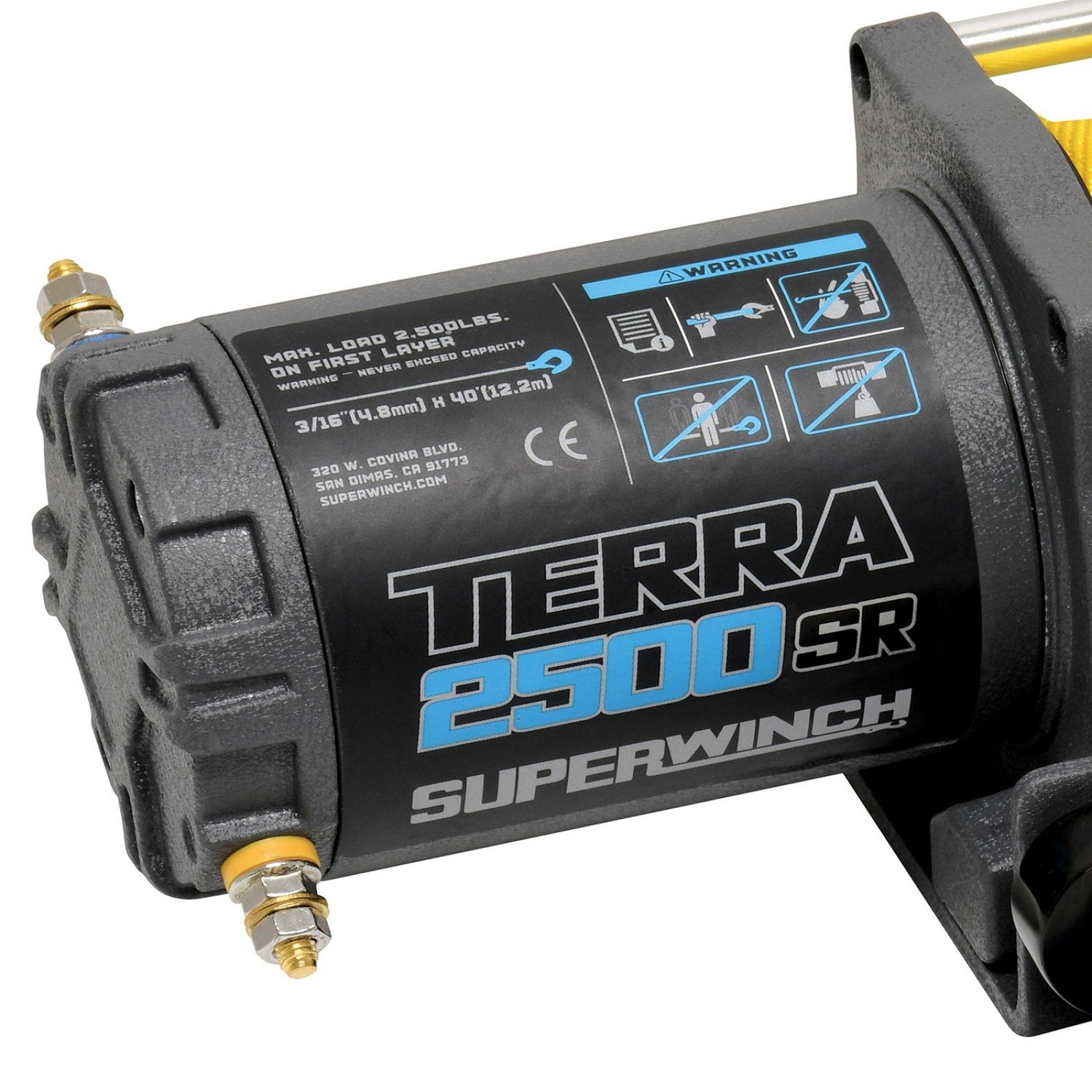

- 1.5 HP permanent magnetic motor
- 3-Stage planetary gearing with 138:1 ratio
- Sealed solenoid with circuit breaker

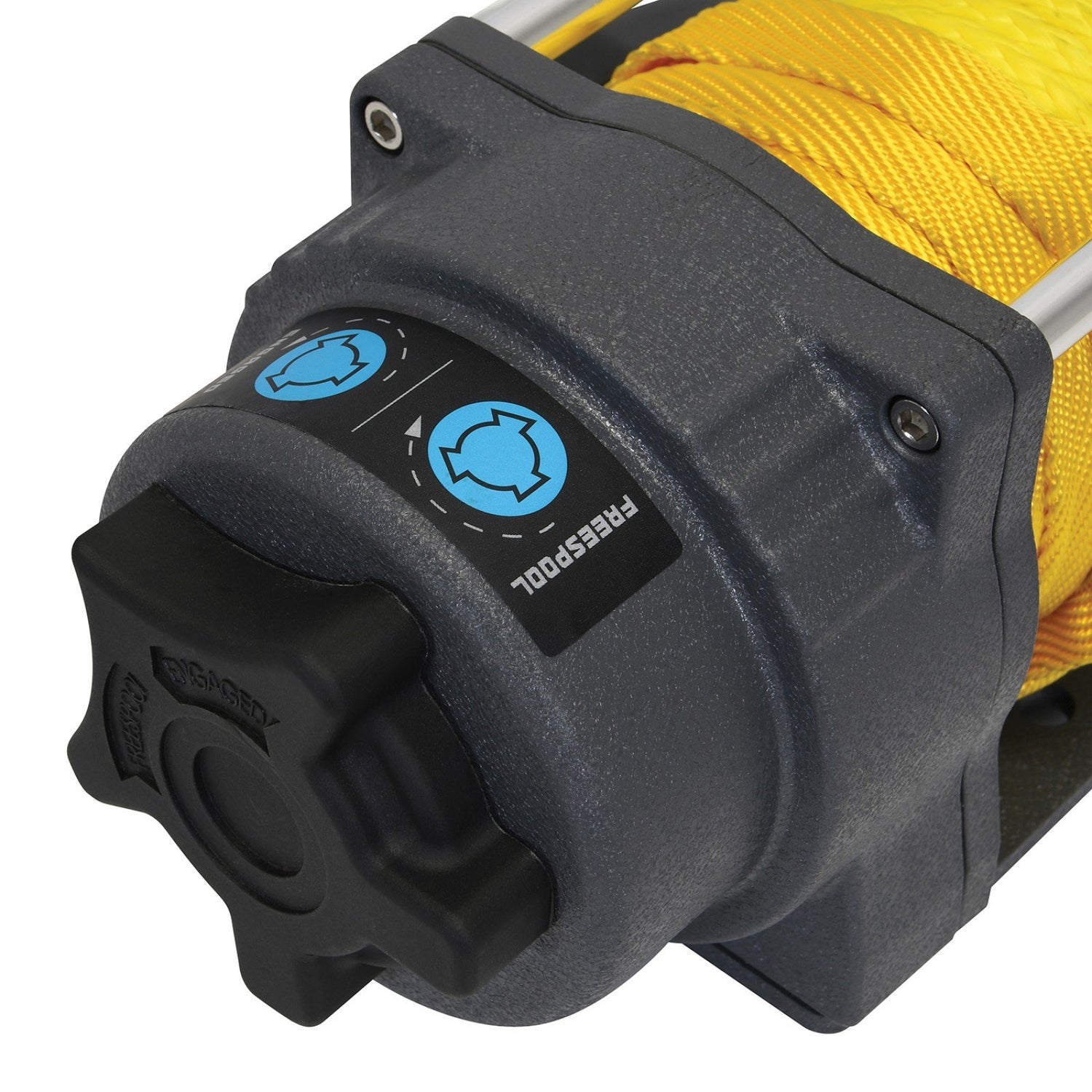

- Cam-style clutch control knob

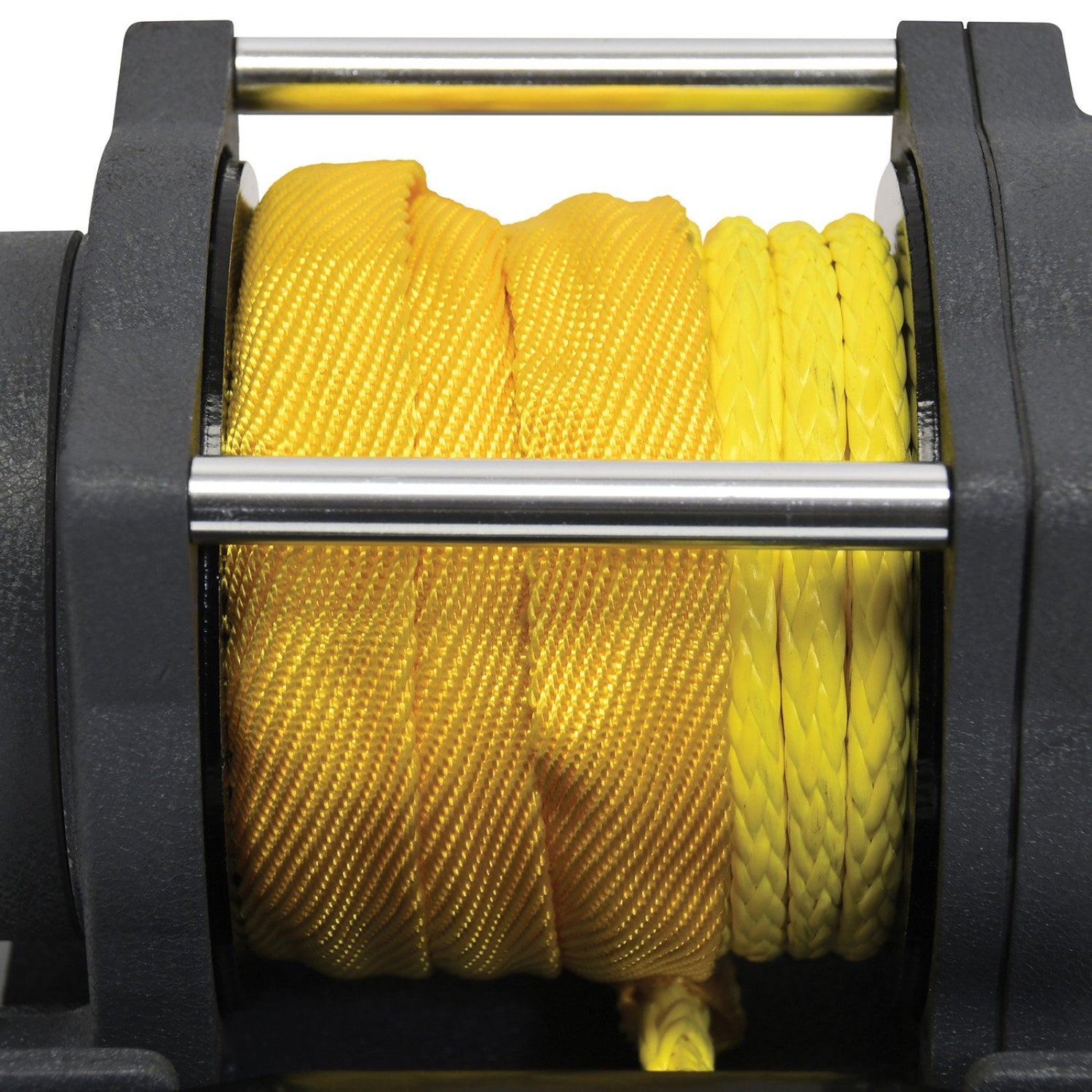

- Synthetic rope measures 3/16in. x 40ft.
- Heavy-duty clevis hook
- Black aluminum hawse fairlead
- 10ft. rugged handheld remote control with handlebar mounted rocker switch
- Narrow drum allows easier mounting in tight spaces
Specifications:
Brake | Automatic, 100% Load Holding |
Clutch |
Free-Spooling, Ergonomic Control
|
Fairlead | Black Powdercoated Aluminum Hawse |
Gear Ratio | 138:1 |
Gearing | 3-Stage Planetary |
Height | 0 |
Hook |
Heavy-Duty, Clevis Pinned Latched
|
Length | 0 |
Motor | Sealed 1.5 HP Permanent Magnet |
Mounting Bolt Pattern | 3.0in x 4.87in (76mm x 124mm) |
Rated Line Pull | 2,500 lbs (1134.0 kg) |
Remote | Sealed Hand-Held with 10ft cord |
Rope | Synthetic 3/16in x 40ft |
Solenoid | Sealed Solenoid, Circuit Breaker Protected |
Warranty | Limited Lifetime Mechanical, 3 Year Limited Electrical |
Weight | 0 |
Width | 0 |
