SuperATV Polaris RZR XP 1000 Radius Arms Rebuild Kit

SuperATV Polaris RZR XP 1000 Radius Arms Rebuild Kit

You’ve never gone easy on your rides, and after thousands of miles of hard wheeling, your Polaris RZR XP 1000’s Radius Arms can start acting a little funny. If you’ve got a rattle or a wobbly pivot, it might be time to tune them up. Get SuperATV’s Radius Arm Rebuild kit complete with bushings, hardware, and a brace place, to make sure your radius rods are as smooth as when you installed them.

Features:

• 3/16” thick steel brace plate
• Zinc-plated chromoly steel bushings

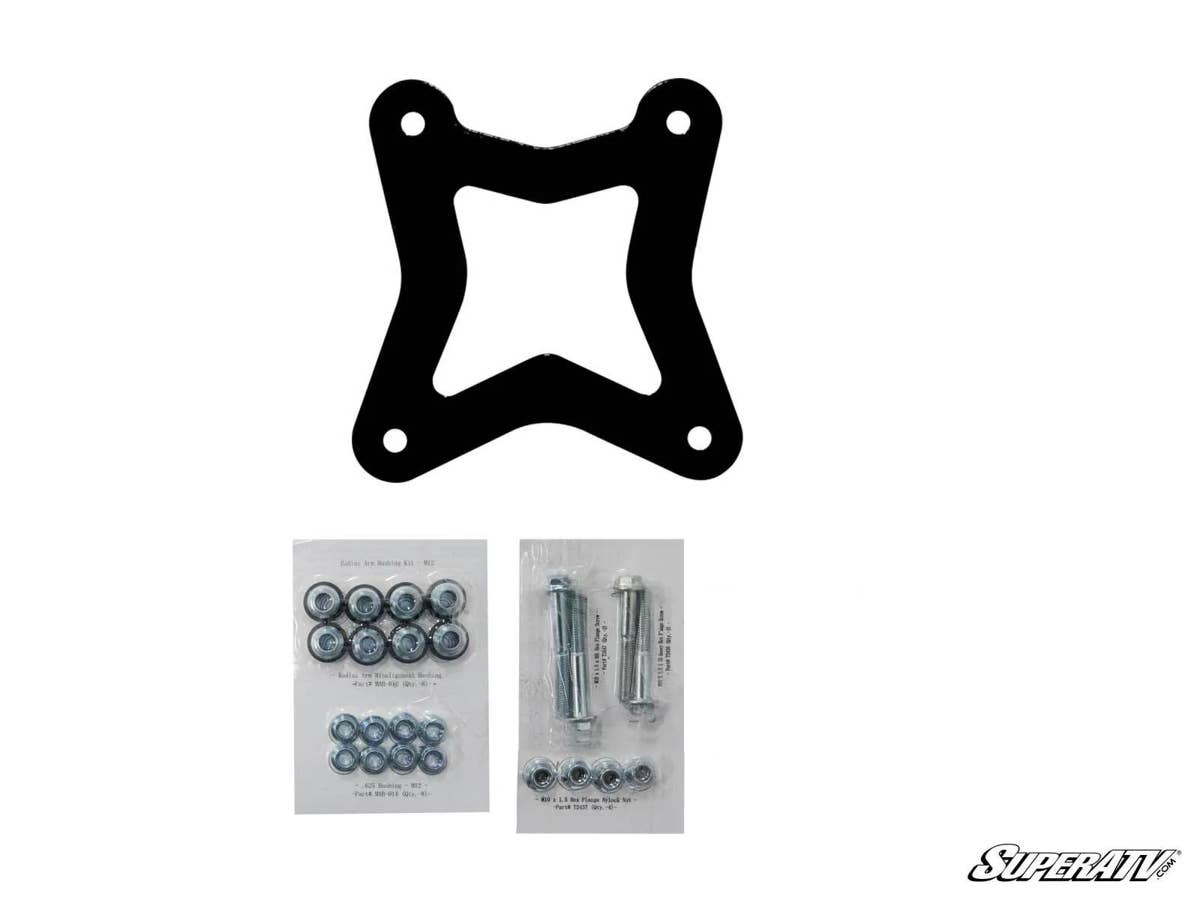

Kit Includes:

• Brace Plate
• 8 Inner Bushings
• 8 Outer Bushings
• All Hardware

Fitment:

• Polaris RZR XP 1000 : 2014-2023
• Polaris RZR XP 4 1000 : 2014-2023

Notes:

• Will not fit with Polaris one piece extreme bumper.
• Please check the bolt size of the hardware that fastens the RSL to the brace plate (the image below. Select the socket size that corresponds to your OEM size. Polaris made a change in the mid-year in 2016 that has caused some confusion with fitment.

RZR Model	Socket Size
RZR XP 1000 (Standard) : 2014-2016	16mm
RZR XP 4 1000 (Standard) : 2014-2016	16mm
RZR 1000 (Standard) : 2017	16 or 18mm
RZR 1000 (Standard) : 2018-2023	18mm
RZR 4 1000 (Standard) : 2017	16 or 18mm
RZR 4 1000 (Standard) : 2018-2023	18mm
RZR 1000 High Lifter Edition : 2016	16mm
RZR 1000 High Lifter Edition : 2017-2023	18mm
RZR 1000 Gold Metallic Edition : 2017-2023	18mm

Installation Instructions:
