SuperATV Honda Pioneer 700 4” Portal Gear Lift
SKU: dpo
1 8

SuperATV Honda Pioneer 700 4” Portal Gear Lift

SKU: dpo
$0.00

SuperATV Honda Pioneer 700 4” Portal Gear Lift

Get the power and performance you crave with SuperATV’s GDP 4” Portal Gear Lift for the Honda Pioneer 700. These portals are available with 15% or 30% gear reductions. That means you get exactly what you need to make work easier and weekends more fun. Plus, you can upgrade to billet aluminum housings and dual-idler gears for ultimate reliability and strength.

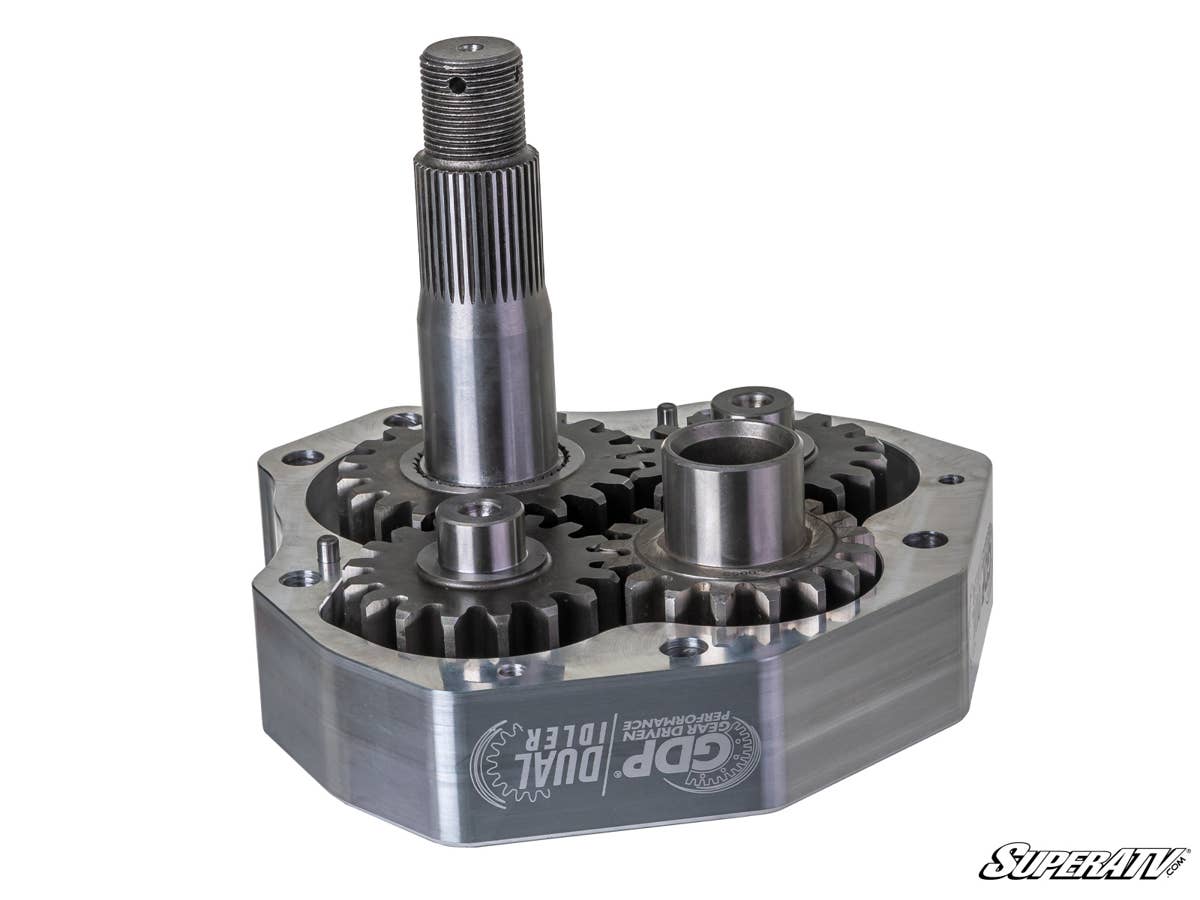

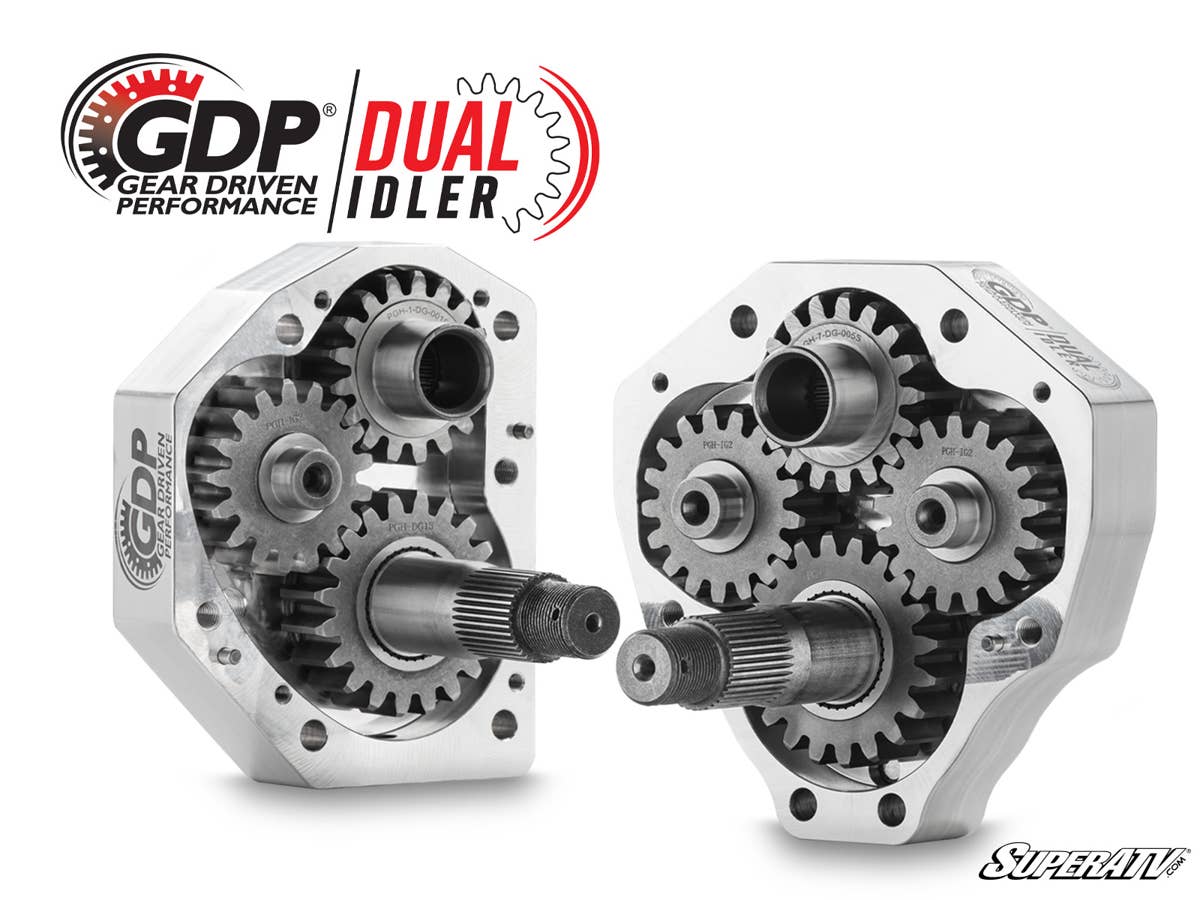

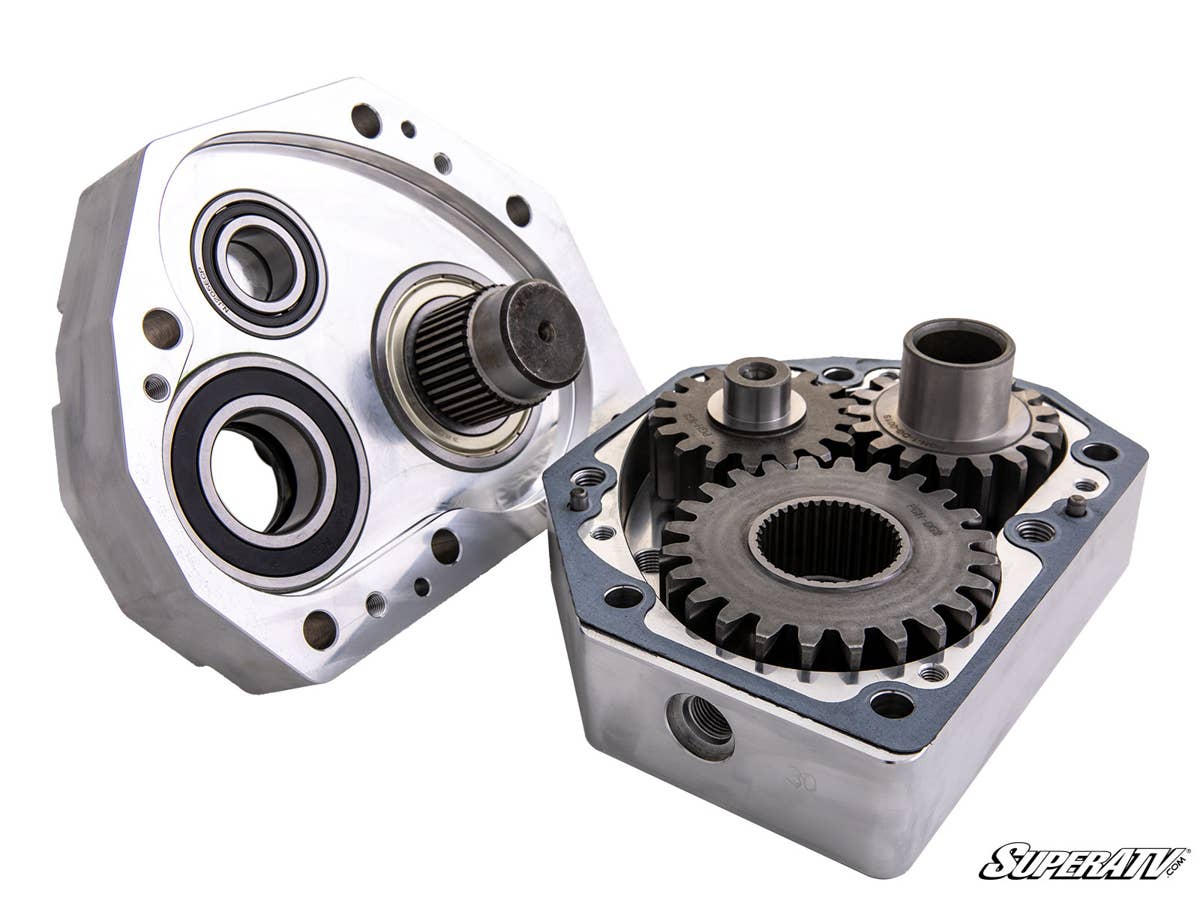

What Is a Dual Idler®?: Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.

Great for Any Use: Any Pioneer 700 rider can benefit from GDP Portals with your choice of gear reduction. Get a 30% to run on wilder terrain like mud or rocks. Stick with 15% to improve your trail riding and hauling capabilities. Either way, you’ll have plenty of punchy torque that will put a grin on your face.

A Gear Reduction That Protects Your Drivetrain: With portal lifts, the gear reduction is placed in the hub instead of in the transmission. This means your drivetrain doesn’t have to work as hard, so those important components will last longer. Of all the benefits of a portal gear lift, reduced stress on your axles, differential, prop shaft, and transmission is definitely at the top of the list.

Stronger Portals All Around: We know what makes a portal break and what doesn’t. Whether you choose cast aluminum housings or 6061 billet aluminum, they come paired with our unstoppable advanced steel alloy backing plates. GDP portals are built with the best experience and materials so you can ride with confidence.

  • Our housings are reinforced for gear retention and optimized for oil flow
  • Advanced steel alloy backing plates are stronger than chromoly
  • Enhance with Portal Blood—gear oil formulated for GDP Portals
  • There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings:

Our portals use:

  • Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
  • A sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout so you can forget about oil leaks
  • Double-angular contact output bearings to prevent premature wear
  • Roller idler and drive bearings to maintain perfect gear meshing

Top-Rated Customer Service: Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

Features:
  • Available with billet or cast aluminum housing
  • Dual idler gear configuration maximizes strength
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • Increases width by 4 in. per side (8 in. total)
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • Housings use advanced gaskets or O-rings that don’t let anything through
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain
  • Dual idler gear configuration adds a 1” offset
  • Lighter than the competition

Wheel Requirements:

  • 14” or larger wheel required
  • Cannot exceed 5” backspacing
  • Not compatible with dual beadlock wheels

6” Portal Gear Lift Includes:
  • (4) Assembled Portal Hub Boxes Complete With 9310 Gears, Seals, Output Shaft, Gaskets, and Thrust Bearings
  • (4) Universal Hubs and Precision-Ground Stainless Steel Slotted Rotors With Lugs
  • (4) Specialized Steel Alloy Backing Plates
  • (4) Steel Caliper Mounting Plates
  • (4) Caliper Mounting Plate Shims
  • (2) Steel Steering Arms
  • (8) Bushings
  • (4) Sleeves
  • Extended Brake Lines
  • All Required Hardware, Including Recessed Castle Nut Socket
  • Steering Stop Kit

Fitment:
  • Honda Pioneer 700 : 2014+
  • Honda Pioneer 700 4 : 2014+

Notes:
  • Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.

Instructions:

Honda Pioneer 700 Portal Gear Reduction Recommendations
Tire Size Required Suspension Setup with 4" Portals
Up to 25" Stock
26" 2" Lift Kit
If you need help figuring out which gear reduction is right for you, give us a call.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
