SuperATV Honda Pioneer 1000 Cab Heater

SuperATV Honda Pioneer 1000 Cab Heater

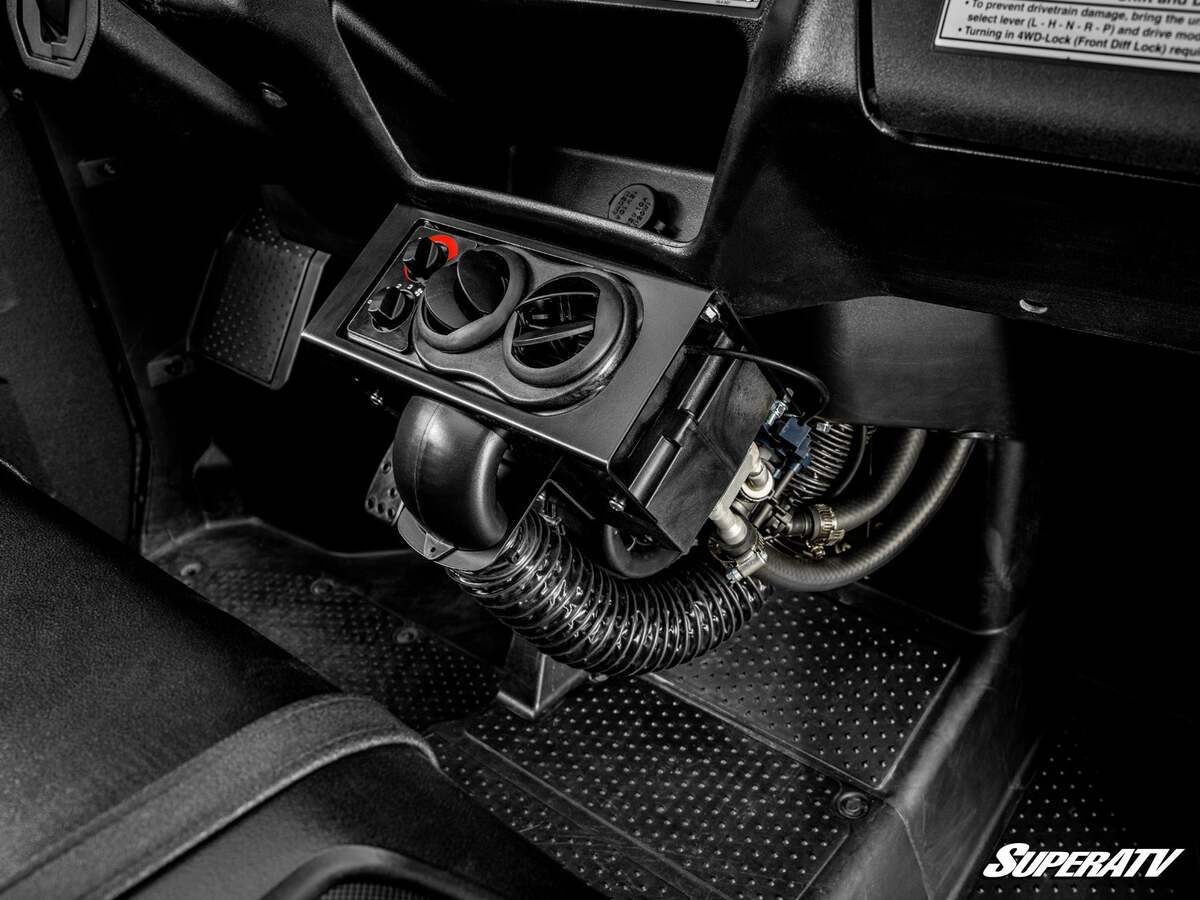

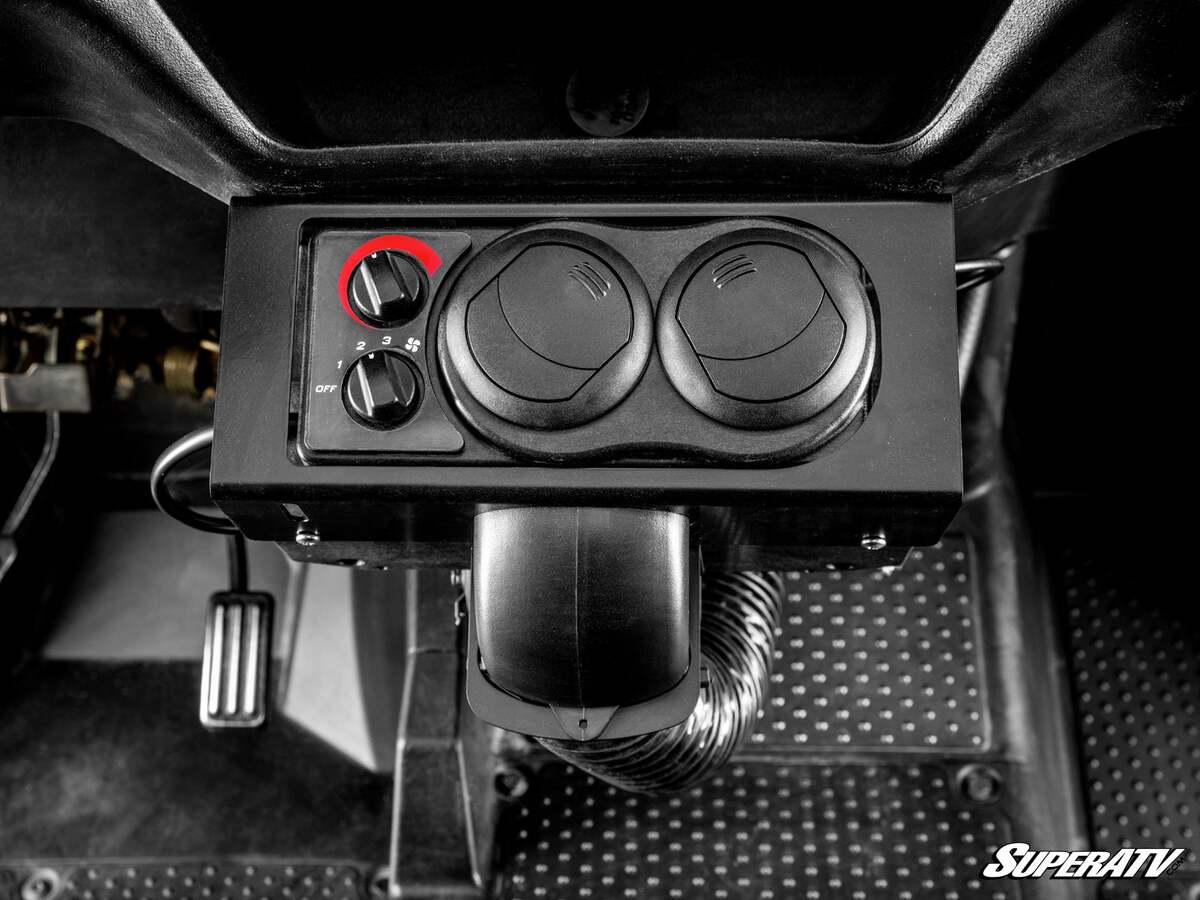

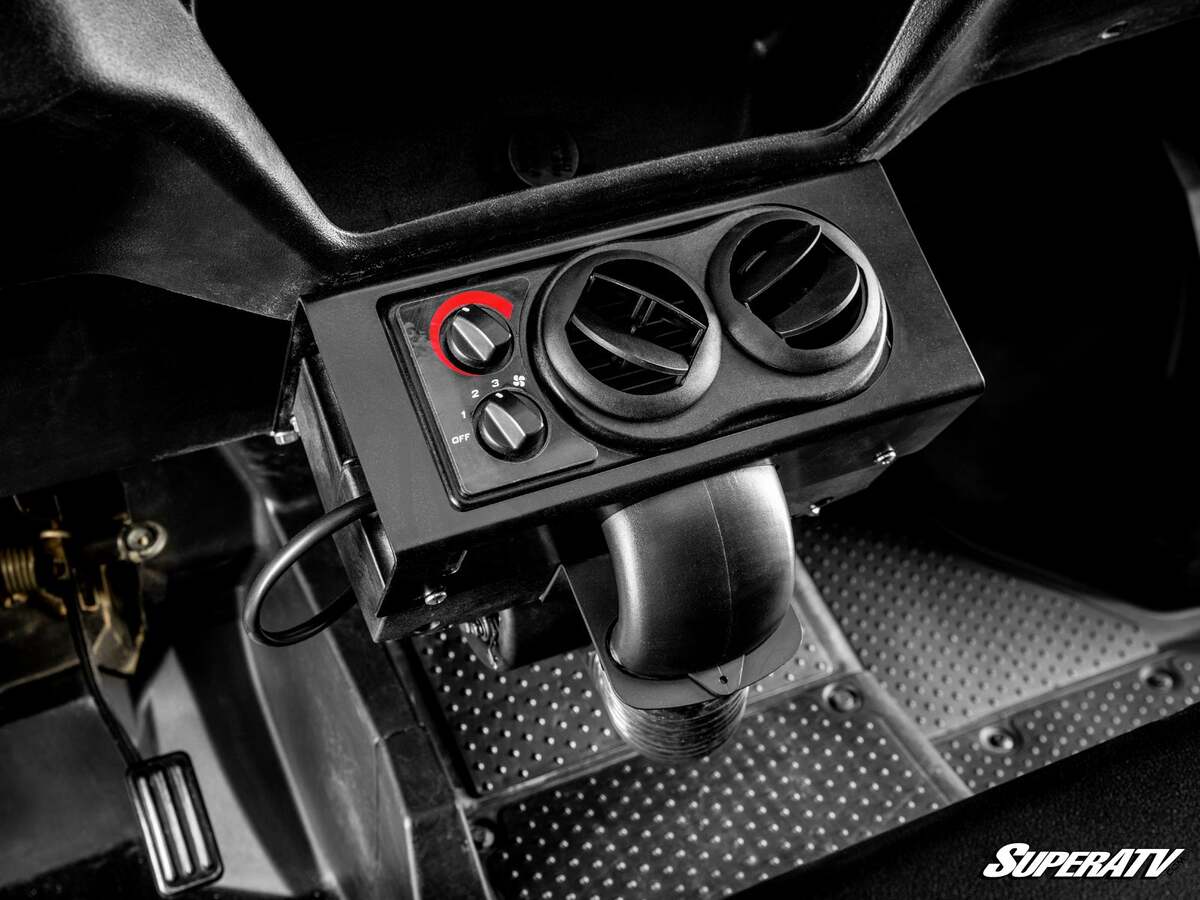

Ride All Winter Long: You need SuperATV’s Cab Heater because your Honda Pioneer 1000 is made to ride in the winter even if you’re not. It draws engine heat directly from the coolant lines to heat your cab just like a traditional car heater. Install is easy—we include hoses, drill-bits, and Pioneer-specific mounting plates to make it as easy as possible to get your heater up and running. With the unit mounted between the seats under the dash, you get balanced cab heating right where you want it. With adjustable temperature, and adjustable fan speeds, winter might just become your favorite time to ride.

Defrost Your Windshield: Along with the two vents in the unit itself, we include two defrost vents and hoses to keep your windshield snow, ice, and fog free while you're driving! We route the defrost vents through your dash, so they look like they came included from the factory.

Keeps Your Cab Comfortable: Our Cab Heater is designed to make your cab comfortable while you're riding. The high-grade radiator hoses are rated from -40°F to 285°F. That means that no matter how hot your engine gets or how cold it is outside our heater and its components can handle it. Our heater doesn’t just make you more comfortable—it makes your winter better.

Get Faster Heat with a Quick-Start Flow Valve: Halve warm-up time and optimize your heater's performance with a quick-start flow valve. It diverts all engine coolant directly to your heater core during low engine temperatures. The valve automatically opens at higher temps to send coolant to your radiator too.

Get Hot Air in as Little as 30 Seconds with an Idle Flow Pump: Get heat to your cab faster with our idle flow pump—it takes as little as 30 seconds! It keeps the coolant moving, even when you're going slow or at idle, so your heater can blow hot air fast.

Features:

• Adjustable temperature and fan speeds

• 360° adjustable vents

• High-grade radiator hoses—rated -40°F to 285°F

• Includes defrost hoses and vents

• Draws 3.4 amps at 13.7 volts at full fan speed

• Capable of 14,600 BTU at 135 CFM

• Built-in shutoff valve

• Easy install—includes all installation hardware and instructions

• Heater control box measures 10" x 4.5" x 11.75"

• Add a quick-start flow valve and an idle flow pump to get heated air faster

Specifications:

Fitment:

• Honda Pioneer 1000 : 2016+

• Honda Pioneer 1000 Deluxe : 2016+

• Honda Pioneer 1000 Limited Edition : 2017+

• Honda Pioneer 1000-5 : 2016+

• Honda Pioneer 1000-5 Deluxe : 2016+

• Honda Pioneer 1000-5 Limited Edition : 2017+

• Honda Pioneer 1000-6 : 2023+

Installation Instruction:

• Instructions - HTR-U-QSFV

• Instruction - HTR-U-IFP

• Instructions - HTR-H-PIO1K

• Instructions - HTR-H-PiO1K-002
