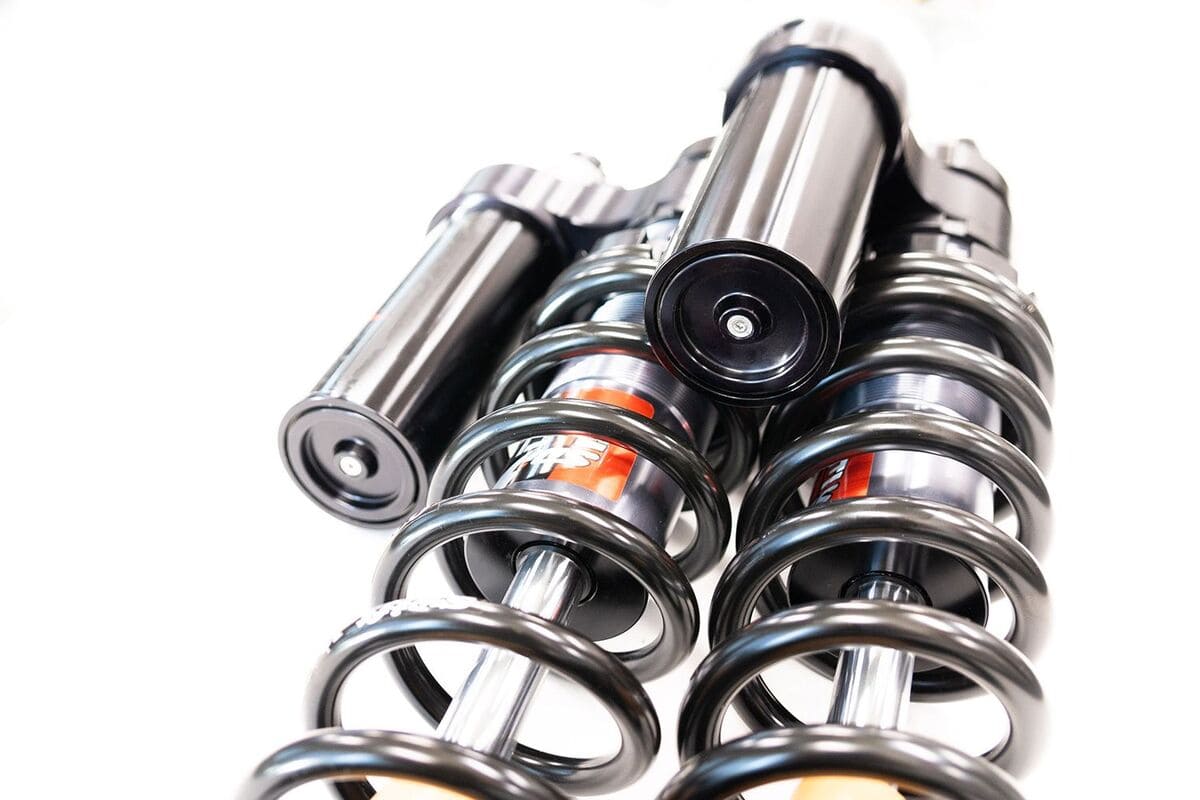

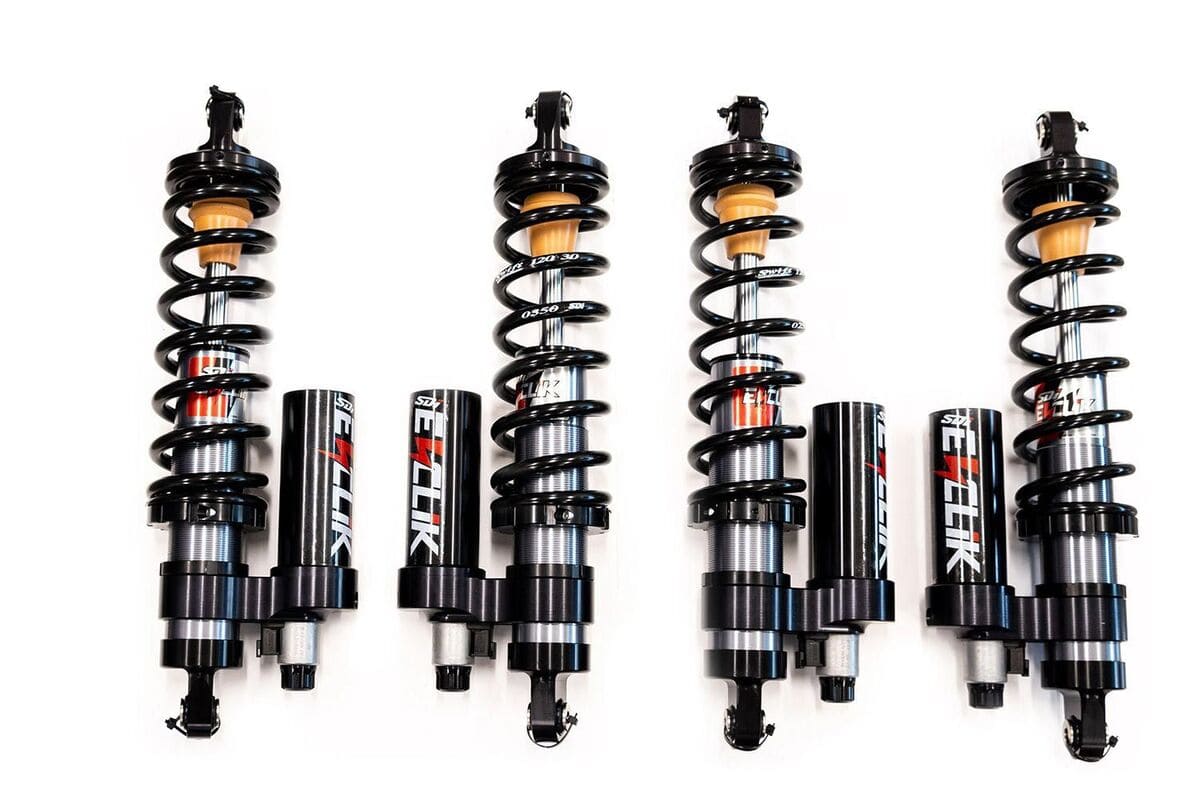

SDI '22+ Kawasaki Ridge E-Clik Active Pro Electronic Shock

SDI '22+ Kawasaki Ridge E-Clik Active Pro Electronic Shock

From long days on the farm, to tight twisting trails, SDi E-CLIK’s electronic shock package for the Kawasaki Ridge makes it easy to dial in your suspension for the terrain you’re in or load you may have in the bed, taking your Ridge to the next level. The E-CLIK Active Pro System is the ultimate in suspension performance.

Features:

• The E-CLIK ECU uses 12 inputs from multiple sensors, an industry leading 250 times per second to adjust each shock automatically based on terrain and driving conditions.
• Adjustments are made near instantly utilizing SDI’s patent pending E-Valve
• The high accuracy, 8 Axis Inertia Measurement Unit is a advanced stand-alone unit, separate from the ECU circuit board.
• IP69K – E-CLIK utilizes rugged ECU, IMU, and sealed connectors to stand up to the harshest conditions.
• Independent Front and Rear Shock Adjustment
• Rear Load Compensation
• Real Time Displays:
• Shock setting at all 4 corners.
• Vehicle Roll and Pitch
• Vehicle Speed (corrected for tire size

• Fine Tune Like a Pro - The PRO menu also allows adjustment to the way the system reacts to every driving condition. You’re able to Adjust:

• Pitch Sensitivity
• Roll Sensitivity
• Turn Sensitivity
• Throttle Sensitivity
• Brake Sensitivity

• 3 Modes Allows adjustment to the base shock setting through the controller:
  • Trail: Excels in slower trail riding and rock crawling Giving a soft, comfortable ride without sacrificing body control.
  • Desert: For when you need to turn it up a notch, Desert Mode focuses on handling, by reacting faster to terrain and driver input, sensing rough whooped out terrain and adjusting at the precise time.
  • Street: Prioritizes composure, more damping at the right times for a composed ride and excellent feedback to the driver. More sensitive to driver inputs: braking, throttle, steering.

Specifications:

• Our 2.5” Piggyback shocks feature a bump zone within the shock for increased compression damping at the end of the stroke
• The shock was designed with durability and performance in mind.
• 7/8ths shafts
• Low Friction Seals and DU Piston Bushing
• High-quality Teflon lined bearings.
• The shocks come sprung and prevalved by SDI to offer the best performance out of the box.

Fitment:

• Compatible with '22+ Kawasaki Ridge E-CLIK Active Pro

Installation Instructions:

• canam-defender-install
