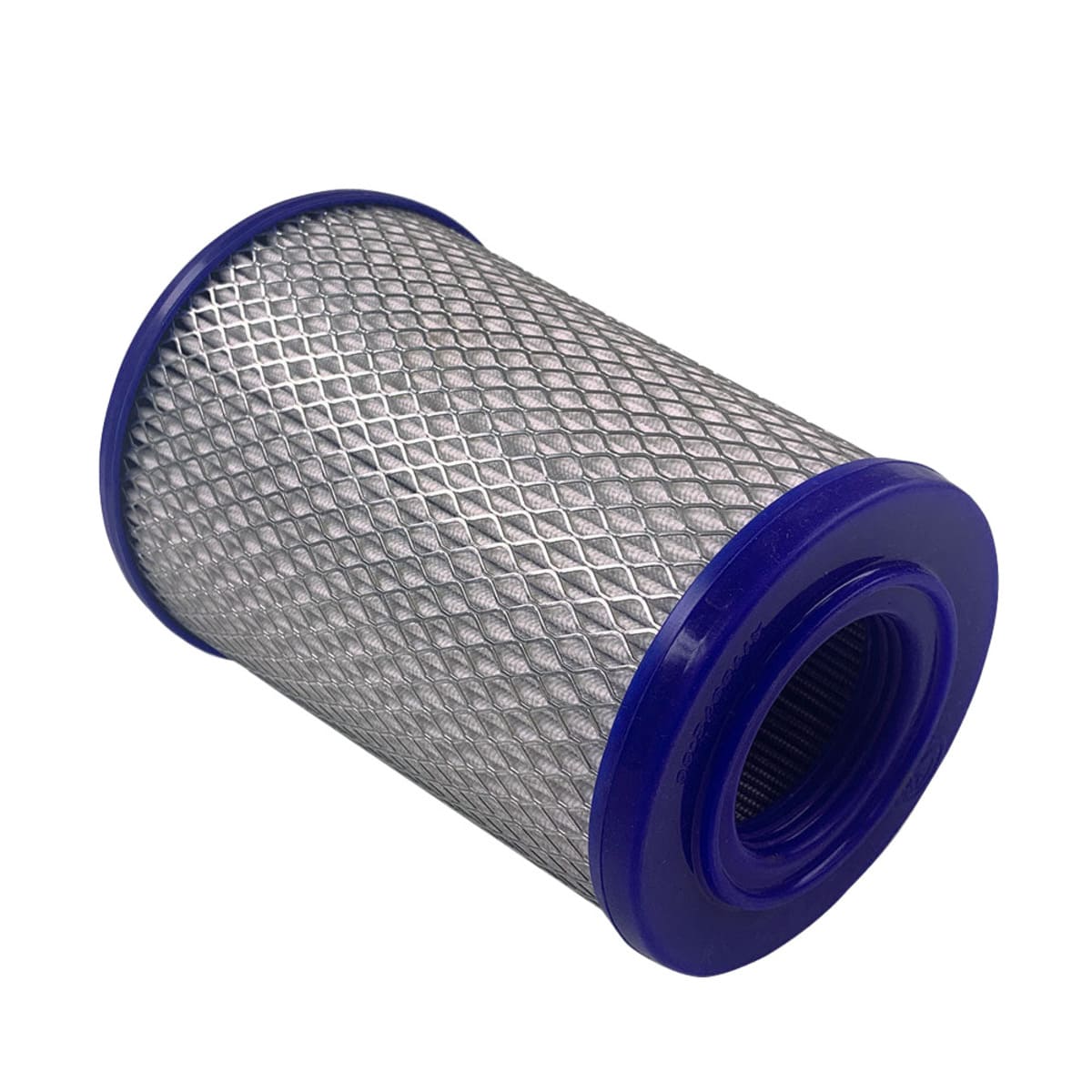

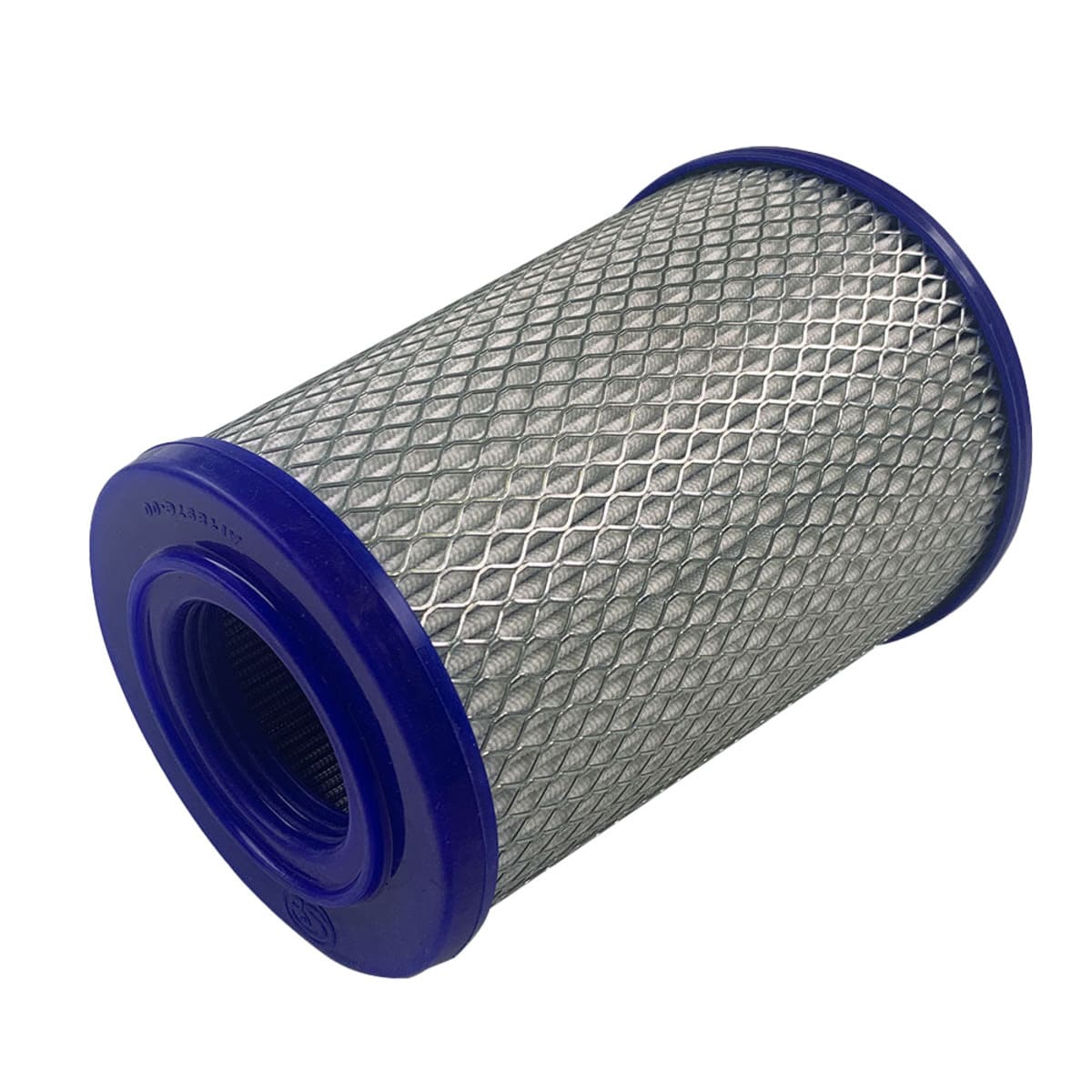

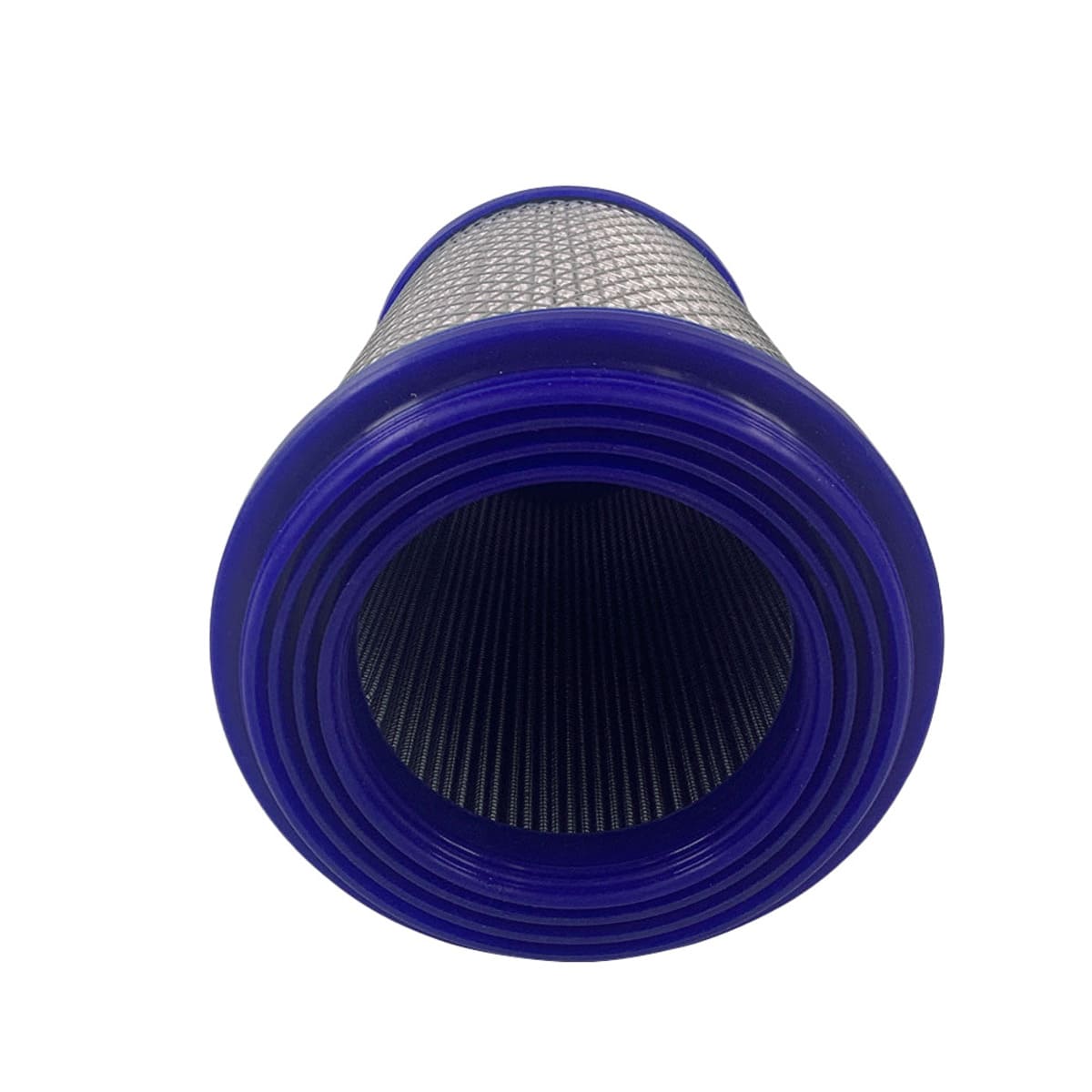

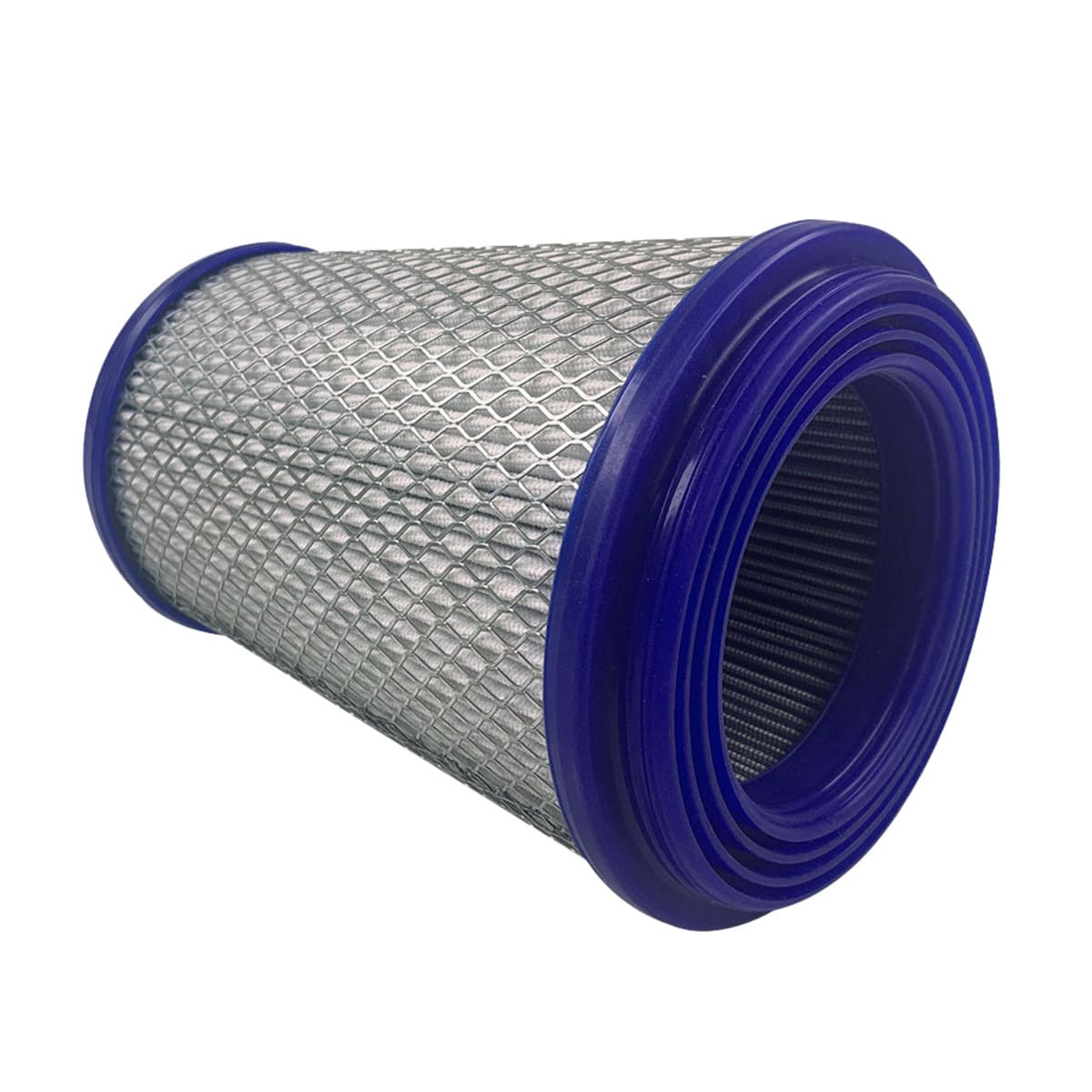

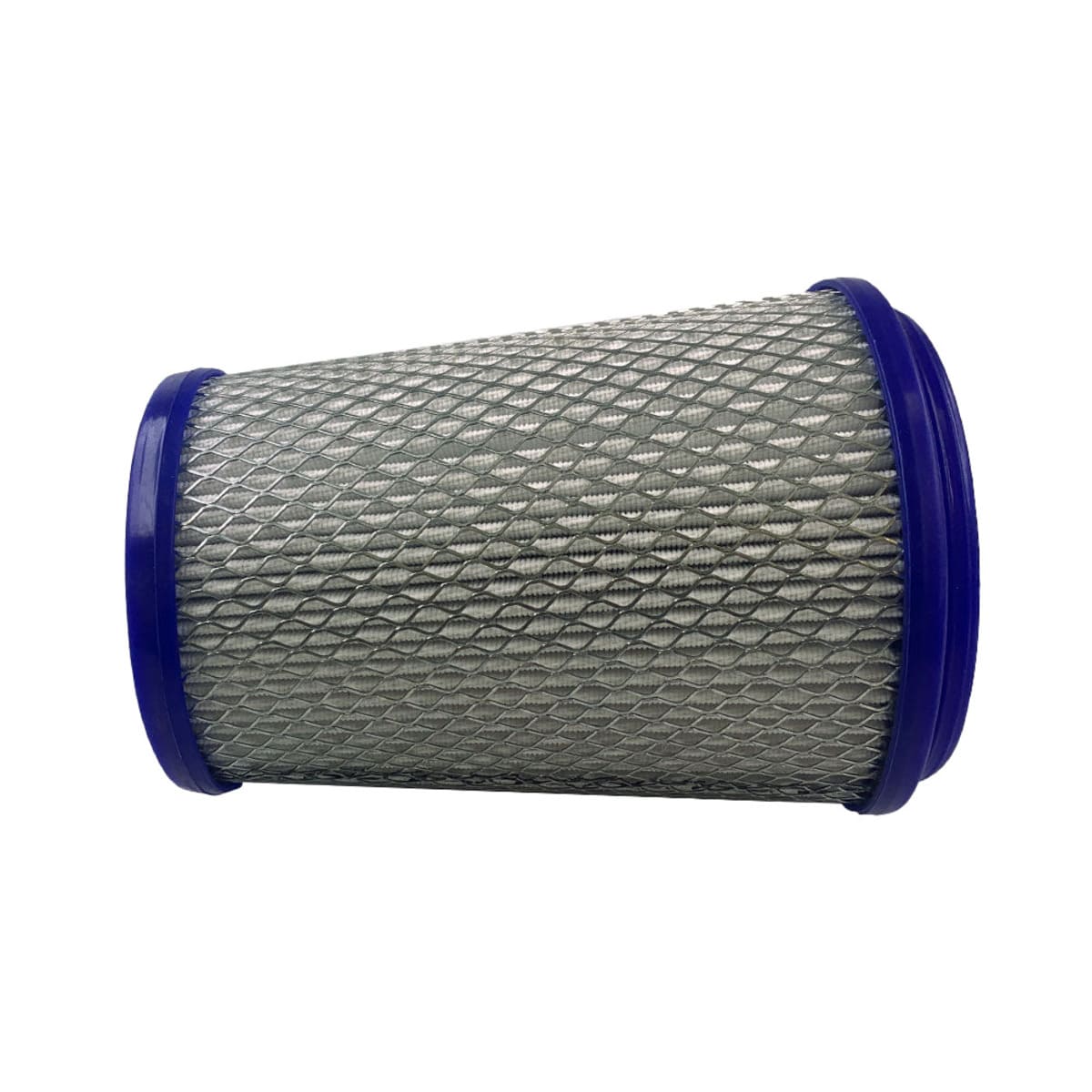

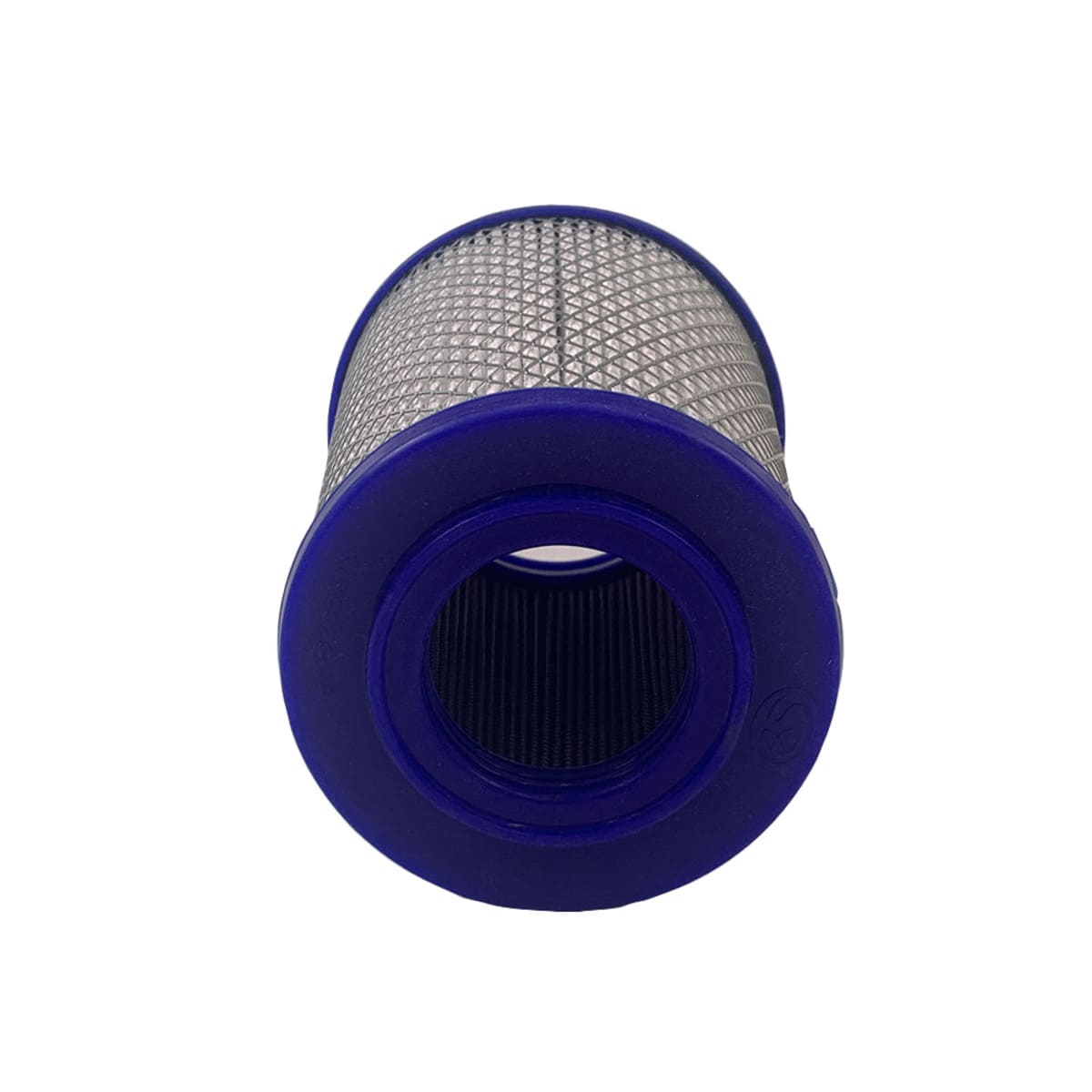

S&B '16-'24 Yamaha YXZ1000R Replacement Filter
Features:
Filter Type | Dry Cleanable |
---|---|
Element Height |
7.75” |
Flange Height |
0.5” |
Flange ID |
4.22” |
Overall Height |
9.5” |
Fitment:
Year |
Make |
Model |
Engine |
---|---|---|---|
2016-2024 |
Yamaha |
YXZ 1000R |
UTV |
Installation Instructions:
S&B Primary Filter Will Save Your Engine & Secondary Filter: Using our proprietary dry synthetic media, our YXZ primary filter flows 2.12% better than stock and is more efficient than the stock filter. It keeps your secondary filter cleaner longer and prevents it from looking like this!
Filter Maintenance Cleaning This Filter Is as Easy as 1, 2, 3: Our RZR filter is super easy to clean. Just follow the steps below to breathe new life into your dirty filter. If the filter media or rubber looks damaged, do not reuse it.
Step 1: First, make sure to wear protective eyewear throughout the cleaning process. Remove the dirty air filter from the UTV's airbox and lightly tap the top several times on a hard service to knock out any debris, being careful not to bend the cage or pleats.
Step 2: Blow out the filter from the inside out using the nozzle no closer than 1" from the media. Continue to move the nozzle taking care not to focus it on one specific area. Use an OSHA-approved regulator at no more than 30psi.
Step 3: Use a standard garden hose turned up to 75% its max strength and wash the filter from the inside out.
Step 4: Use a standard garden hose turned up to 75% of its max strength and wash the filter from the inside out.
Step 5: Wash the outside of the filter to remove the remaining debris. Repeat steps 4 and 5 until the media is returned close to its original white color. Allow the filter to dry before use. A small fan can be used to accelerate the process. Do not use hot air.
