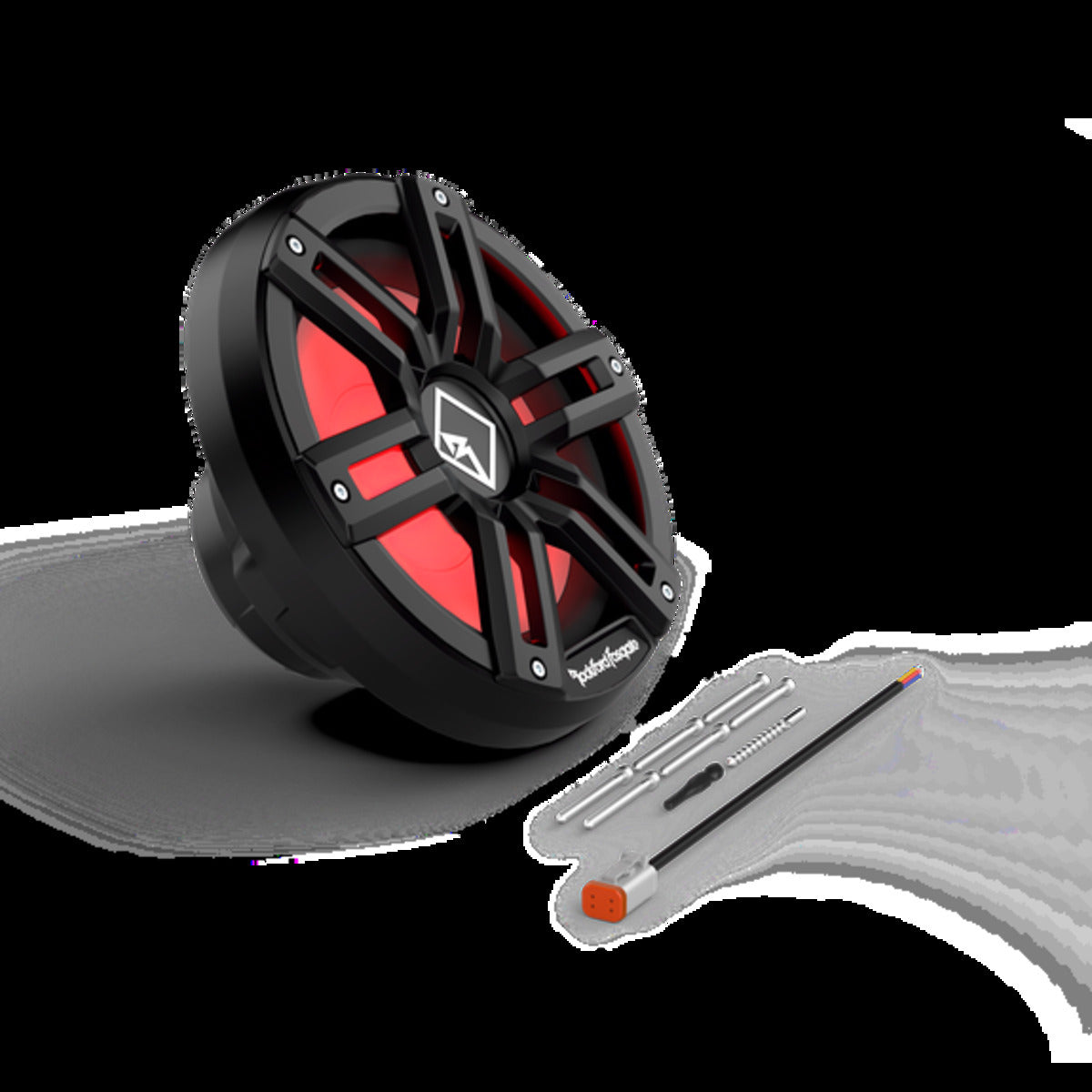

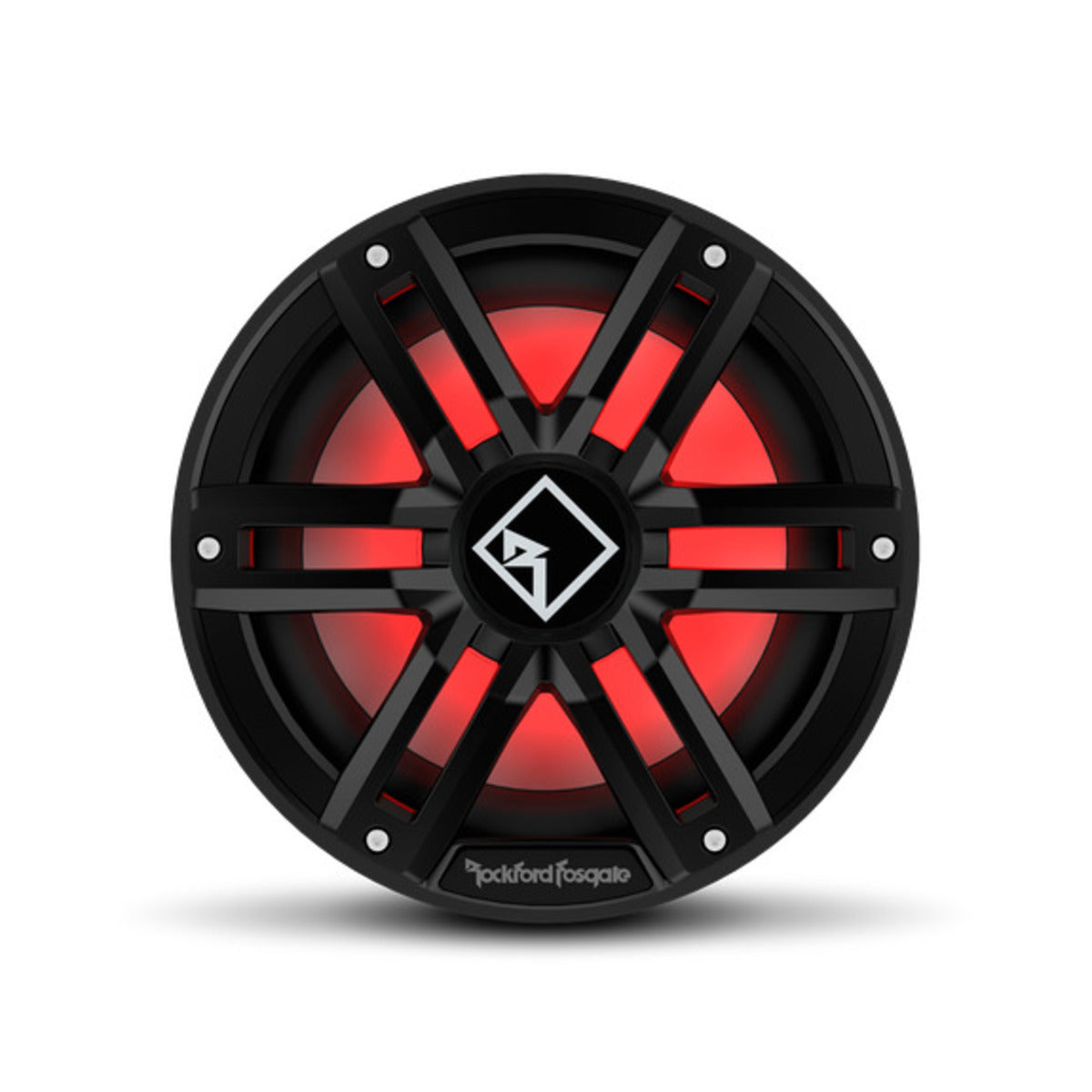

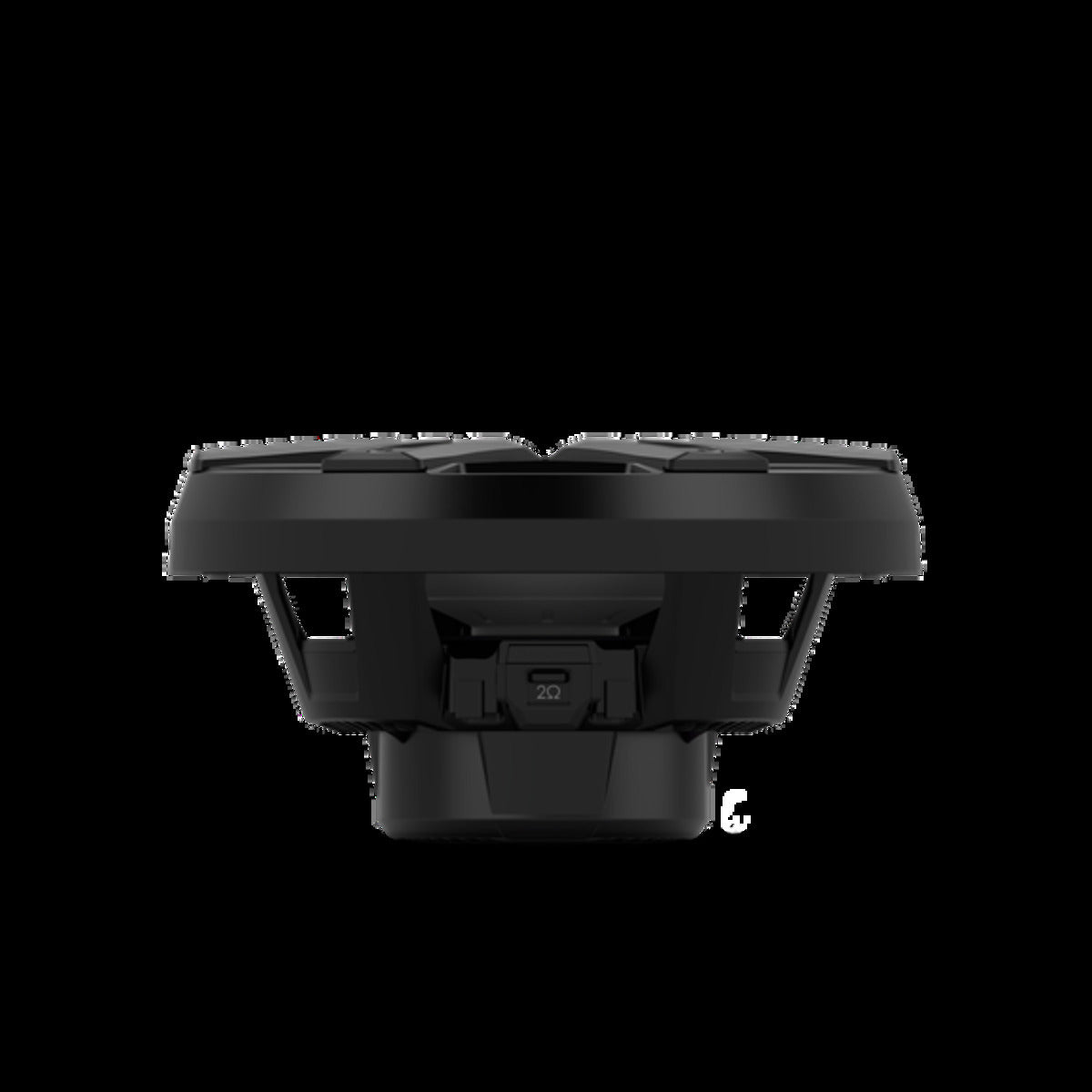

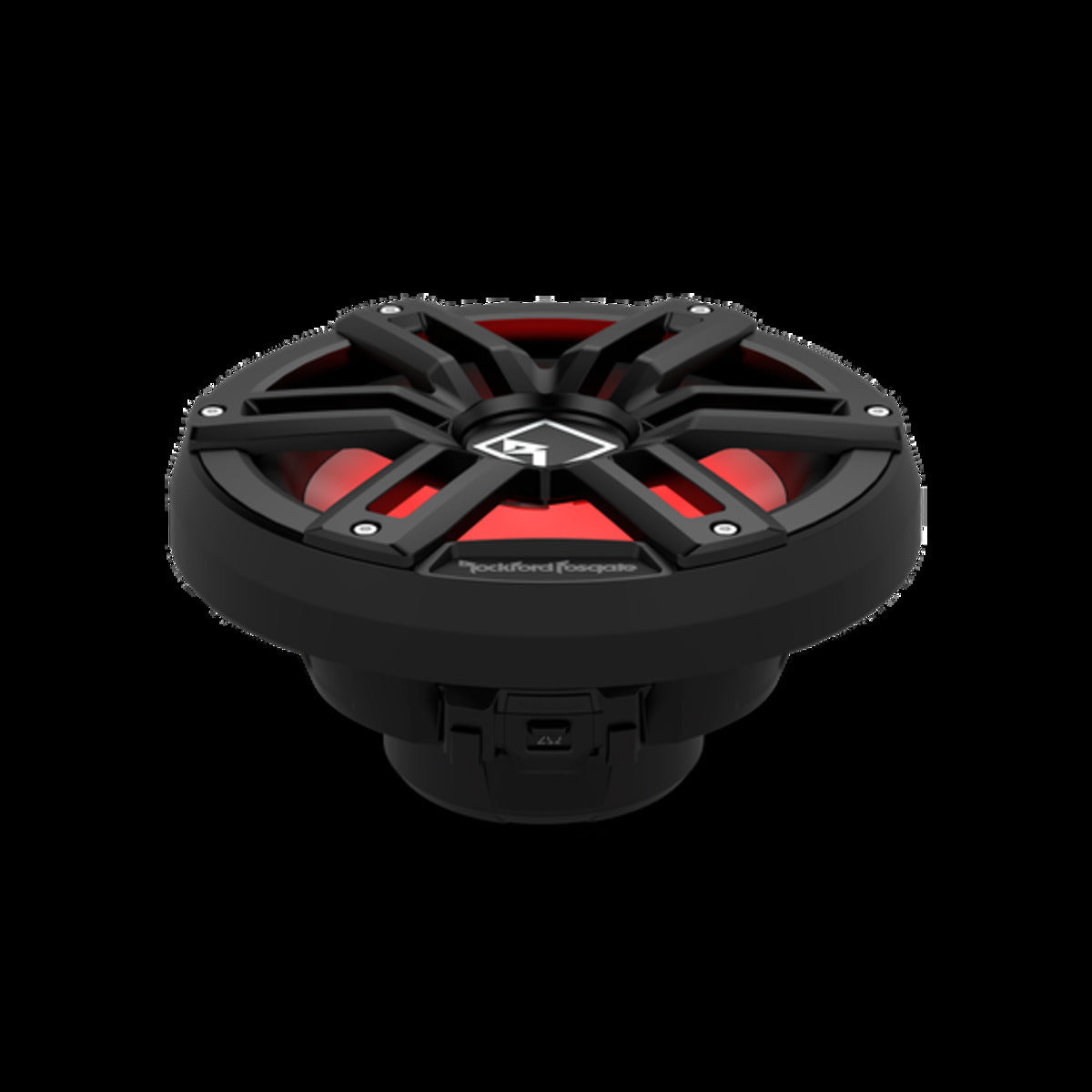

Rockford Fostgate Black M2 10" DVC 4Ω Color Optix™ Sealed Enclosure Marine Subwoofer

Rockford Fostgate Black M2 10" DVC 4Ω Color Optix™ Sealed Enclosure Marine Subwoofer

The M2D2-10S is a 10” DVC 4-Ohm Color Optix™ subwoofer that connects with our Rockford Fosgate Color Optix™ controller and RF Connect™ App, allowing you to customize your own color patterns. Connectivity is handled through integrated Deutsch™/Amphenol™ connectors that make wiring simple and error proof. Wiring with the Versa Switch™ allows you to quickly configure the voice coil in series or parallel with flip of switch. This “S” model is optimized for small sealed enclosures where space is at a premium. Includes 2-piece grille with interchangeable colored plastic and stainless-steel insert.

The M2 series of Element Ready™ subwoofers are IP67 certified, making them truly purpose-built for marine and motorsport applications where protection from damaging UV rays and water spray is essential. They are designed to pair with the Rockford Fosgate Color Optix™ controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. Matching the theme of your boat can be further customized by using the included color insert or stainless-steel grille for that sport look.

Requires ColorOptix™ (PMX-RGB) controller to change LED color functions.

Features:

• Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof

• Optimized for small sealed enclosures when there is very little space for an enclosure

• Element Ready™ design protects against outdoor exposure

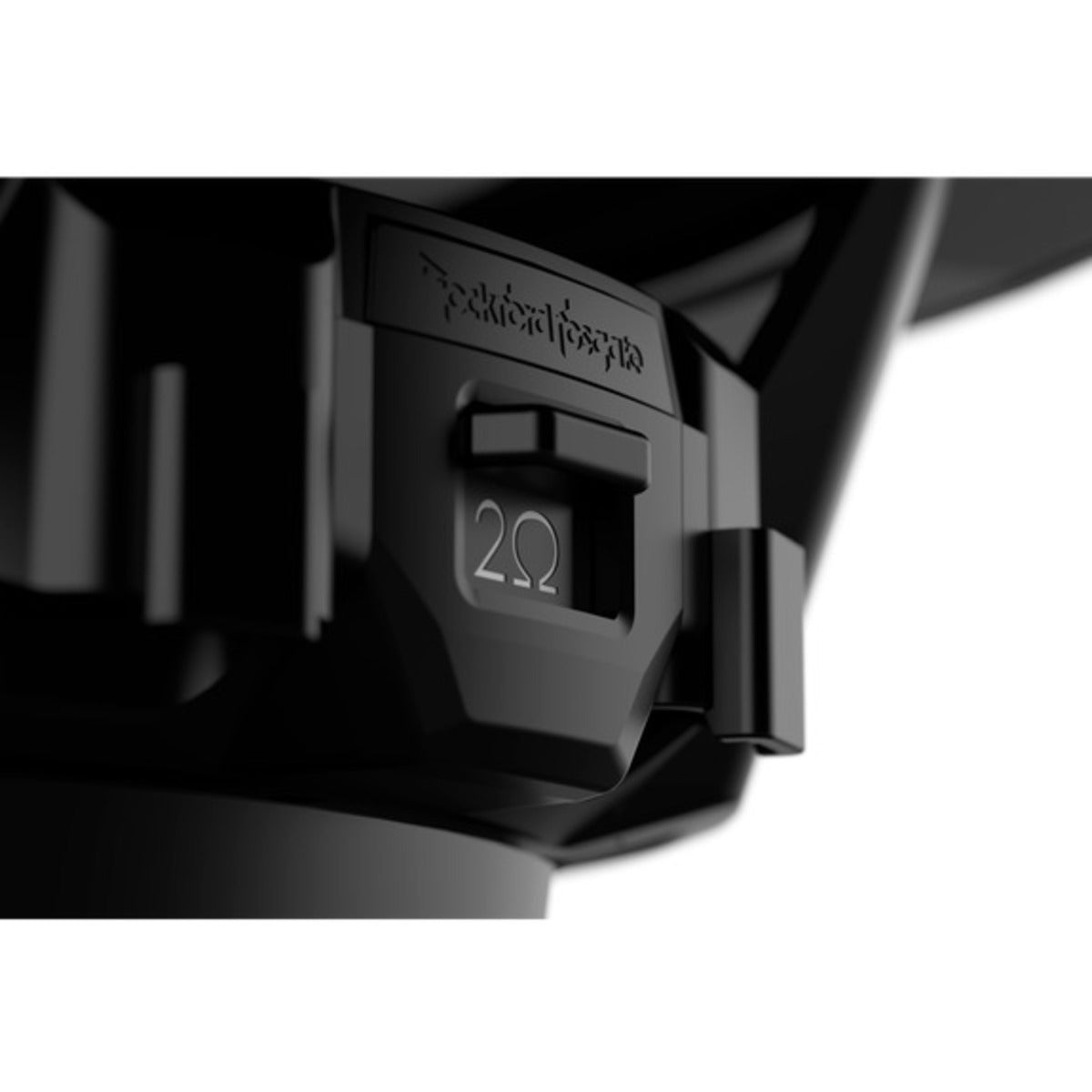

• Versa impedance switch quickly allows series or parallel configuration without additional wiring

• Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)

• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination

• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals

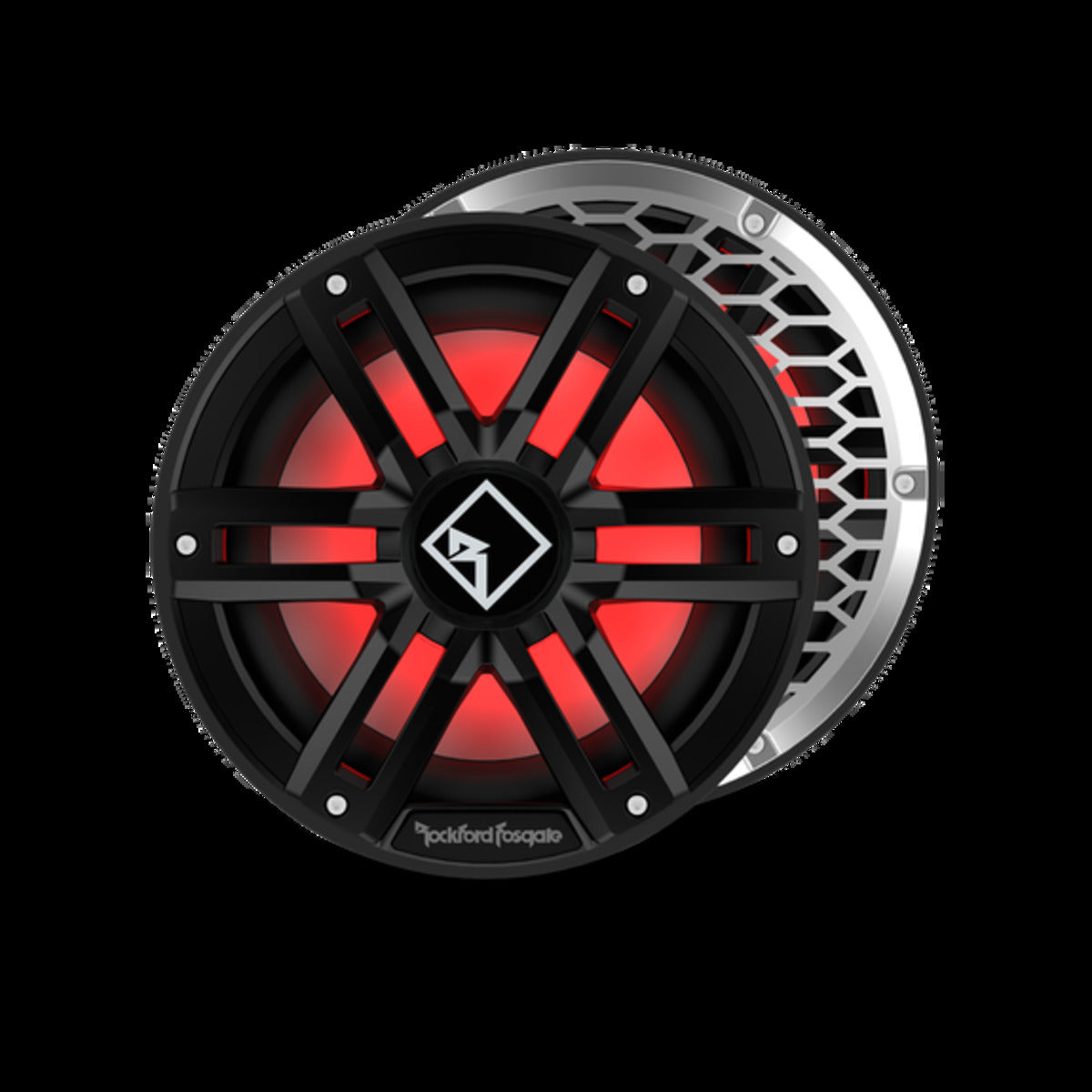

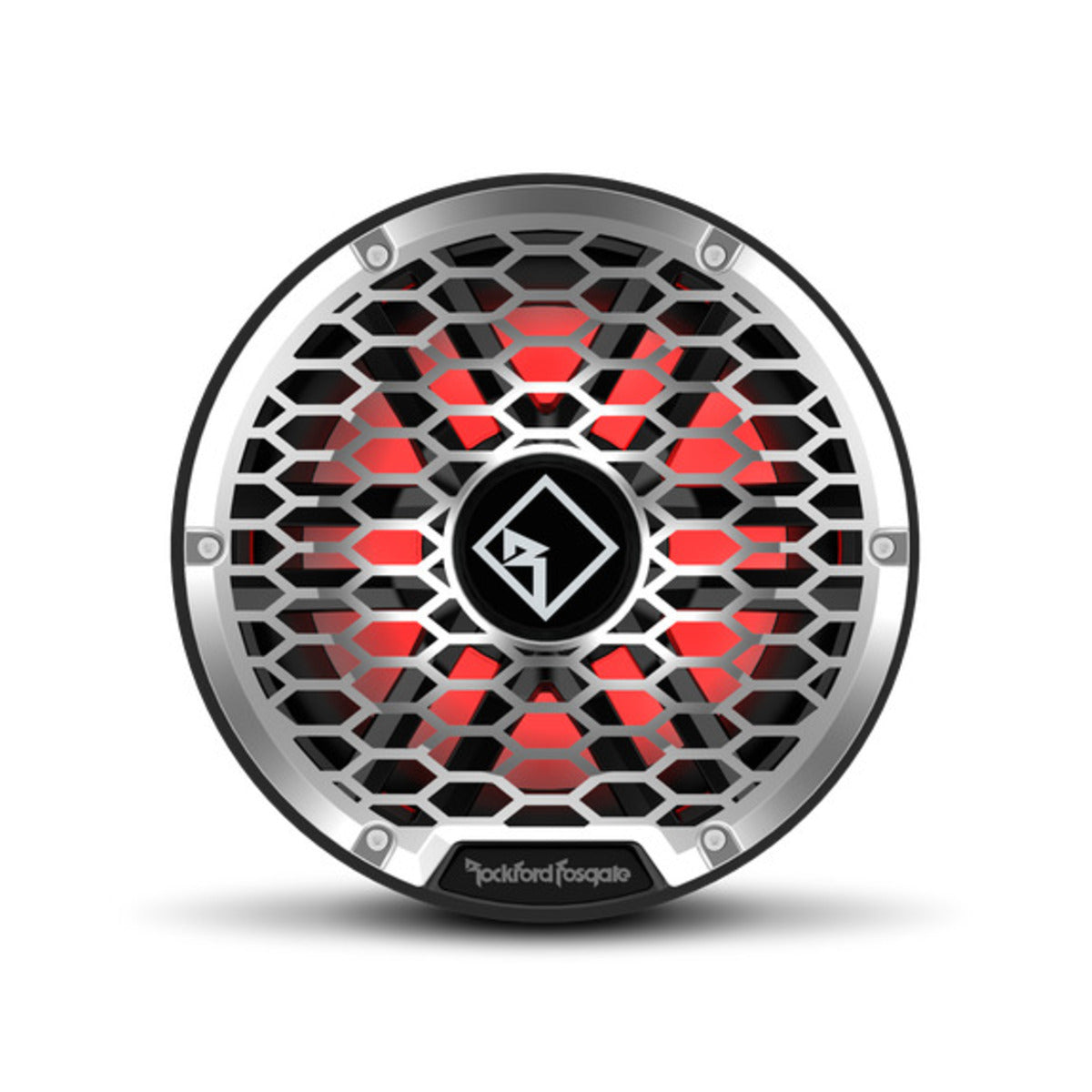

• 2-piece grille allows for interchangeable stainless-steel or "sport" option

• Deutsch™ connector front/rear silicone seal protects against water ingress

• Gold plated Marine grade brass terminals provide a corrosion resistant connection

• Provides superb low and midrange frequency reproduction with smooth high frequency roll-off

• Vast vertical attach surround technique increases effective radiating cone area up to 25%

• Klippel Verified certification program delivers the best possible loudspeakers

• IPX6 Marine Grade for prevention of water intrusion

• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
• Optimized for small sealed enclosures when there is very little space for an enclosure
• Element Ready™ design protects against outdoor exposure
• VERSA impedance switch quickly allows series or parallel configuration without additional wiring
• Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• 2-piece grille allows for interchangeable stainless-steel or "sport" option
• Deutsch™ connector front/rear silicone seal protects against water ingress
• Gold plated Marine grade brass terminals provide a corrosion resistant connection
• Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Klippel Verified certification program delivers the best possible loudspeakers
• IPX6 Marine Grade for prevention of water intrusion
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment

Specification:

Size: 10"
Voice Coil Type: Dual Voice Coil
Sealed Box Volume: (Vb)0.5 cu. ft. (14 Liters)
Nominal Impedance: (Ohms)2-Ohm or 8-Ohm Switchable
Power Handling: (Watts RMS)400 Watts
Voice Coil Diameter: 1.95" (49.53 mm)
Magnet Weight: (oz)32.9 oz. (0.9 Kg)
Fs: (Hz)28
Re: (Ohms)6.5
Le: (mH)3.43
Sd: (cm2)363
Qms: 5.18
Qes: 1.07
Qts: 0.89
Vas: 38.2
SPL: (dB @ 1w/1m)86
Xmax: (mm)12.0
Woofer Displacement: 0.07 cu. ft. (2.03 Liters)
Speaker Connector: Deutsch™ and 1/8" Spade
Cutout Diameter: 8.87 in. (225.3 mm)
Mounting Depth: 4.24 in. (107.7 mm)
Shipping Weight: 8.5 Lbs. (3.85 Kg)
