Rockford Fosgate M2 10" DVC 2Ω Or 4Ω Color Optix Infinite Baffle Marine Subwoofer

Rockford Fosgate M2 10" DVC 2Ω Or 4Ω Color Optix Infinite Baffle Marine Subwoofer

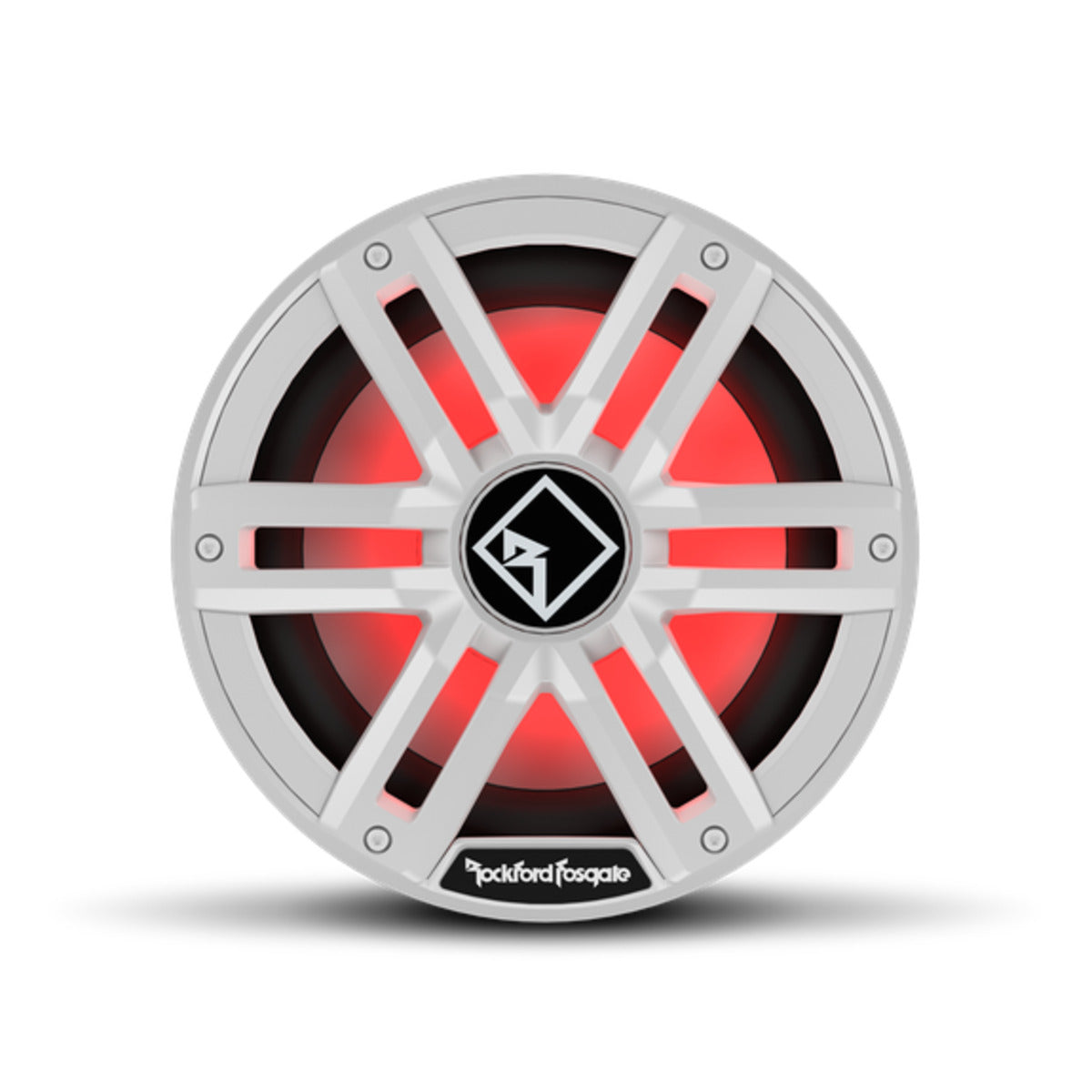

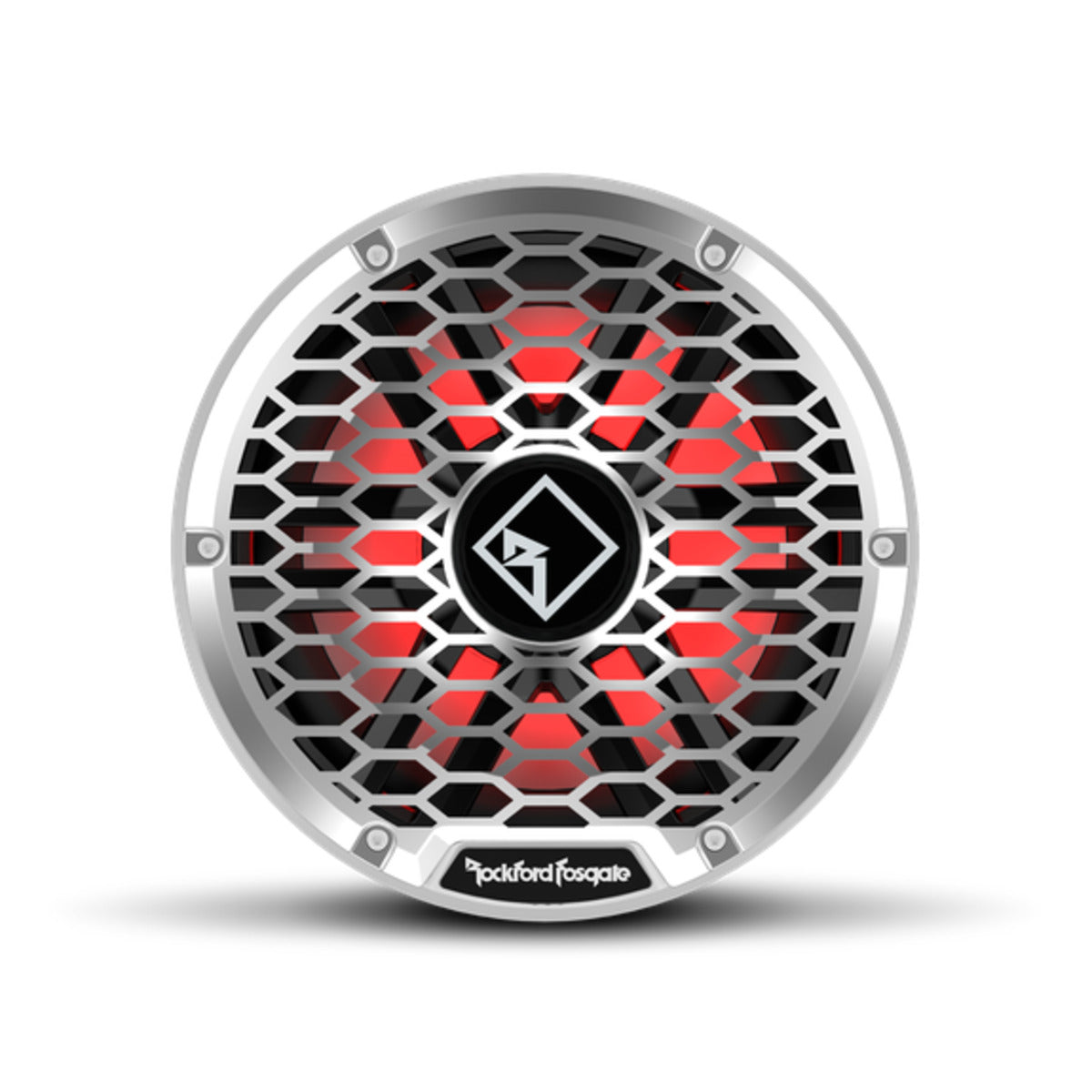

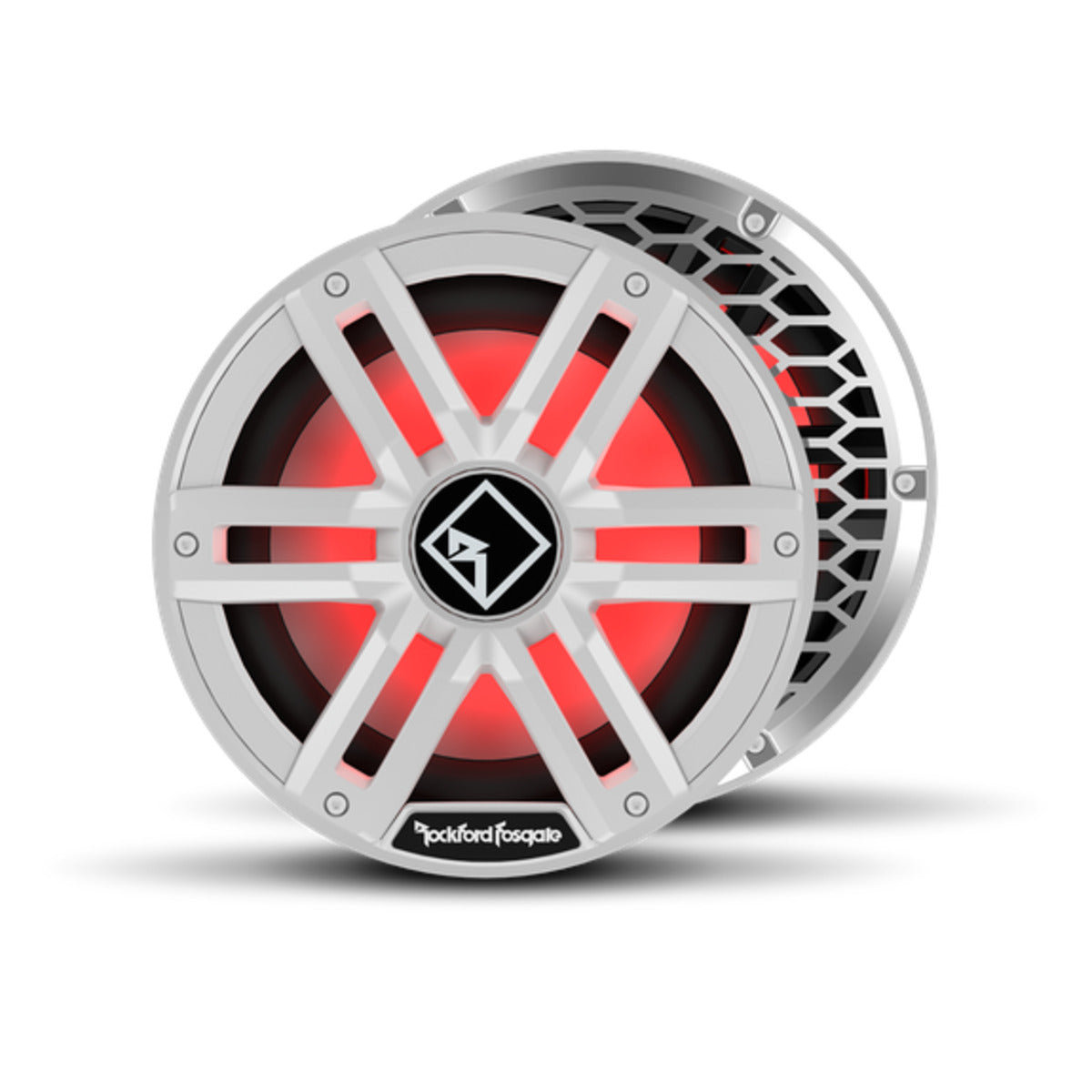

The M2D4-10I Color Optix™ 10” DVC 2-Ohm infinite baffle subwoofers deliver loud, clear, accurate bass, and light the way for your journey! M2 provides a customized look by using either the stainless-steel grille or the white “sport” grille insert. The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required.

The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle is required to isolate any interaction between the front and rear wavelengths to prevent cancellation.

Requires ColorOptix™ (PMX-RGB) controller to change LED color functions.

Features:

• Gold plated Marine grade brass terminals provide a corrosion resistant connection

• Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors

• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals

• Fully insulated silicone tinsel leads

• 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former

• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination

• Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof

• Injection molded UV stable foam surround

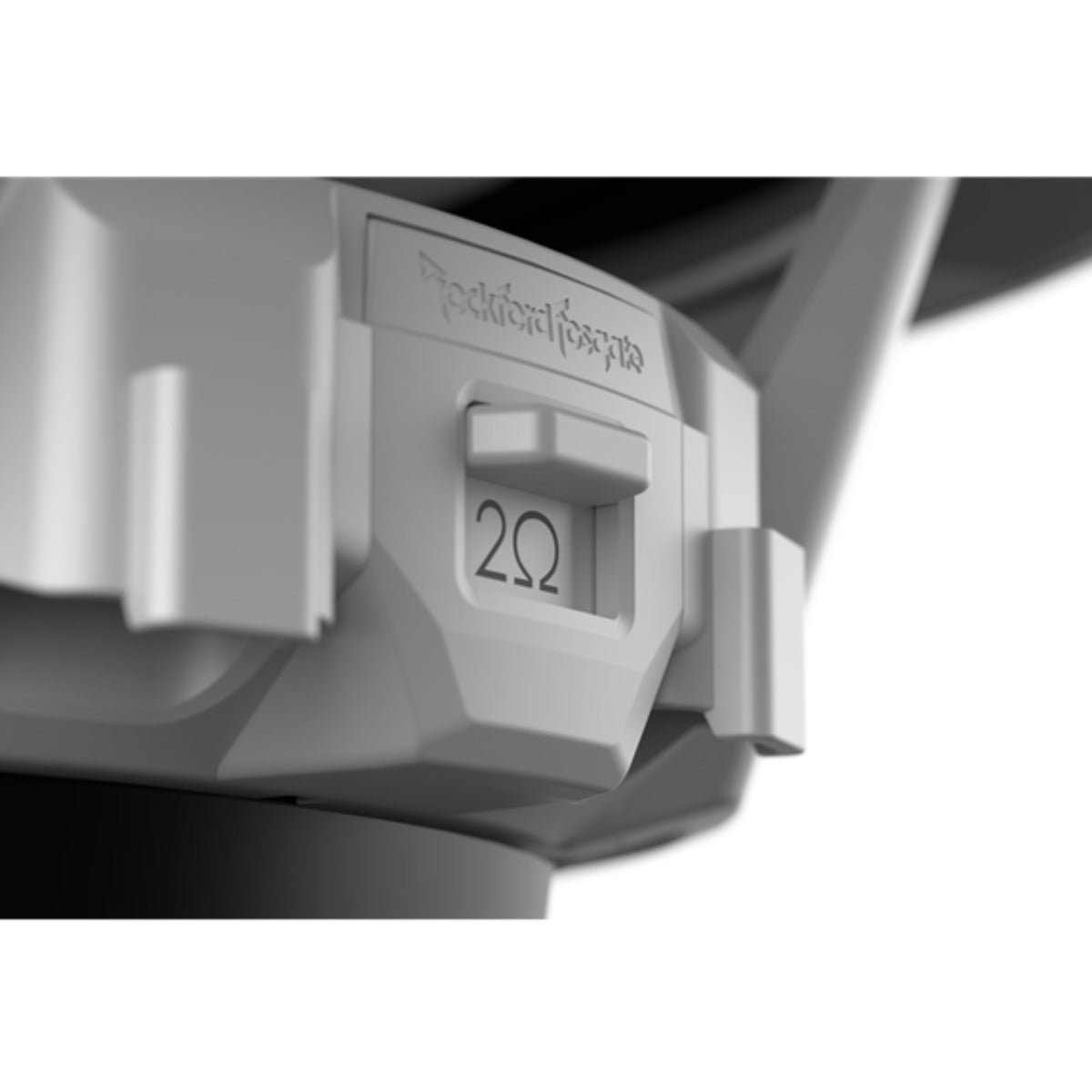

• Versa impedance switch quickly allows series or parallel configuration without additional wiring

• Co-molded surround and mineral filled polypropylene cone body

• Optimized for infinite baffle applications when an enclosure is not an option

• 100% UV Stable Centrex plastic grill

• Linear Aramid-Polyester Composite Spider

• Vented motor design with water-repelling nano coated mesh screen

• Vast vertical attach surround technique increases effective radiating cone area up to 25%

• Optically clear UV stable RGB Lighting Encapsulation
• Injection molded mineral filled polypropylene cone body with UV inhibitors

Specification:

Size: 10"
Voice Coil Type: Dual Voice Coil
Frequency Response: 20 Hz - 750 Hz
Nominal Impedance: (Ohms)2-Ohm or 8-Ohm Switchable
Power Handling: (Watts RMS)400 Watts RMS
1600 Watts: PEAK
Voice Coil Diameter: 2.0" (50.8 mm)
Magnet Weight: (oz)55.02 oz. (1.56 Kg)
Fs: (Hz)43
Re: (Ohms)6.6
Le: (mH)1.76
Sd: (cm2)363
Qms: 5.67
Qes: 1.07
Qts: 0.90
Vas: 31.5
SPL: (dB @ 1w/1m)90.3
Xmax: (mm)12.0
Woofer Displacement: 0.06 cu. ft. (1.74 Liters)
Speaker Connector: Deutsch™
Cutout Diameter: 8.87 in. (225.3 mm)
Mounting Depth: 4.44 in. (112.7 mm)
Shipping Weight: 13.8 Lbs. (6.26 Kg)
