Rockford Fosgate M2 10" DVC 2Ω Color Optix Sealed Marine Subwoofer

Rockford Fosgate M2 10" DVC 2Ω Color Optix Sealed Marine Subwoofer

The second generation M2 10-inch subwoofers create an unmatched audio experience, with class-leading output, complete on-water lighting control and grille customization. This subwoofer is optimized for small Sealed Enclosures when there is very little space for an enclosure. Sold individually (1 each).

Color Optix: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller (sold separately) and App.

Element Ready: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV rays, making sure your subwoofers stand the test of time.

Grille Customization: Multiple grille options provides a customized look by using either the stainless-steel grille or the “sport” grille inserts, allowing you to dial in your personalized-on water experience.

True Marine Ecosystem: Integrated Deutsch™ / Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options.

The redesigned M2 Element Ready™ subwoofers bring unmatched reliability and deep, powerful bass, with enhanced responsiveness and superior thermal management. Built to handle any adventure, they were engineered to endure the toughest conditions.

The subwoofers are designed to pair with the Rockford Fosgate RF Connect App and Color Optix™ controller (PMX-RGB required) through its Deutsch™ and Amphenol™ connectors integrated into the basket. To streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1Ω and 4Ω as easy as flipping a switch.

Since this subwoofer is designed for small sealed enclosures, follow the recommended enclosure design to optimize its mechanical power handling.

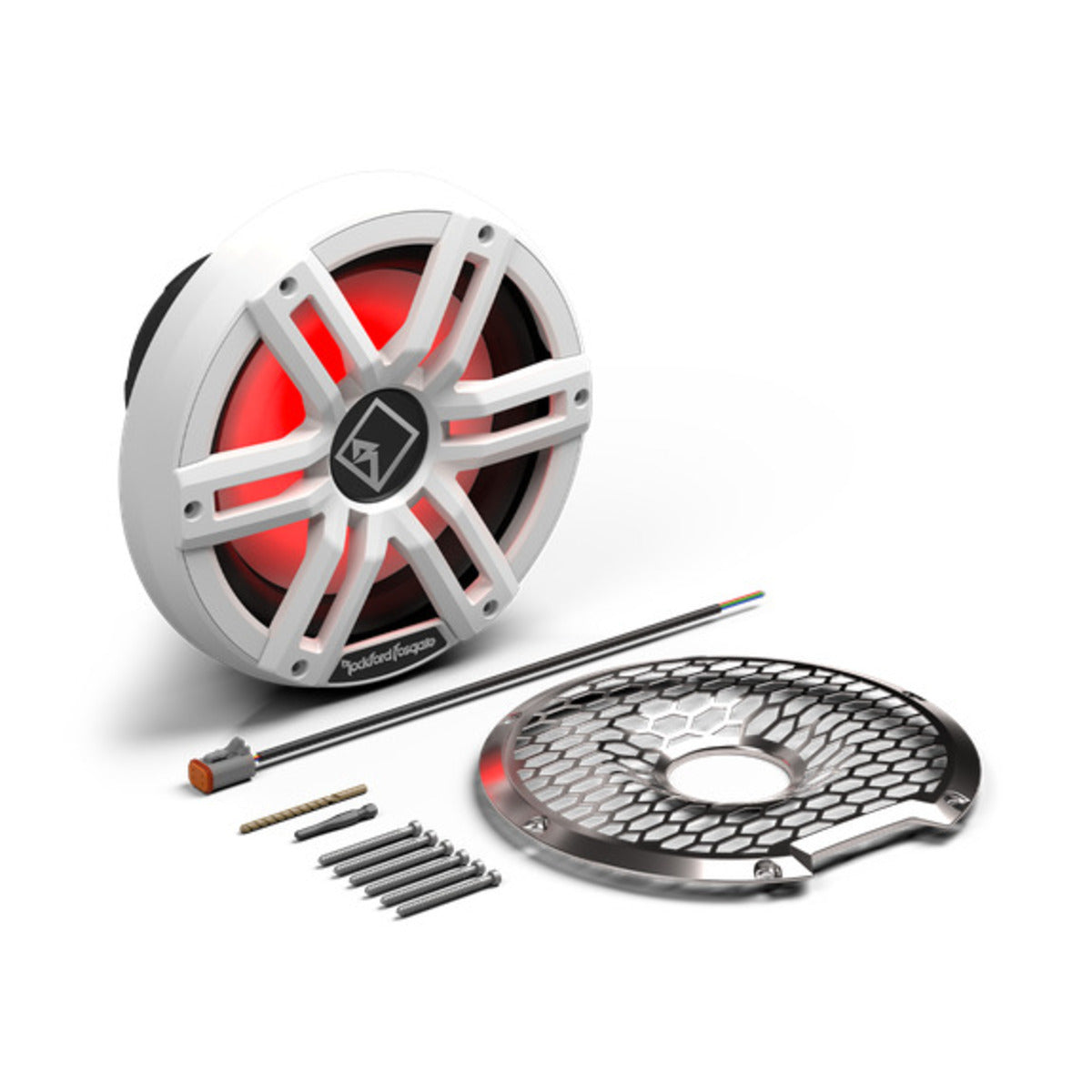

The Marine 10” Subwoofer Includes:

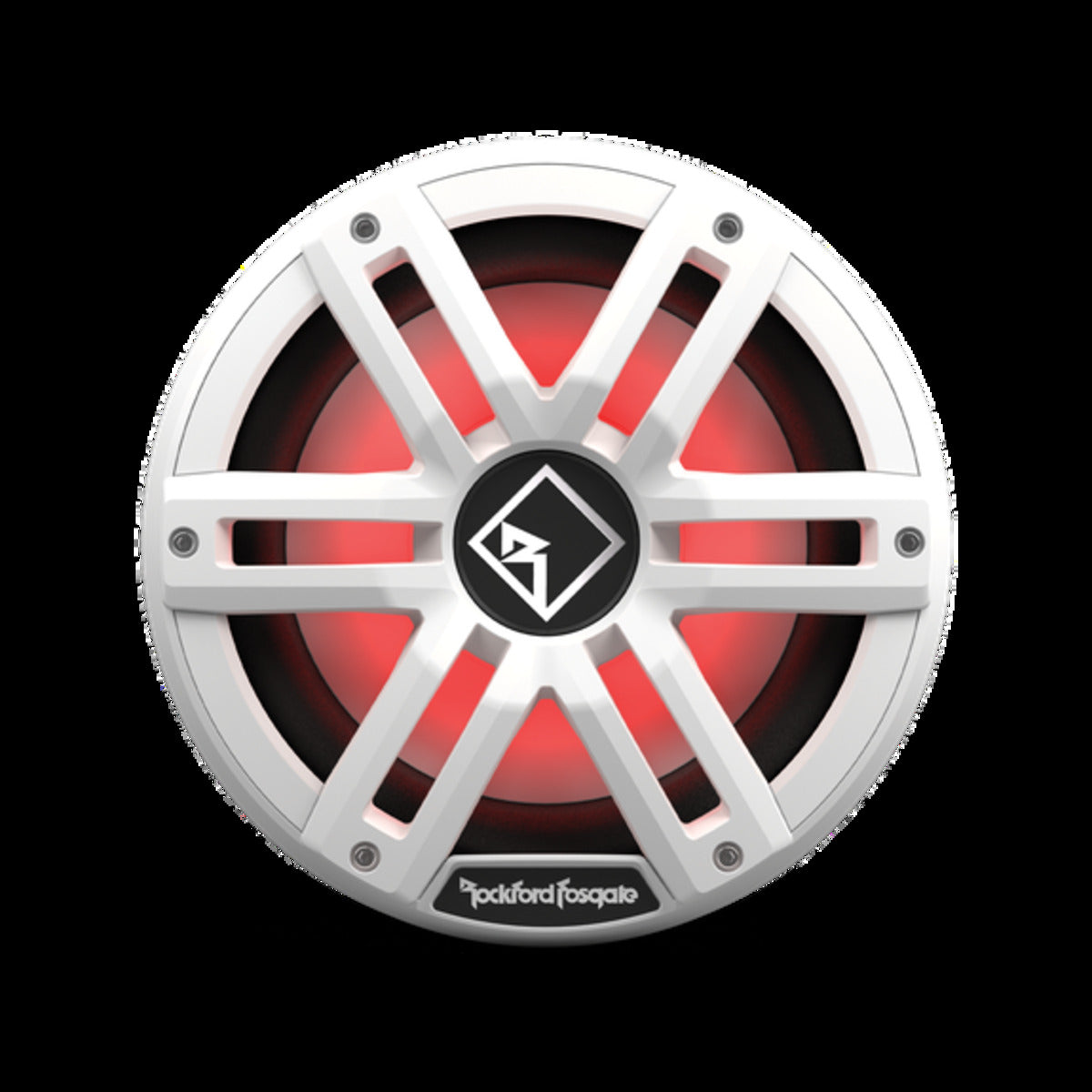

• (1) Sport grille insert

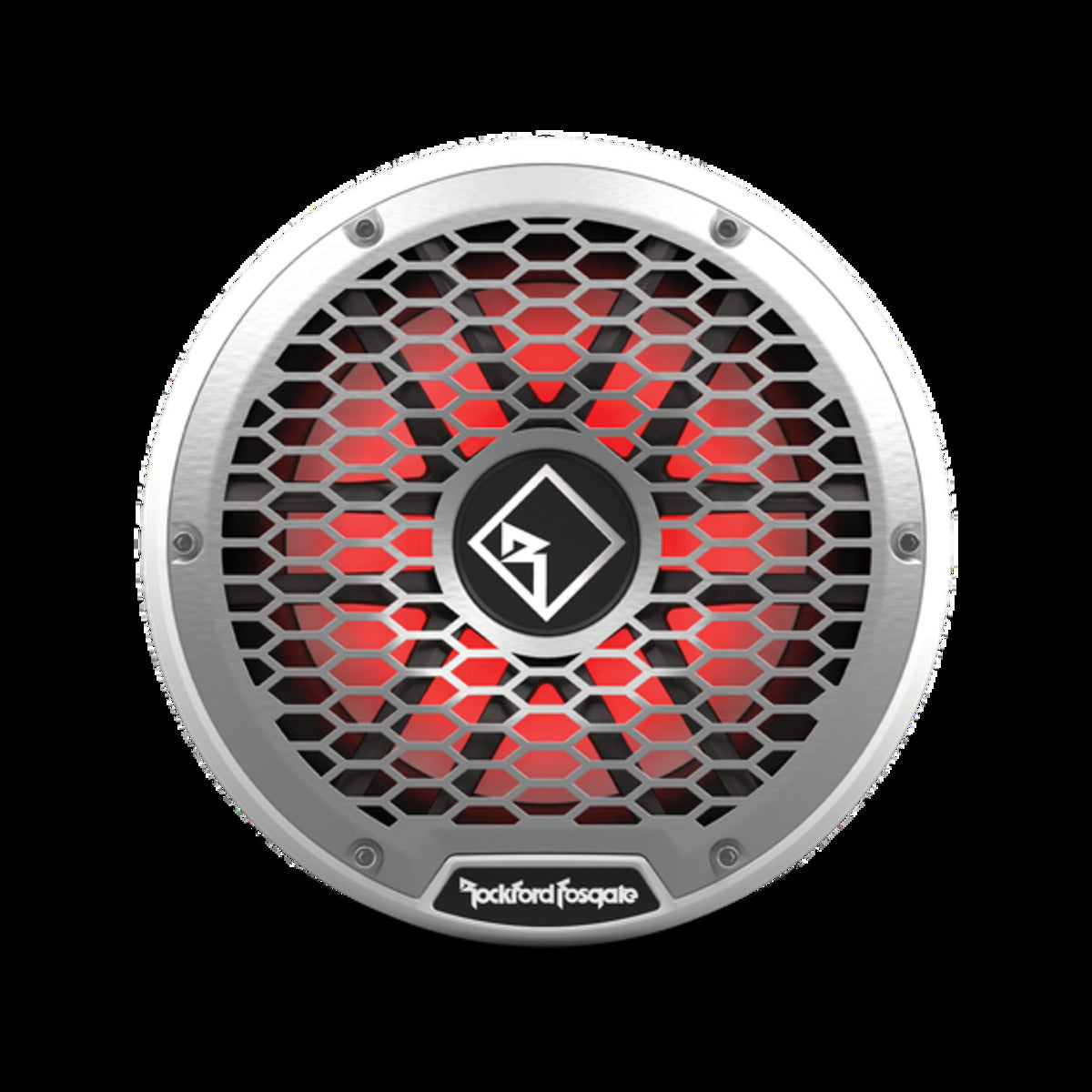

• (1) Stainless steel grille insert
• (1) Deutsch ColorOptix™ pigtail

Features:

• Optimized for small sealed enclosures when there is very little space for an enclosure

• Comsol Multiphysics simulation software used to optimized suspension & motor assembly

• New vented T-yoke improves power and performance without bottoming

• VAST vertical attach surround technique increases effective radiating cone area up to 25%

• Chemically bonded co-molded surround for a stronger attachment

• Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors

• Vented motor design with water-repelling nano coated mesh screen

• Injection molded mineral filled polypropylene cone body with UV inhibitors

• Provides superb low and midrange frequency reproduction with smooth high frequency roll-off

• Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof

• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals

• Deutsch™ connector front/rear silicone seal protects against water ingress

• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination

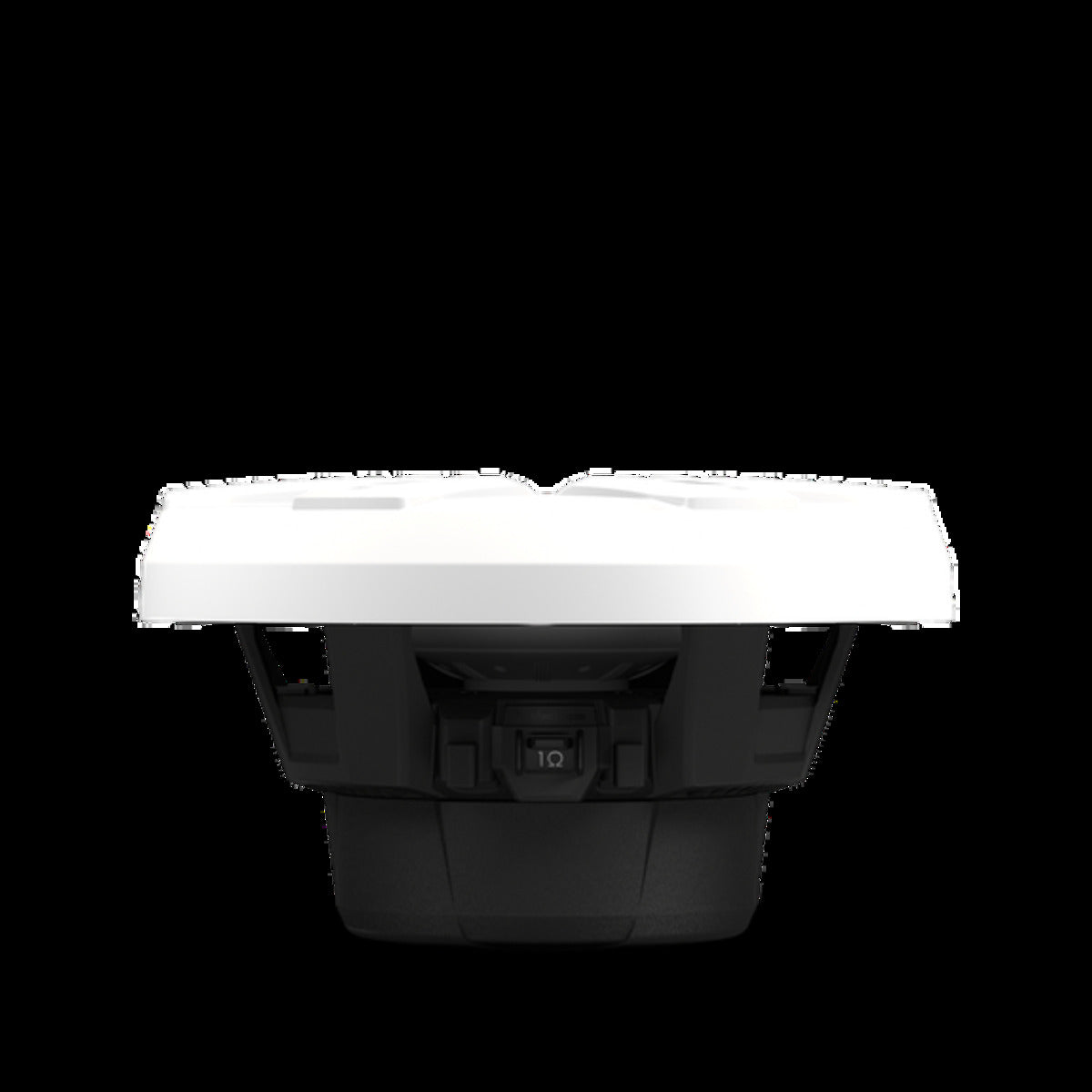

• Versa impedance switch quickly allows series or parallel configuration without additional wiring

• Fully insulated silicone tinsel leads

• 100% UV Stable Centrex plastic grill

• Optically clear UV stable RGB Lighting Encapsulation

• Gold plated marine grade brass terminals provide a corrosion resistant connection

• Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)

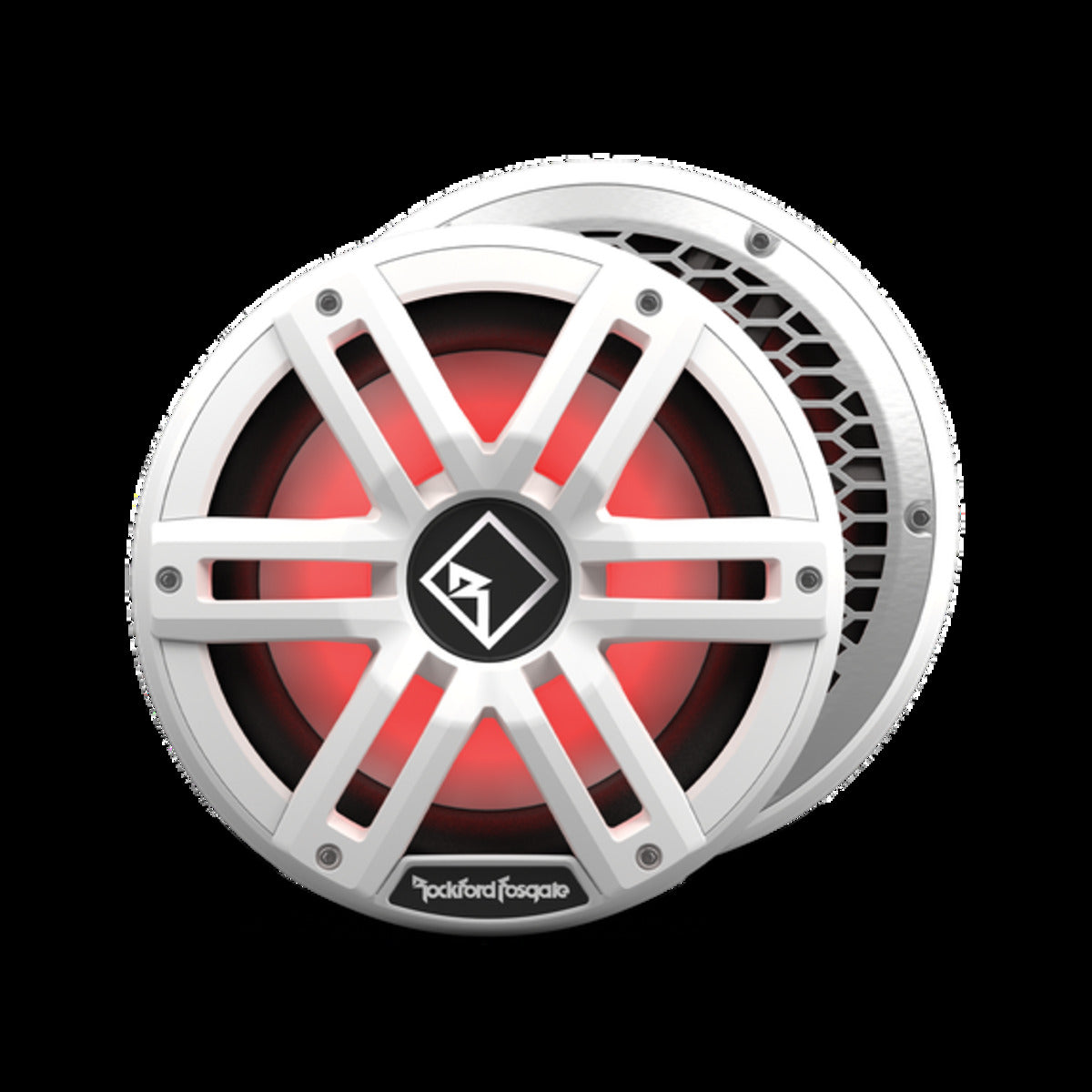

• 2-piece grille allows for interchangeable stainless-steel or "sport" option


Specification:

Size:10"
Voice Coil Type: Dual Voice Coil
Frequency Response: 22 Hz - 250 Hz
Nominal Impedance: (Ohms)1-Ohm or 4-Ohm Switchable
Power Handling: (Watts RMS)400 Watts RMS
1600 Watts: PEAK
Voice Coil Diameter: 2" (51 mm)
Magnet Weight (oz): 55.04 oz. (1.56 Kg)
Fs: (Hz)29
Re: (Ohms)3.4
Le: (mH)3.21
Sd: (cm2)363
Qms: 7.71
Qes: 0.56
Qts: 0.52
Vas: 25.0
SPL: (dB @ 1w/1m)83
Xmax: (mm)13
Speaker ConnectorDeutsch™: and 1/8" Spade
Sealed Box Volume (Vb): 0.5 cu. ft. (14.2 Liters) - 1.25 cu. ft. (35.4 Liters)
Cutout Diameter8.98": (228 mm)
Mounting Depth4.70": (119.35 mm)
Woofer Displacement: 0.047 cu. ft. (1.33 Liters)
Shipping Weight: 13.8 Lbs. (6.26 Kg)
