RLB Motorsports Chase Light LED Light Bar - San Felipe DIY-No Wire Harness Amber/White

RLB Motorsports Chase Light LED Light Bar - San Felipe DIY-No Wire Harness Amber/White

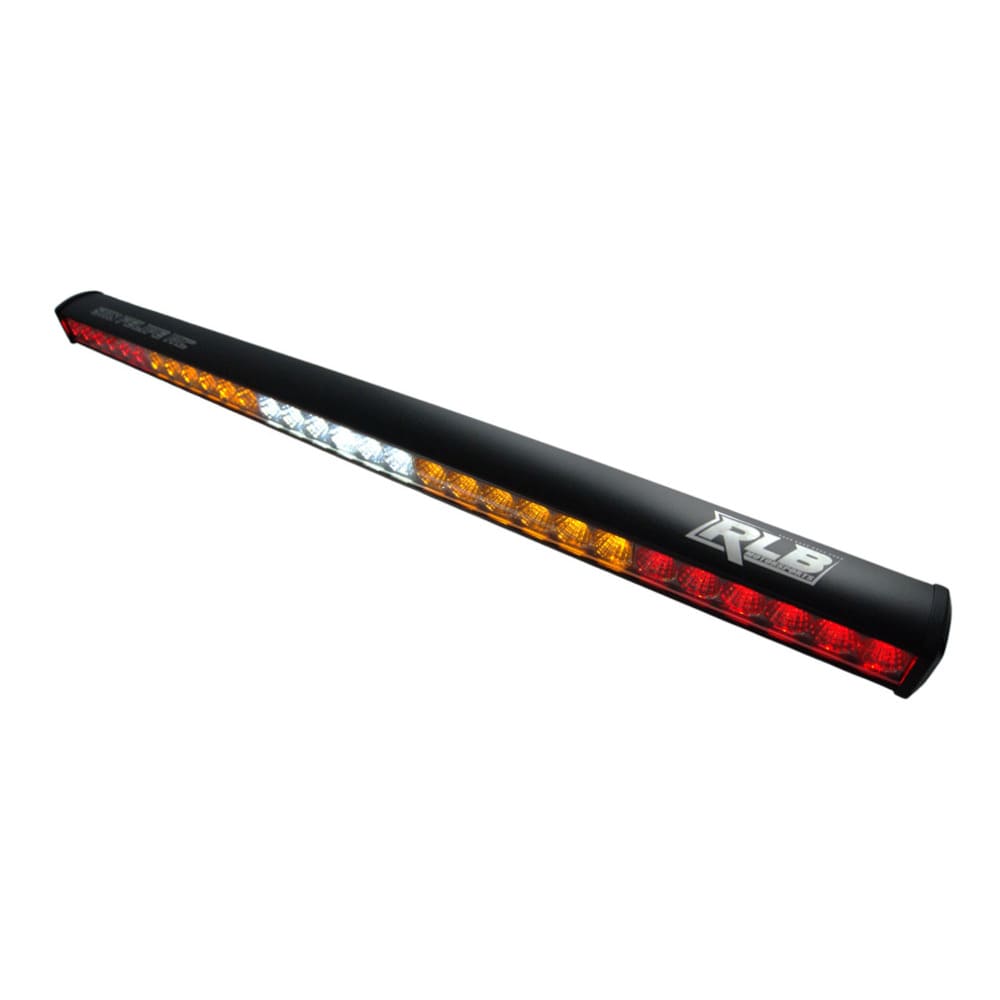

RLB Rear Chase Light LED light bar.

NOT PLUG& PLAY – NO WIRE HARNESS INCLUED

This LED chase light is made for the Do-It-Yourself racer and comes with no wire harness or rocker switch. Features include integrated RED running/brake lights with Amber dust lights and white center reverse/work lights. The LEDs are Amber with no strobing function and the white center LEDs can be wired on its own switch if desired. Blinker capable with any blinker kit.

Generally used on UTVs, trophy trucks, chase trucks, 2018 or older RZRs, Can-Ams, 6100 class, rock crawlers, Jeeps, overlanders and pick-up trucks.

Features:

• RUNNING/BRAKE LED LIGHTS: Blinker capable with any blinker kit (sold separate)
• LED: AMBER/WHITE

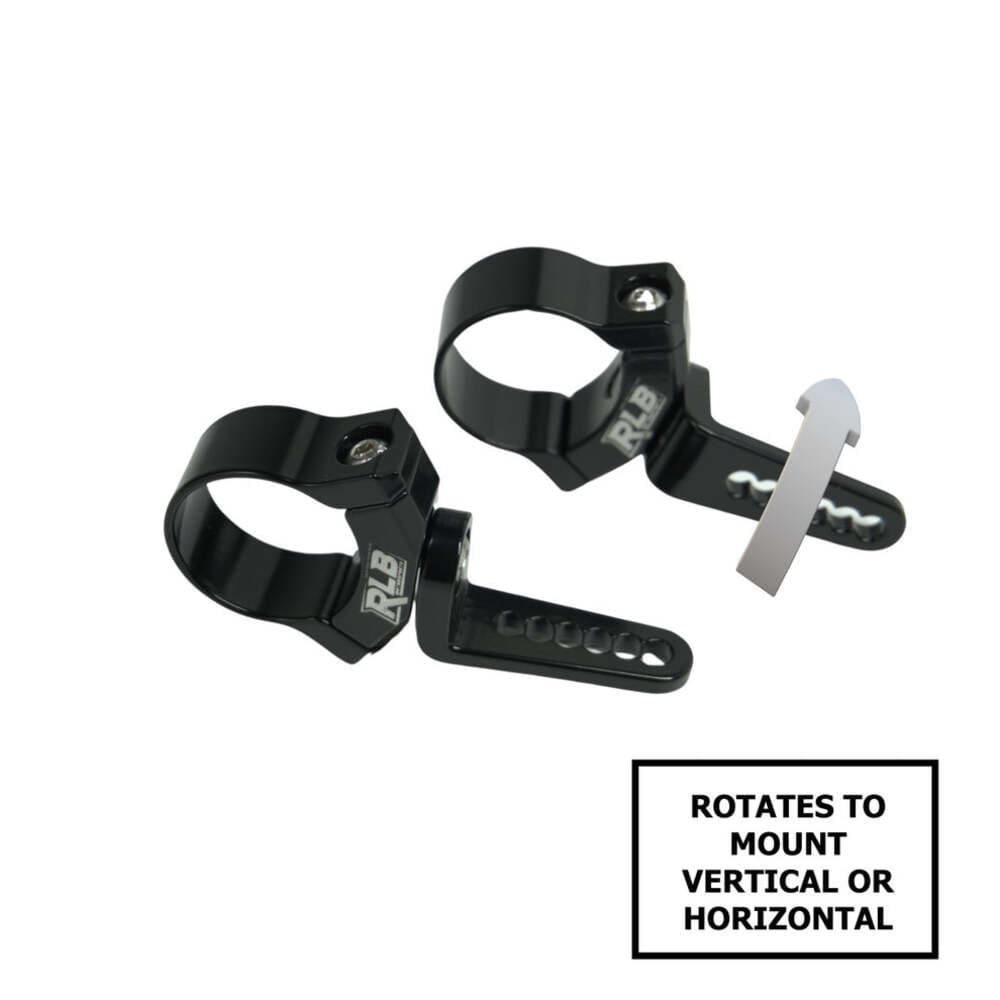

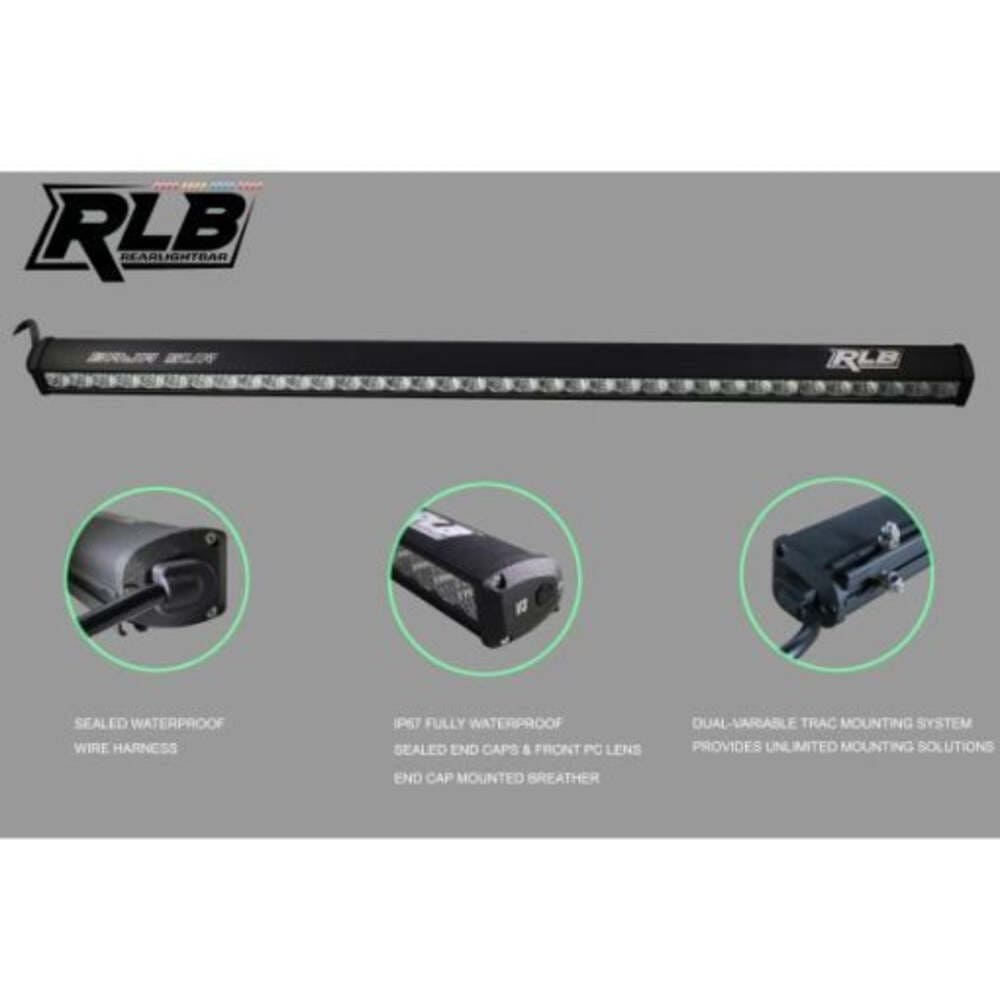

• DUAL VARIABLE TRAC-MOUNTING-SYSTEM: 2 mounting slots run the full-length of light bar; 1 vertical (back side of housing) 1 horizontal (bottom of housing)
• PLUG & PLAY FOR ALL POLARIS RZR MODEL UTVs – NO EXTERNAL RELAY NEEDED
• BUILT-IN OVERVOLTAGE PROTECTION


Specifications:

• LED COLOR: RED: 620-360NM AMBER: 585-595NM WHITE: 6500-7000K BLUE/GREEN: 520-530NM
• LED SOURSE: Epistar 1w LED
• LED LIFE: 50,000 hour life expectancy
• LENS: Hard Impact Resistant Polycarbonate
• HOUSING: Powder coated Aircraft Grade Aluminum
• IP Degree: IP67 Fully Waterproof Housing
• WIRING: Sealed GM Style Deutsch waterproof connectors
• HARDWARE: Stainless steel, mounting bolts included
• Universal for all12V power source systems

Full Power Consumption:

Dimensions:

36”: 36 Watt 36″L x 1.750″H x 2.125″D

30”: 30 Watt 30″L x 1.750″H x 2.125″D

22”: 22 Watt 22″L x 1.750″H x 2.125″D

18”: 18 Watt 18″L x 1.750″H x 2.125″

Instructions:
