MTX Audio Bluetooth Media Controller Package With Amplifier & 2 Roll Cage Speaker

MTX Audio Bluetooth Media Controller Package With Amplifier & 2 Roll Cage Speaker

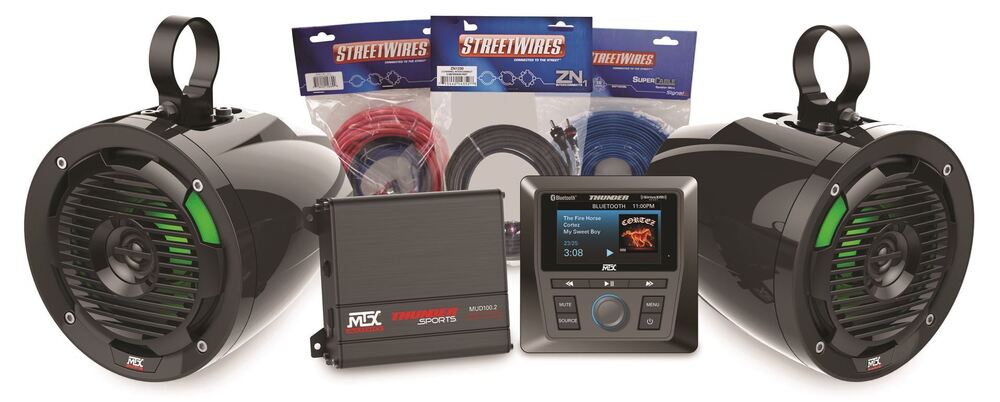

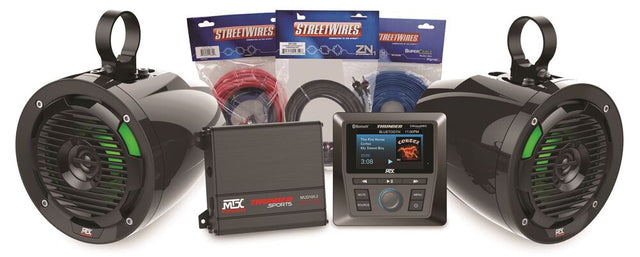

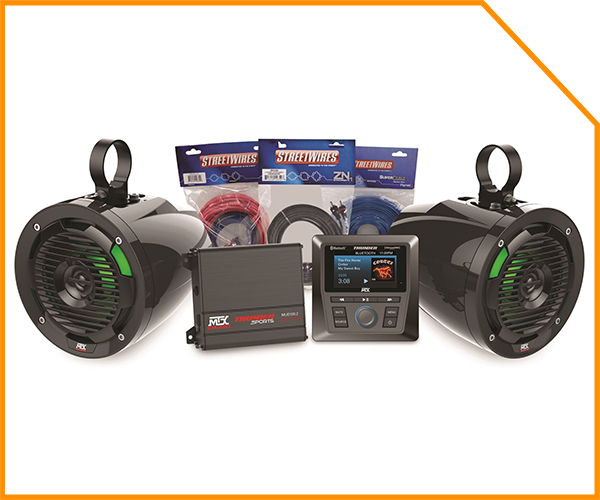

The UNI-1-AWMC3 is a package that includes everything you need to take your UTV, sand rail, Jeep, or whatever to the next level in sound. The AWMC3 is a media controller that includes Bluetooth, AM/FW/WB, Auxiliary input, and SiriusXM® ready connectivity. The large 3" color screen is bright and easy to read and the soft touch control buttons are easy to push even when wearing a glove. The kit also includes the MTX MUD100.2 which is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 100-watts of RMS power per channel at 2Ω, perfect power for driving the included all-weather speakers, one per channel. The two MUD65PL roll cage speakers can project amazing sound to get you rocking big time. Crank them up in your UTV and enjoy the ride.

AWMC3 Key Features:

• 3" Full Color TFT Display
• SiriusXM-Ready™ (SiriusXM Connect Vehicle Tuner and Subscription Sold Separately)
• AM / FM / WB Tuner
• Bluetooth® Audio Streaming
• Internal 4 x 50 Watt Power Amplifier
• AUX Input
• USB Charging
• iPhone® - Unit Will Charge and Play Music Through USB*
• Android® - Unit Will Charge, but Will Not Play Music Through USB
• Unit Will Play Music and Display Album Artwork Using a USB Memory Stick (.mp3)
• Weather Resistant (IP66)
• Selectable EQ
• 2 Sets of Preouts (Front / Rear)
• Backlit Control Buttons

MUD65PL Key Features:

• Weather Resistant 6.5" Speaker Pods
• Fits Bars with Diameters of 1.75", 1.85", and 2"
• Internal Crossover Network
• ABS Impact Resistant Grille with UV Inhibitor
• Integrated RGB Lighting
• Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)

MUD100.2 Key Features:

• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 200-Watts RMS Power

Wiring Included:

• PS1K-10 Power Kit for Connecting Amplifier to the Battery
• ZN1230 Stereo Cable for Connection of the AWMC3 to the Amplifier
• SCP1850BL 18-Gauge Speaker Wire for Connecting MUD65PLs to Amplifier

Support Files:

Owners Manual	MTX004785 MUD100_2 Owner’s Manual REVB (28 Pages)	View | Download
Owners Manual	AWMC3 Owners Manual (16 Pages)	View | Download
Owners Manual	MTX005835B MUD65pl Owners Manual (8 Pages)	View | Download

Specifications:

Media Controller
Power Output	50-Watts X 4 @ 2ω
Line Output Impedance	10Kω
Line Output	2V
Height	4-5/16” (109.54mm)
Width	4-5/16” (109.54mm)
Depth	4-1/4” (107.95mm)
Cut Out Size	3” (77MM)
Amplifier
Description	2-Channel
4ω RMS Power Output	50W X 2 Channels
2ω RMS Power Output	100W X 2 Channels
1ω RMS Power Output	NA
Topology	Full Range Class D
THD	<1.0%
Frequency Response	20HZ - 20KHZ
Cross Over	Fixed HPF/LPF @ 80HZ, 12DB/Oct
Max Sensitivity	200MV
Maximum Input Signal	5V
Dimensions	4.65” X 5.71” X 1.61”
Speaker
Speaker Size	6.5”, 2-Way
Sensitivity	86DB
Frequency Response	70HZ-20KHZ
Dimensions	9.34” X 7.09” X 8.76”
