MTX Audio 200-Watt 2 Channel RMS Class A/B Marine Amplifier

MTX Audio 200-Watt 2 Channel RMS Class A/B Marine Amplifier

WET Series amplifiers from MTX Audio are designed to deliver all the power your system needs whether they are being used on a boat, bike or off-road vehcile.

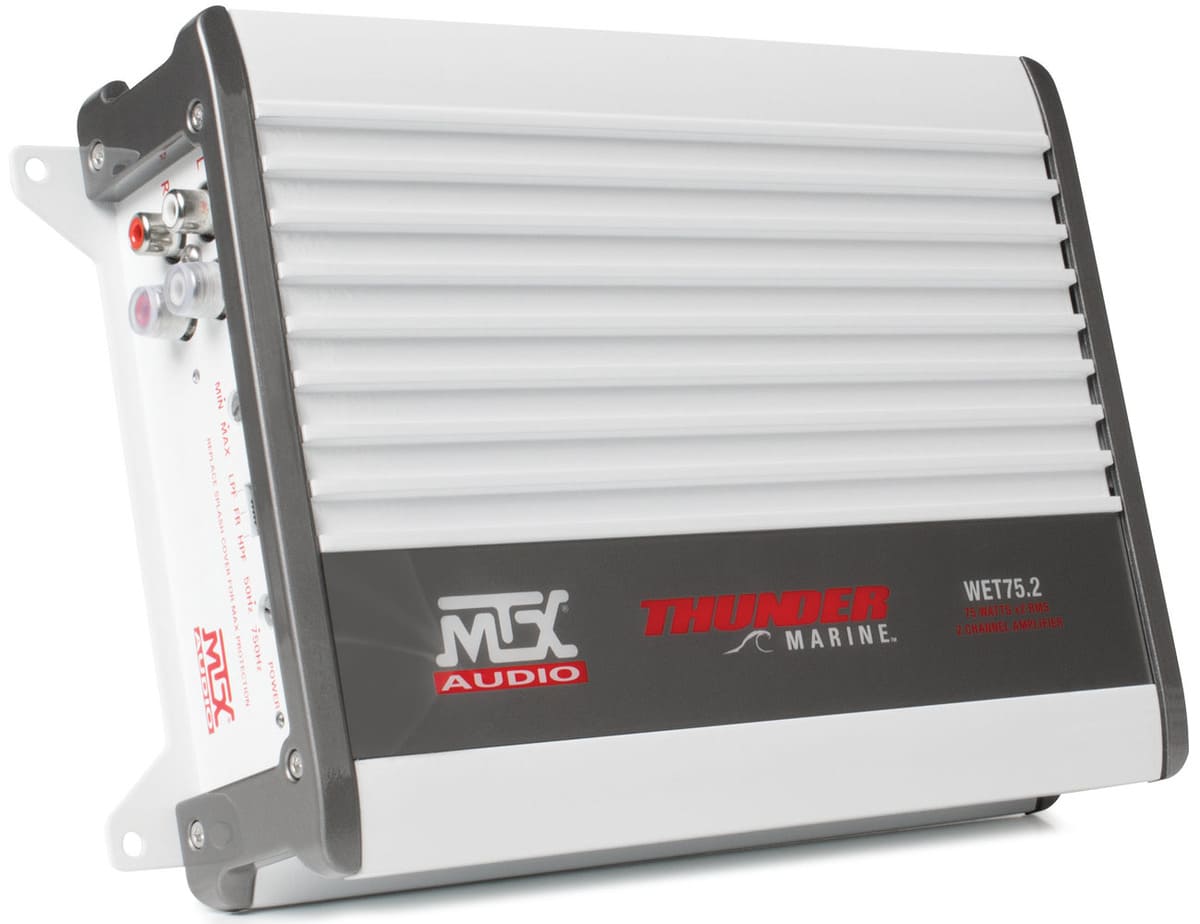

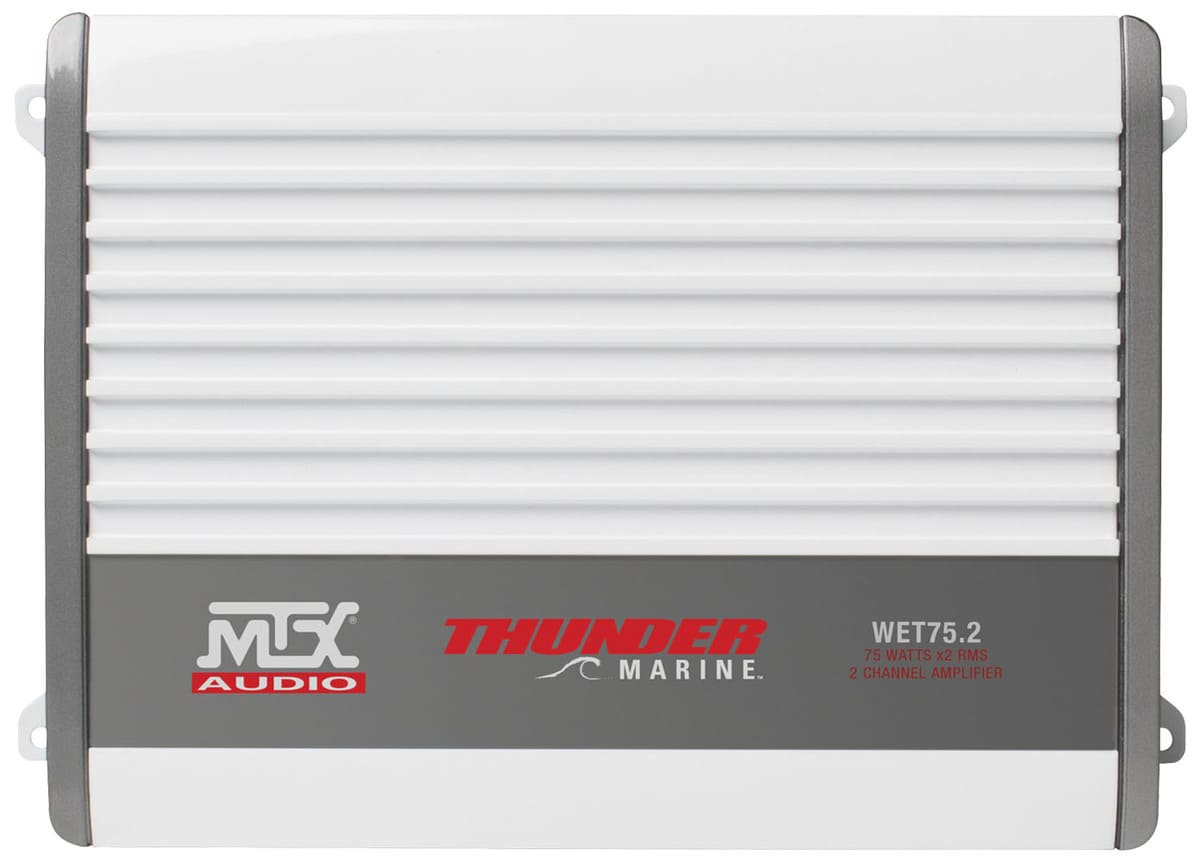

The WET75.2 is a 2-channel full range amplifier. This rocking amp is capable of producing up to 200W total RMS power, 100 watts per channel. The unit features a a class A/B circuit design that delivers exceptional sound quality and small chassis with an extruded heat sink that effectively dissipates heat ensuring long play times.

Powerful and Compact: The WET75-2 is a 2-channel full-range amplifier designed to deliver an impressive 200 watts of RMS power (100 watts per channel) to drive your speakers with clarity and depth. Its compact size and extruded heat sink provide efficient heat dissipation, ensuring reliable performance over long listening sessions.

Durable Design for Harsh Environments: Built to withstand challenging conditions, the WET75-2 features a surface mount design that securely attaches critical components to the circuit board, enhancing resistance to vibration. This design is complemented by stainless steel hardware and rubber gaskets around the RCA connectors, ensuring durability and maintaining performance under tough conditions.

Moisture Resistant for Reliable Use: The WET75-2 amplifier is engineered to handle moisture with a conformal-coated circuit board, making it resistant to water and humidity. Additionally, plastic covers over control adjustments add extra protection, ensuring your amplifier operates smoothly even in damp environments.

Features:

• Small Chassis
• Conformal Coated Circuit Board
• Surface Mount Technology
• Variable Crossover
• Stainless Steel Hardware
• Rubber Gaskets Around RCA Connectors
• Plastic Cover Over Control Adjustments

Specifications:

• Description: 2-Channel
• 2Ω RMS Power Output: 100 Watts x 2 Channels
• 4Ω RMS Power Output: 75 Watts x 2 Channels
• Signal to Noise Ratio: 80dB
• Topology: Class A/B
• THD: <1%
• Frequency Response: 15Hz - 25kHz
• Crossover: Variable High @ 10Hz - 200Hz, 12dB/Oct
• Subsonic Filter: NA
• Max Sensitivity: 200mV
• Maximum Input Signal: 5V
• Height: 2-1/4"
• Width: 7-7/8"
• Depth: 6-3/8"

Installation Instructions:

• MTX004714B-WET-Series-Owners-Manual.pdf
