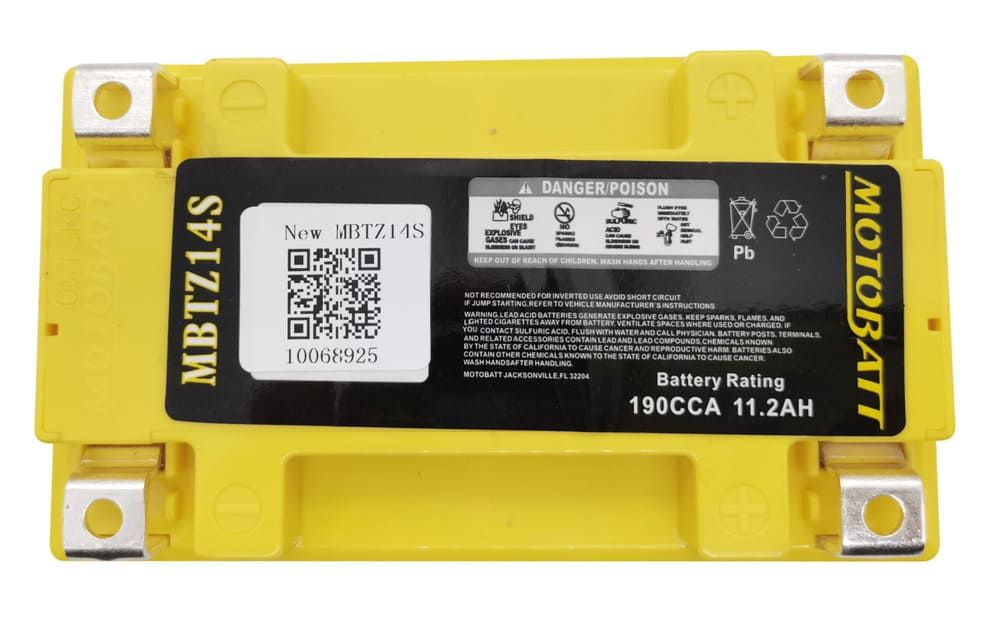

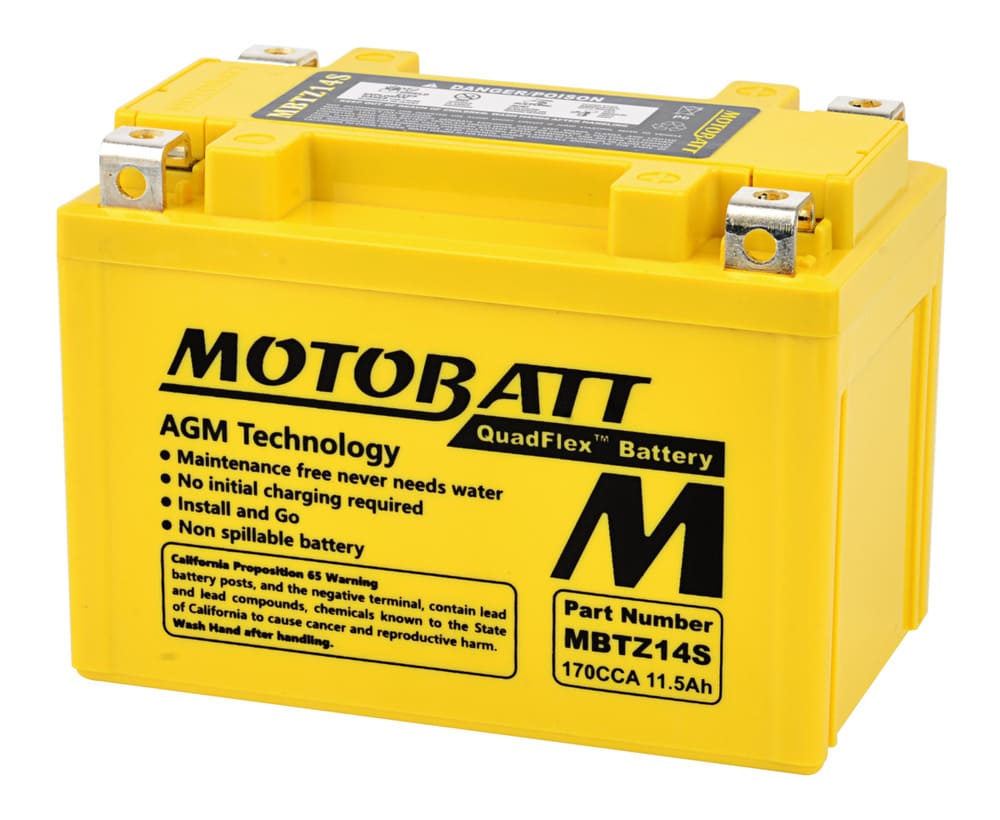

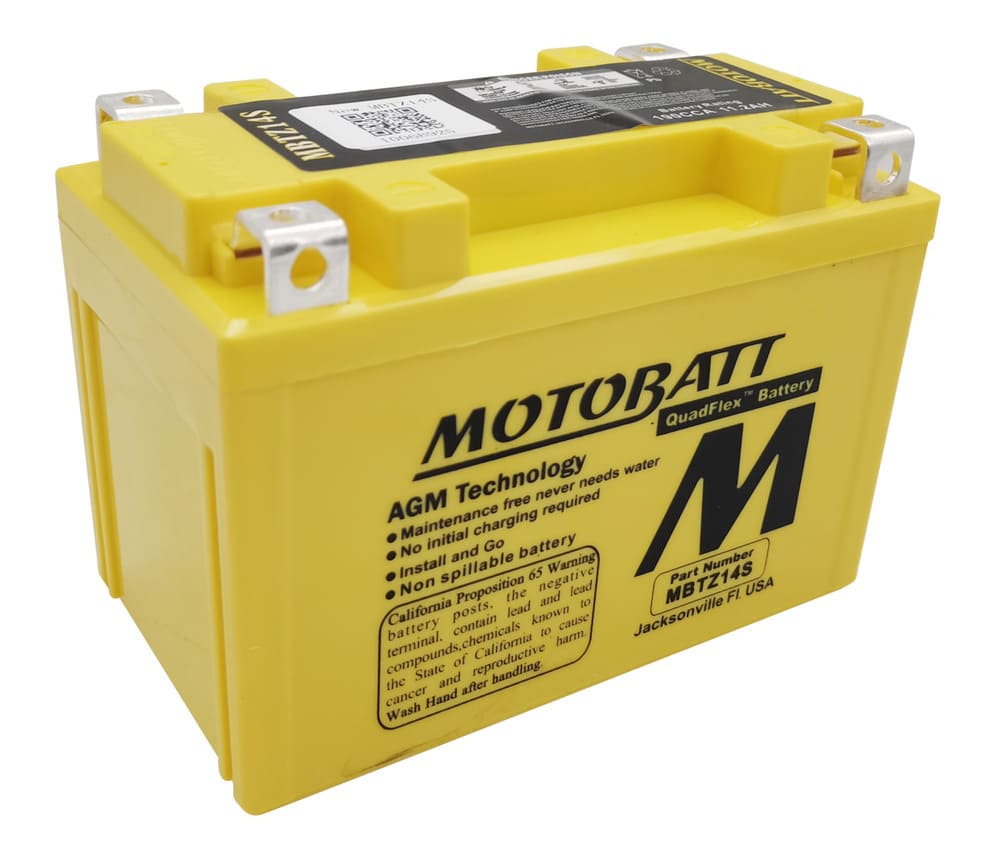

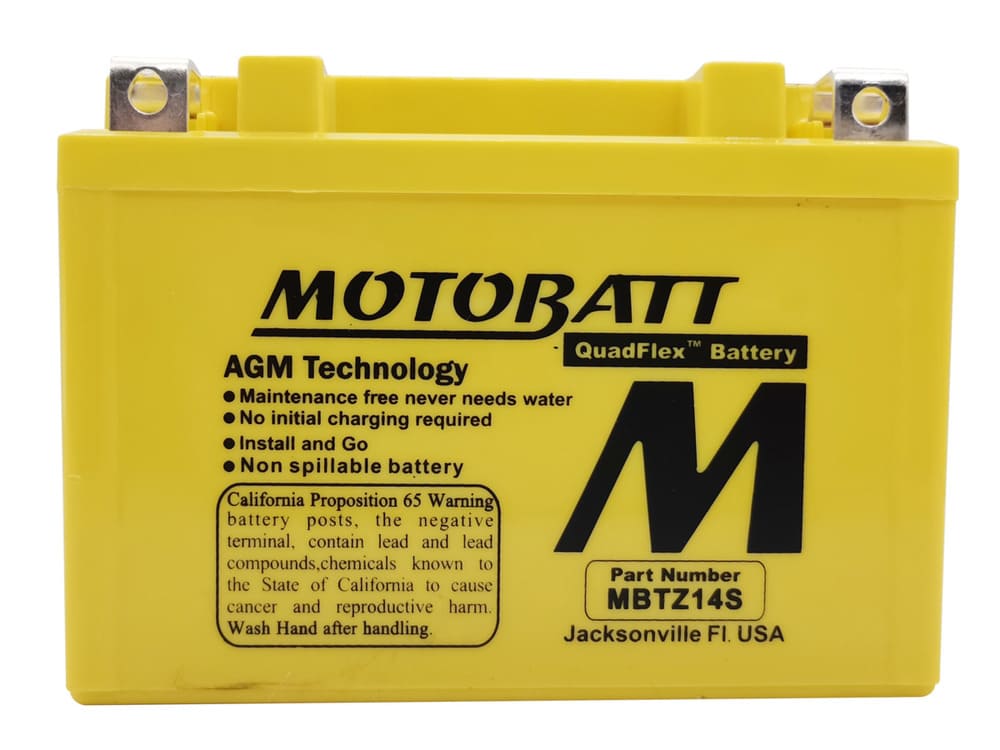

Motobatt 12V AGM Battery - MBTZ14S

Motobatt 12V AGM Battery - MBTZ14S

Motobatt Quadflex offers the best balance between AH (ampere hours) and CCA (Cold Cranking Amps -18C). Achieving this by increasing the size of the internal plates, by utilizing the unused space found in other batteries. This is made possible through our world wide patented innovated cell connection system. Additionally, we enhance the thickness of the grid, the density of the paste, and the weight (content) of the active material to maximize the capacity allowed by its size. Revolutionary to the Battery Market.

Features:

• Power Experience up to 30% more capacity and power with the same size as competitor batteries, thanks to its exclusive design
• Safe No need to add acid and risk any accidental spillages
• Durable Thanks to its technology and high quality AGM it is extremely resistant to vibrations or weld breakages
• Maintenance Free Fully sealed and factory activated, it requires no maintenance other than keeping it charged in storage
• Ready to go With a voltage of over 12.5V the battery is ready to use right away
• New improved solid mounted terminals with threaded inserts

Replaces:

• Yuasa YTZ12S, YTZ14S

• DEKA ETZ14S

• WPS 491-1010

• Cub Cadet 725P17335
• Part Number 725P17335 Replaces Prior MPN CMXGZAM280017 725-17335 490-280-Y017

• Cub Cadet: XT1-GT54 Fab, XT1-LT42, XT1-LT42B, XT1-LT46, XT1-LT50 Fab, XT1-ST54 Fab, XT2-GX50 Fab, XT2-GX54D Fab, XT2-LX42 Fab, XT2-LX46 Fab, XT2-SLX50 Fab, XT2-SLX54 Fab, ZT1-42, ZT1-42 Fab, ZT1-46 Fab, ZT1-50 Fab, ZT1-54 Fab, ZT1-54P Fab, ZT2-50 Fab, ZT2-54 Fab, ZT2-60 Fab, ZT3-60 Fab, ZTS1-42 Fab, ZTS1-46 Fab, ZTS1-50 Fab, ZTS2-50 Fab, ZTS2-54 Fab, ZTS2-60 Fab, ZTX4-48 Fab, ZTX4-54 Fab, ZTX4-60 Fab, ZTX5-48 Fab, ZTX5-54 Fab, ZTX5-60 Fab, ZTX6-54 Fab, ZTX6-60 Fab, ZTXS4-48 Fab, ZTXS4-54 Fab, ZTXS4-60 Fab, ZTXS5-54 Fab, ZTXS5-60 Fab, ZTXS6-60 Fab

• Ultima ZT1 ZT2 ZTS1 ZTS2 ZTX4 ZTX5 ZTX6

Instructions:

• Motobatt spec-MBTZ14S.pdf

Specifications:

Battery Type	MBTZ14S
Voltage	12
CCA	190
MCA	255A
PHCA	435A
Capacity (10HR)	11.5Ah, C20 12.2Ah
Weight	3.54kg / 7.81Ibs

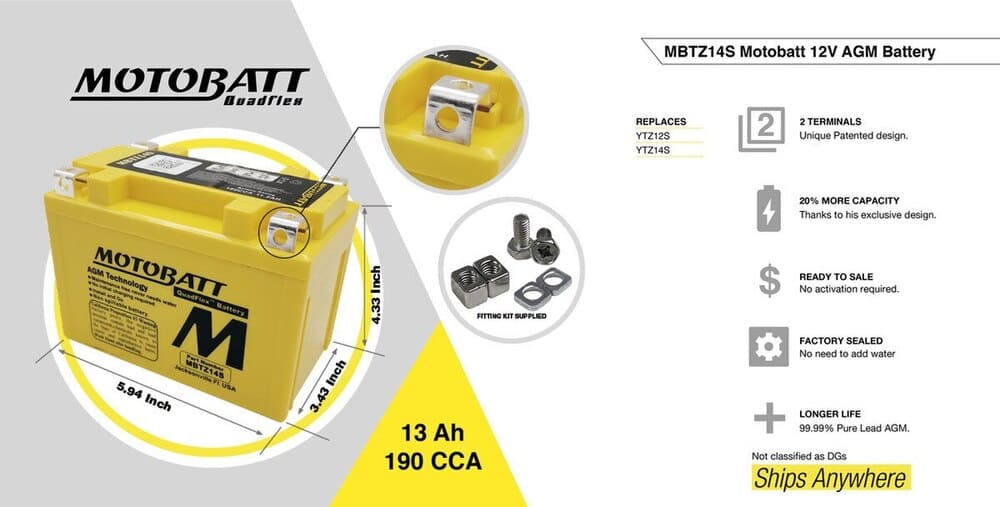

Dimensions (in / mm)	L: 5.94(151) W: 3.43(87) H: 4.33(110) TH:4.33(110)
Assembly Figure Terminal Locations	4
Terminals	2x Blocknut M6 (PART MPN2)
Screws	2x Screws M6x12 (PART MPS4)
Terminal Caps	2, Black, 2 Red (PART MPC3)
