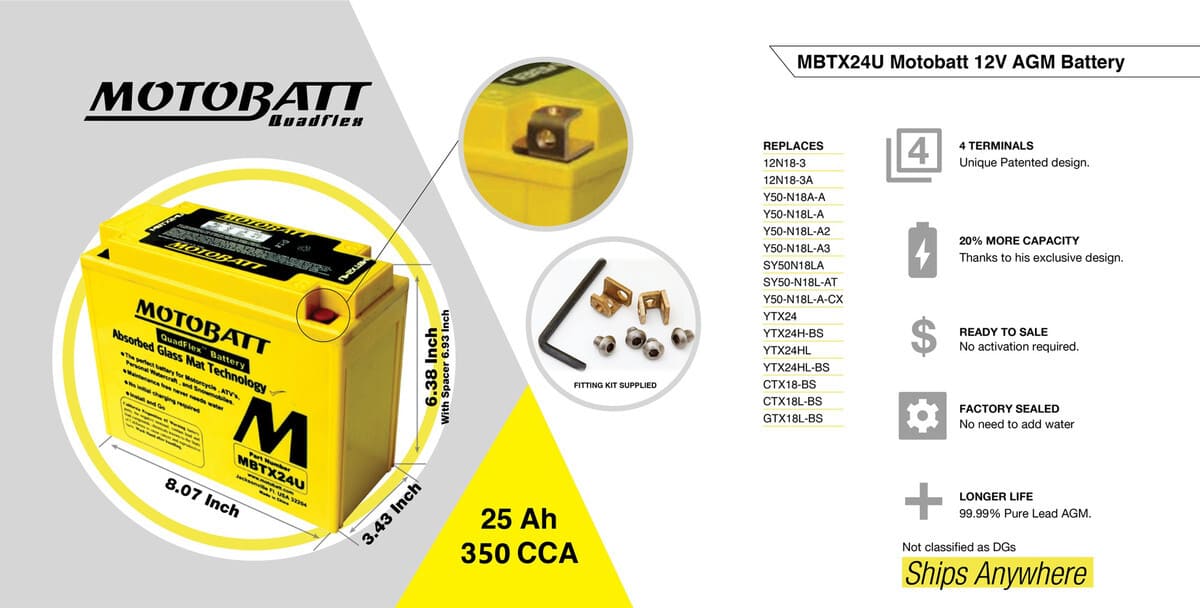

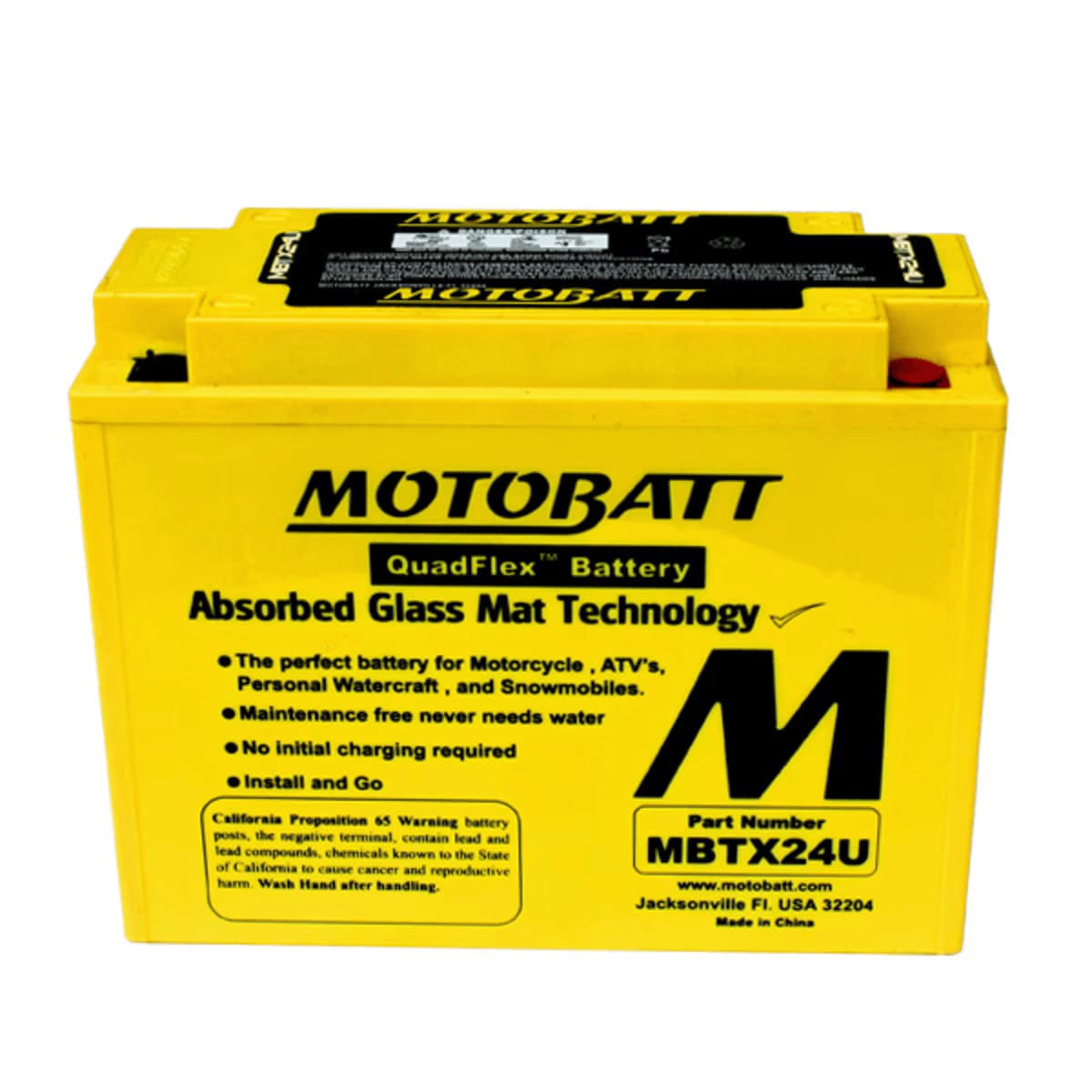

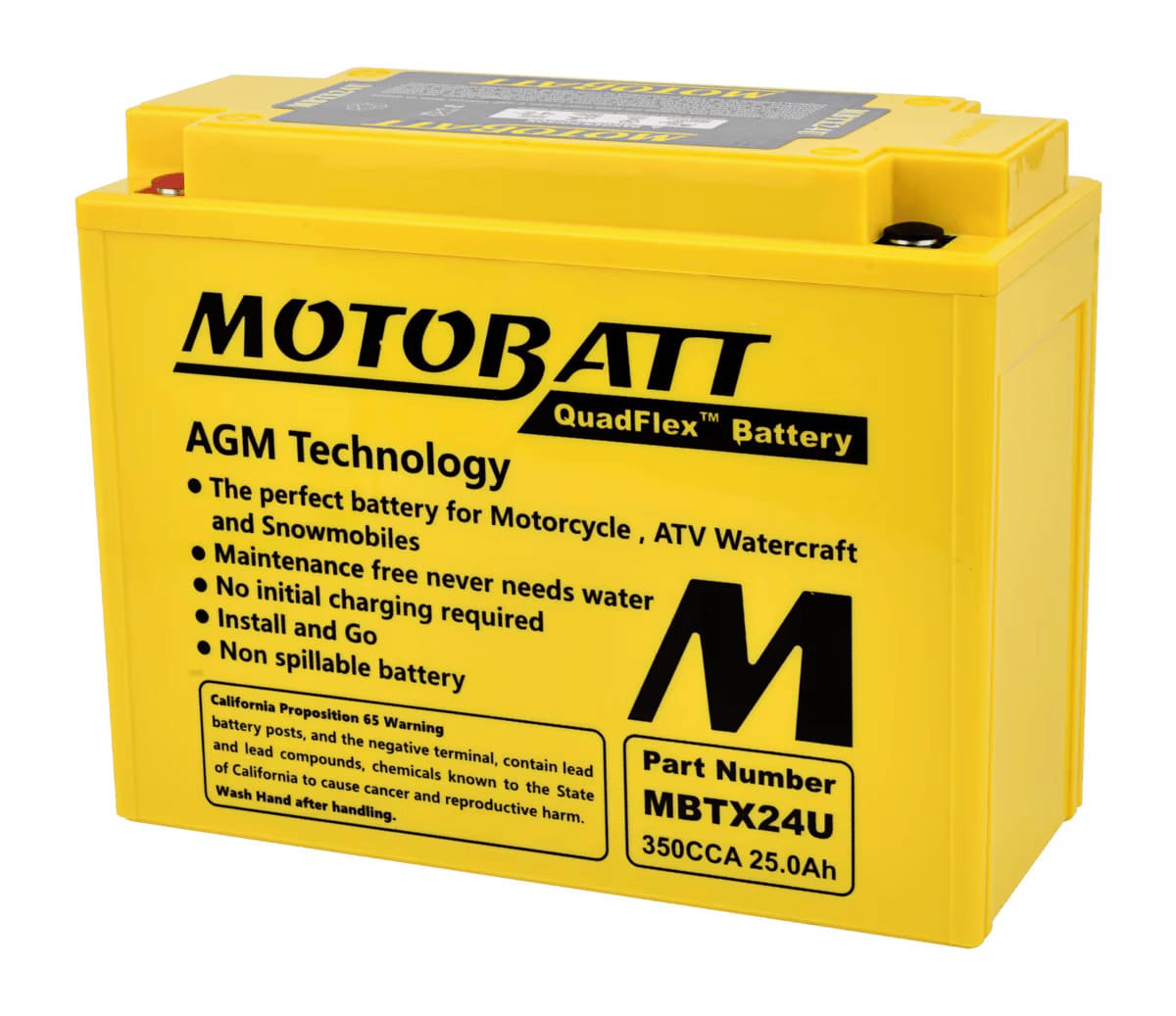

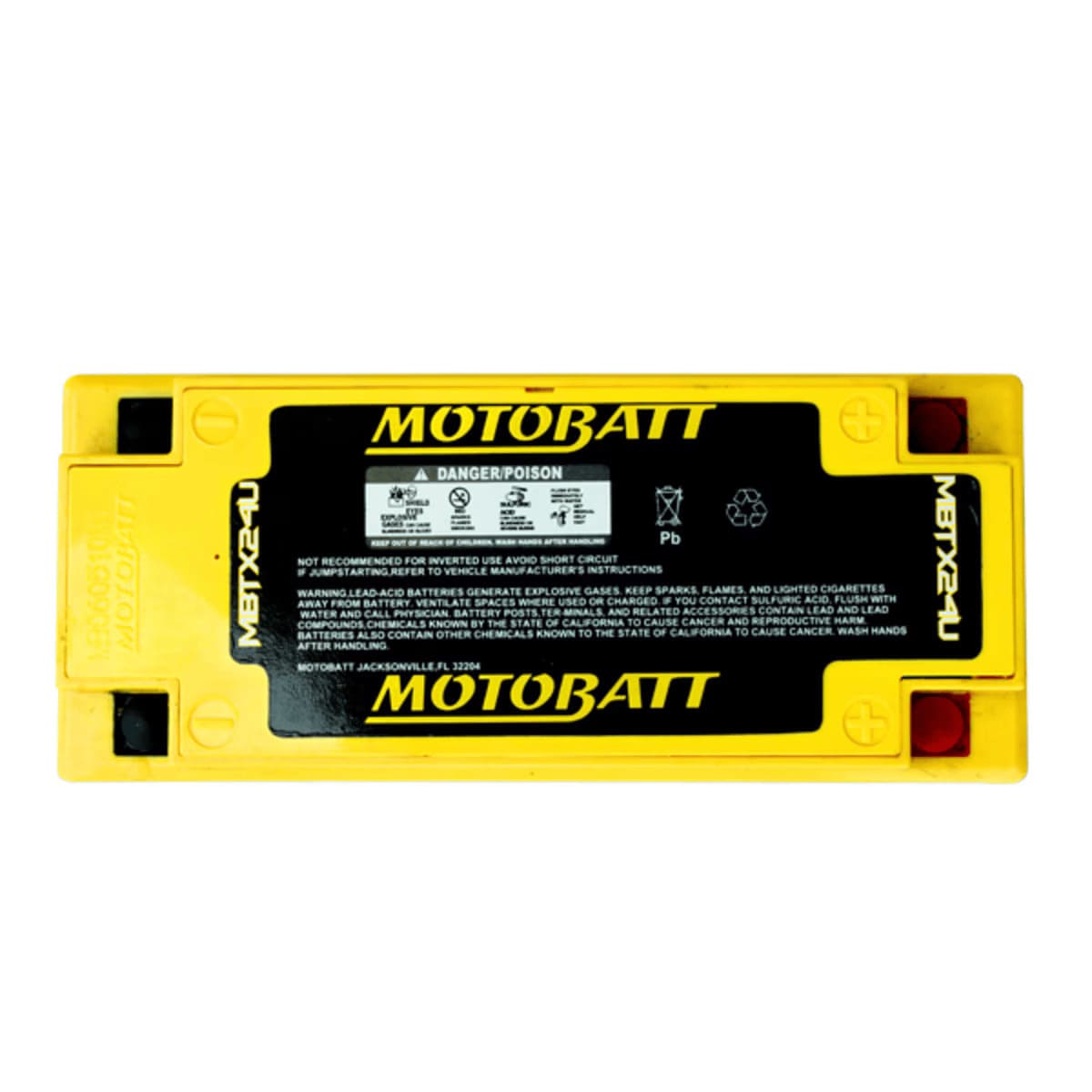

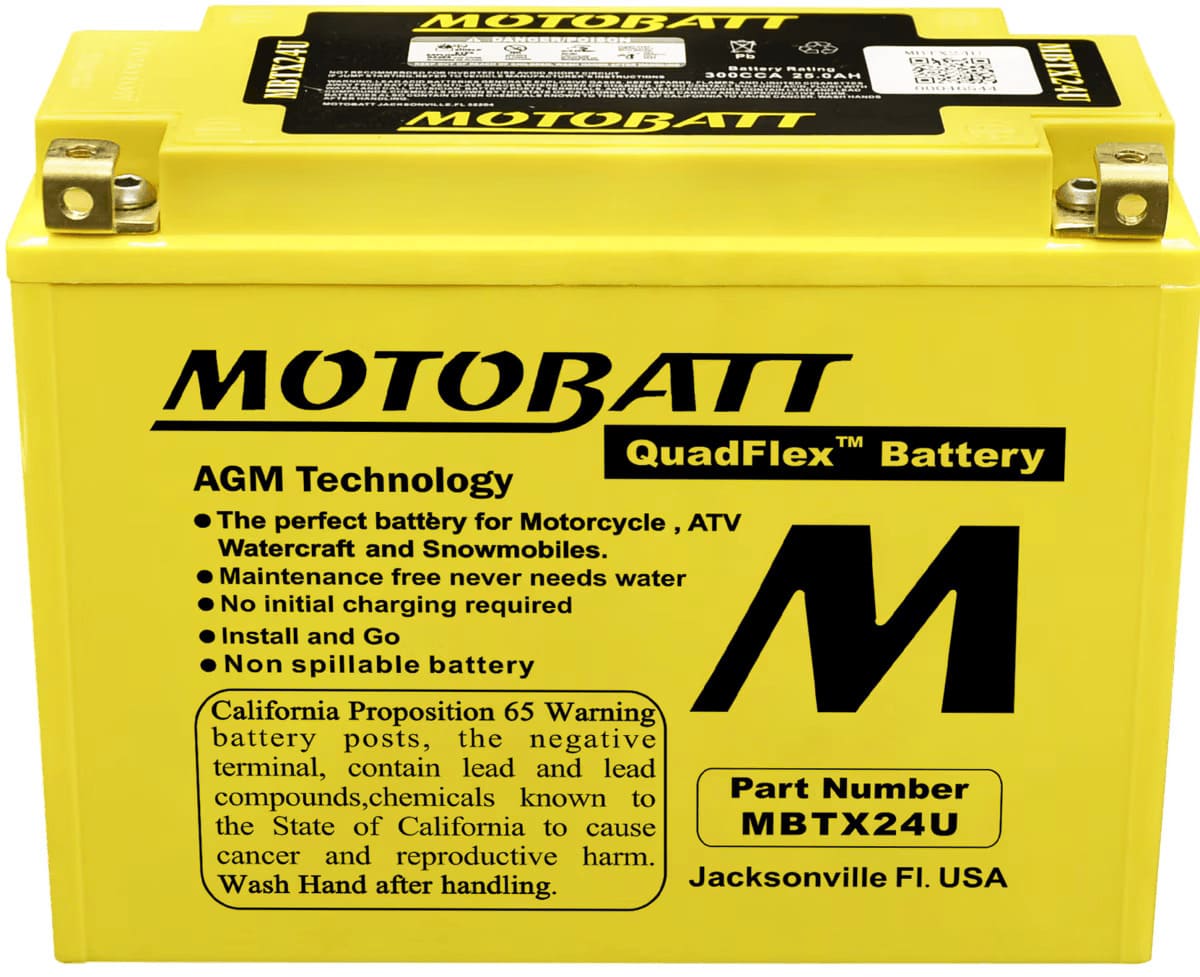

Motobatt 12V AGM Battery - MBTX24U

Motobatt 12V AGM Battery - MBTX24U

Motobatt Quadflex offers the best balance between AH (ampere hours) and CCA (Cold Cranking Amps -18C). Achieving this by increasing the size of the internal plates, by utilizing the unused space found in other batteries.

This is made possible through our world wide patented innovated cell connection system. Additionally, we enhance the thickness of the grid, the density of the paste, and the weight (content) of the active material to maximize the capacity allowed by its size. Revolutionary to the Battery Market.

Features:

• Power Experience up to 30% more capacity and power with the same size as competitor batteries, thanks to its exclusive design

• Safe No need to add acid and risk any accidental spillages

• Durable Thanks to its technology and high quality AGM it is extremely resistant to vibrations or weld breakages

• Maintenance Free Fully sealed and factory activated, it requires no maintenance other than keeping it charged in storage

• Ready to go With a voltage of over 12.5V the battery is ready to use right away

• New improved solid mounted terminals with threaded inserts


Replaces:

• Yuasa YTX18BS, YTX18LBS, GTX18LBS, Y50N18AA, Y50N18LA, Y50N18LA2, Y50N18LA3, Y50N18LACX, SY50N18LA, SY50N18LAT, YTX24HLBS, YTX24HL, 12N183, 12N183A

• DEKA ETX18L

• WPS 491-1018

Installation Instructions:

• Motobatt spec-MBTX24U.pdf


Specifications:

Battery Type	MBTX24U
Voltage	12
CCA	350
MCA	426A
PHCA	614A
Capacity (10HR)	25Ah, C20 26.5Ah
Weight	7.45kg / 16.44Ibs
Dimensions (in / mm)	L: 8.07(205) W: 3.43(87) H: 6.38(162) TH: 6.93(176)
Assembly Figure Terminal Locations	4
Terminals	2, M6x2.5 (Part#MPT2)
Screws	4, M6X7 (Part#2xMPS2)
Allen Wrench	1, 4x4 (Part#MPAK2)
Terminal Caps	4, 12x5.5 (Part#2xMPC2)
Spacer	1, 14mm Bottom (Part#MPBS8)
