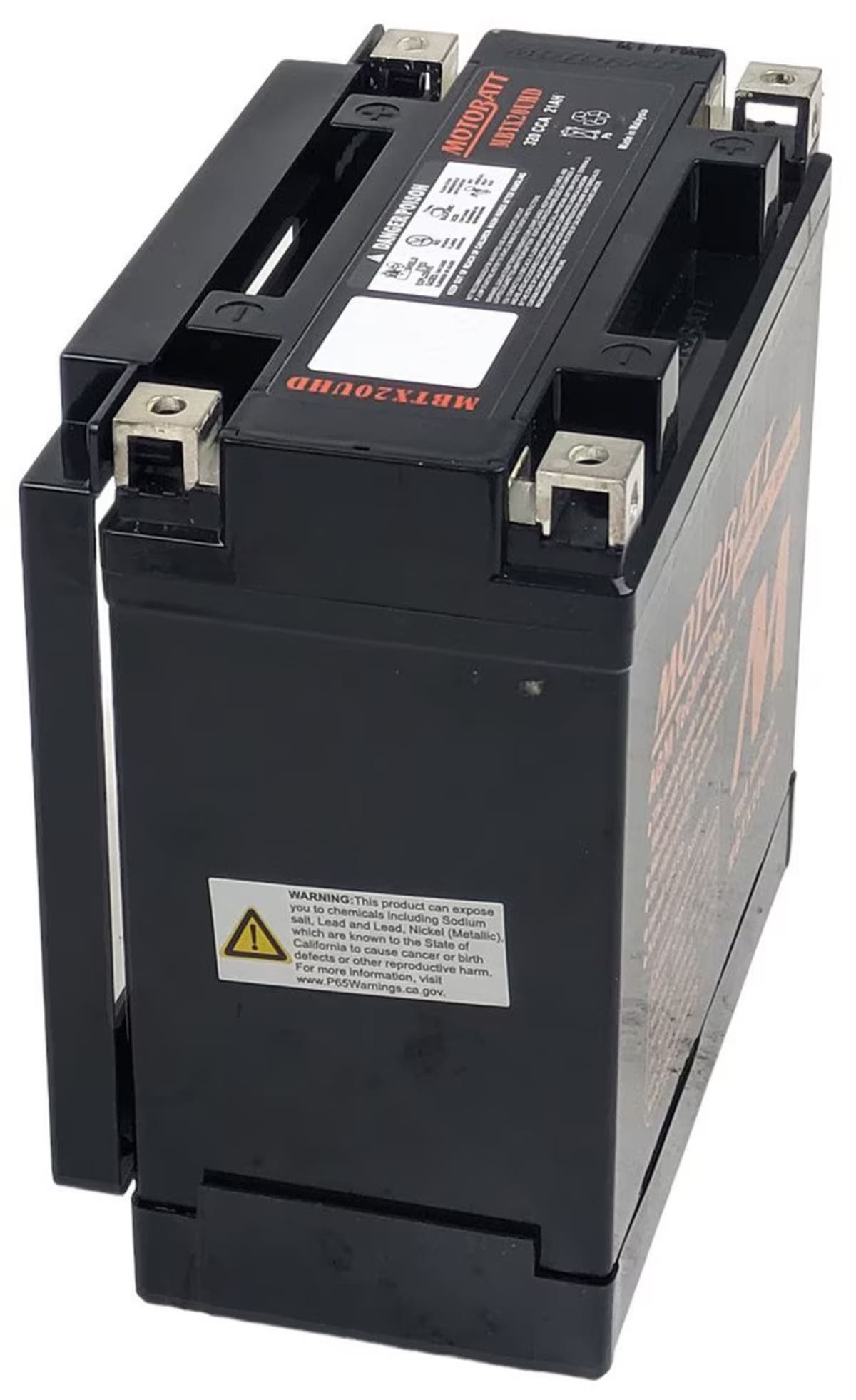

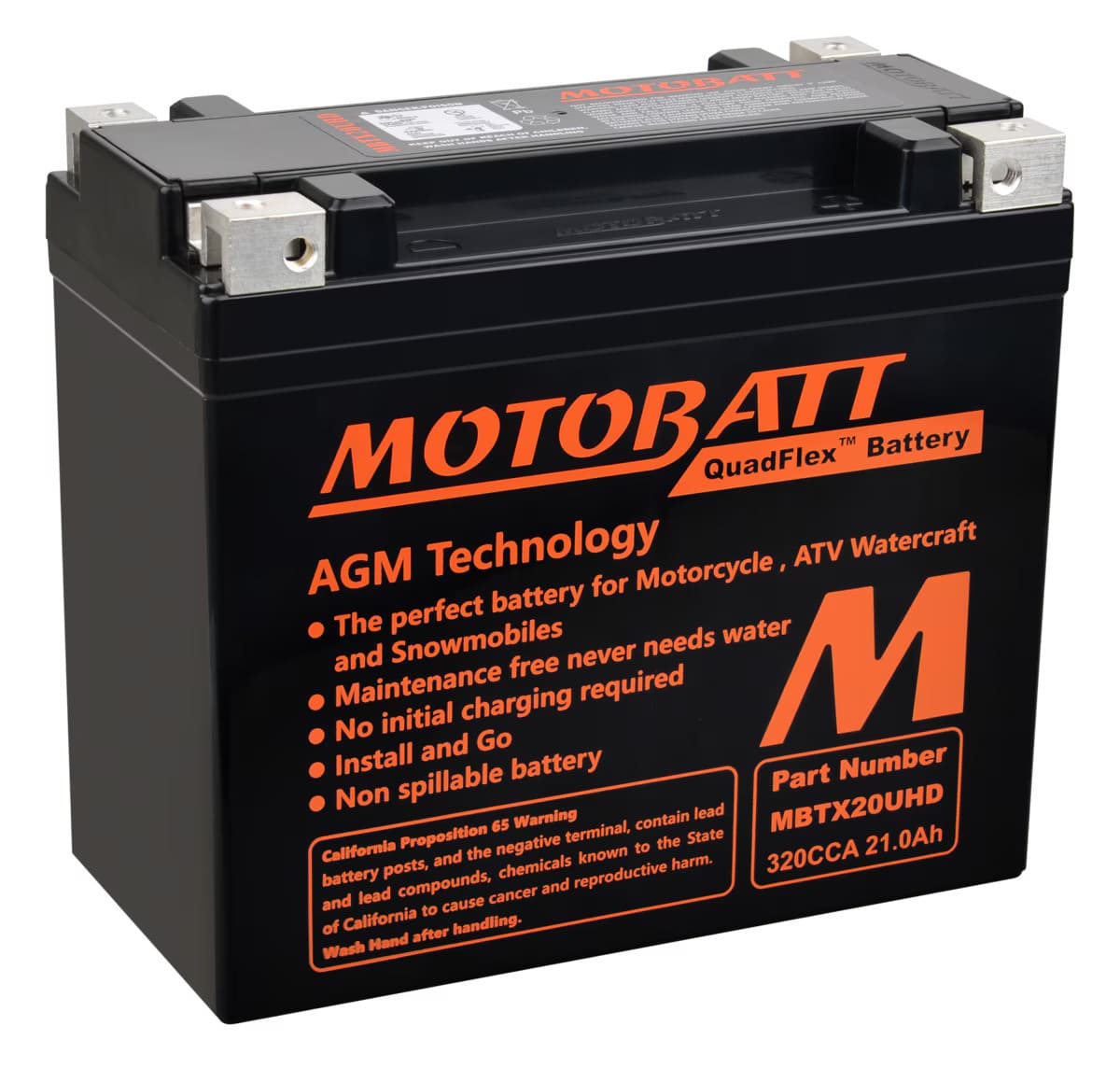

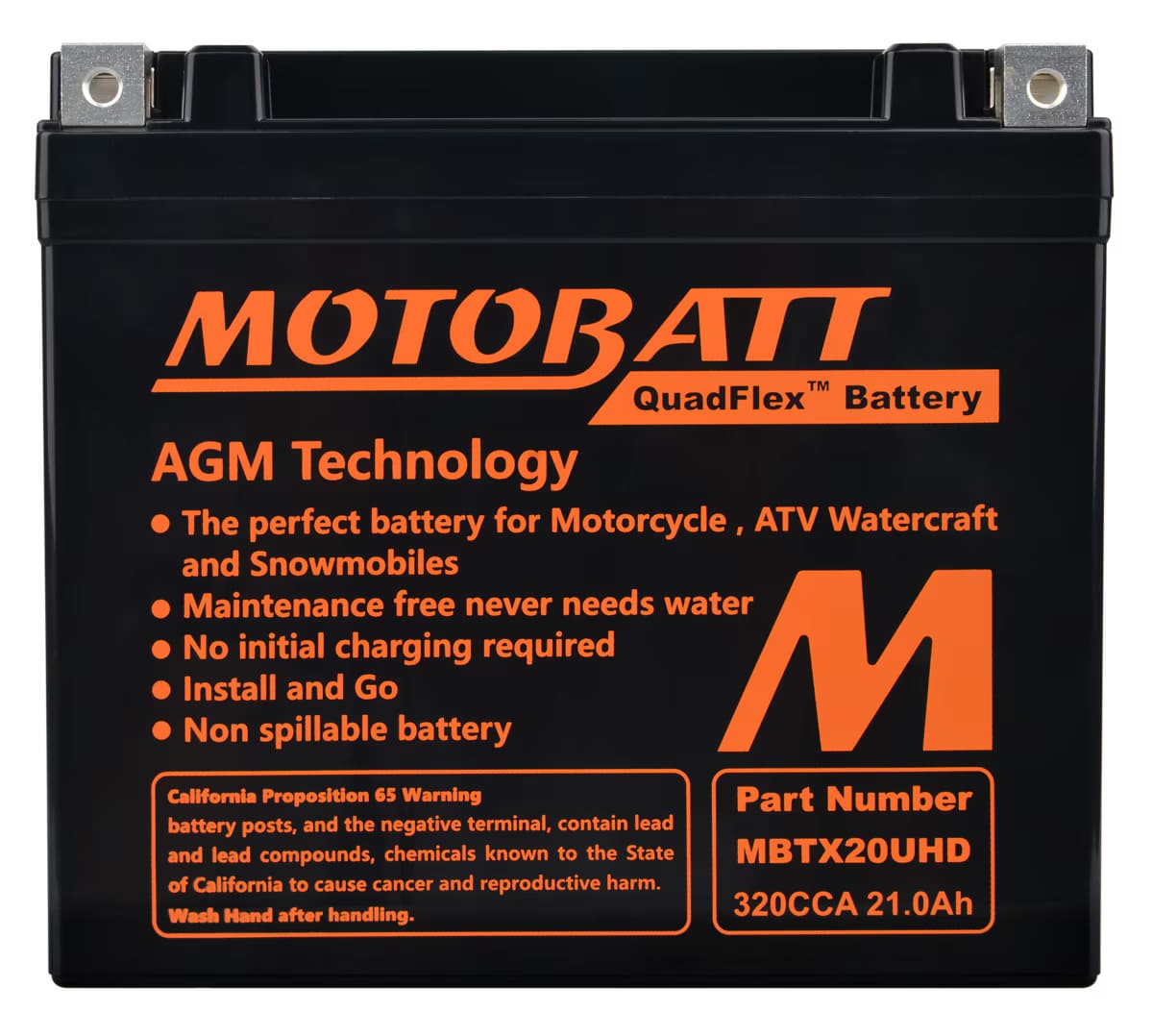

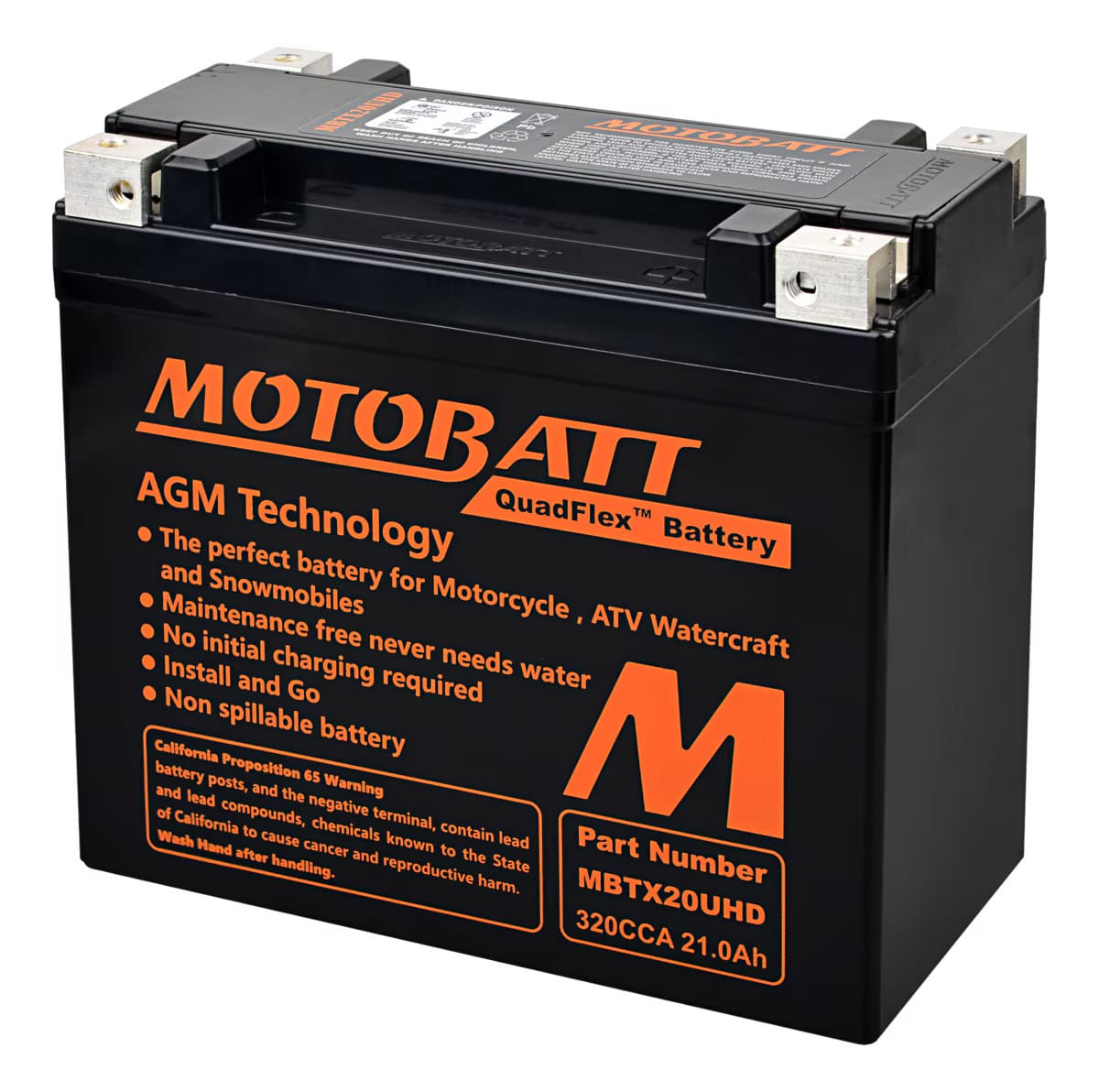

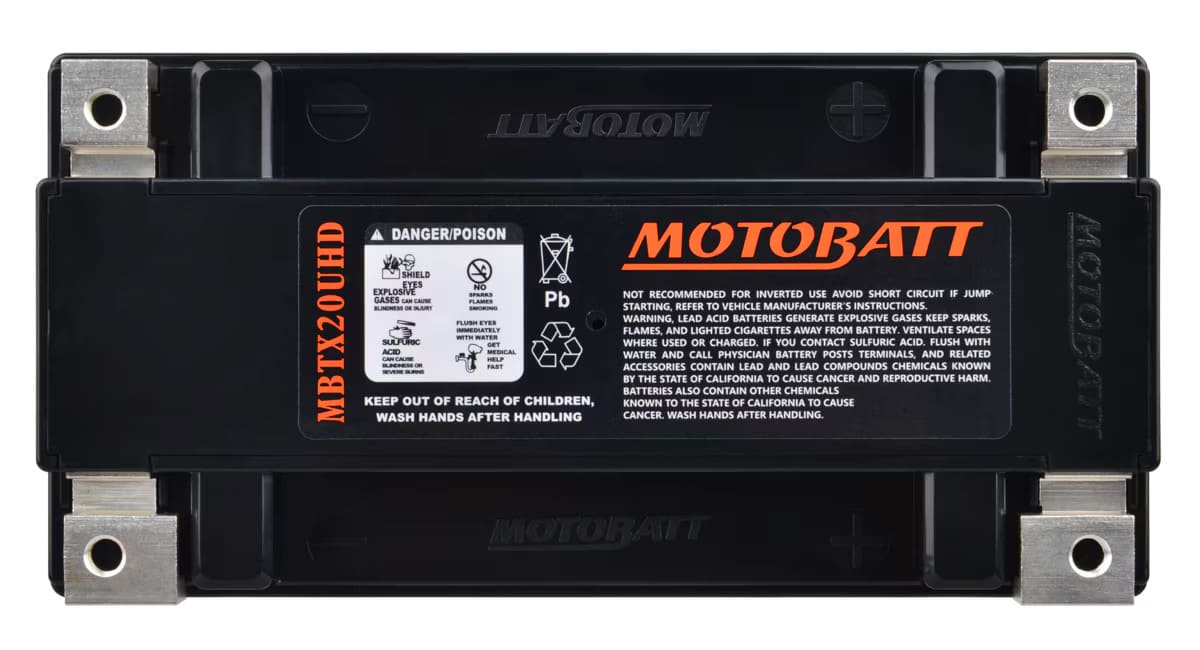

Motobatt 12V AGM Battery - MBTX20UHD

Motobatt 12V AGM Battery - MBTX20UHD

Motobatt Quadflex offers the best balance between AH (ampere hours) and CCA (Cold Cranking Amps -18C). Achieving this by increasing the size of the internal plates, by utilizing the unused space found in other batteries.

This is made possible through our world wide patented innovated cell connection system. Additionally, we enhance the thickness of the grid, the density of the paste, and the weight (content) of the active material to maximize the capacity allowed by its size. Revolutionary to the Battery Market.

Features:

• Power Experience up to 30% more capacity and power with the same size as competitor batteries, thanks to its exclusive design

• Safe No need to add acid and risk any accidental spillages

• Durable Thanks to its technology and high quality AGM it is extremely resistant to vibrations or weld breakages

• Maintenance Free Fully sealed and factory activated, it requires no maintenance other than keeping it charged in storage

• Ready to go With a voltage of over 12.5V the battery is ready to use right away

• New improved solid mounted terminals with threaded inserts


Replaces:

• Yuasa YTX20, YTX20L, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW, YTX20H, YTX20HL, YTX20HL-PW, YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2, YB16LB, YB16LB2, YB16CB, YB16CLB, YB16BCX, GT16L-BS, GT16BS, CTX19-BS CTX19L-BS , GYZ20H, GYZ20L, GYZ20HL

• DEKA ETX16, ETX16L, ETX20, ETX20L

• ODYSSEY PC535, PC625 AGM20L, AGM16L

• WPS 491-1001


FITMENT:

Replaces OEM Part : 715900316, 515175642, 410922990, 410301203

• Can-Am Maverick : 2013-2018

• Can-Am Maverick Max : 2014-2018

• Can-Am Maverick Turbo : 2015-2017

• Can-Am Maverick Turbo Max: 2015-2017
• Can Am Maverick Trail 800 : 2018+
• Can Am Maverick Trail 800 DPS : 2018+
• Can Am Maverick Trail 1000 : 2018+
• Can Am Maverick Trail 1000 DPS : 2018+
• Can-Am Maverick Sport 1000 : 2019+
• Can-Am Maverick Sport 1000 DPS : 2019+
• Can-Am Maverick Sport 1000R DPS : 2019+
• Can-Am Maverick Sport 1000R XMR: 2019+
• Can-Am Maverick Sport 1000R XRC : 2019+
• Can-Am Maverick Sport MAX 1000R DPS : 2019+
• Can-Am Maverick X3 900 : 2018
• Can-Am Maverick X3 Turbo : 2017-2020
• Can-Am Maverick X3 Turbo R : 2018-2020
• Can-Am Maverick X3 DS Turbo R : 2021
• Can-Am Maverick X3 DS Turbo 64 : 2022+
• Can-Am Maverick X3 DS Turbo RR 64 : 2022+
• Can-Am Maverick X3 RS Turbo R : 2021
• Can-Am Maverick X3 RS Turbo RR 72 : 2022+
• Can-Am Maverick X3 X DS Turbo R : 2017-2020
• Can-Am Maverick X3 X DS Turbo RR : 2020-2021
• Can-Am Maverick X3 X DS Turbo RR 64 : 2022+
• Can-Am Maverick X3 X MR Turbo : 2018-2021
• Can-Am Maverick X3 X MR Turbo R : 2018-2019
• Can-Am Maverick X3 X MR Turbo RR : 2020-2021
• Can-Am Maverick X3 X MR Turbo RR 64 : 2022+
• Can-Am Maverick X3 X MR Turbo RR 72 : 2022+
• Can-Am Maverick X3 X RC Turbo : 2018-2021
• Can-Am Maverick X3 X RC Turbo R : 2018-2020
• Can-Am Maverick X3 X RC Turbo RR : 2020-2021
• Can-Am Maverick X3 X RC Turbo RR 64 : 2022+
• Can-Am Maverick X3 X RC Turbo RR 72 : 2022+
• Can-Am Maverick X3 X RS Turbo R : 2017-2020
• Can-Am Maverick X3 X RS Turbo RR : 2020-2021
• Can-Am Maverick X3 X RS Turbo RR 72 : 2022+
• Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72 : 2022+
• Can-Am Maverick X3 MAX Turbo : 2017-2020
• Can-Am Maverick X3 MAX Turbo R : 2018-2020
• Can-Am Maverick X3 MAX DS Turbo R : 2021
• Can-Am Maverick X3 MAX DS Turbo 64 : 2022+
• Can-Am Maverick X3 MAX DS Turbo RR 64 : 2022+
• Can-Am Maverick X3 MAX RS Turbo R : 2021
• Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022+
• Can-Am Maverick X3 MAX X DS Turbo RR 64 : 2022+
• Can-Am Maverick X3 MAX X DS Turbo : 2017-2019
• Can-Am Maverick X3 MAX X DS Turbo R : 2020
• Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021
• Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021
• Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021
• Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022+
• Can-Am Maverick X3 MAX X RS Turbo : 2017-2020
• Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020
• Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021
• Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022+
• Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72 : 2022+
• Can-Am Commander 800 : 2011-2020
• Can-Am Commander 1000 : 2011-2020
• Can-Am Commander 1000R DPS : 2021+
• Can-Am Commander 1000R XT : 2021+
• Can-Am Commander 1000R XTP : 2021+
• Can-Am Commander Max 1000R DPS : 2021+
• Can-Am Commander Max 1000R XT : 2021+
• Can-Am Defender HD 5 : 2017-2021
• Can-Am Defender HD 5 DPS : 2017-2021
• Can-Am Defender HD 8 : 2016-2021
• Can-Am Defender HD 8 DPS : 2016-2021
• Can-Am Defender HD 8 XT : 2016-2021
• Can-Am Defender HD 8 XT Cab : 2016-2021
• Can-Am Defender HD 10 : 2016+
• Can-Am Defender HD 10 6x6 : 2020+
• Can-Am Defender HD 10 DPS : 2016+
• Can-Am Defender HD 10 Limited : 2020+
• Can-Am Defender HD 10 Mossy Oak : 2018+
• Can-Am Defender HD 10 XMR : 2018+
• Can-Am Defender HD 10 XT : 2016+
• Can-Am Defender HD 10 XT Cab : 2016+
• Can-Am Defender HD 10 XTP : 2018+
• Can-Am Defender Pro HD 10 : 2020+
• Can-Am Defender MAX HD 8 : 2017-2021
• Can-Am Defender MAX HD 8 DPS : 2017-2021
• Can-Am Defender MAX HD 8 XT : 2017-2021
• Can-Am Defender MAX HD 8 XT Cab : 2017-2021
• Can-Am Defender MAX HD 10 DPS : 2017+
• Can-Am Defender MAX HD 10 Limited : 2020+
• Can-Am Defender MAX HD 10 Lone Star Edition : 2018+
• Can-Am Defender MAX HD 10 XMR : 2019+
• Can-Am Defender MAX HD 10 XT : 2017+
• Can-Am Defender MAX HD 10 XT Cab : 2017+

Installation Instructions:

• Motobatt spec-MBTX20UHD.pdf


Specifications:

Battery Type	MBTX20UHD
Voltage	12
CCA	335
MCA	395A
PHCA	605A
Capacity (10HR)	C10 - 22.5Ah, C20 - 23.5Ah
Weight	6.50kg / 14.33Ibs
Dimensions (in / mm)	L: 6.89(175) W: 3.43(87) H: 6.10(155) TW: 3.94(100) TH: 6.89(175)
Assembly Figure Terminal Locations	4
Terminals	2x Blocknut M6 (PART MPN2)
Screws	2x Screws M6x12 (PART MPS4)
Terminal Caps	2 Black, 2 Red PART (MPC3)
Spacer	2, 20mm Bottom (Part# MPBS7), 13mm Back (Part# MPSS)
